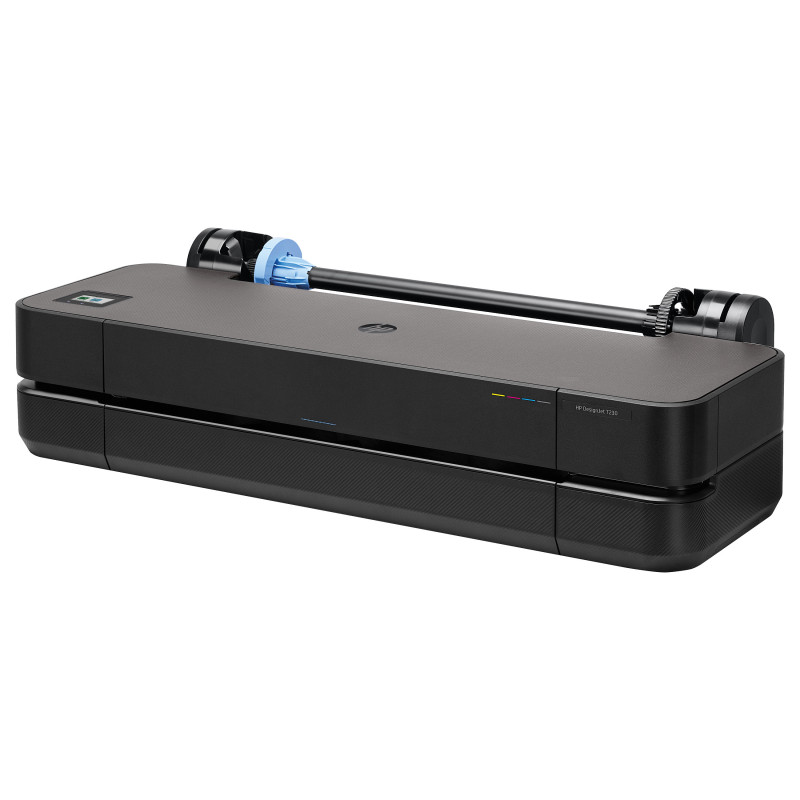

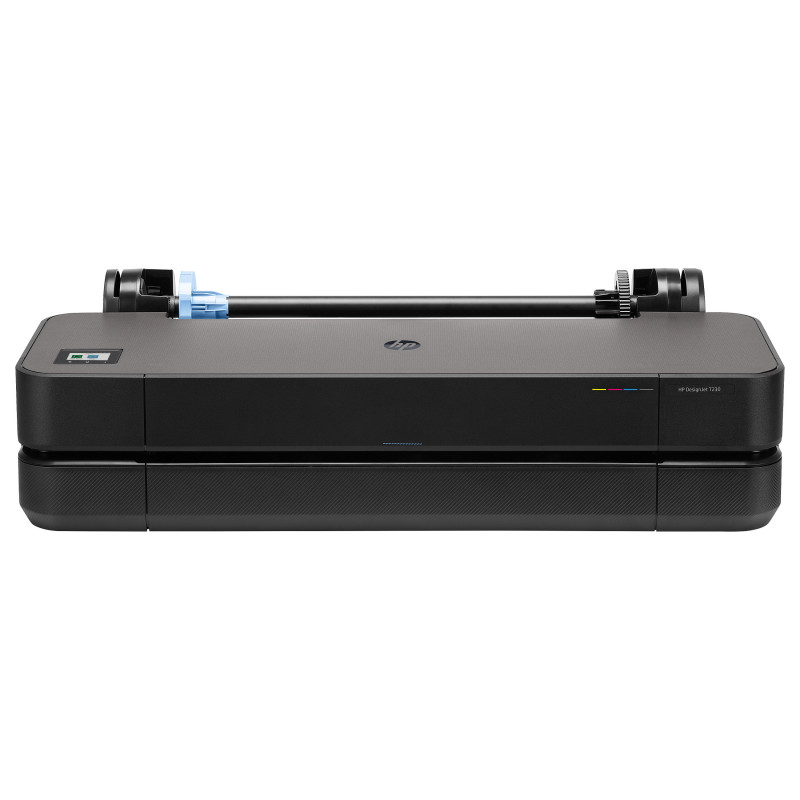

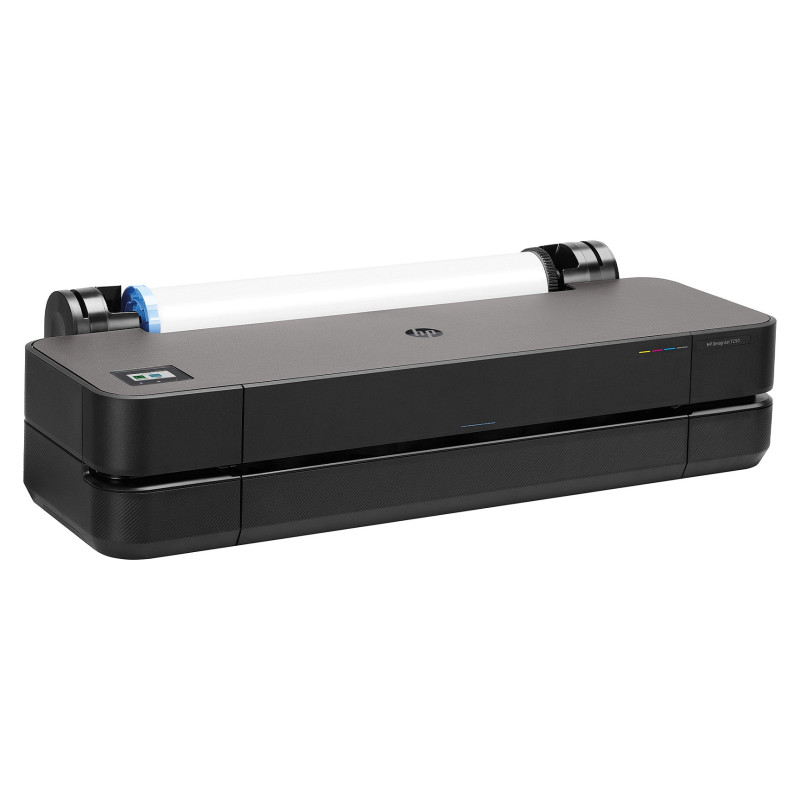

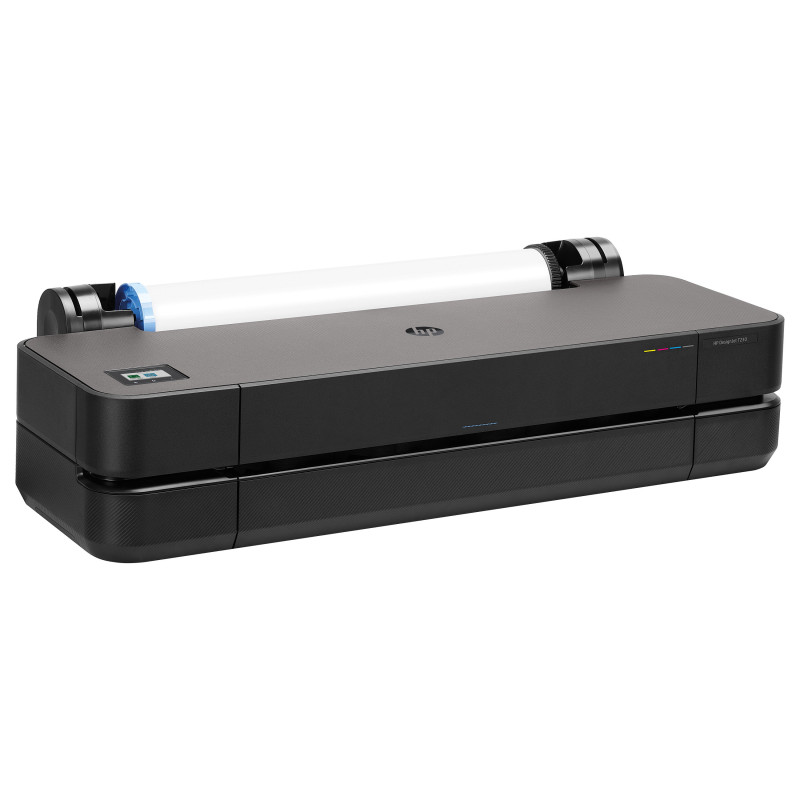

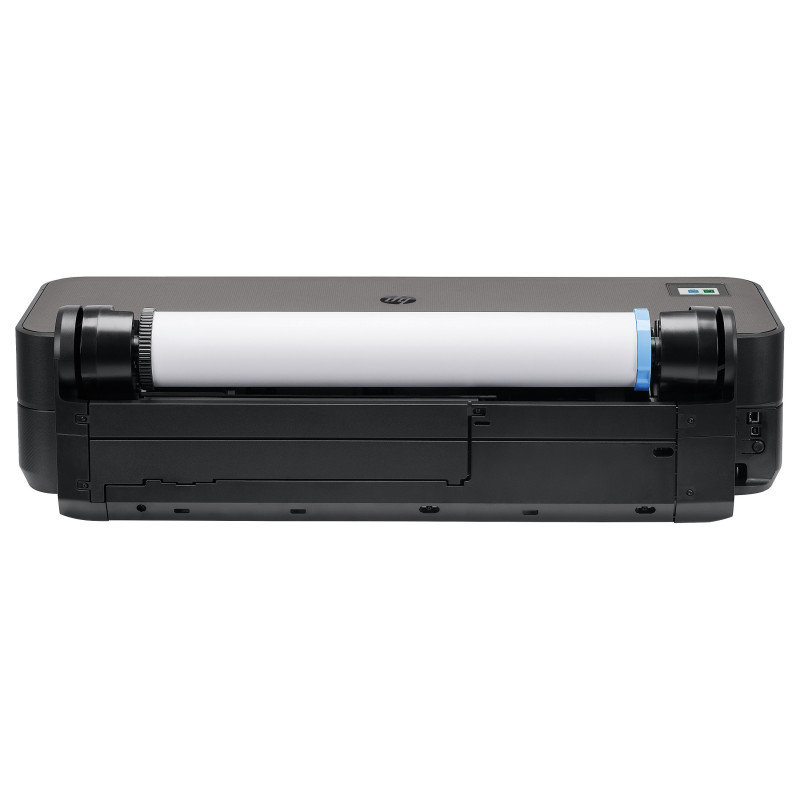

HP Designjet T230 24-in Printer large format printer

HP Designjet T230 24-in Printer 2025 edition. Print technology: Thermal inkjet, Maximum resolution: 2400 x 1200 DPI, Page description languages: JPEG, URF. Maximum print size: 610 x 1897 mm, Paper tray media types: Coated paper, Plain paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper,..., ISO A-series sizes (A0...A9): A1, A2, A3, A4. Ethernet LAN data rates: 10,100,1000 Mbit/s, Mobile printing technologies: Apple AirPrint. Product colour: Grey, Internal memory: 512 MB, Country of origin: China, Thailand, Switzerland. Power consumption (standby): 0.2 W, Power consumption (typical): 35 W, Power consumption (off): 0.2 W

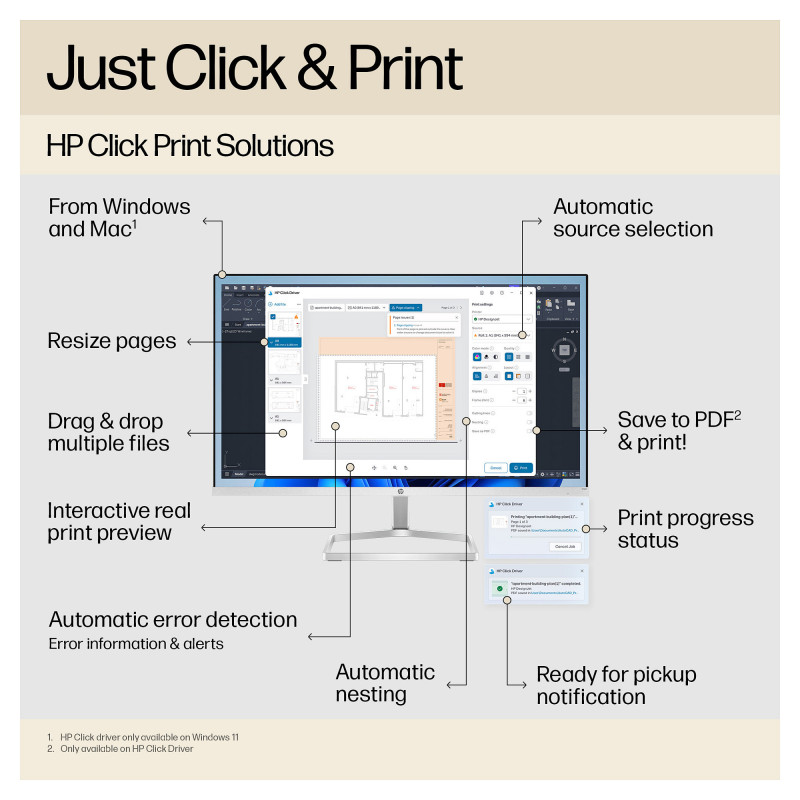

Focus on the project, not your plotter. This printer delivers incredible ease of use with HP Click Print solutions. ^[2] It's responsibly designed to help you save energy ^[4] and reduce plastics use ^[7] . Plus, it's compact and adaptable—to fit the way you work.

Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

Printing

Print resolution colour: 2400 x 1200 DPI
Print technology: Thermal inkjet
Colour: Yes
Maximum resolution: 2400 x 1200 DPI
Number of print cartridges: 4
Page description languages: JPEG, URF
Printing colours: Black, Cyan, Magenta, Yellow
Print head: 1 (cyan , magenta, yellow, black)
Print speed (normal quality, A1): 68 pph

Copying

Copying: No

Scanning

Scanning: No

Paper handling

Custom media sizes: 210 x 279 to 610 x 1897 mm
Maximum print size: 610 x 1897 mm
Paper tray media types: Coated paper, Plain paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper
ISO A-series sizes (A0...A9): A1, A2, A3, A4
Cut sheets: Yes
Media thickness: 0.3 mm
Maximum roll diameter: 10 cm
Roll weight (rear roll): 4.1 kg

Ports & interfaces

Wi-Fi: Yes
Ethernet LAN: Yes
USB port: Yes
USB 2.0 ports quantity: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Direct printing: Yes
Wi-Fi Direct: Yes
Mobile printing technologies: Apple AirPrint

Performance

Product colour: Grey
Built-in display: No
Internal memory: 512 MB
Introduction year: 2024
Country of origin: China, Thailand, Switzerland
Certification: Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)
HP segment: Business

Brand-specific features

HP Dynamic security: Yes

Power

Power consumption (standby): 0.2 W
Power consumption (typical): 35 W
Power consumption (off): 0.2 W
Power consumption (sleep): 2.1 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Operational conditions

Operating temperature (T-T): 5 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -25 - 55 °C
Operating altitude: 0 - 3000 m

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes

Sustainability

Sustainability compliance: Yes
Sustainability certificates: ENERGY STAR

Weight & dimensions

Width: 1013 mm
Depth: 440 mm
Height: 285 mm
Weight: 21.5 kg

Packaging data

Package width: 1155 mm
Package depth: 575 mm
Package height: 405 mm
Package weight: 27 kg
Bundled software: HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS

Other features

Electromagnetic compatibility: Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)
UNSPSC-code: 43212104

Technical details

Box contents: HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
