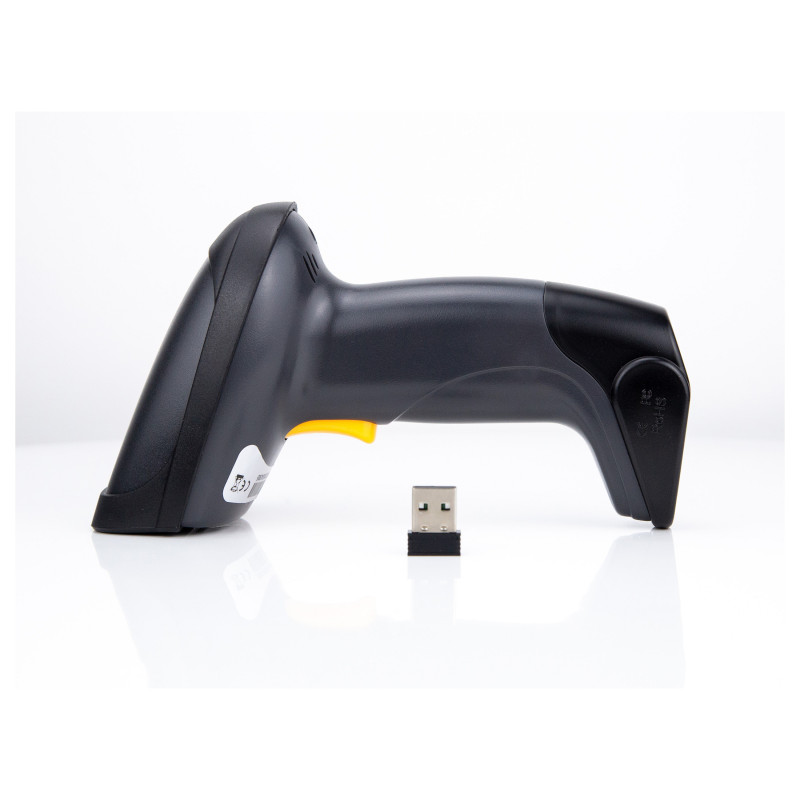

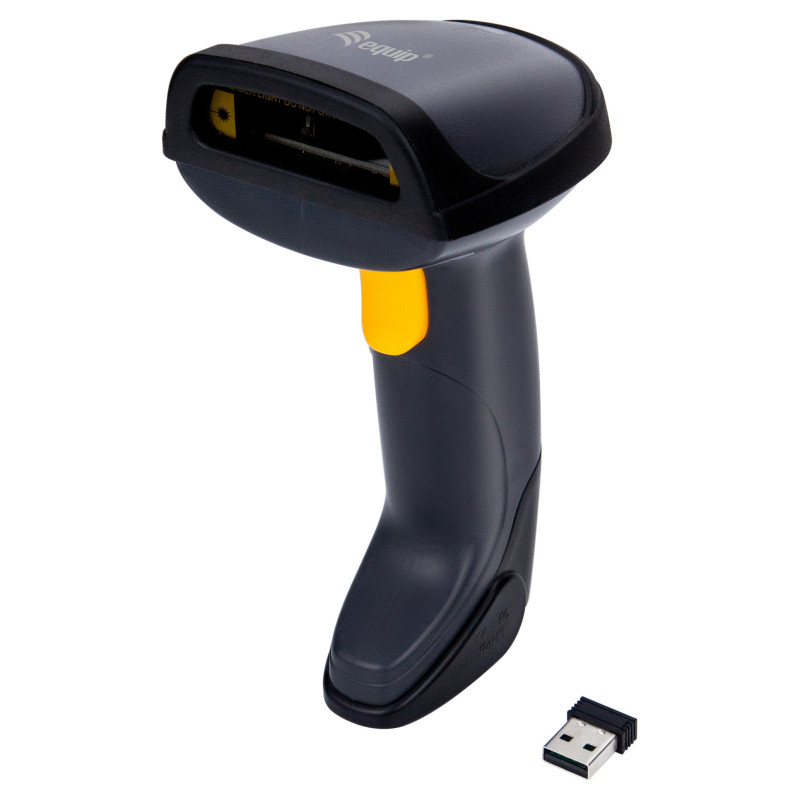

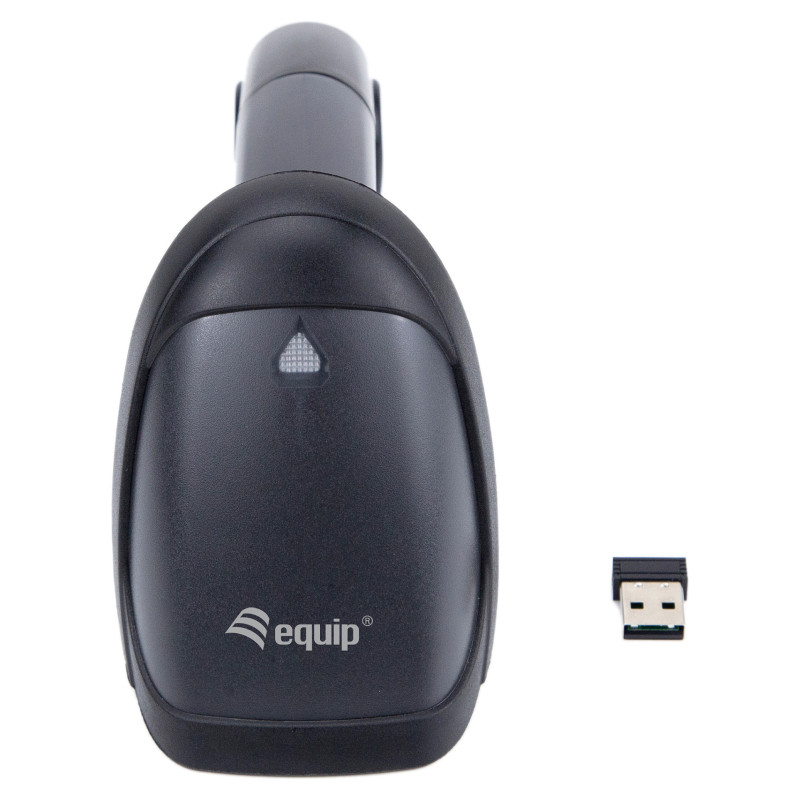

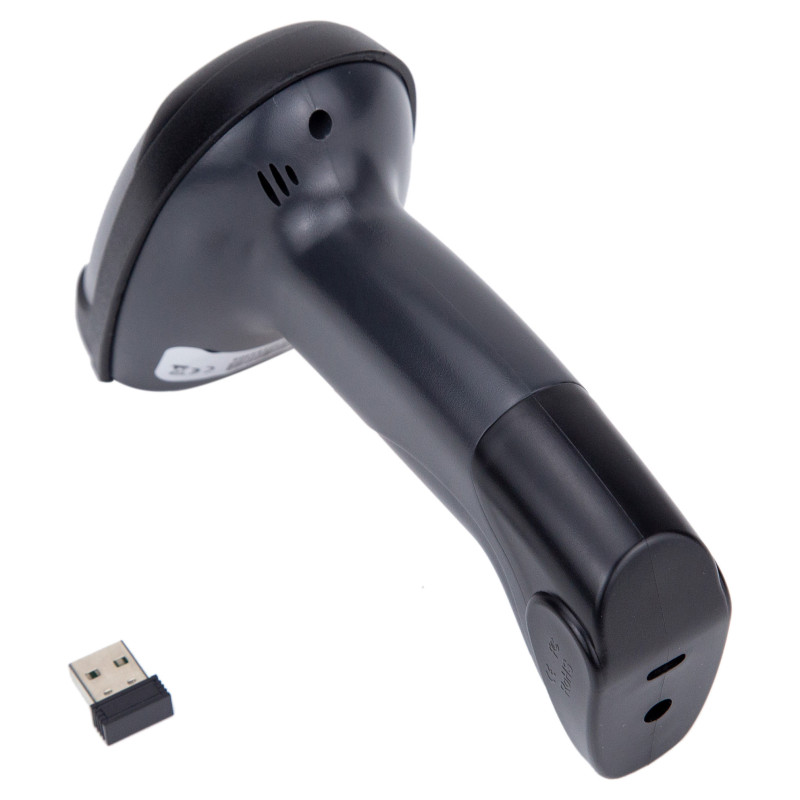

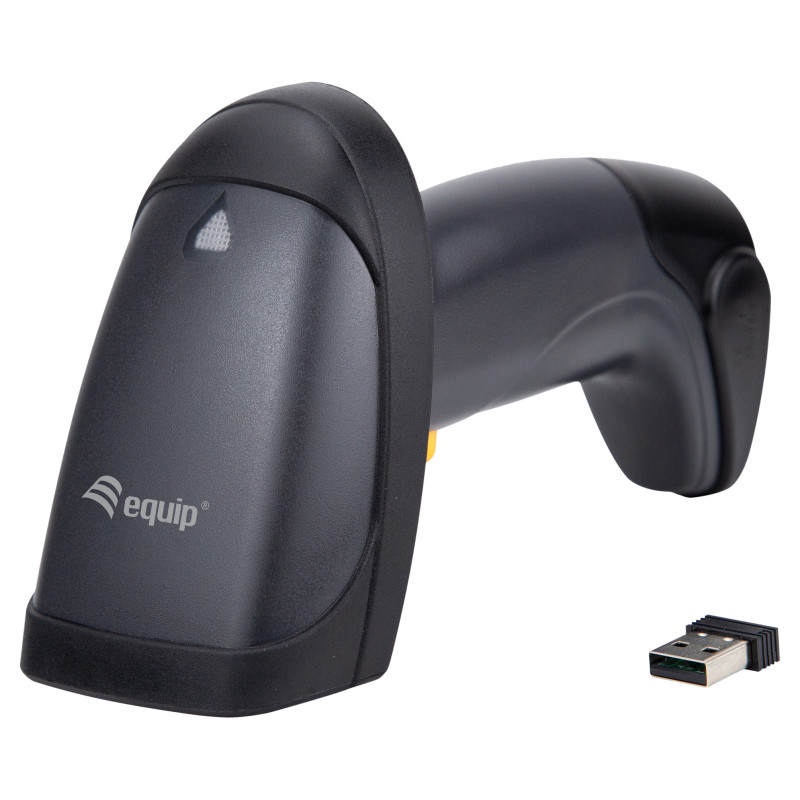

Equip 351023 barcode reader

Equip Wireless 1D Laser Barcode Scanner, with Stand. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: LED. Connectivity technology: Wireless, Standard interfaces: RF Wireless, Operating frequency: 2400 MHz. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), International Protection (IP) code: IP54. Power source type: Battery, Battery type: Built-in battery, Battery voltage: 3.7 V. Weight: 190 g, Width: 72 mm, Depth: 101 mm
The Equip Wireless 1D Laser Barcode Scanner with Stand is a versatile and efficient scanning solution for businesses. This device, designed for various applications, including retail and inventory management, offers the flexibility of wireless operation and the convenience of a stand for hands-free use.
With wireless capabilities, it provides freedom of movement, making it an ideal choice for scanning barcodes on products, shelves, or inventory. The included stand enhances productivity, particularly in busy retail or warehouse settings.
This 1D laser barcode scanner offers quick and precise barcode reading, simplifying data capture and reducing errors. Its wireless connectivity ensures seamless integration with your systems. This scanner streamlines operations, improves inventory accuracy, and enhances customer service, making it a cost-effective solution for businesses. It's a reliable tool for organizations seeking an efficient way to manage 1D barcoded information while maintaining flexibility and convenience.

Scanning

Type: Handheld bar code reader
Scanner type: 1D
Sensor type: LED
Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, Interleaved 2 of 5, UPC-A, UPC-E
2D (matrix stacked) barcodes supported: Not supported
Trigger mode: Auto-induction, Continuous, Manual
Scanner resolution: 4 mm
Working distance: 70 cm
Read rate (max): 200 reads/s
Wavelength: 650 nm
Maximum scan width: 30 cm
Depth of field range: 7.5 cm

Ports interfaces

Connectivity technology: Wireless
Standard interfaces: RF Wireless
Operating frequency: 2400 MHz
Cable length: 1.8 m

Performance

Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP54
Protection features: Drop proof, Water resistant
Product colour: Black
Country of origin: China

Power

Power source type: Battery
Battery type: Built-in battery
Number of batteries supported: 1
Battery voltage: 3.7 V
Battery life: 20 h
Input voltage: 5 V

Weight dimensions

Width: 72 mm
Depth: 101 mm
Height: 175 mm
Weight: 190 g

Packaging data

Cables included: USB
Feature: Charging base
Feature: Receiver included
Receiver type: Nano receiver

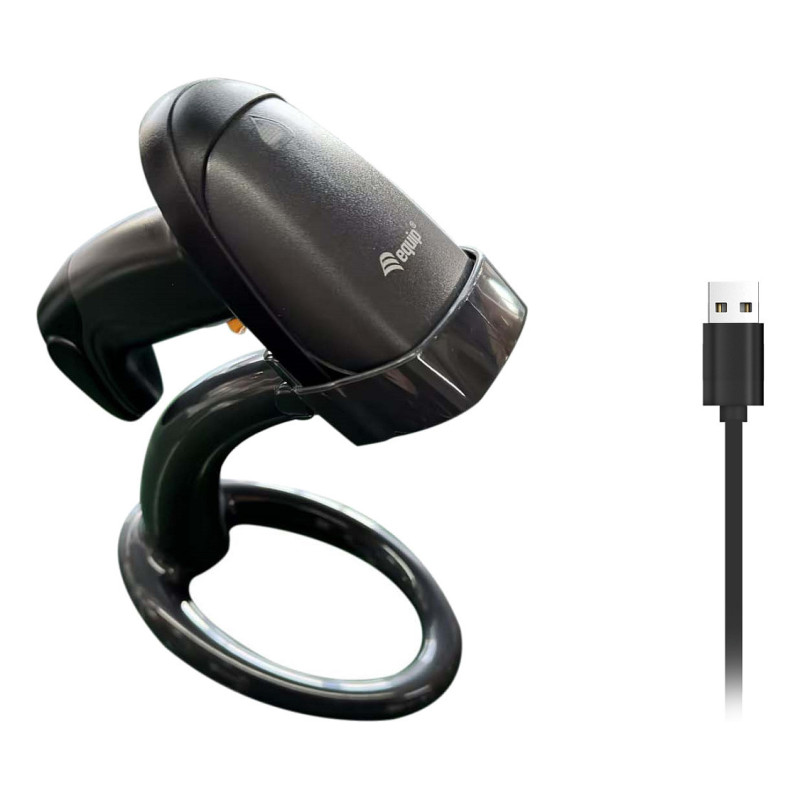

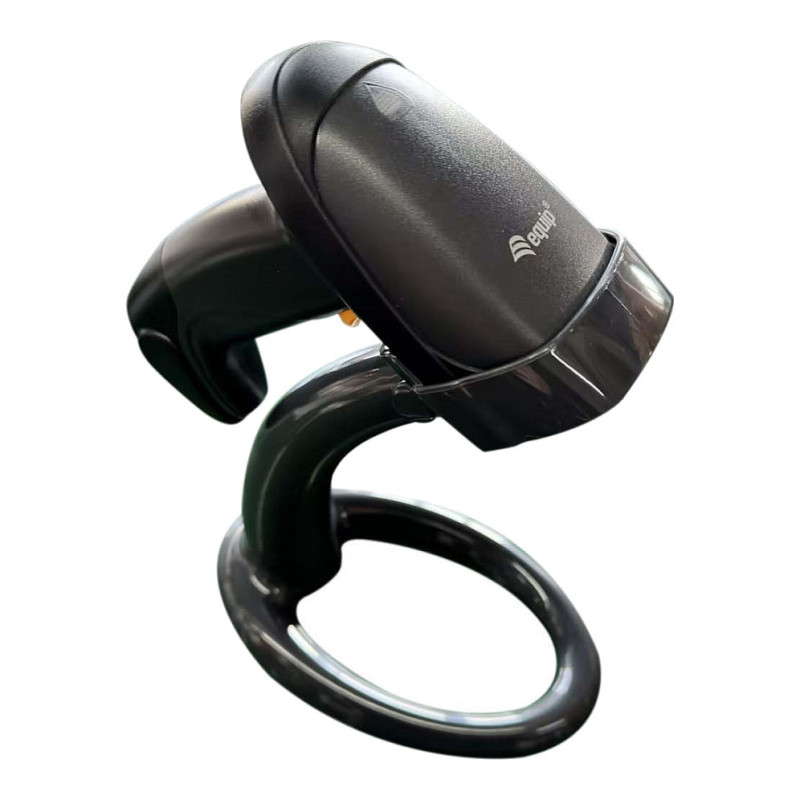

Feature: Stand included
Package width: 150 mm
Package depth: 207 mm
Package height: 100 mm
Package weight: 465 g

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Battery

Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 1500 mAh
Battery capacity: 5.55 Wh

Technical details

Feature: Sustainability compliance
Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 30 pc(s)
Master (outer) case gross weight: 15.5 kg
Master (outer) case length: 485 mm
Master (outer) case width: 440 mm
Master (outer) case height: 525 mm
Harmonized System (HS) code: 8471900090

Other features

Mobile operating systems supported: Android, iOS
Linux operating systems supported: Yes
Feature: Quick start guide
