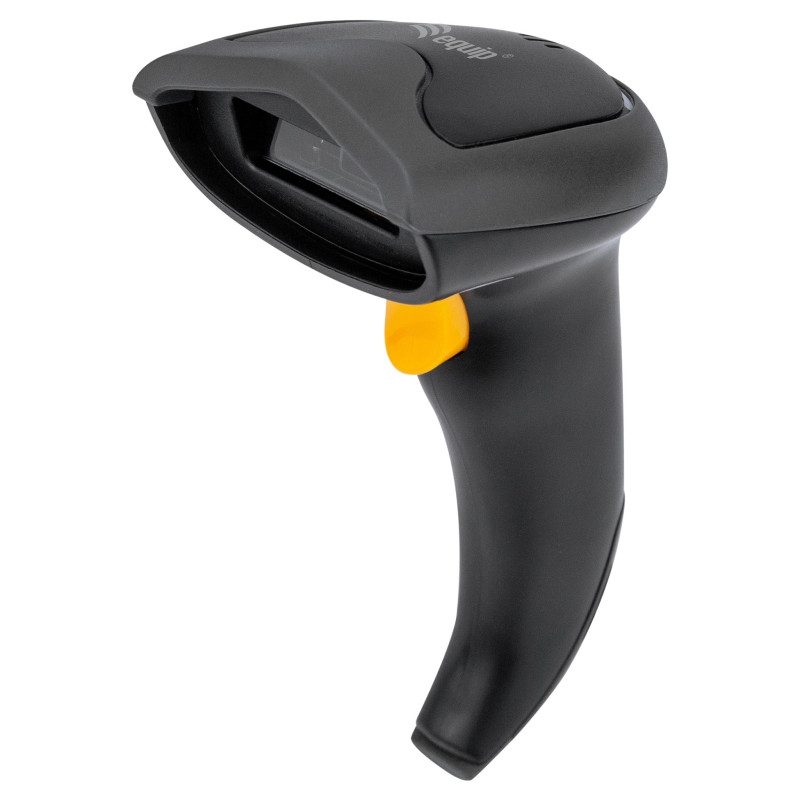

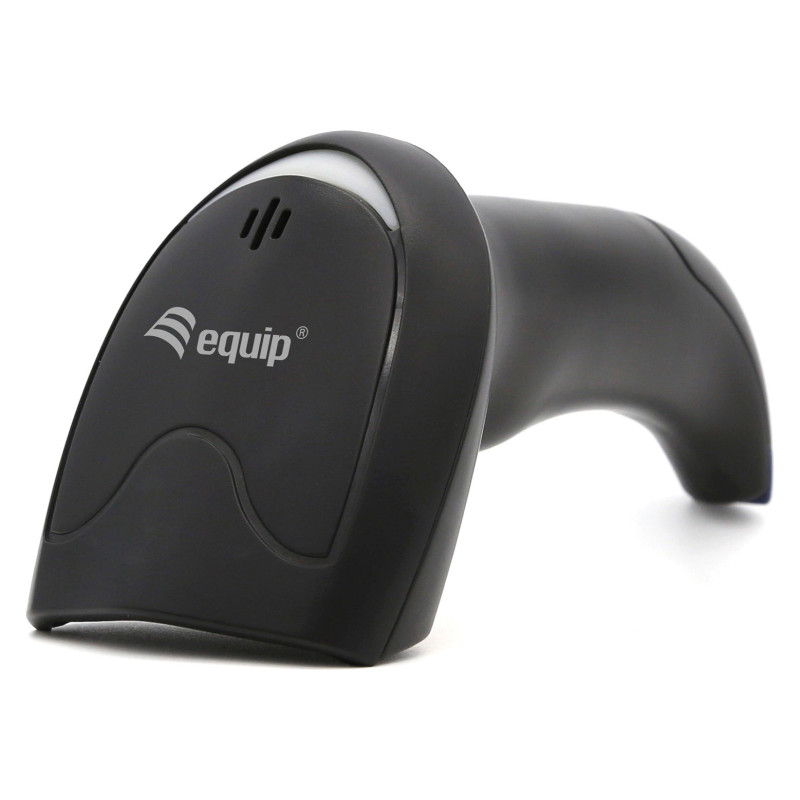

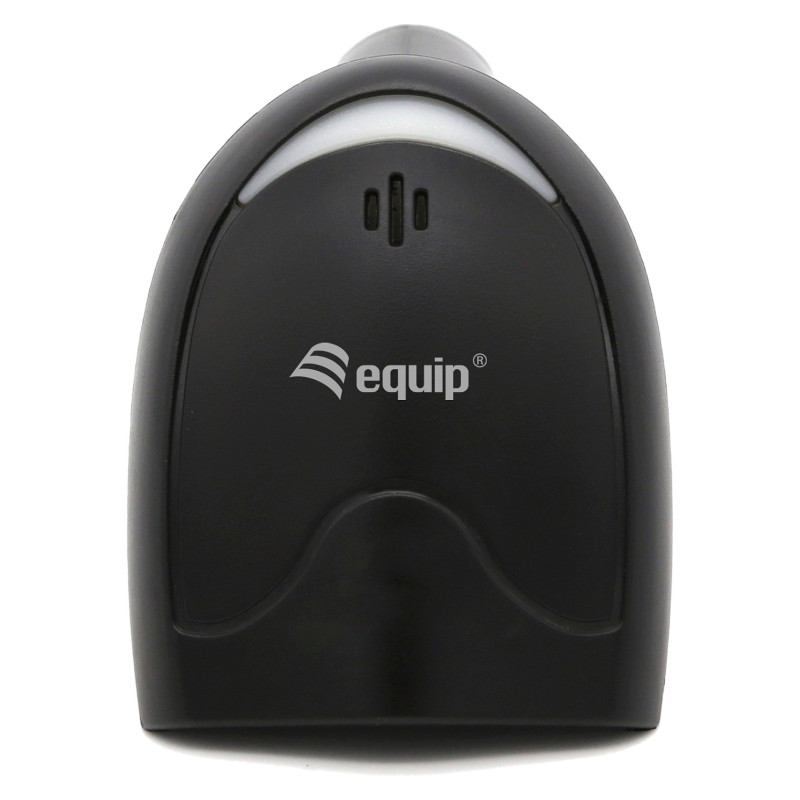

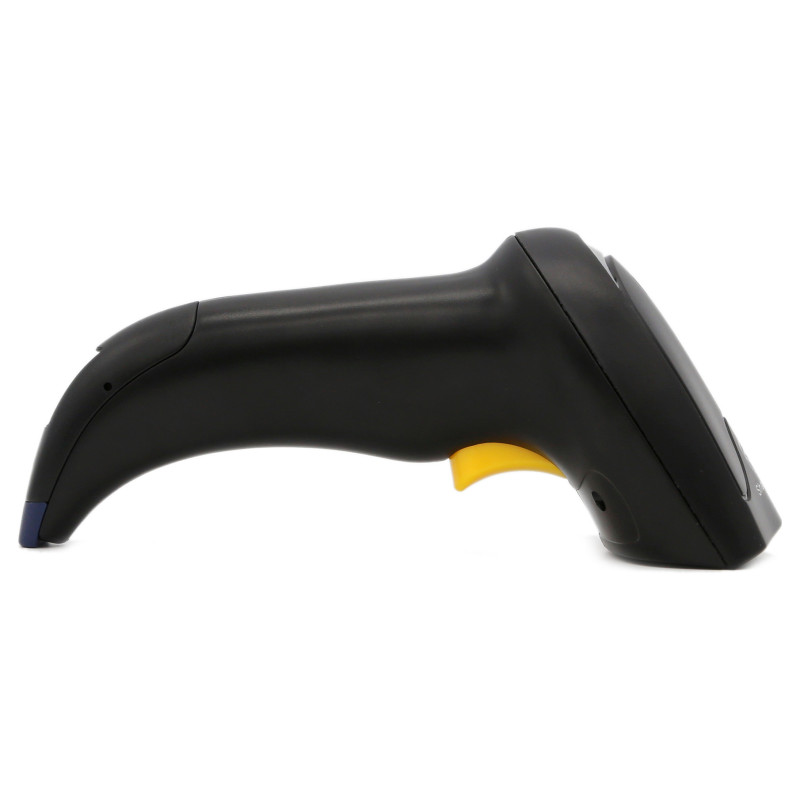

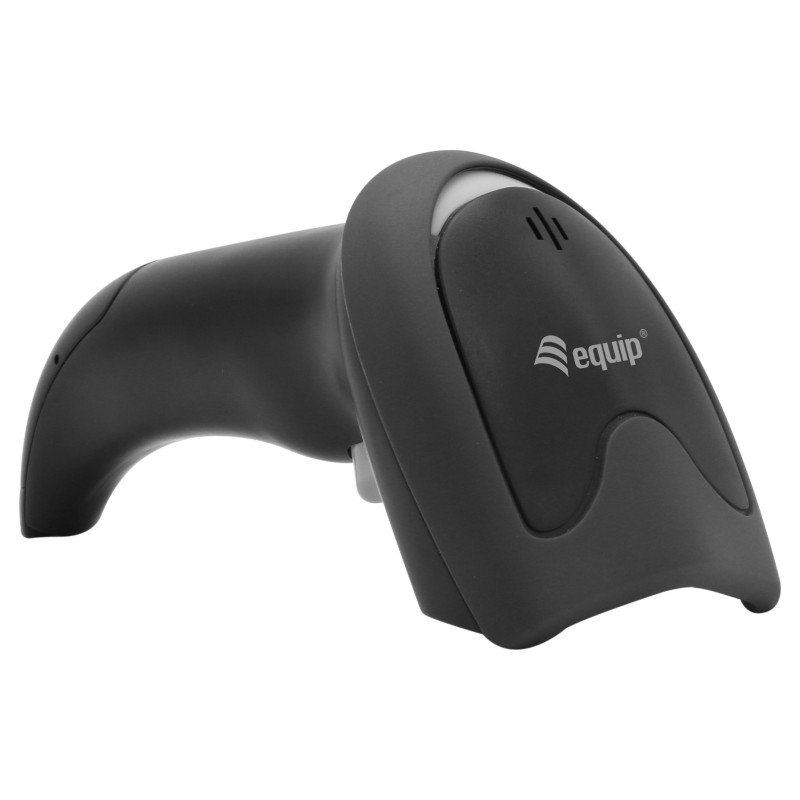

Equip 351021 barcode reader

Equip USB 2D Barcode Scanner, with Stand. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB, Cable length: 1.8 m. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), International Protection (IP) code: IP54. Power source type: USB, AC adapter output voltage: 5 V. Weight: 102 g, Width: 70 mm, Depth: 79 mm
The Equip USB 2D Barcode Scanner with Stand is a versatile and high-performance tool for scanning 2D barcodes. This device is ideal for various applications, including retail, healthcare, logistics, and more. Equipped with a stand, it provides hands-free operation, improving efficiency and reducing user fatigue.
The USB connectivity ensures easy integration with your computer or point-of-sale system, making setup a breeze. With 2D scanning capabilities, it can quickly and accurately read a wide range of barcodes, including QR codes, Datamatrix, and more. This scanner simplifies data capture and enhances accuracy, making it suitable for tasks like inventory management, patient record keeping, and product tracking.

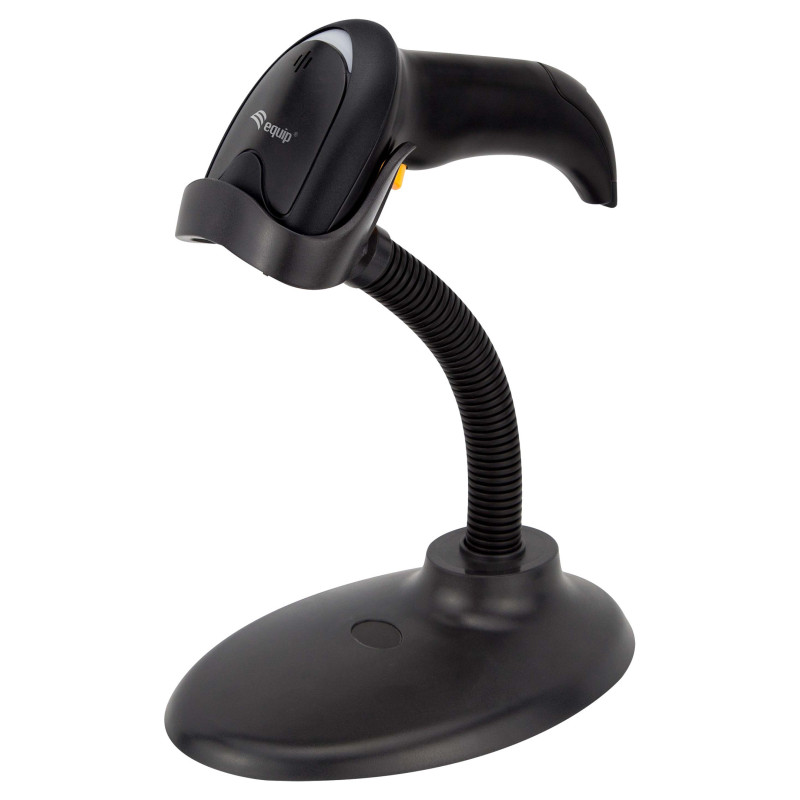

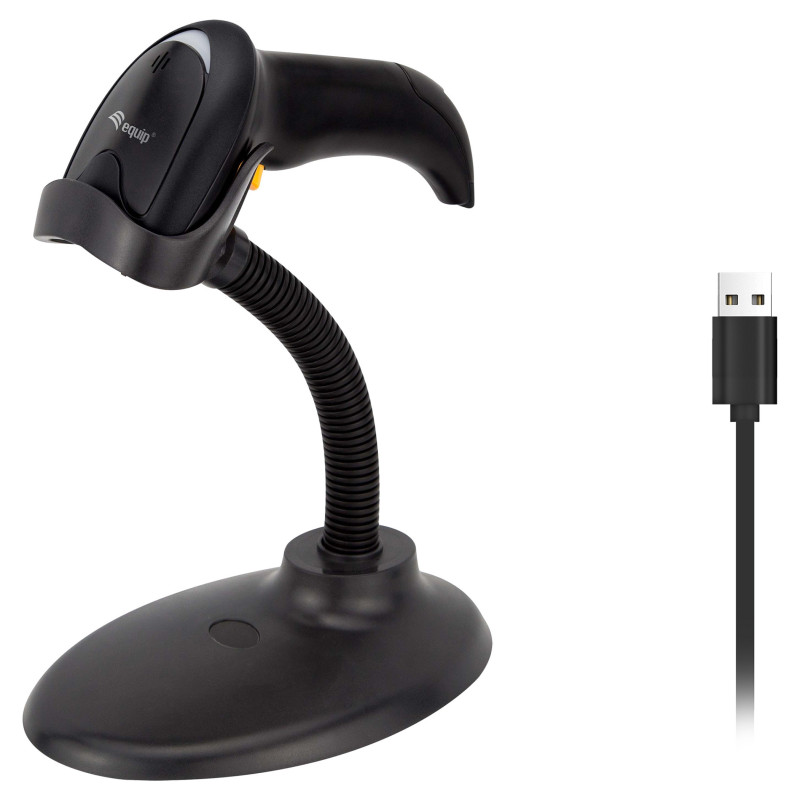

The stand allows for presentation-style scanning, making it a valuable addition to busy retail checkout counters or warehouses where multiple scans are required. This scanner is a cost-effective solution for businesses looking to streamline their operations, improve inventory accuracy, and provide superior customer service. It's a reliable tool for organizations seeking an efficient way to manage 2D barcoded information.

Scanning

Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: LED
2D (matrix stacked) barcodes supported: Data Matrix, PDF417, QR Code
Trigger mode: Auto-induction, Continuous, Manual
Scanner resolution: 5 mm
Working distance: 150 cm
Read rate (max): 220 reads/s
Tilt reading angle: 0 - 360°
Pitch reading angle: -30 - 30°
Yaw reading angle: -35 - 35°

Ports interfaces

Connectivity technology: Wired
Standard interfaces: USB
Cable length: 1.8 m

Performance

Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP54
Protection features: Drop proof, Water resistant
Product colour: Black
Country of origin: China

Power

Power source type: USB
AC adapter output voltage: 5 V

Weight dimensions

Width: 70 mm
Depth: 79 mm
Height: 173 mm
Weight: 102 g

Packaging data

Feature: Stand included
Package width: 150 mm
Package depth: 207 mm
Package height: 100 mm
Package weight: 460 g

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 5 - 95%

Technical details

Feature: Sustainability compliance
Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 30 pc(s)
Master (outer) case gross weight: 15.5 kg
Master (outer) case length: 485 mm
Master (outer) case width: 440 mm
Master (outer) case height: 525 mm
Harmonized System (HS) code: 8471900090

Other features

Mobile operating systems supported: Android, iOS
Linux operating systems supported: Yes
Feature: Quick start guide
