Epson WorkForce ES-590W

Epson WorkForce ES-590W. Maximum scan size: 215.9 x 6096 mm, Optical scanning resolution: 600 x 600 DPI, Input colour depth: 30 bit. Scanner type: Sheet-fed scanner, Product colour: Black, Display: LCD. Sensor type: CIS, Daily duty cycle (max): 5000 pages, Light source: ReadyScan LED. Standard input capacity: 100 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Plastic Card, Post Card(JPN), Business Card, ISO A-series sizes (A0...A9): A4, A5, A6

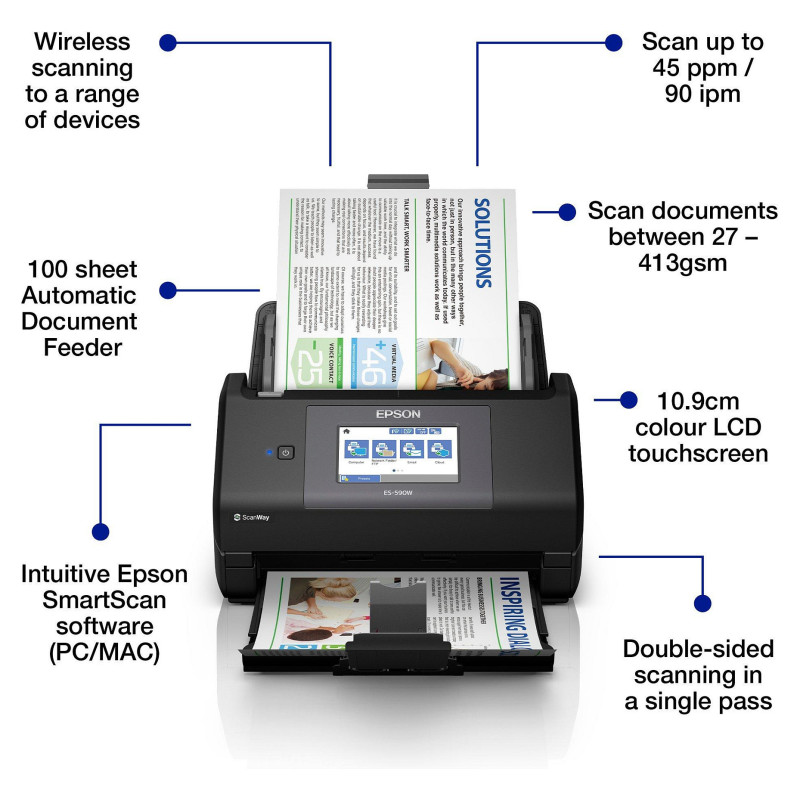

Keep your business organised with this high-speed, A4, auto-duplex scanner with auto-sheet feed. Using the large 10.9cm screen and Wi-Fi you can save your documents directly to where they need to be. Work fast and smart with customisable presets.

Scan speed of 45ppm/90ipm and capture both sides in one pass
Efficiently scan documents using the 100-sheet auto document feeder

Flexible scanning with Epson ScanSmart software
Previewing, Optical Character Recognition and uploading made easy

Auto crop, skew correction and background removal
Intelligent colour and image adjustments with Epson's Image Processing Technology

Scan direct to cloud, network folders and email without a PC

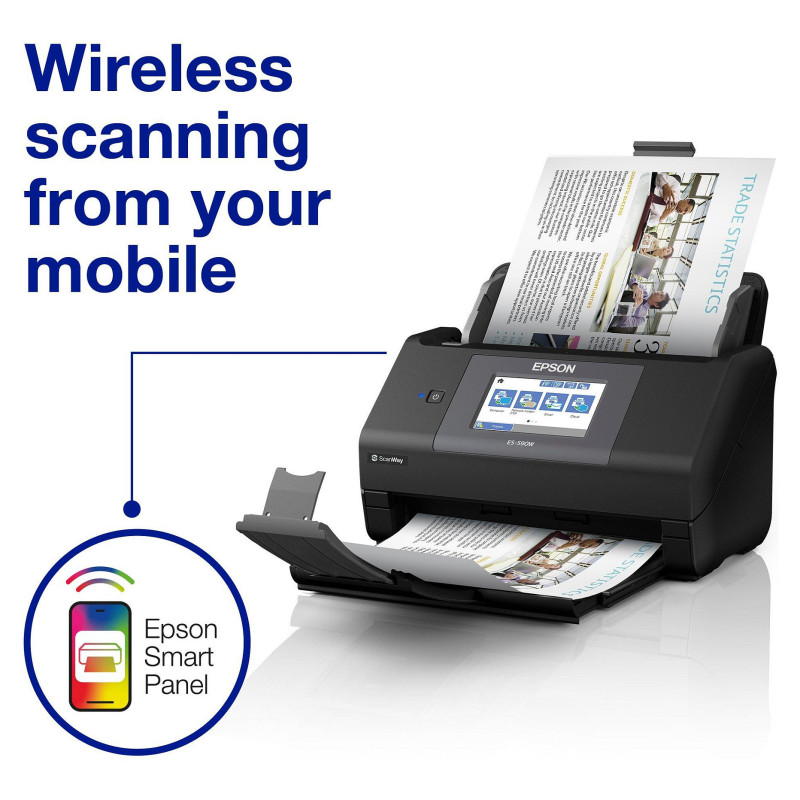

Wirelessly scan to multiple locations

Easy-to-use 10.9cm colour LCD touchscreen
Speed through scanning of documents easily with the large touchscreen control panel

Scanning

Maximum scan size: 215.9 x 6096 mm
Optical scanning resolution: 600 x 600 DPI
Feature: Colour scanning
Feature: Duplex scanning
Input colour depth: 30 bit
Output colour depth: 24 bit
Output monochrome depth: 8 bit
ADF scan speed (b/w, A4): 45 ppm
ADF scan speed (colour, A4): 45 ppm
Black/white scanning colour modes: Monochrome

Design

Scanner type: Sheet-fed scanner
Product colour: Black
Display: LCD
Feature: Touchscreen
Feature: Colour display
Control type: Touch
Feature: Built-in display

Performance

Sensor type: CIS
Light source: ReadyScan LED
Scan file formats: BMP, JPEG, TIFF, PDF, PNG
Daily duty cycle (max): 5000 pages
Scan to: E-mail, FTP, Network folder, USB, Memory card, Cloud
Scan drivers: TWAIN, ISIS, WIA, SANE, ICA
Feature: Ultrasonic sensor
Scanning noise level: 47 dB

Input capacity

Standard input capacity: 100 sheets

Paper handling

Scanning media types supported: Plastic Card, Post Card(JPN), Business Card
Maximum ISO A-series paper size: A4
ISO A-series sizes (A0...A9): A4, A5, A6
ISO B-series sizes (B0...B9): B5, B6
Feature: Letter
Feature: Legal
Paper tray media weight: 27 - 413 g/m²

Ports & interfaces

Feature: USB port
USB version: 3.2 Gen 1 (3.1 Gen 1)

Network

Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Feature: Wi-Fi Direct

Power

Power supply type: AC
Power consumption (typical): 14 W
Power consumption (off): 0.1 W
AC input frequency: 50 - 60 Hz
Feature: Sleep mode
Input voltage: 100 - 240 V
Power consumption (sleep): 0.9 W

Weight & dimensions

Width: 296 mm
Depth: 169 mm
Height: 167 mm
Weight: 3.7 kg

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Cables included: AC, USB

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -25 - 60 °C
Operating relative humidity (H-H): 15 - 80%
Storage relative humidity (H-H): 15 - 85%

Logistics data

Country of origin: Indonesia
