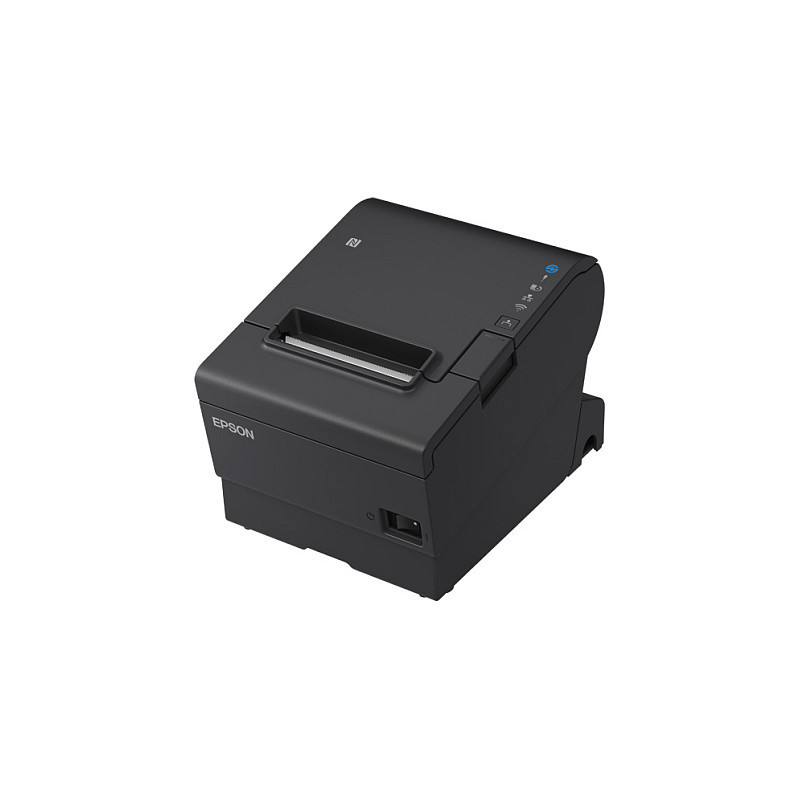

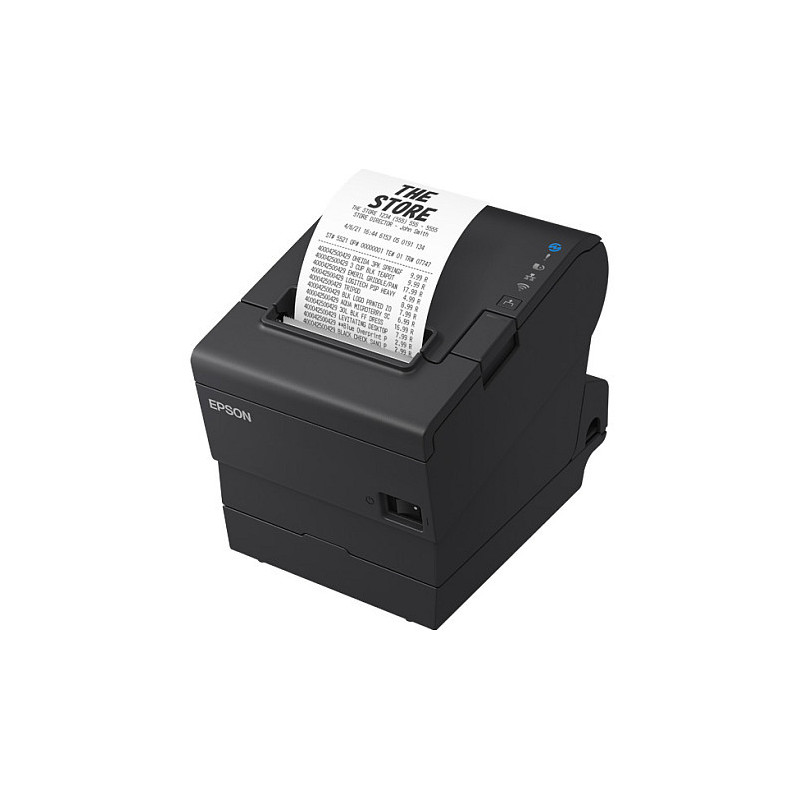

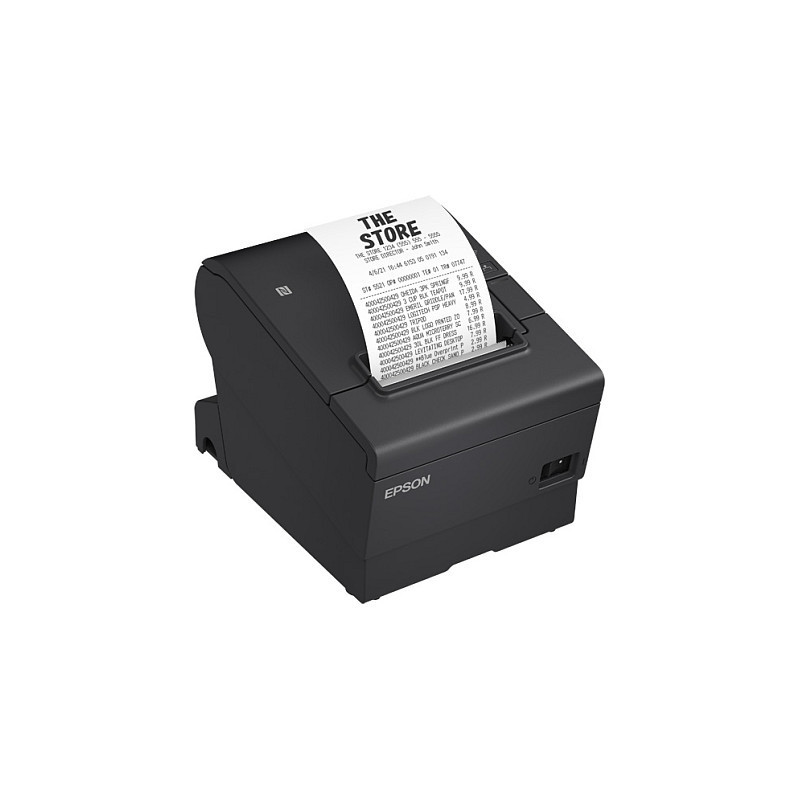

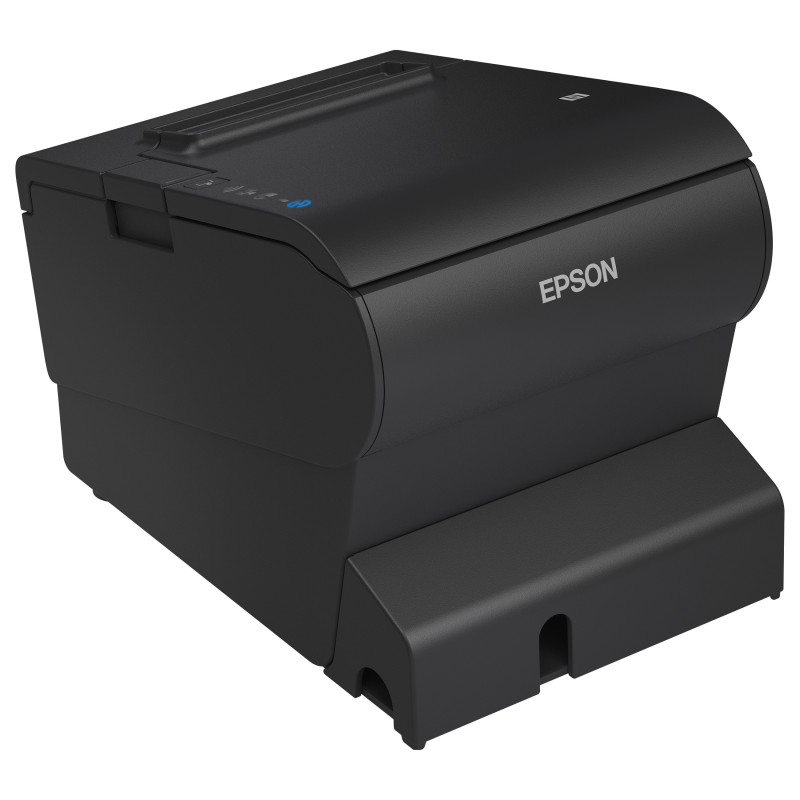

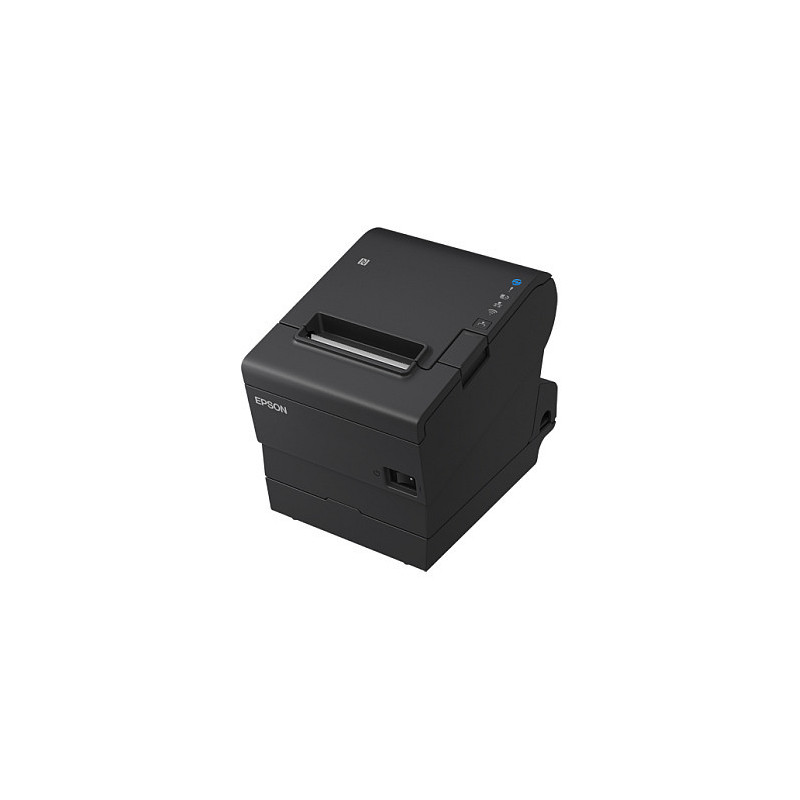

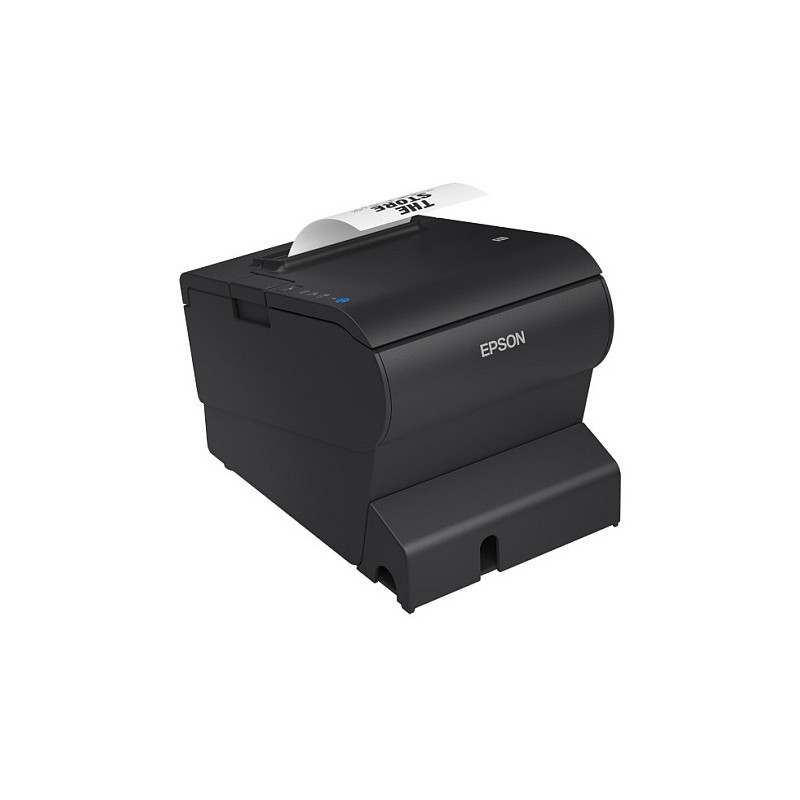

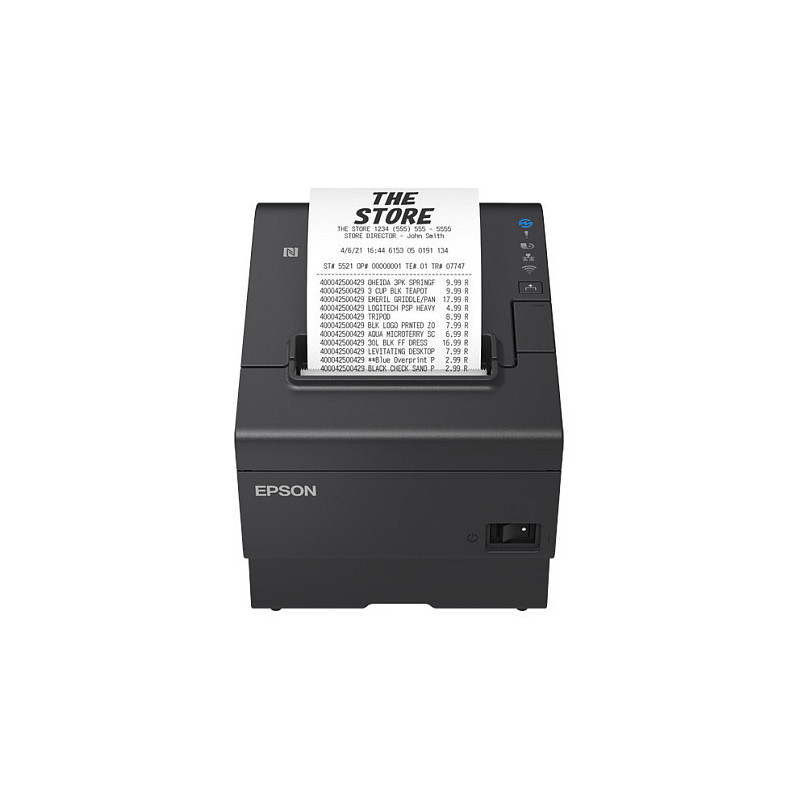

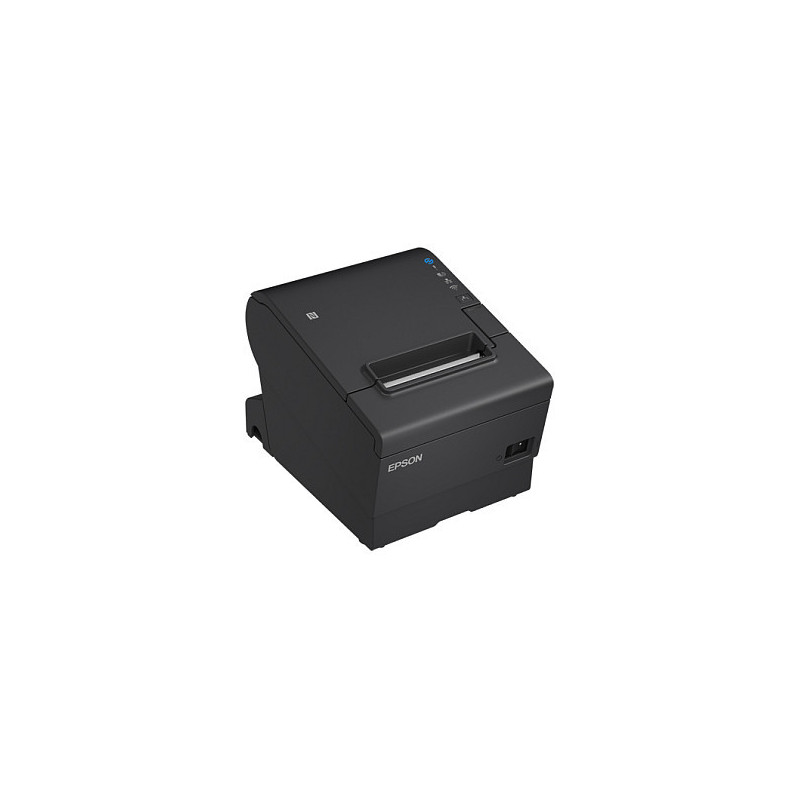

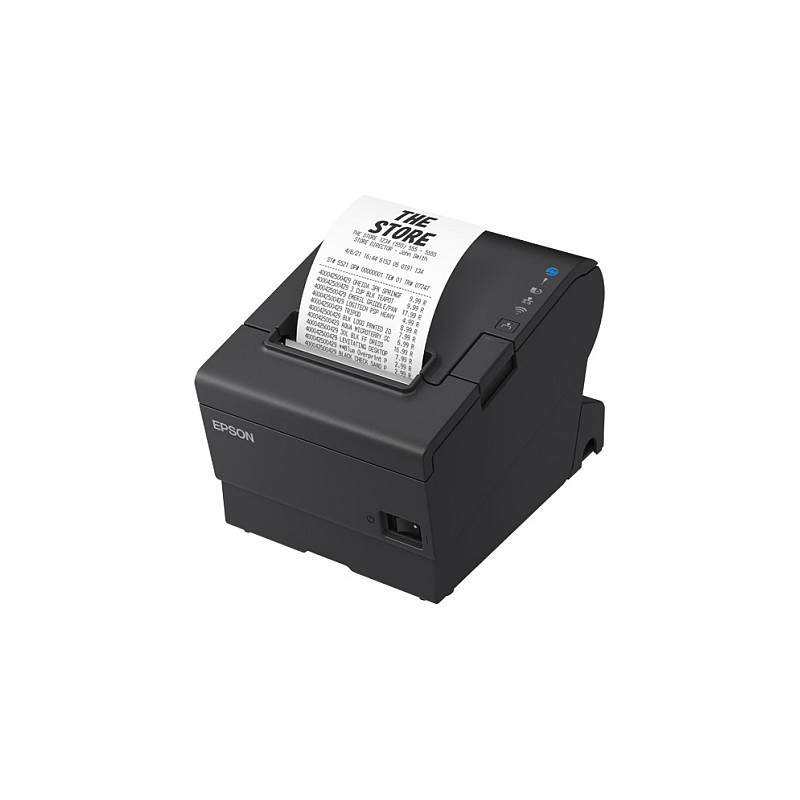

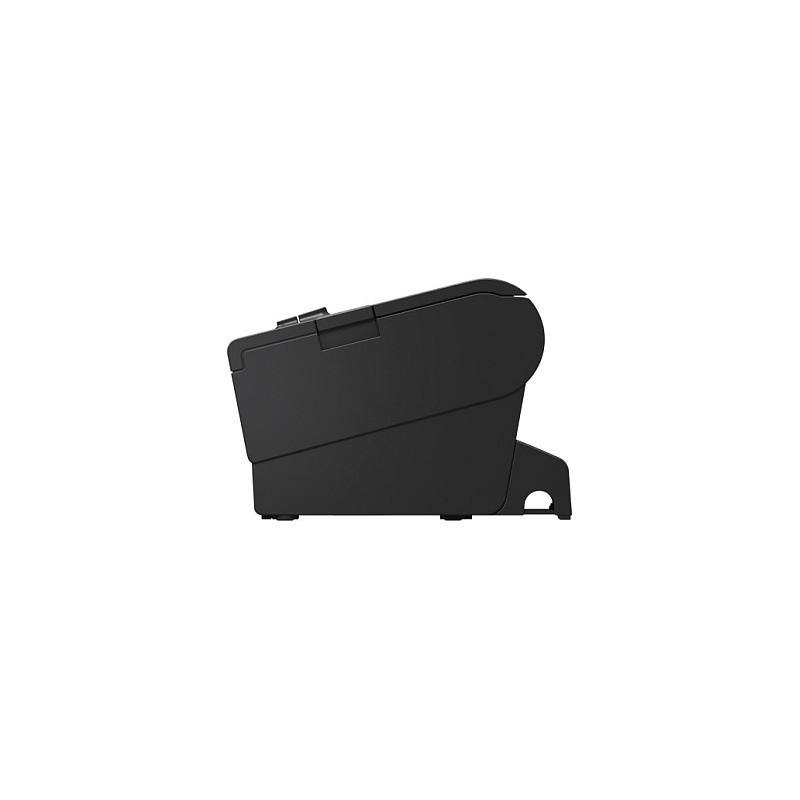

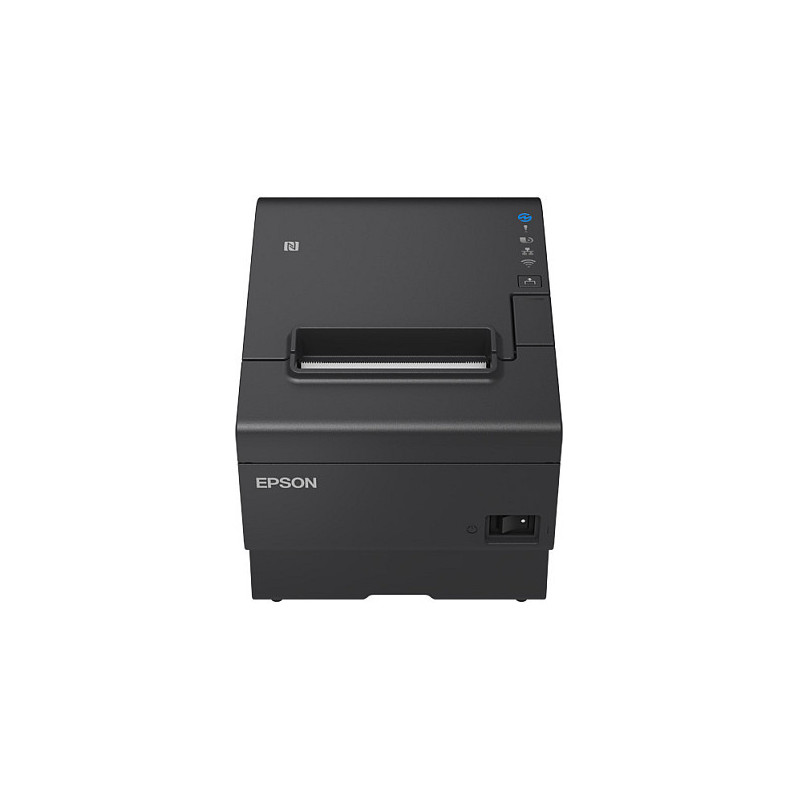

Epson TM-T88VII

Epson TM-T88VII (152): USB, Ethernet, Fixed Interface, PS, Black. Print technology: Thermal, Type: POS printer, Maximum resolution: 180 x 180 DPI. Maximum roll diameter: 8.3 cm, Supported paper width: 80 mm, Media thickness: 48 - 80 mm. Connectivity technology: Wired & Wireless, USB connector: USB Type-A / USB Type-B, Optional connectivity: Wireless LAN. Sound pressure level (printing): 52 dB, Sound pressure level (standby): 52 dB, Mean time between failures (MTBF): 360000 h. Product colour: Black

High-speed receipt printer
The TM-T88VII is our new high-performance receipt printer range. It features a range of design, connectivity and usability improvements and enhancements to improve the user experience.

Reliable and high-performance
Avoid downtime by choosing proven, reliable hardware from the market leader{s1 . Fast print speeds of 500mm/s and high-quality, printed legible receipts will ensure happy customers.

Backwards compatible
The TM-T88VII is fully compatible with the existing T88V and T88VI software so there are no expensive costs associated with changing business infrastructure. The printer also has same footprint as previous models, meaning no additional costs of having to change the counters/tills.

Eco-conscious
The TM-T88VII demonstrates reduced environmental impacts, with lower noise level, lower power consumption and smaller, more efficient power supply. The printer is now compatible with more eco-friendly, Phenol-free paper.

Printing

Maximum resolution: 180 x 180 DPI
Print speed: 500 mm/sec
Character size: 1.41 x 3.39 mm
Printing characters: Text, Graphic, Barcode, 2D barcode
Character sets: ANK
Print technology: Thermal
Type: POS printer

Paper handling

Maximum roll diameter: 8.3 cm
Supported paper width: 80 mm
Media thickness: 48 - 80 mm

Ports & interfaces

Feature: USB port
USB connector: USB Type-A / USB Type-B
Connectivity technology: Wired & Wireless
Feature: Near Field Communication (NFC)
Optional connectivity: Wireless LAN

Network

Feature: Ethernet LAN

Features

Sound pressure level (printing): 52 dB
Sound pressure level (standby): 52 dB
Mean time between failures (MTBF): 360000 h
Autocutter durability: 3 million cuts
Feature: Paper save function
Print head life: 200 km
Country of origin: Philippines
Mounting position: Horizontal/Vertical
Feature: Wall mountable
Built-in sensors details: Paper End Sensor, Paper Near End Sensor, Cover Open Sensor, Receipt paper sensor
Certification: CE

Design

Product colour: Black

Power

Power consumption (printing): 28.6 W
AC input voltage: 24 V
Power consumption: 28600 mA
Power consumption (standby): 1400 mA
Power consumption (standby): 1.4 W

Operational conditions

Operating temperature (T-T): 5 - 45 °C
Storage temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

System requirements

Pre-installed software: Server Direct Print, ePOS-Device, ePOS-Display, ePOS-Print

Weight & dimensions

Width: 145 mm
Depth: 195 mm
Height: 148 mm
Weight: 1.7 kg

Packaging data

Quantity per pack: 1 pc(s)
Package width: 195 mm
Package depth: 235 mm
Package height: 260 mm
Package weight: 2.7 kg

Print technology

Column capacity: 42/56

Logistics data

Pallet weight (UK): 0 g
Harmonized System (HS) code: 84433210
Products per pallet: 112 pc(s)
Pallet gross weight: 0 g
Products per pallet (UK): 168 pc(s)

Technical details

Lifetime: 20000000 lines

Other features

Buffer size: 4 KB
Mean cycles between failures (MCBF): 70000000
