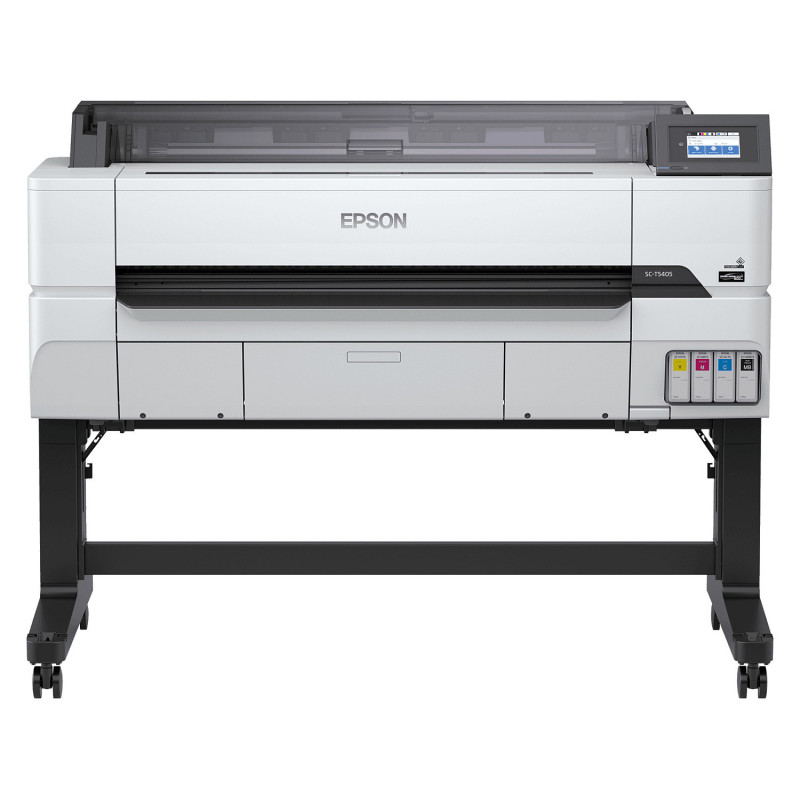

Epson SureColor SC-T5405 large format printer

Epson SureColor SC-T5405. Print technology: Inkjet, Maximum resolution: 2400 x 1200 DPI, Page description languages: ESC/P-R, HP-GL/2, HP-RTL. Maximum print size: A0 (841 x 1189 mm), Paper tray media types: Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper, Roll, Satin paper, ISO A-series sizes (A0...A9): A0, A1, A2, A3, A3+, A4. USB connector: USB Type-A / USB Type-B, Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: TLS, SSL, IEE 802, SNMP, IPSec, IPv6. Product colour: Black, Grey, White, Display: LCD, Display diagonal: 10.9 cm (4.3"). Power consumption (standby): 13 W, Power consumption (typical): 38 W, Power consumption (off): 0.25 W

Flexible technical printer
The 36-inch technical printer for professionals looking for reliability and cost saving, with high-quality precision printing in-house.

SureColor SC-T5405 - wireless printer (with stand)
The SC-T5405 large format printer is ideal for printing high-quality CAD designs, architectural or engineering technical drawings, general office documents, high-visibility posters for event organisers or point-of-purchase (POP) signage for retailers. Designed for those who need a professional-level, floor-standing, technical printer which boasts a low total cost of ownership.

Enhanced productivity

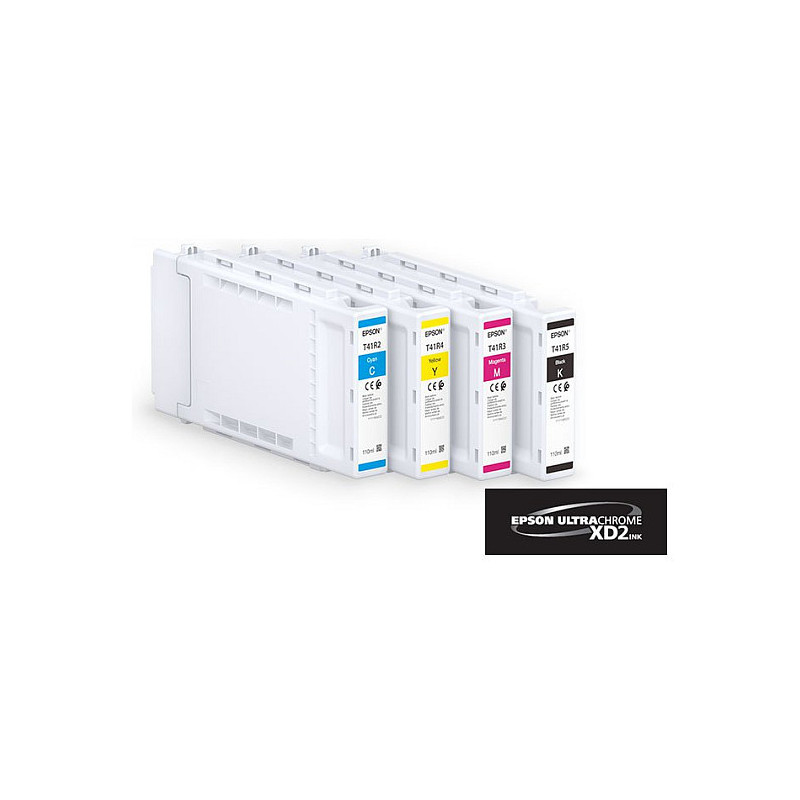

High capacity ink cartridges (110ml, 350ml and 700ml) and 4-colour pigment UltraChrome XD2 inks that are smudge and water resistant. Also, the SC-T5405 delivers deep blacks and crisp, dense lines — which is ideal for technical graphics.

A bigger picture
The SC-T5405 offers cost and time saving benefits by enabling a document enlargement workflow. Simply connect your Epson inkjet multifunction printer to your LFP and select the size you desire (up to A0 / 36 inches). Change seamlessly between LFP roll and sheetfeed as this printer supports up to A0 cut sheets as well as rolls. Even occasional users can expect consistent print quality. Unique Nozzle Verification Technology (NVT) helps prevent misprints by constantly monitoring for any blockages.

Printing

Print head nozzles: 800 nozzles black, 800 nozzles per colour
Print technology: Inkjet
Feature: Colour
Maximum resolution: 2400 x 1200 DPI
Number of print cartridges: 4
Page description languages: ESC/P-R, HP-GL/2, HP-RTL
Printing colours: Pigment black, Pigment cyan, Pigment yellow, Pigment magenta
Print cartridge volume (metric): 700 ml
Print speed (normal quality, A1): 22 pph

Copying

Copying: No

Scanning

Scanning: No

Input & output capacity

Total number of input trays: 2

Paper handling

Maximum print size: A0 (841 x 1189 mm)
Paper tray media types: Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper, Roll, Satin paper
ISO A-series sizes (A0...A9): A0, A1, A2, A3, A3+, A4
ISO B-series sizes (B0...B9): B1, B2, B3, B4, B5
Feature: Cut sheets
Media thickness: 0.05 - 0.3 mm
Maximum roll width: 91.4 cm
Print margin cut-sheet: 3 x 3 x 20 x 3
Borderless printing width: 11.81, 12.99, 15.98, 20.28, 10" (25.4cm) Roll, 17" (43.1cm) Roll, 24" (60.9cm) Roll, 36" (91.4cm) Roll
Feature: Roll paper

Ports & interfaces

Feature: Wi-Fi
Feature: Ethernet LAN
Feature: USB port
USB connector: USB Type-A / USB Type-B
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Direct printing
Supported network protocols: TLS, SSL, IEE 802, SNMP, IPSec, IPv6
Mobile printing technologies: Apple AirPrint
Security algorithms: SSL/TLS, SNMP, IPSec

Performance

Product colour: Black, Grey, White
Feature: Built-in display
Display: LCD
Feature: Colour display
Display diagonal: 10.9 cm (4.3")
Control type: Touch
Internal memory: 1024 MB
Maximum internal memory: 1000 MB
Sound pressure level (standby): 32 dB
Sound pressure level (printing): 50 dB
Country of origin: Indonesia

Power

Power consumption (standby): 13 W
Power consumption (typical): 38 W
Power consumption (off): 0.25 W
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz

System requirements

Compatible operating systems: Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Mac operating systems supported: Mac OS X 10.6 Snow Leopard

Weight & dimensions

Width: 1385 mm
Depth: 750 mm
Height: 1060 mm
Weight: 76 kg

Packaging data

Package width: 850 mm
Package depth: 1550 mm
Package height: 1116 mm
Package weight: 112 kg
Feature: Drivers included
Feature: Manual

Other features

Line accuracy: +/- 0,1
Minimum line width: 0.02 mm
Feature: Touchscreen
Ink drop: 4
Compatible products: WorkForce DS-6500, WorkForce DS-60000

Logistics data

Quantity per pack: 1 pc(s)
Harmonized System (HS) code: 84433210
