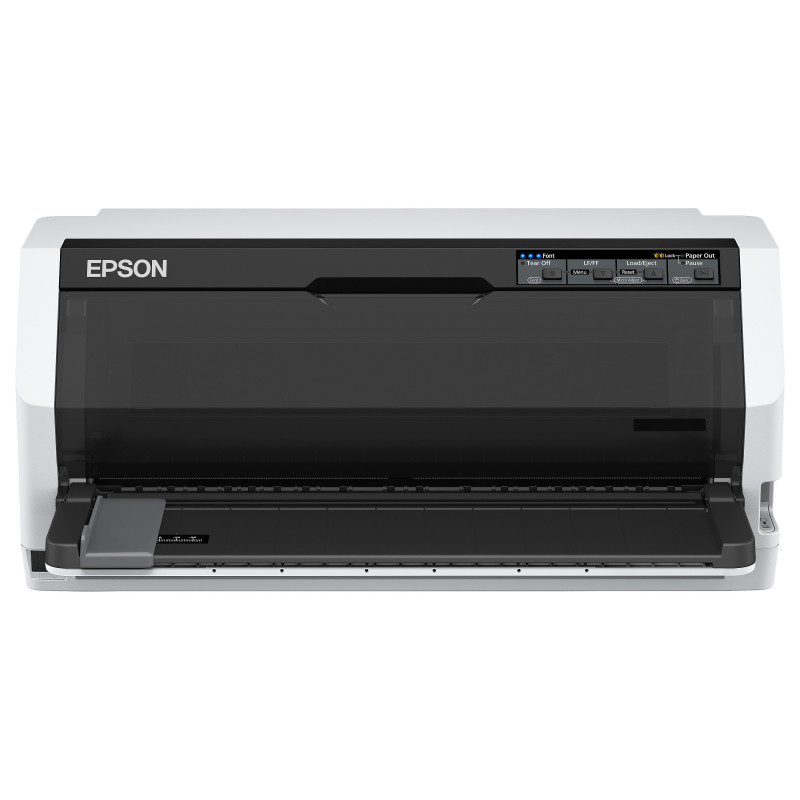

Epson LQ-780 dot matrix printer

Epson LQ-780. Maximum print speed: 487 cps, Maximum resolution: 360 x 180 DPI, Maximum print speed (draft): 487 cps. Paper tray media types: Envelopes, Continuous paper thickness range: 0.12 - 0.49 mm, Multi-part paper thickness range: 0.12 - 0.49 mm. Product colour: Black, White, Buffer size: 64 KB, Sound pressure level (printing): 59 dB. Standard interfaces: Parallel, USB 2.0. Print head: 24-pin, Print head life: 400 million characters, Mean time between failures (MTBF): 35000 h
Fast and reliable dot matrix printing with the Epson LQ-780. Its robust nature and modern design fits comfortably into any environment.
Designed with productivity in mind, the LQ-780 is an ultra-reliable dot matrix printer that offers an impressive ribbon yield. It is fast and compact with a robust build. Its modern design allows effortless integration into any work environment, be it an office or a warehouse.
Fast printing:
Print faster and more productively. The LQ-780 prints the original + six copies, and is capable of printing an impressive 487 cps (10 cpi) when using printer resident fonts.
High ribbon yield:
In a demanding and fast-moving work environment a high ribbon yield is essential, and with 10 million characters per ribbon, this marks the LQ-780 as a leading force in the flatbed market. It is also cost-effective, with long ribbon replacement cycles, low running costs and total cost of ownership.
Dependable:
Durable and built to last, users will be assured by the MTBF (mean time between failures) of 20,000 power on hours. The robust casing can stand up to high humid and heat conditions, and automatic paper thickness adjustment makes the LQ-780 intuitive to use. This results in greater productivity and less maintenance from down time - essential when producing large amounts of documents and data.
Smart design:
This compact hard-working printer is designed to fit on your desk. With its modern, black and white casing, it blends in seamlessly in both office and warehouse environments.

Printing

Maximum resolution: 360 x 180 DPI
Maximum printing width (columns): 106
Colour: No
Maximum print speed: 487 cps
Maximum print speed (draft): 487 cps
Maximum print speed (LQ): 366 cps
Maximum number of copies: 6 copies
Built-in barcodes: CODABAR (NW-7), Code 128 (A/B/C), Code 39, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
Number of barcode fonts: 8
Number of bitmap fonts: 11
Bitmap fonts: Courier, Draft, Prestige, Roman
Number of scalable fonts: 4
Scalable fonts: Roman, Roman T, Sans Serif, Sans Serif H
Character sets: PC437, PC850, PC858, ISO 8859-15, Roman 8, Italic
Number of characters: 15

Paper handling

Paper tray media types: Envelopes
Continuous paper thickness range: 0.12 - 0.49 mm
Multi-part paper thickness range: 0.12 - 0.49 mm
Single sheet thickness range: 0.065 - 0.15 mm

Features

Product colour: Black, White
Buffer size: 64 KB
Sound pressure level (printing): 59 dB
Country of origin: Indonesia

Ports interfaces

Standard interfaces: Parallel, USB 2.0

Endurance

Print head: 24-pin
Print head life: 400 million characters
Mean time between failures (MTBF): 35000 h

Power

Power consumption (typical): 46 W
Power consumption (standby): 8.3 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 10 - 80%

System requirements

Windows operating systems supported: Windows 11 x64
Server operating systems supported: Windows Server 2003, Windows Server 2022

Weight dimensions

Width: 480 mm
Depth: 301 mm
Height: 211 mm
Weight: 6.7 kg

Packaging data

Quantity per pack: 1 pc(s)
Package width: 325 mm
Package depth: 590 mm
Package height: 350 mm
Package weight: 8.28 kg

Other features

Print technology: Dot matrix
Needles: 24

Logistics data

Products per pallet: 24 pc(s)
Pallet gross weight: 0 g
Products per pallet (UK): 36 pc(s)
Pallet weight (UK): 0 g
Harmonized System (HS) code: 84433210
