Epson DS-770 II

Epson DS-770 II. Maximum scan size: 215.9 x 6096 mm, Optical scanning resolution: 600 x 600 DPI, Input colour depth: 30 bit. Scanner type: Sheet-fed scanner, Product colour: White, Display: LCD. Daily duty cycle (max): 7000 pages, Light source: ReadyScan LED, Scan file formats: JPEG, PDF, TIFF. Standard input capacity: 100 sheets, Auto document feeder (ADF) input capacity: 100 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Plastic Card, Post Card(JPN), ISO A-series sizes (A0...A9): A4, A5, A6

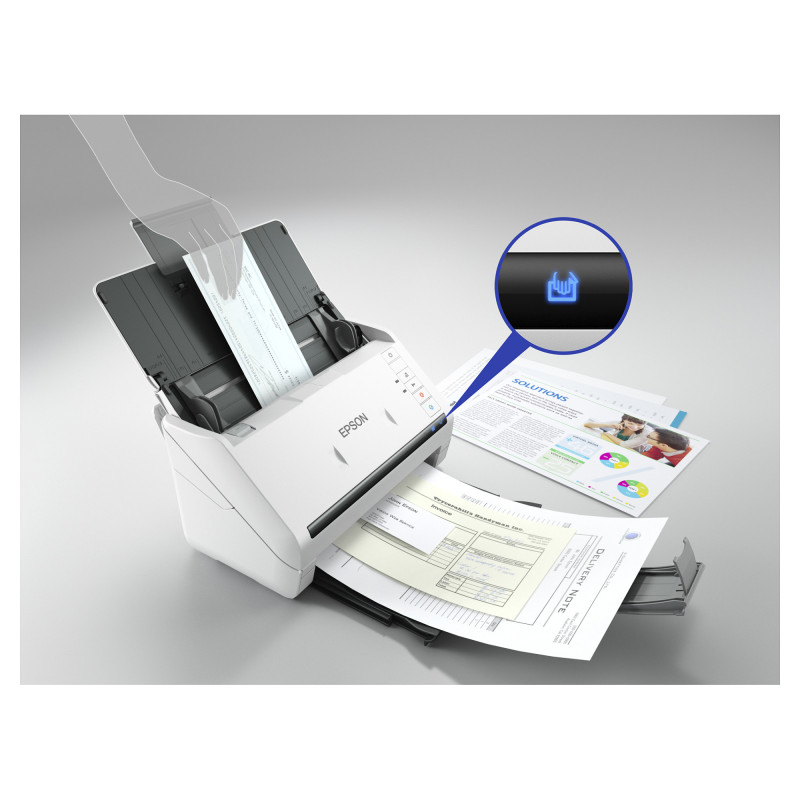

With powerful media handling and innovative smart features to ensure a high level of data integrity, the WorkForce DS-770II is geared towards highly-efficient and simple integration into an organisation's workflow. With a 100-page ADF and the ability to scan at up to 45ppm/90ipm, it offers a wide range of media handling options that enable you to rapidly capture, index, store and share business documents.

Intelligent features improve efficiency, accuracy and data reliability

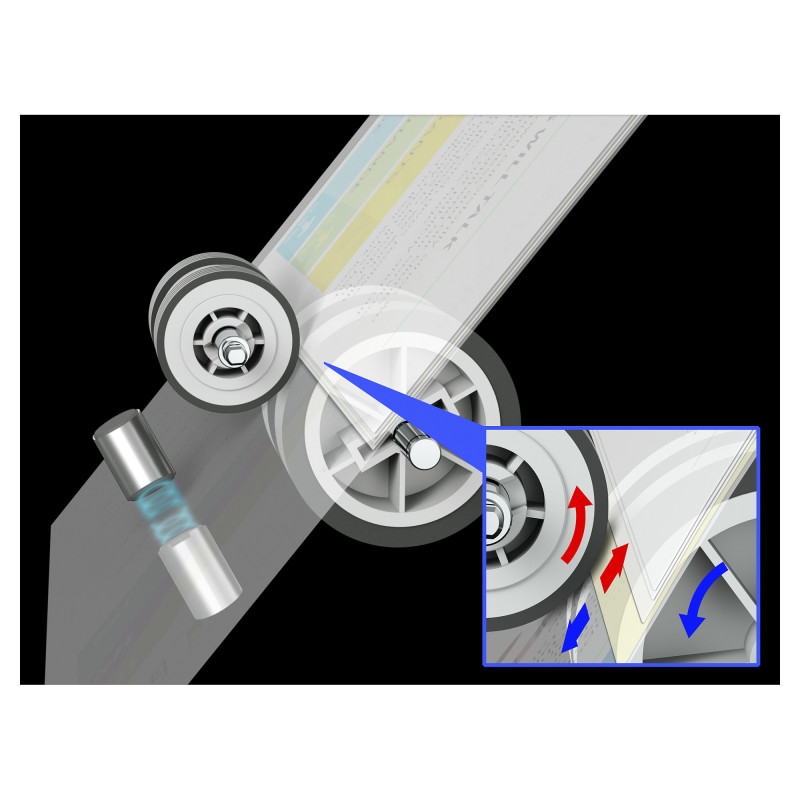

With an industry-first slow mode1 for scanning crumpled or fragile documents, the ability to scan challenging media has never been easier. The Active Separation Roller System prevents tedious document double feeds ensuring every piece of paper gets scanned and the Double Feed Detection Skip (DFDS) function means you can scan difficult media like envelopes or documents with post-it notes. Auto Scan Mode enables the processing of a vast number of documents as manageable amounts, enabling them to be scanned as one file.

Highly versatile

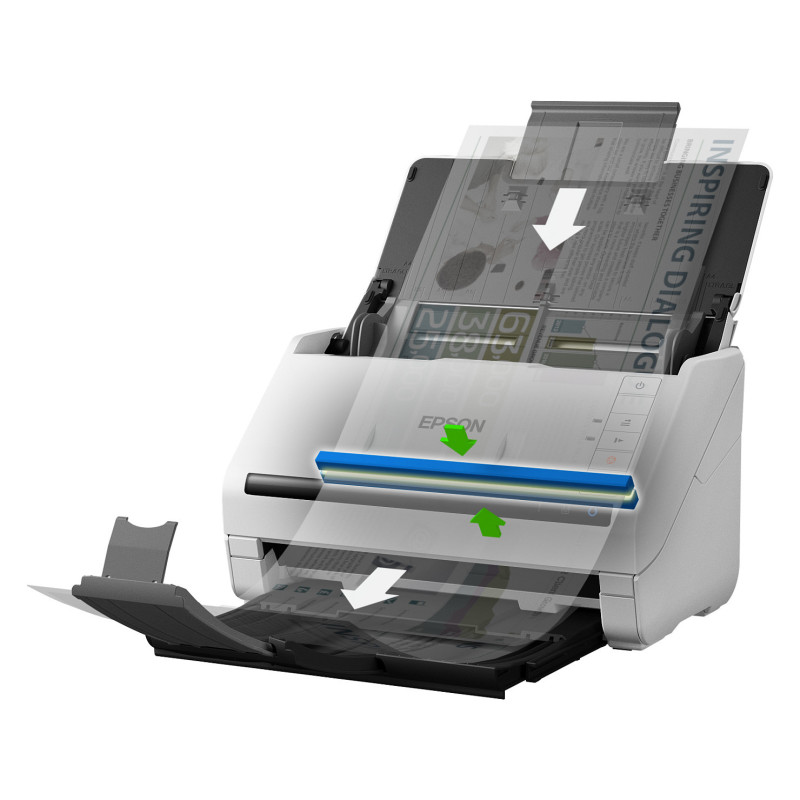

The optional flatbed scanner conversion kit allows effective document processing from stamps to passports and books. Single-pass double-sided scanning ensures rapid document processing, while it's possible to scan a versatile array of media such as paper as thin as 27gsm, or thick card at 413gsm. The A3 carrier sheet speeds up the process by automatically stitching larger documents back together digitally.

Flexible connectivity
High-speed USB 3.0 with TWAIN, WIA and ISIS drivers for enhanced compatibility with Document Management Systems.

Image enhancement and document management software
Epson Scan 2.0 software makes it easy to edit images with features such as de-skew and auto rotate, while Document Capture Pro is the easy to use solution for capturing and storing electronic documents at the touch of a button.

Scanning

Maximum scan size: 215.9 x 6096 mm
Optical scanning resolution: 600 x 600 DPI
Feature: Colour scanning
Feature: Duplex scanning
Input colour depth: 30 bit
Output colour depth: 24 bit
Input greyscale depth: 10 bit
Output greyscale depth: 8 bit
Output monochrome depth: 8 bit
ADF scan speed (b/w, A4): 45 ppm
ADF scan speed (colour, A4): 45 ppm
Duplex ADF scan speed (b/w, A4): 90 ipm
Duplex ADF scan speed (colour, A4): 90 ipm

Design

Scanner type: Sheet-fed scanner
Product colour: White
Display: LCD
Feature: Built-in display

Performance

Light source: ReadyScan LED
Scan file formats: JPEG, PDF, TIFF
Daily duty cycle (max): 7000 pages
Scan to: E-mail, FTP, Software, Print, Network folder
Scan drivers: TWAIN, WIA, ISIS
Feature: Ultrasonic sensor

Input capacity

Standard input capacity: 100 sheets
Auto document feeder (ADF) input capacity: 100 sheets

Paper handling

Scanning media types supported: Plastic Card, Post Card(JPN)
Maximum ISO A-series paper size: A4
ISO A-series sizes (A0...A9): A4, A5, A6
ISO B-series sizes (B0...B9): B5, B6
Feature: Letter
Feature: Legal
Auto Document Feeder (ADF) media weight: 27 - 413 g/m²
Maximum scan area (ADF): 215.9 x 6096 mm
Minimum scan area (ADF): 50.8 x 50.8 mm

Ports & interfaces

Feature: USB port
USB version: 3.2 Gen 1 (3.1 Gen 1)

Power

Power supply type: AC
Power consumption (off): 0.1 W

Weight & dimensions

Width: 296 mm
Depth: 169 mm
Height: 176 mm
Weight: 3.7 kg

Packaging data

Quantity per pack: 1 pc(s)
Package width: 250 mm
Package depth: 365 mm
Package height: 285 mm
Package weight: 4.58 kg

Packaging content

Feature: Warranty card
Cables included: AC
Feature: Drivers included

System requirements

Mac operating systems supported: Yes
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008, Windows Server 2008 x64, Windows Server 2008 R2, Windows Server 2012 x64, Windows Server 2012 R2, Windows Server 2003 R2

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -25 - 60 °C
Operating relative humidity (H-H): 15 - 80%
Storage relative humidity (H-H): 15 - 85%

Other features

Output resolutions: 75, 100, 150, 200, 240, 300, 600, 1200 dpi
Image formats supported: JPEG, TIFF

Logistics data

Products per pallet: 63 pc(s)
Country of origin: Indonesia
Pallet gross weight: 0 g
Products per pallet (UK): 84 pc(s)
Pallet weight (UK): 0 g
Harmonized System (HS) code: 84716070
