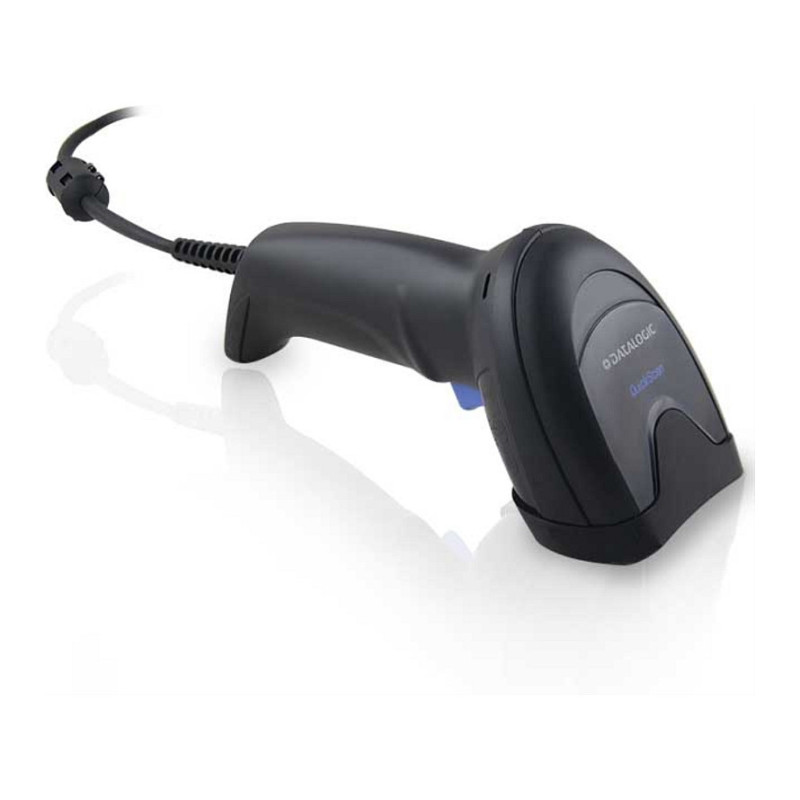

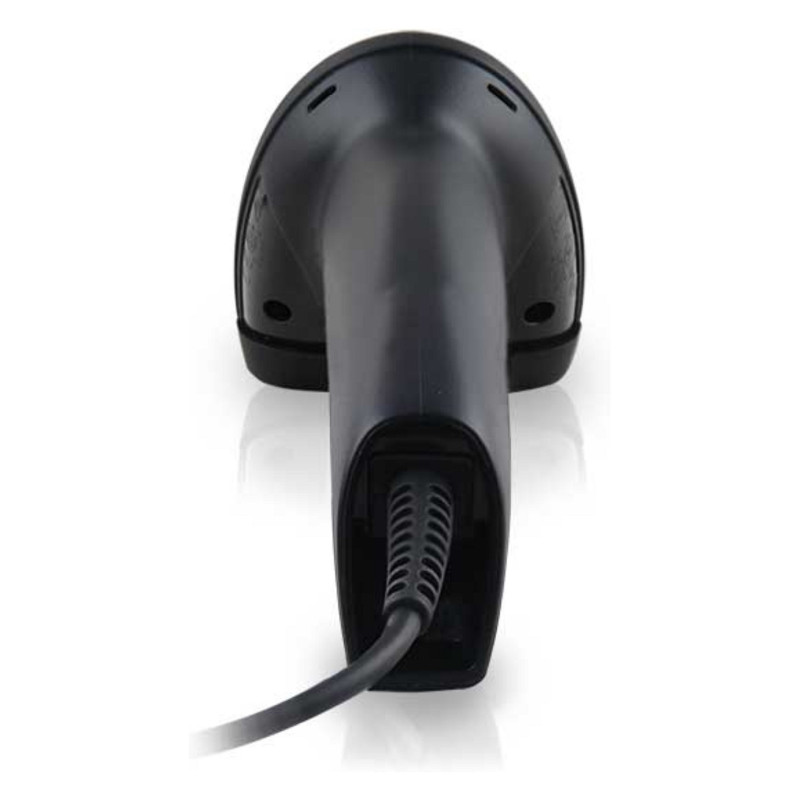

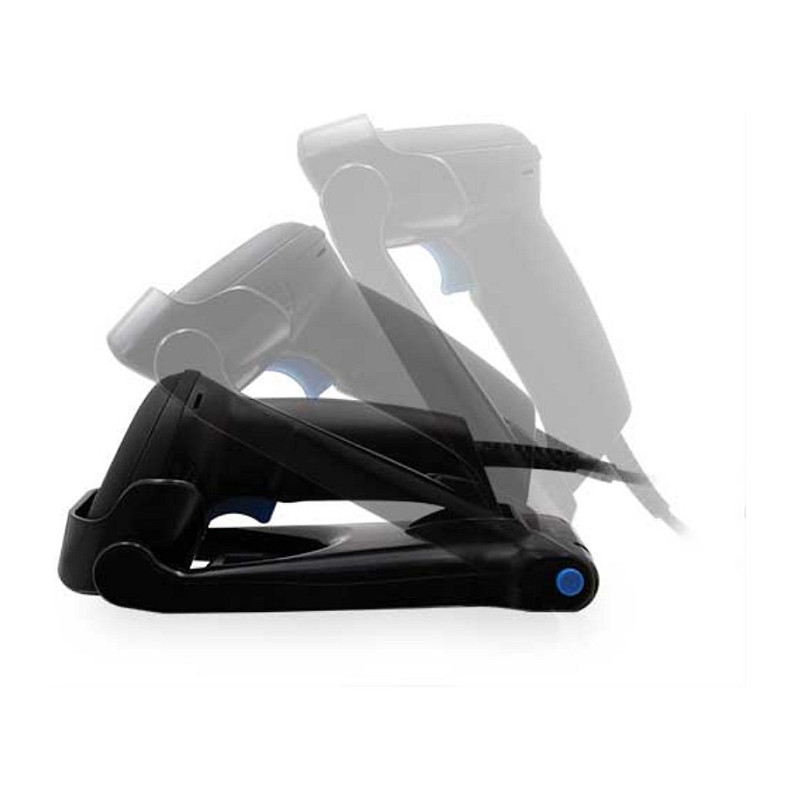

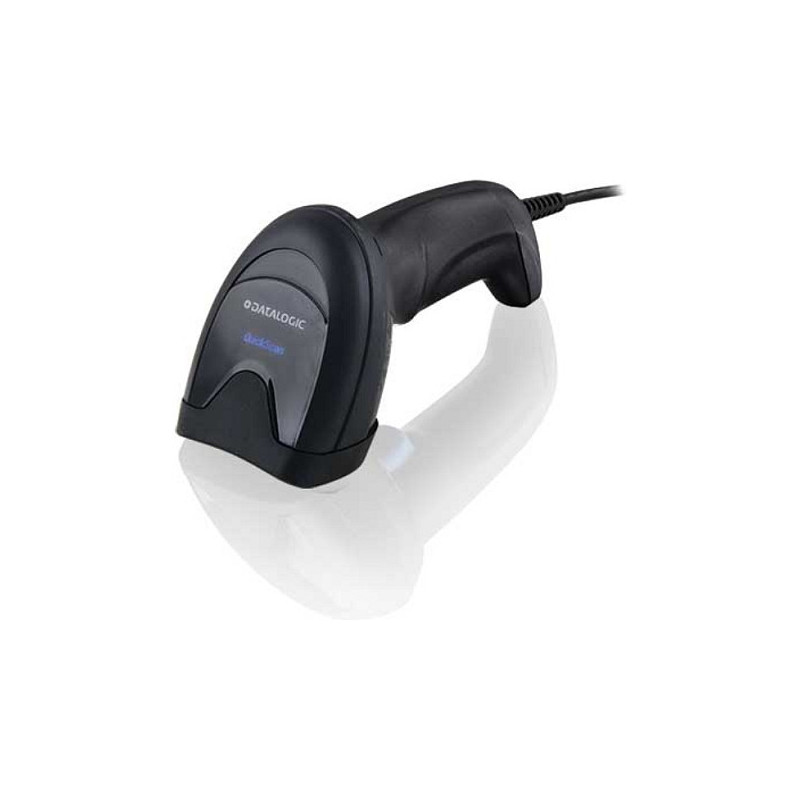

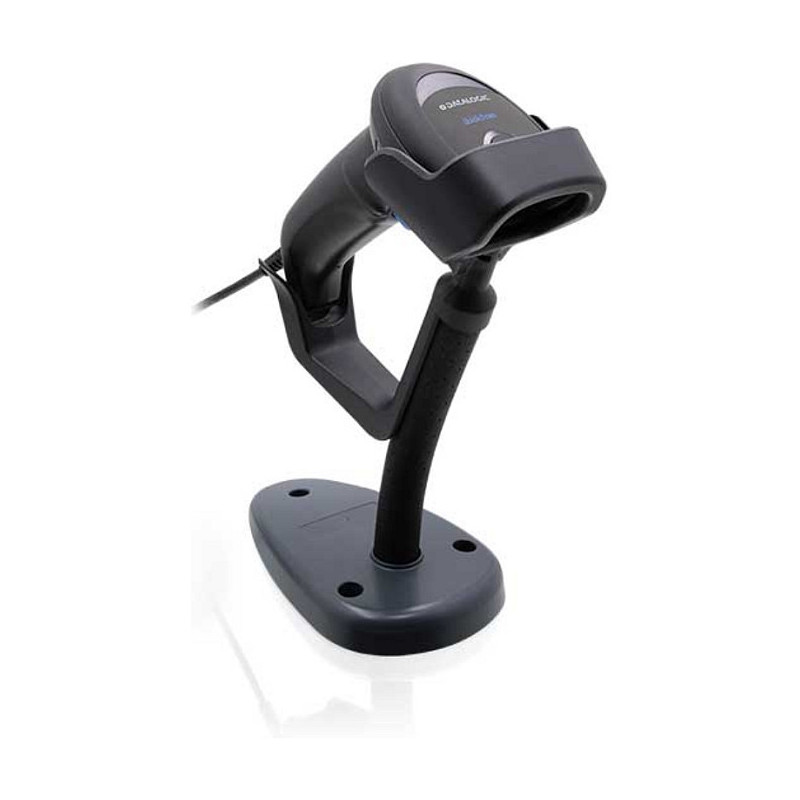

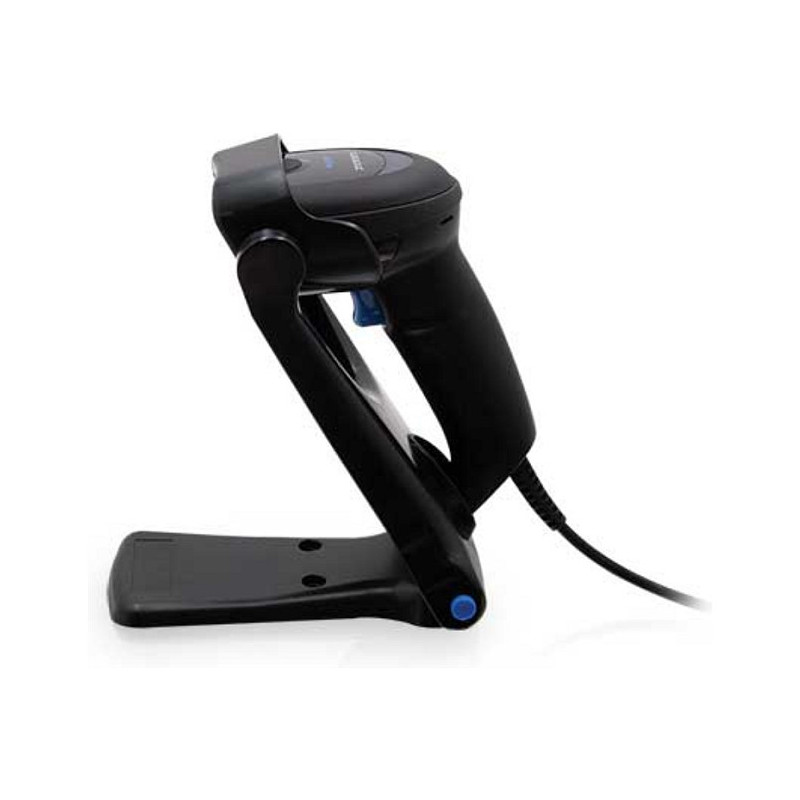

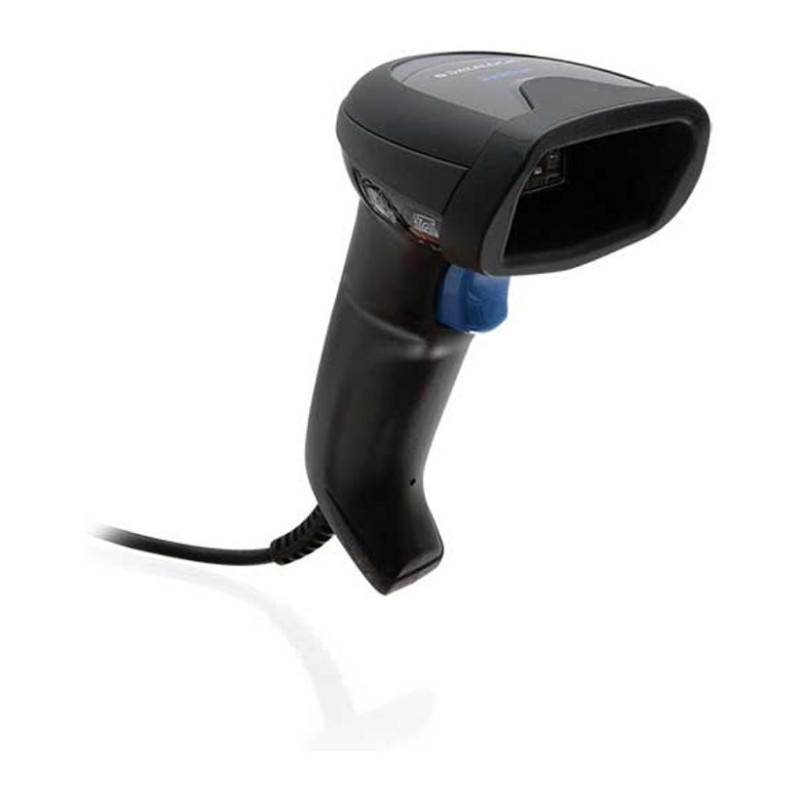

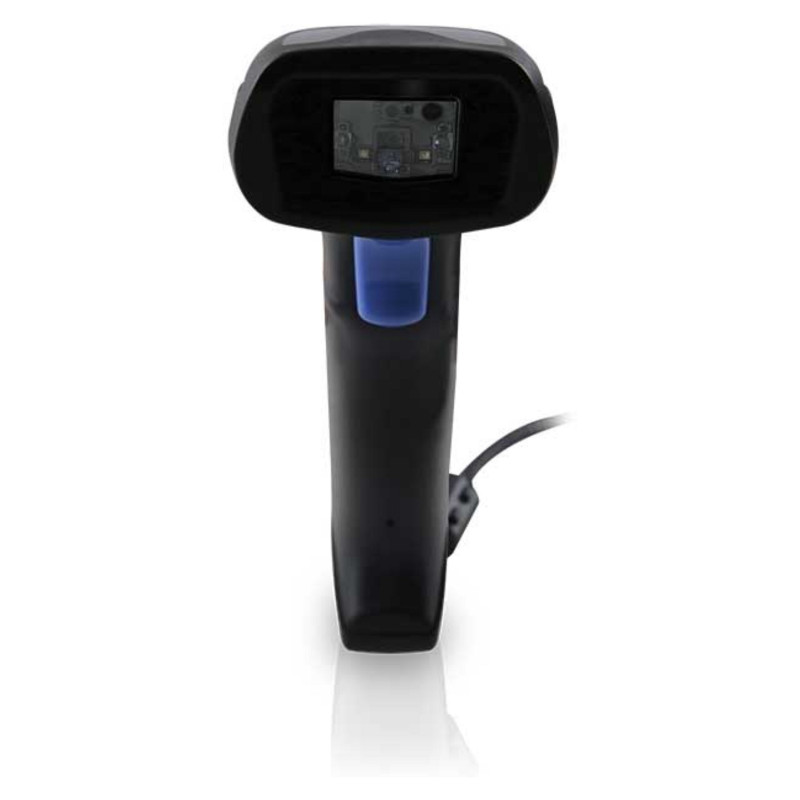

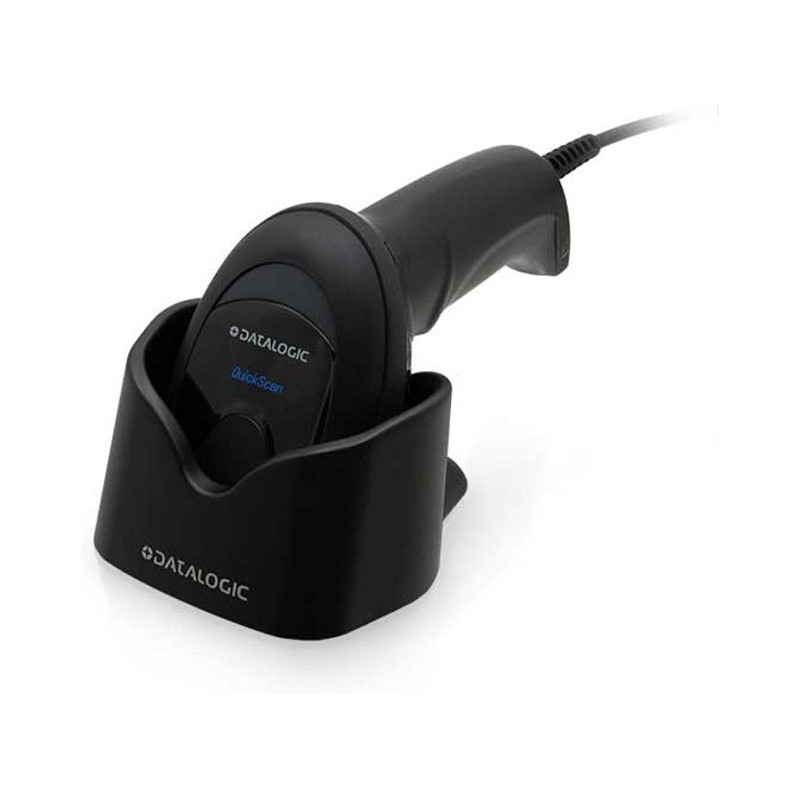

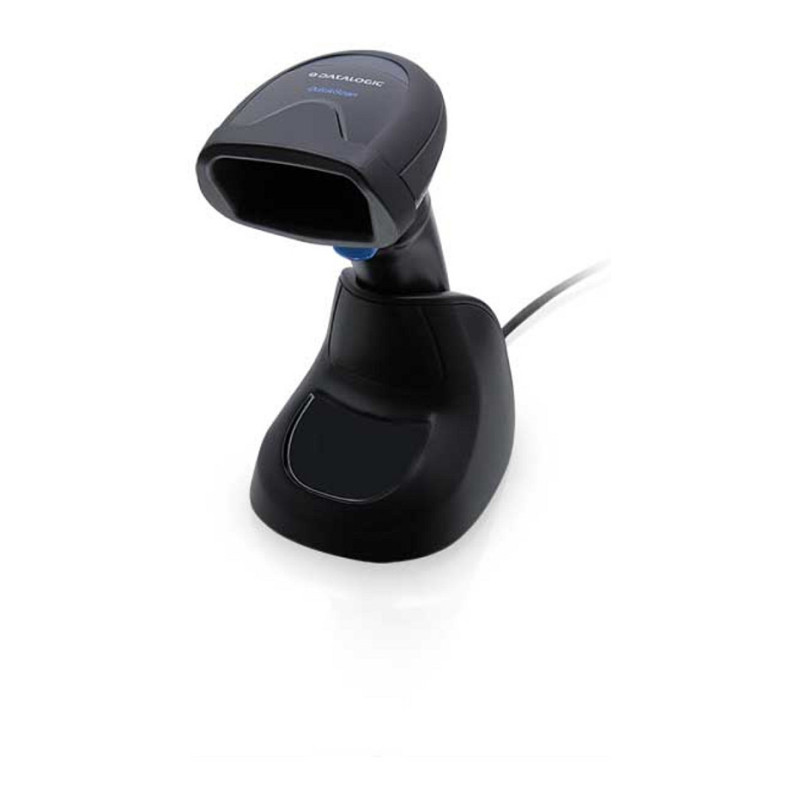

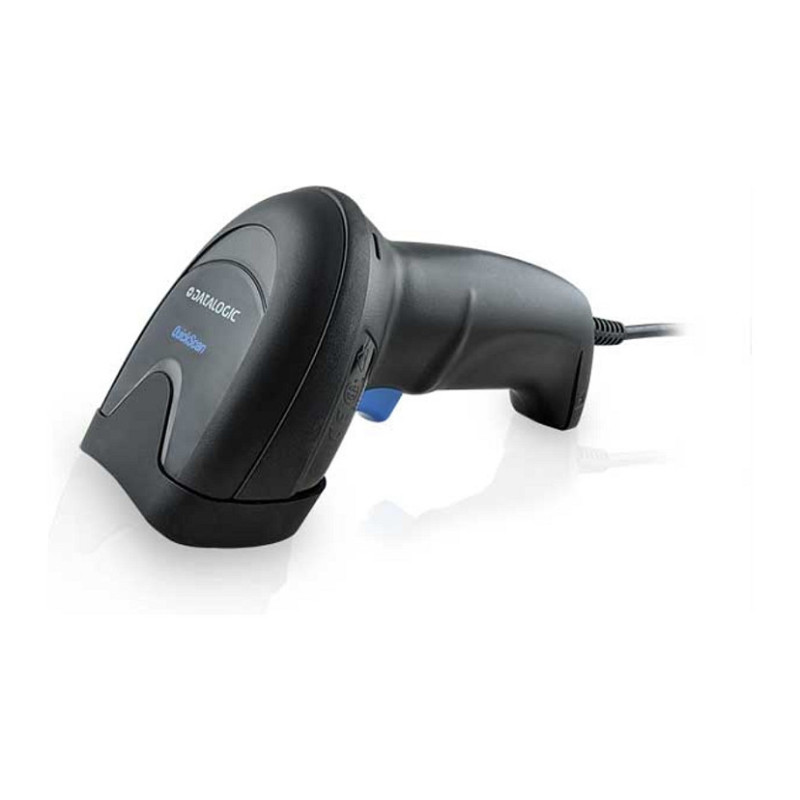

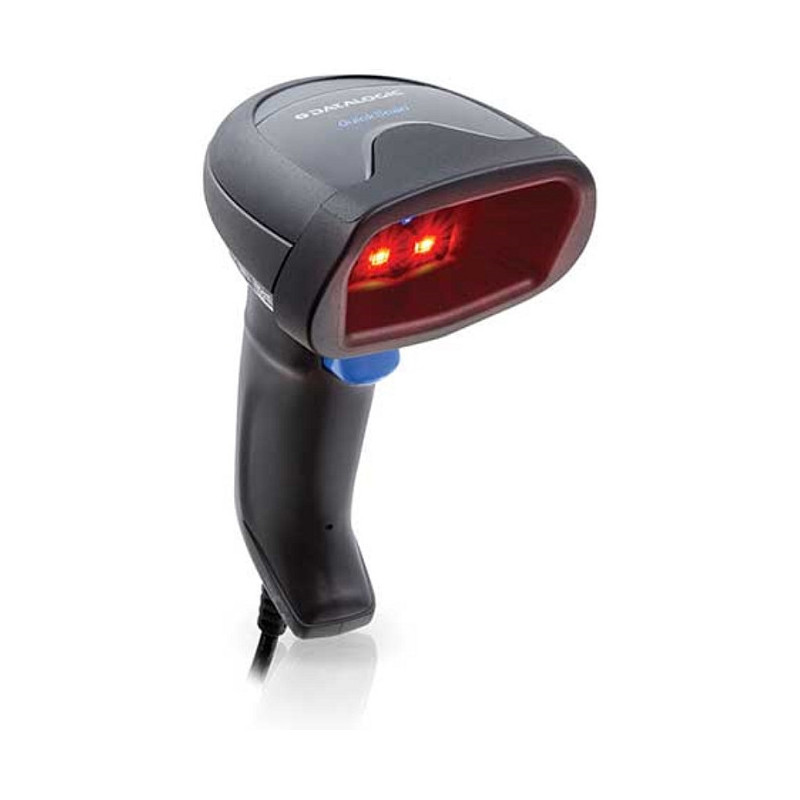

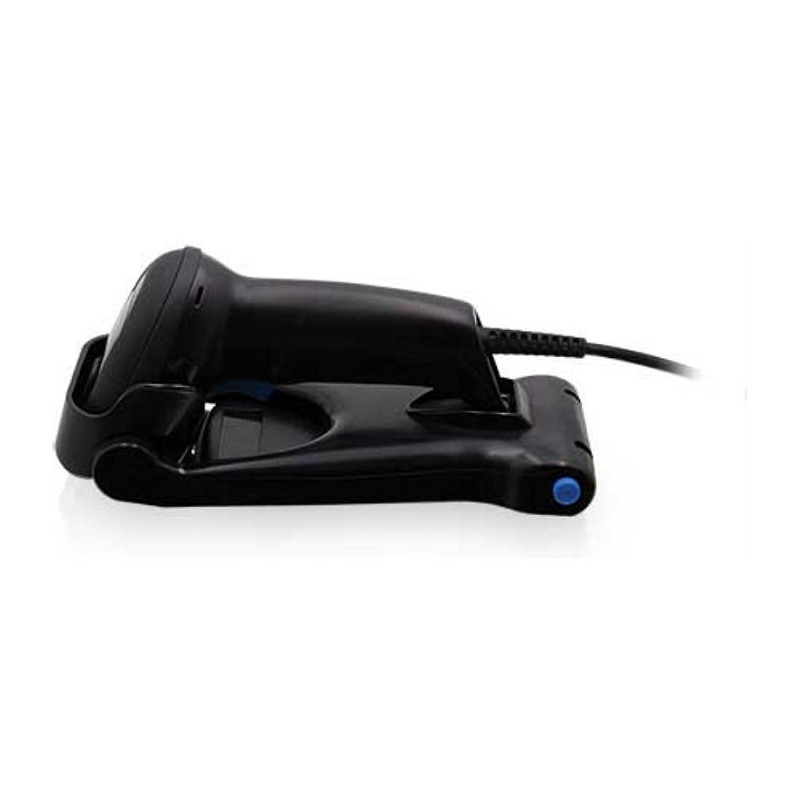

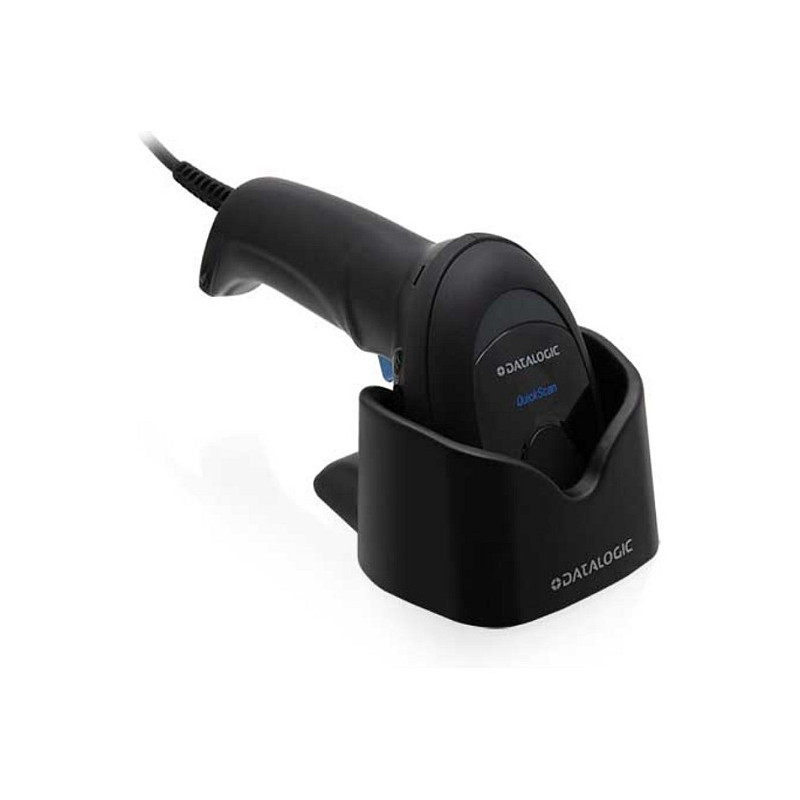

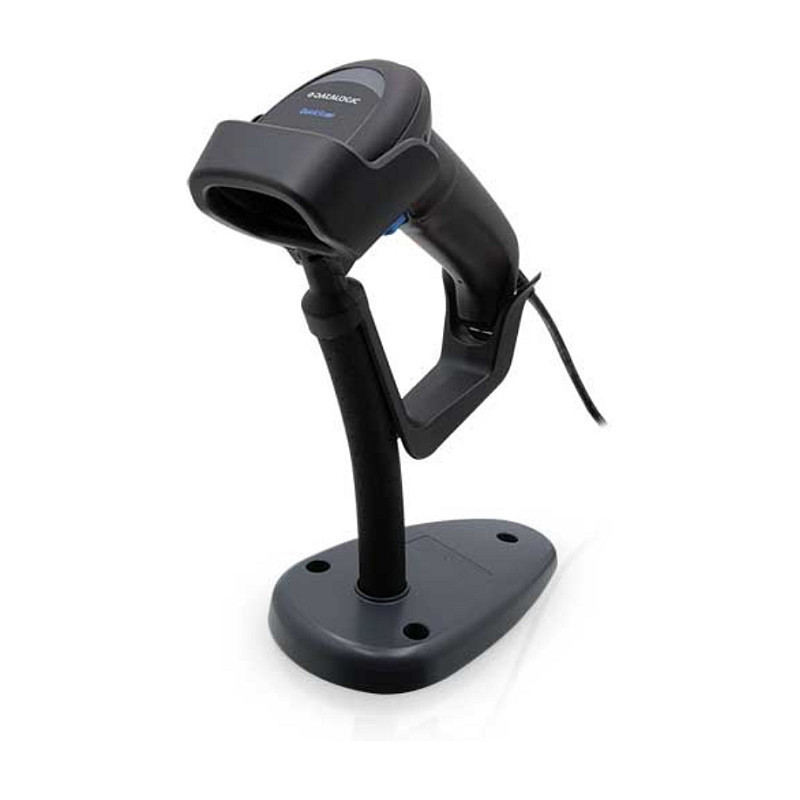

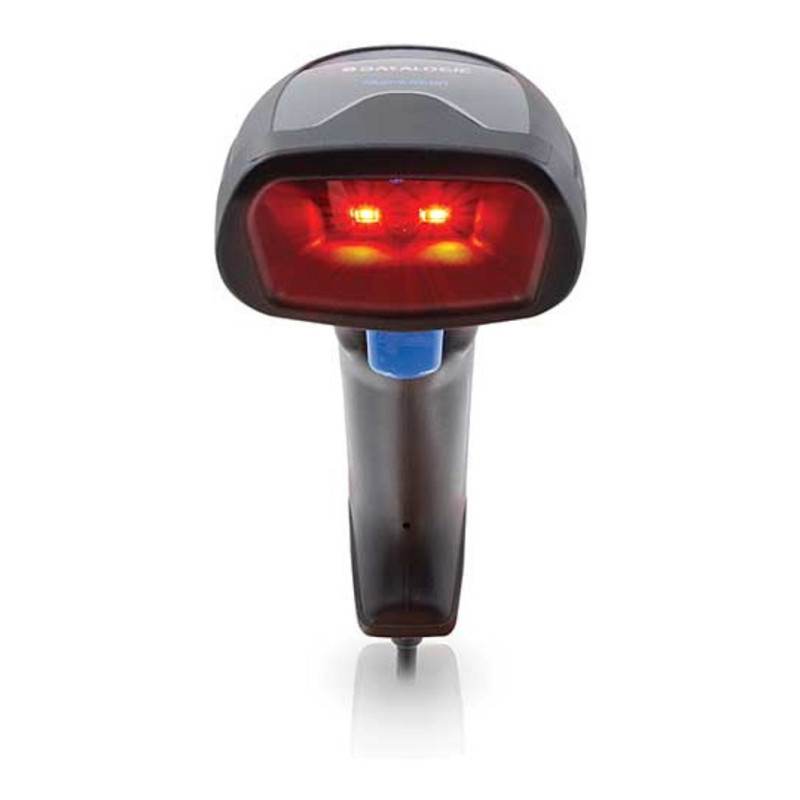

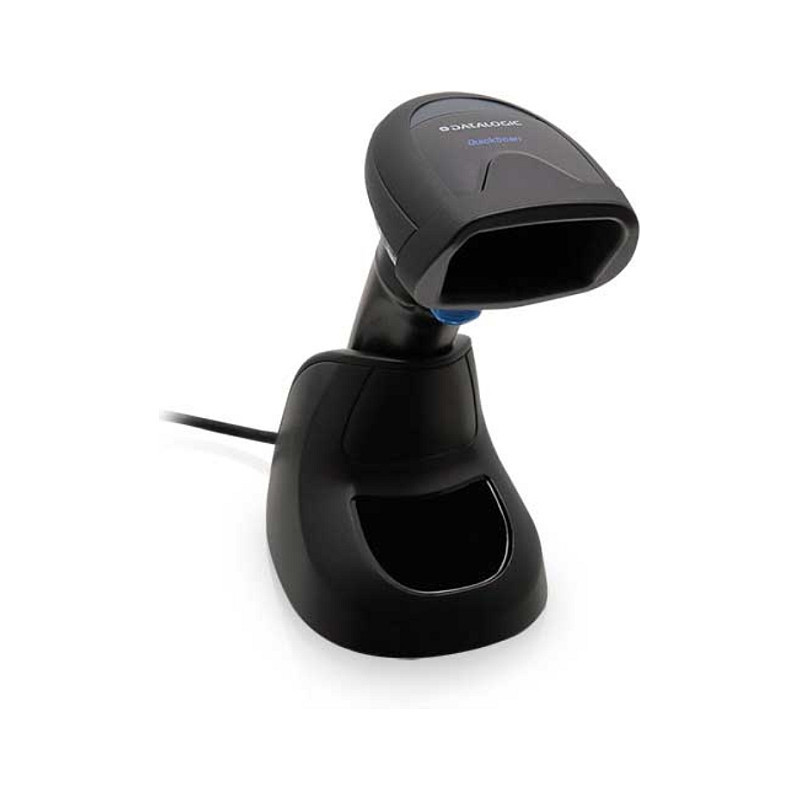

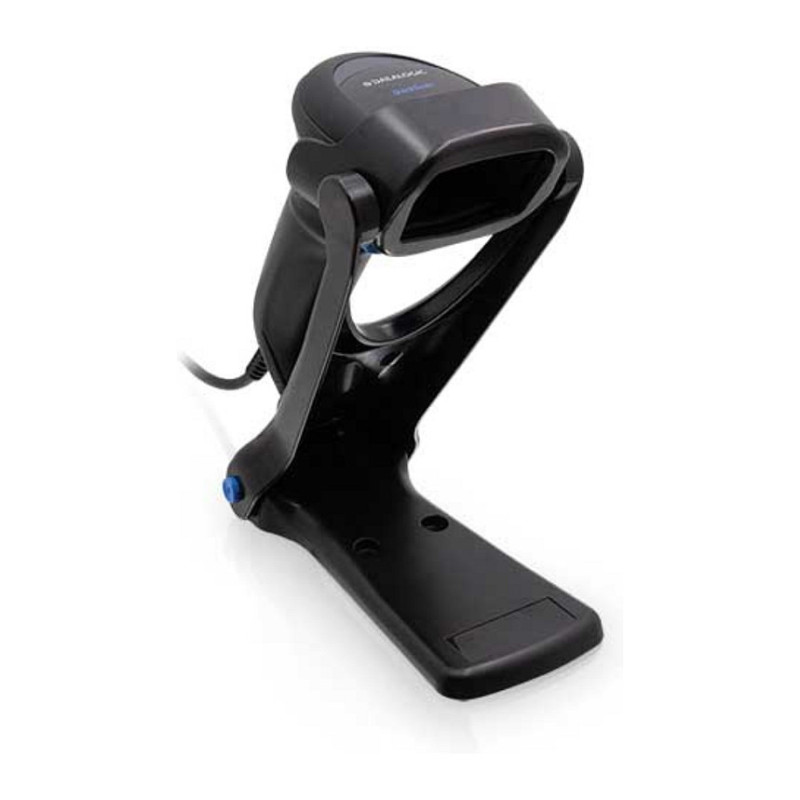

Datalogic QW2520

Datalogic QW2520. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: Keyboard wedge, RS-232, USB. Product colour: Black, International Protection (IP) code: IP52, Protection features: Shock resistant, Water resistant. Power source type: DC, USB, Input voltage: 5 V. Weight: 145 g, Width: 148 mm, Depth: 68 mm
The QuickScan QW2500 is the simplest model within the 2500 Series. It comes in the same rugged, durable IP52 rated housing as the QD2500. The only moving part is the trigger, which will comfortably give you a class-leading 10 million hits. It offers consistent, reliable reading of all standard barcodes. For applications requiring high efficiency and fast throughput, the QW2500 represents one of the best value for money handheld scanners on the market today.

Scanning

Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: Laser
Linear (1D) barcodes supported: GS1 DataBar
2D (matrix stacked) barcodes supported: Han Xin, Aztec Code, Data Matrix, QR Code, Micro QR Code
Optical sensor resolution (W x H): 640 x 480 pixels
Tilt reading angle: 0 - 360°
Pitch reading angle: 0 - 65°
Yaw reading angle: 0 - 65°

Ports interfaces

Connectivity technology: Wired
Standard interfaces: Keyboard wedge, RS-232, USB

Performance

International Protection (IP) code: IP52
Protection features: Shock resistant, Water resistant
Keys quantity: 1 keys
LED indicators: Yes
Image formats supported: BMP, JPEG, TIFF
Feature: Ambient lighting
Print contrast: 15%
Product colour: Black

Power

Power source type: DC, USB
Input voltage: 5 V

Weight dimensions

Width: 148 mm
Depth: 68 mm
Height: 126 mm
Weight: 145 g

Packaging data

Cables included: USB

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C

Technical details

Feature: Sustainability compliance
Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 84716070
