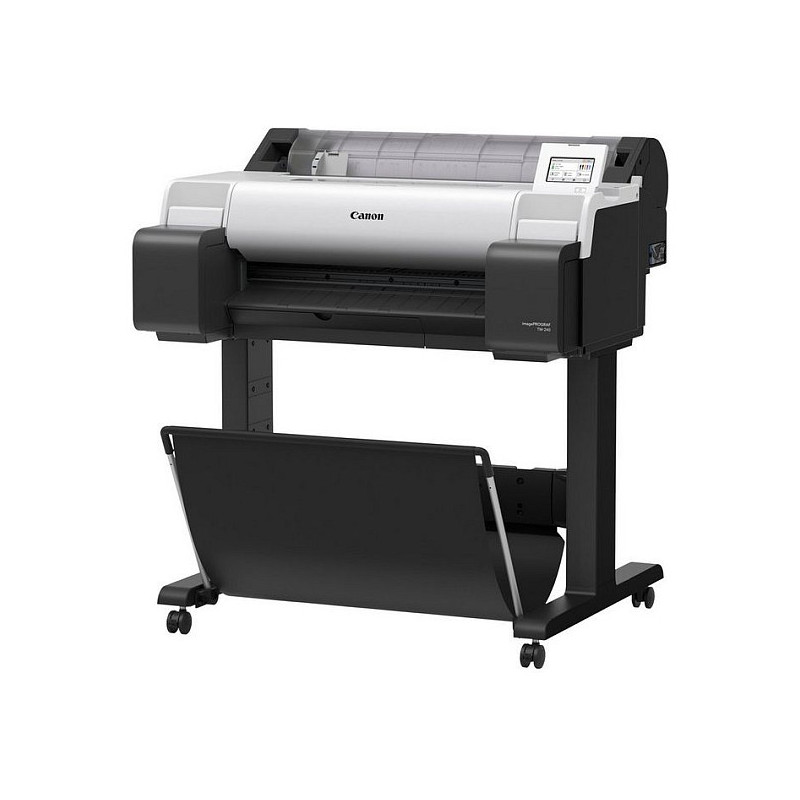

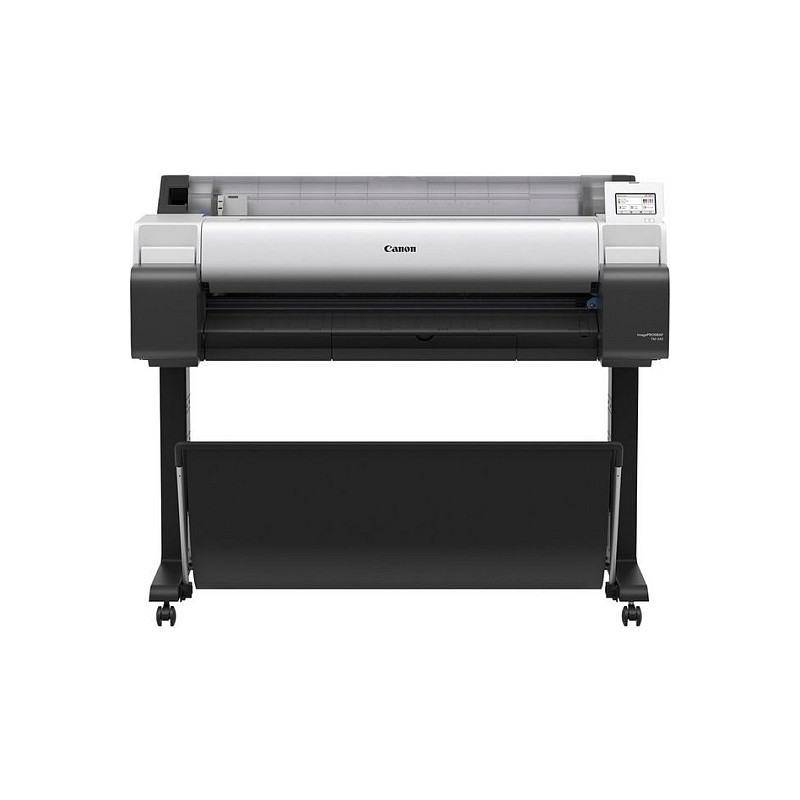

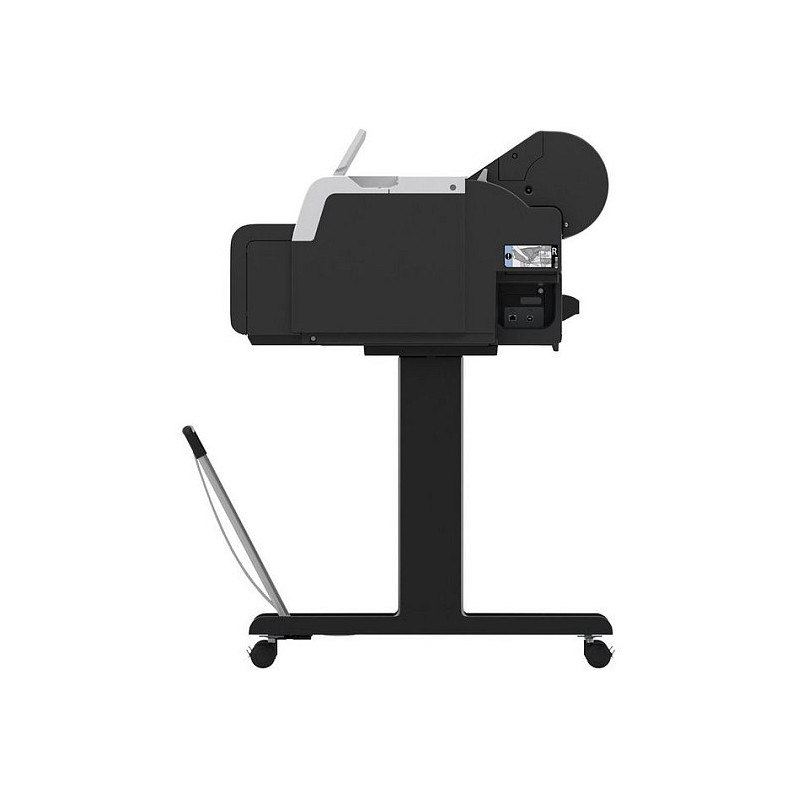

Canon imagePROGRAF TM-340 large format printer

Canon imagePROGRAF TM-340. Print technology: Bubblejet, Maximum resolution: 2400 x 1200 DPI, Page description languages: CALS G4, HP-GL/2, HP-RTL, JPEG. Maximum print size: A0 (841 x 1189 mm), Paper tray media types: Plain paper, Roll, ISO A-series sizes (A0...A9): A0, A1, A3, A3+. USB connector: USB Type-B, Ethernet LAN data rates: 10,100,1000 Mbit/s, Mobile printing technologies: Apple AirPrint. Product colour: Black, White, Display diagonal: 10.9 cm (4.3"), Control type: Touch. Power consumption (typical): 65 W, Power consumption (off): 0.1 W, Power consumption (sleep): 2.2 W
Reimagine printing performance with the sustainable 36" imagePROGRAF TM-340, offering less noise printing, more intuitive functionality and brilliant image quality for AEC offices, retail and education.
Reimagine performance with an elevated printing experience
Seamlessly create professional quality prints with reliable productivity, intuitive functionality and sustainable operation processes. Produce sharp, crisp lines and vivid red colour for eye-catching marketing materials and accurate CAD prints.
Enhanced professional quality

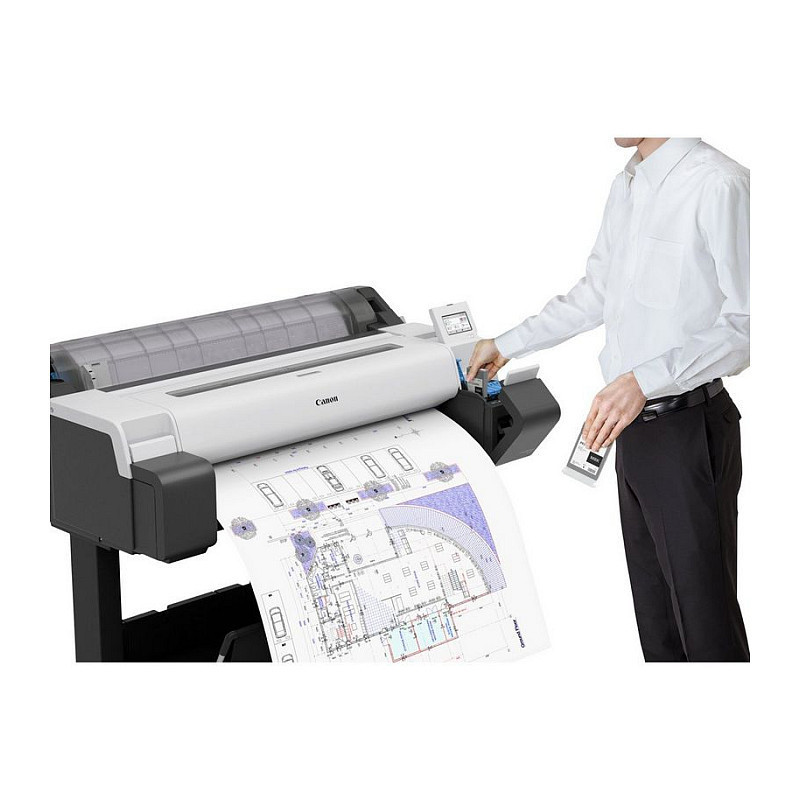

The new magenta ink produces a more brilliant red and stable image enhancements mean crisper lines. Print vivid and accurate CAD drawings, posters, educational materials and more.
Reliable productivity
Productivity that you can count on, with reliable performance, faster processing time and a quick return from sleep mode. Save time trimming excess margins with borderless print, giving full bleed images of any size, straight from the device.
Intuitive functionality

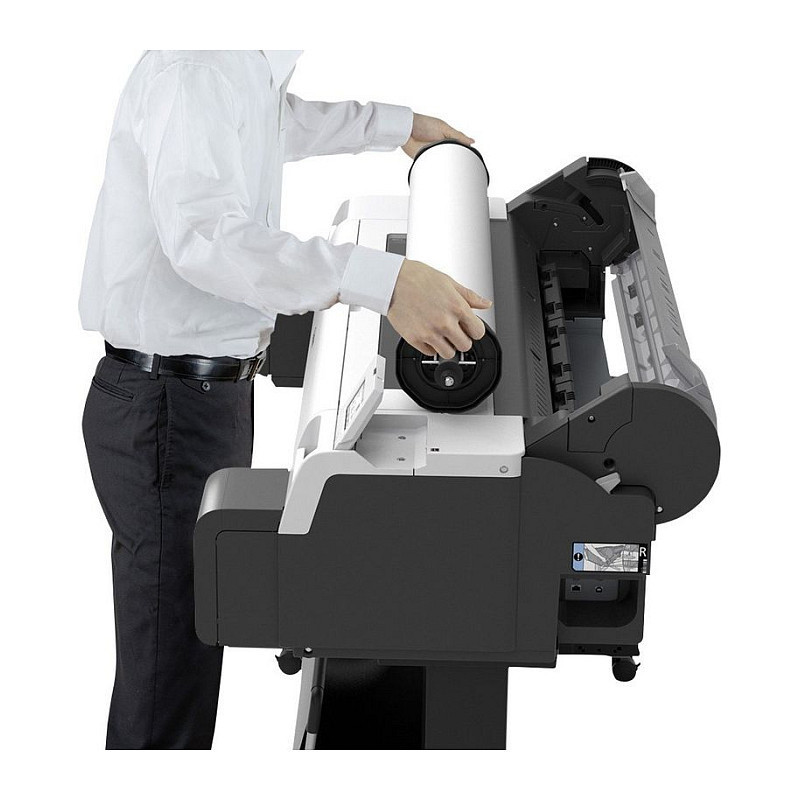

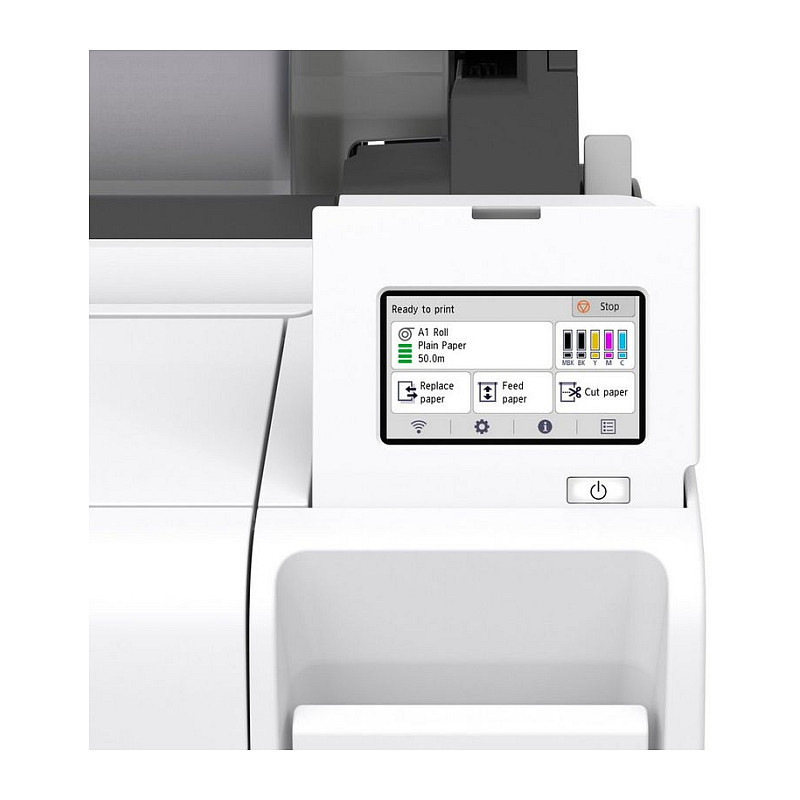

Functional design with a 4.3" touch screen panel displaying intuitive instructions and important information, like media type, remaining media and ink amount. Roll paper can be replaced with ease on the flat-top cover.
Improved sustainability
Environmentally conscious EPEAT Gold rated device for low energy consumption, with power reduction during standby and packaging free from polystyrene foam. Less noise printing makes it ideal for quiet offices.

Printing

Print technology: Bubblejet
Colour: Yes
Maximum resolution: 2400 x 1200 DPI
Number of print cartridges: 5
Page description languages: CALS G4, HP-GL/2, HP-RTL, JPEG

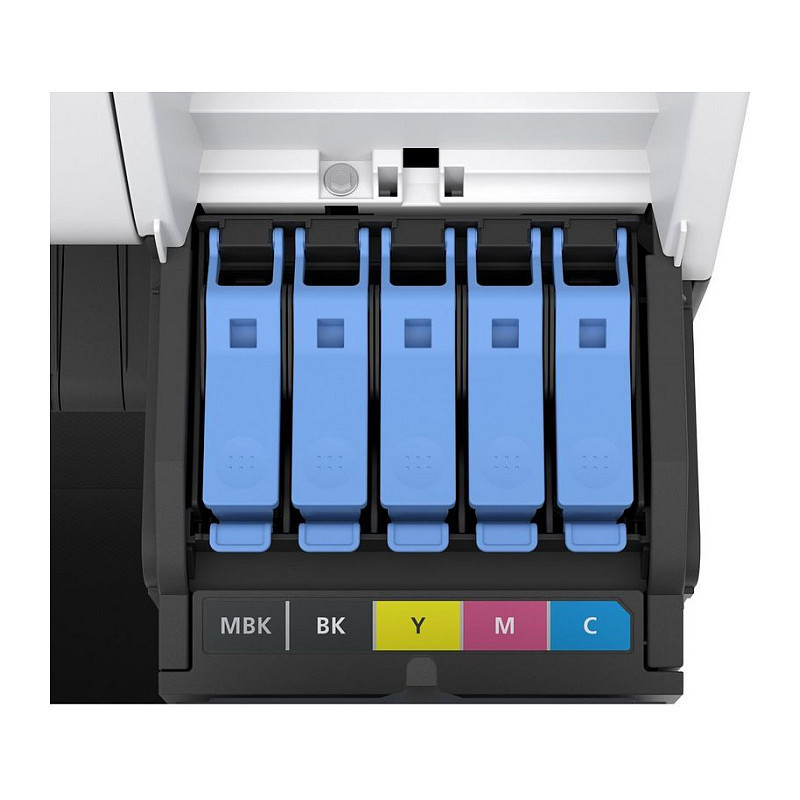

Printing colours: Black, Cyan, Magenta, Matte black, Yellow
Borderless printing: Yes
Print head: 1

Copying

Copying: No

Scanning

Scanning: No

Paper handling

Maximum print size: A0 (841 x 1189 mm)
Paper tray media types: Plain paper, Roll
ISO A-series sizes (A0...A9): A0, A1, A3, A3+
Cut sheets: Yes
Media thickness: 0.007 - 0.8 mm
Maximum roll length: 18 m
Maximum roll diameter: 15 cm

Ports interfaces

Wi-Fi: Yes
Ethernet LAN: Yes
USB port: Yes
USB connector: USB Type-B
Ethernet LAN data rates: 10,100,1000 Mbit/s
Mobile printing technologies: Apple AirPrint

Performance

Product colour: Black, White
Built-in display: Yes
Display diagonal: 10.9 cm (4.3")
Control type: Touch
Internal storage capacity: 2 GB
Sound pressure level (standby): 35 dB
Sound pressure level (printing): 39 dB

Power

Power consumption (typical): 65 W
Power consumption (off): 0.1 W
Power consumption (sleep): 2.2 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Operational conditions

Operating temperature (T-T): 15 - 30 °C
Operating relative humidity (H-H): 10 - 80%

System requirements

Supported Windows operating systems: Windows 10, Windows 11 x64, Windows 7, Windows 8.1. Supported Mac operating systems: Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.2 Jaguar, Mac OS X 10.9 Mavericks, Mac OS X 10.3 Panther, Mac OS X 11.0 Big Sur, Mac OS X 10.4 Tiger, Mac OS X 12.0 Monterey, Mac OS X 10.5 Leopard, Mac OS X 13.0 Ventura, Mac OS X 10.6 Snow Leopard.

Weight dimensions

Width: 1285 mm
Depth: 756 mm
Height: 1060 mm
Weight: 59.2 kg

Packaging data

Package width: 1462 mm
Package depth: 912 mm
Package height: 801 mm
Package weight: 100 kg
Cartridge(s) included: Yes
