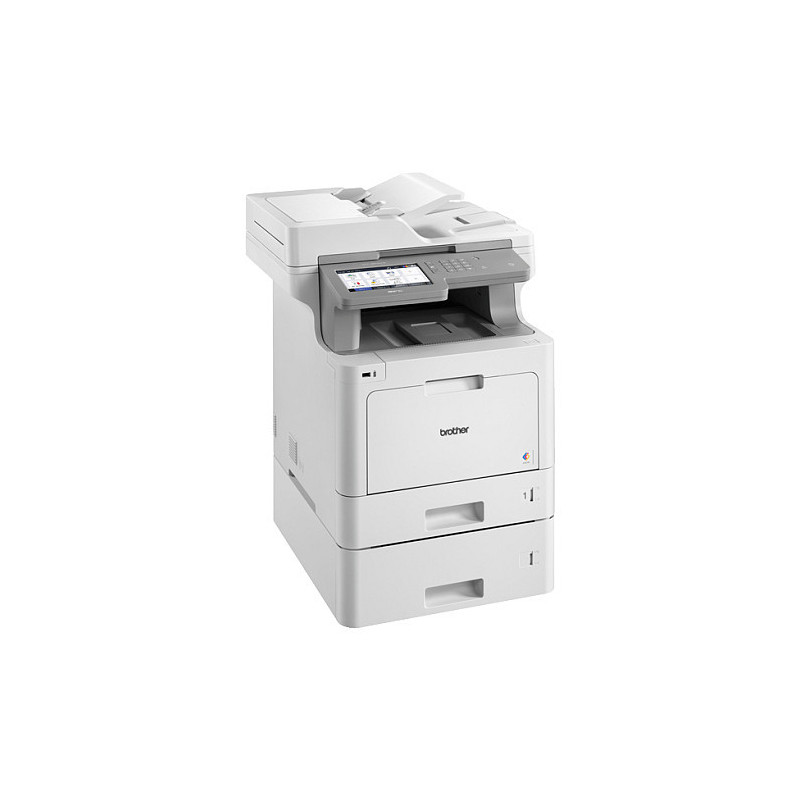

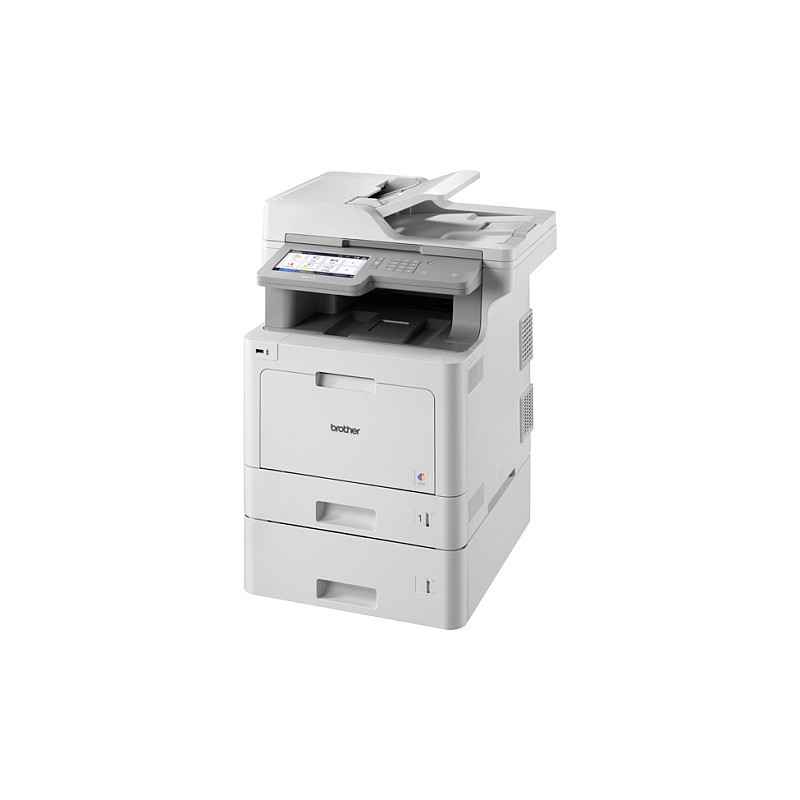

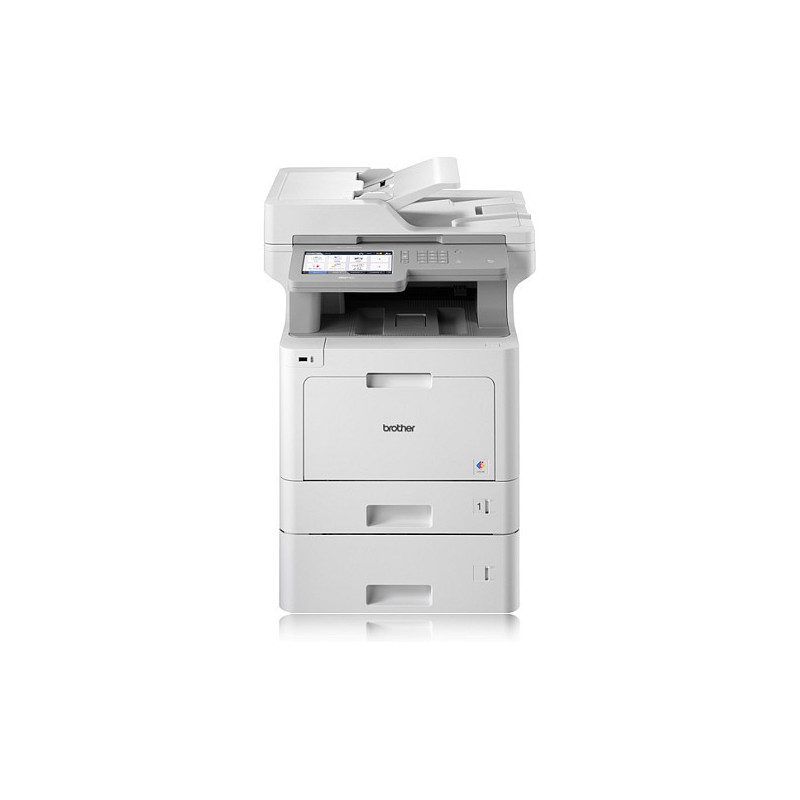

Brother MFC-L9570CDWT multifunction printer

Brother MFC-L9570CDWT. Print technology: Laser, Printing: Colour printing, Maximum resolution: 2400 x 600 DPI, Print speed (colour, normal quality, A4/US Letter): 31 ppm. Copying: Colour copying, Maximum copy resolution: 1200 x 600 DPI. Scanning: Colour scanning, Optical scanning resolution: 1200 x 2400 DPI. Faxing: Mono faxing. Maximum ISO A-series paper size: A4. Wi-Fi. Direct printing. Product colour: White
Maximise your performance with the large user-friendly touchscreen, and super fast 100ipm ADF.
The MFC-L9570CDWT comes with a large paper handling capacity, so that less time can be spent replenishing paper, maximising device uptime. With impressive scan and printing speeds, you can be sure that the MFC-L9570CDWT will be a great asset to your business.
Maximise Performance
The speedy new MFC-L9570CDW, enables you to easily improve efficiency and productivity. Enhanced document scanning and an Automatic Document Feeder that holds up to 80 sheets of paper, offer a quick and simple way to scan direct to the cloud or your network. With the touch of a button, you can also customise the touchscreen with your own time-saving shortcuts, while longer-life cartridges mean more time working and less time changing toner. And if your business grows, the MFC-L9570CDW can grow with it, providing expandable lower and tower paper trays that give you extra capacity
Tighter Security
The advanced security capabilities of the MFC-L9570CDW*, ensures you are always in full control of your print infrastructure. You can improve data protection by restricting machine access with network user authentication, and secure function lock, which allows you to password-protect certain device functions. Plus, the NFC reader can be used to integrate with secure printing, enabling users to release their print job from any chosen device by swiping an ID card or entering a PIN.
(*Includes MFC-L9570CDW, MFC-L9570CDWT versions)
Better reliability
Built to perform for longer and meet the demands of high output work environments, Brother's latest colour laser range has been totally remodelled with robust build quality that's even more resilient and hardwearing.
Putting you back in control of your print
A true print technology solution goes beyond hardware. We know control is integral when it comes to print costs. We make it easy with PrintSmart CostControl. It gives full visibility of who is printing what, and allows you to improve budgeting by setting print quotas and taking advantage of better reporting usage. You can upgrade to PrintSmart Secure Pro. It allows you to collect print data from connected devices to better understand how resource is being used in the office.

Printing

Duplex printing mode: Auto/Manual
Print technology: Laser
Printing: Colour printing
Duplex printing: Yes
Maximum resolution: 2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter): 31 ppm
Print speed (colour, normal quality, A4/US Letter): 31 ppm
Time to first page (black, normal): 15 s
Time to first page (colour, normal): 15 s
N-up printing: 2, 4, 9, 16, 25
Watermark printing: Yes
Secure printing: Yes
Poster printing function: Yes

Copying

Duplex copying: Yes
Copying: Colour copying
Maximum copy resolution: 1200 x 600 DPI
Copy speed (black, normal quality, A4): 31 cpm
Copy speed (colour, normal quality, A4): 31 cpm
Maximum number of copies: 99 copies
Copier resize: 25 - 400%
N-in-1 copy function: Yes

Scanning

Duplex scanning: Yes
Scanning: Colour scanning
Optical scanning resolution: 1200 x 2400 DPI
Maximum scan resolution: 19200 x 19200 DPI
Scanner type: Flatbed ADF scanner
Scan technology: Dual CIS
Scan to: E-mail, FTP, File, Image, OCR
Scan speed (colour): 50 ppm
Scan speed (black): 50 ppm
Image formats supported: JPG
Document formats supported: PDF
Input colour depth: 24 bit
Output colour depth: 8 bit
Greyscale levels: 256
Scan drivers: ISIS, TWAIN, WIA

Fax

Faxing: Mono faxing
Modem speed: 33.6 Kbit/s
Fax memory: 500 pages
Auto-redialing: Yes
Fax forwarding: Yes
Fax broadcasting: 350 locations
Fax delayed sending: Yes
Error Correction Mode (ECM): Yes
Fax dual access: Yes

Features

Recommended duty cycle: 0 - 6000 pages per month
Number of print cartridges: 4
Page description languages: PCL 6, PDF 1.7, PostScript 3, XPS
Country of origin: China

Input output capacity

Total number of input trays: 2
Total input capacity: 800 sheets
Total output capacity: 150 sheets
Multi-Purpose tray: Yes
Multi-Purpose tray input capacity: 50 sheets
Paper input type: Paper tray
Auto document feeder (ADF): Yes
Auto document feeder (ADF) input capacity: 80 sheets
Maximum number of input trays: 2

Paper handling

Maximum ISO A-series paper size: A4
Paper tray media types: Bond paper, Plain paper, Recycled paper
ISO A-series sizes (A0...A9): A4, A5, A6
Non-ISO print media sizes: Executive, Folio, Legal
Custom media width: 76.2 - 215.9 mm
Custom media length: 127 - 355.6 mm
Paper tray media weight: 60 - 163 g/m²
Auto Document Feeder (ADF) media weight: 60 - 105 g/m²

Ports interfaces

Standard interfaces: Ethernet, USB 2.0, Wireless LAN
Direct printing: Yes
USB port: Yes

Network

Wi-Fi: Yes
Ethernet LAN: Yes
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Near Field Communication (NFC): Yes
Security algorithms: 64-bit WEP, 128-bit WEP, 802.1x RADIUS, APOP, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, IPPS, IPSEC, PEAP, SMTP-AUTH, SNMP, SSL/TLS, WPA-PSK, WPA2-PSK
Supported network protocols (IPv4): ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, POP3, SMTP Client, IPP/ IPPS, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), SNTP Client, LDAP, IMAP4
Supported network protocols (IPv6): NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/ Port9100, IPP/IPPS, POP3, SMTP Client, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, LDAP, Web Services (Print/Scan), IMAP4
Online services supported: Dropbox, Evernote, Facebook, Flickr, Google Drive, OneDrive, OneNote
Mobile printing technologies: Apple AirPrint, Brother iPrint Scan, Google Cloud Print, Mopria Print Service

Performance

Card reader integrated: No
Internal memory: 1024 MB
Built-in processor: Yes
Processor frequency: 800 MHz
Coprocessor: Yes
Coprocessor frequency: 0.133 GHz
Sound pressure level (printing): 49 dB

Design

Product colour: White
Market positioning: Business
Built-in display: Yes
Display: LCD
Display diagonal: 17.6 cm (6.92")
Touchscreen: Yes
Control type: Touch
Colour display: Yes

Power

Power consumption (average operating): 580 W
Power consumption (ready): 70 W
Power consumption (sleep): 10 W
Power consumption (off): 0.03 W
Energy Star Typical Electricity Consumption (TEC): 1.9 kWh/week

System requirements

Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64
Mac operating systems supported: Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016, Windows Server 2016 x64

Sustainability

Sustainability certificates: ENERGY STAR

Weight dimensions

Width: 640 mm
Depth: 675 mm
Height: 730 mm
Weight: 37.3 kg

Packaging data

Package width: 675 mm
Package depth: 652 mm
Package height: 1033 mm
Package weight: 45.4 kg

Logistics data

Harmonized System (HS) code: 84433100
Pallet gross height: 11.8 cm
Pallet gross weight: 108.7 kg
Master (outer) cases per pallet: 2 pc(s)
Layers per pallet: 1 pc(s)
Products per pallet: 2 pc(s)

Technical details

Master (outer) cases per pallet layer: 2 pc(s)
Pallet type: 800 x 1200 mm

Other features

Spare part retention: 5 year(s)
