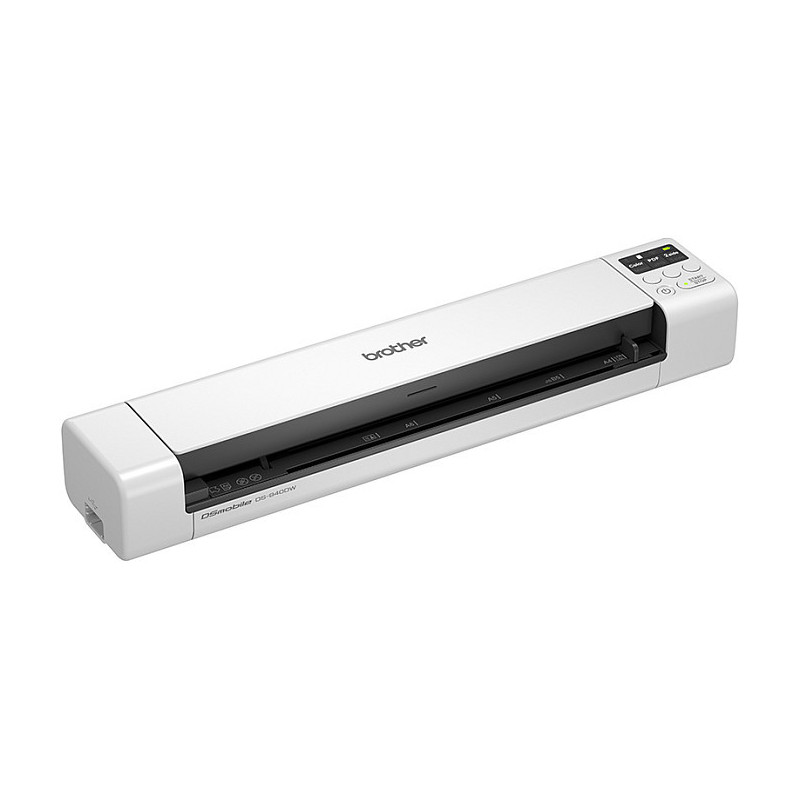

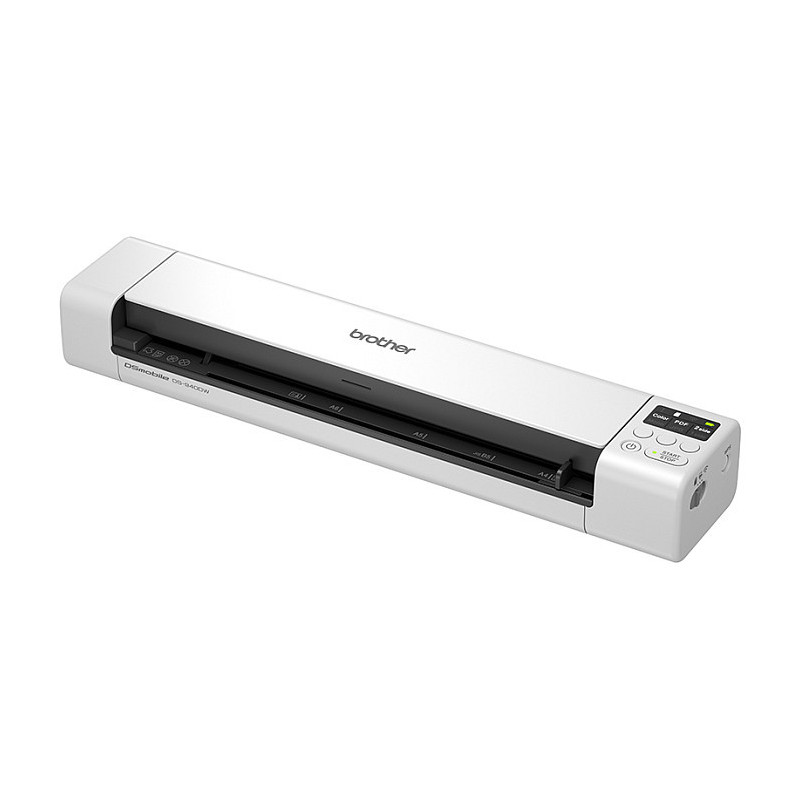

Brother DS-940DW scanner

Brother DS-940DW. Maximum scan size: 215.9 x 1828.8 mm, Optical scanning resolution: 600 x 600 DPI, Enhanced scan resolution: 1200 x 1200 DPI. Scanner type: Sheet-fed scanner, Product colour: Black, White. Scan to: E-mail, File, Image, Memory card, OCR, Scan drivers: ICA, SANE, TWAIN, WIA, Scanning noise level: 53 dB. Standard input capacity: 1 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plain paper, Plastic Card, Card thickness (max): 1.24 mm
The DSmobile DS-940DW is engineered to be truly flexible. Featuring a built-in battery, Wi-Fi and intuitive LCD panel, setup is effortless. Digitising your files whether in the office where space is limited or out on the road is simple. Scan your documents straight to the cloud using Brother's mobile app and easily share your documents with colleagues wherever you are. Your information is kept safe, effortless to find and more convenient to edit. With a unique "U-path" roller system, you are not required to have extra space behind the scanner for the document to feed-through. As the document goes in, it glides over the top of the scanner and is returned to you.

Scanning

Maximum scan size: 215.9 x 1828.8 mm
Optical scanning resolution: 600 x 600 DPI
Enhanced scan resolution: 1200 x 1200 DPI
Colour scanning: Yes
Duplex scanning: Yes
Input colour depth: 48 bit
Output colour depth: 24 bit
ADF scan speed (b/w, A4): 15 ppm
ADF scan speed (colour, A4): 15 ppm
Duplex ADF scan speed (colour, A4): 30 ipm
Black/white scanning colour modes: Grayscale, Monochrome

Design

Scanner type: Sheet-fed scanner
Product colour: Black, White
Built-in display: No

Performance

Scan to: E-mail, File, Image, Memory card, OCR
Scan drivers: ICA, SANE, TWAIN, WIA
Scanning noise level: 53 dB
Sound pressure level (max): 42 dB
Internal memory: 512 MB
Compatible memory cards: MicroSD (TransFlash)

Input capacity

Standard input capacity: 1 sheets

Paper handling

Scanning media types supported: Business Card, Plain paper, Plastic Card
Maximum ISO A-series paper size: A4
Card thickness (max): 1.24 mm
Maximum scan width: 21.6 cm
Maximum scan length: 182.9 cm

Ports interfaces

USB port: Yes
USB version: 3.2 Gen 1 (3.1 Gen 1)
USB connector type: Micro-USB B
Standard interfaces: USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN

Network

Wi-Fi: Yes
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms: 64-bit WEP, 128-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK
Wi-Fi Direct: Yes
Supported network protocols (IPv4): DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder,SNTP Client

Power

Power supply type: USB
Power consumption (typical): 3.6 W
Power consumption (standby): 2.2 W
Power consumption (off): 0.11 W

Weight dimensions

Width: 162 mm
Depth: 76 mm
Height: 377 mm
Weight: 590 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 377 mm
Package depth: 162 mm
Package height: 76 mm
Package weight: 1.23 kg

Packaging content

Warranty card: Yes
Cables included: Micro-USB
Quick start guide: Yes

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Other features

Spare part retention: 5 year(s)

Technical details

Pallet type: 800 x 1200 mm

Logistics data

Products per pallet: 216 pc(s)
Country of origin: China
Master (outer) cases per pallet: 72 pc(s)
Layers per pallet: 8 pc(s)
Pallet gross weight: 274.3 kg
Pallet gross height: 15.9 cm
Master (outer) cases per pallet layer: 9 pc(s)
Harmonized System (HS) code: 84716070
