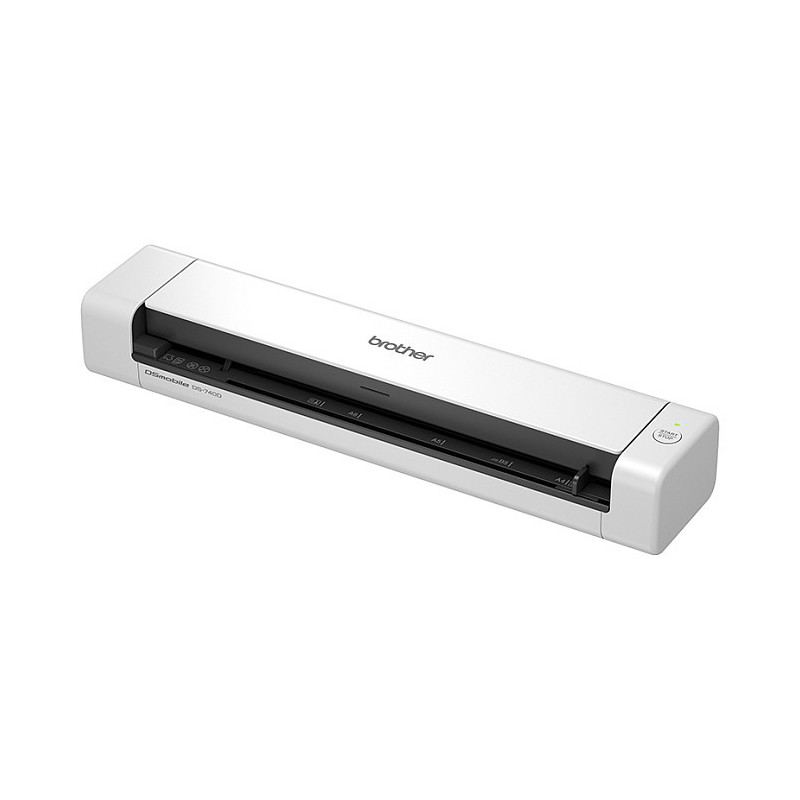

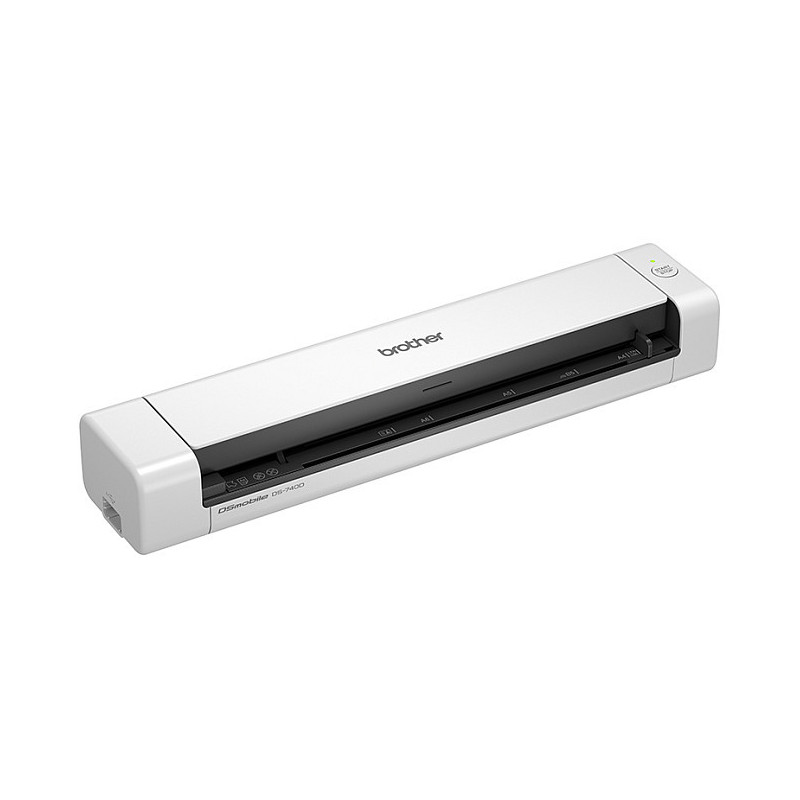

Brother DS-740D scanner

Brother DS-740D. Maximum scan size: 215.9 x 1828.8 mm, Optical scanning resolution: 600 x 600 DPI, Enhanced scan resolution: 1200 x 1200 DPI. Scanner type: Sheet-fed scanner, Product colour: Black, White. Scan to: E-mail, File, Image, OCR, Scan drivers: ICA, SANE, TWAIN, WIA, Scanning noise level: 53 dB. Standard input capacity: 1 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plain paper, Plastic Card, Card thickness (max): 1.24 mm

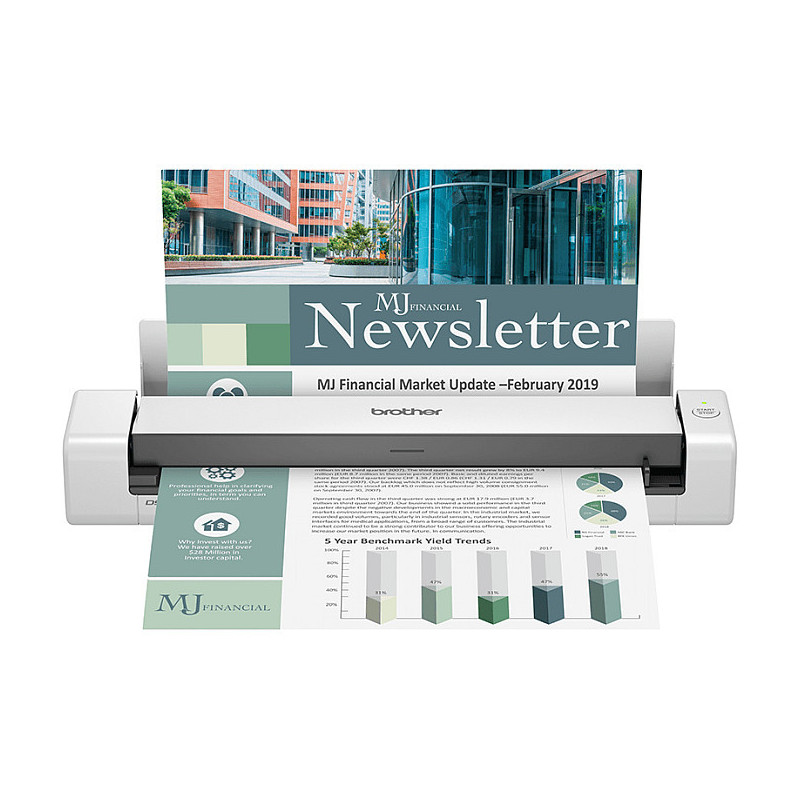

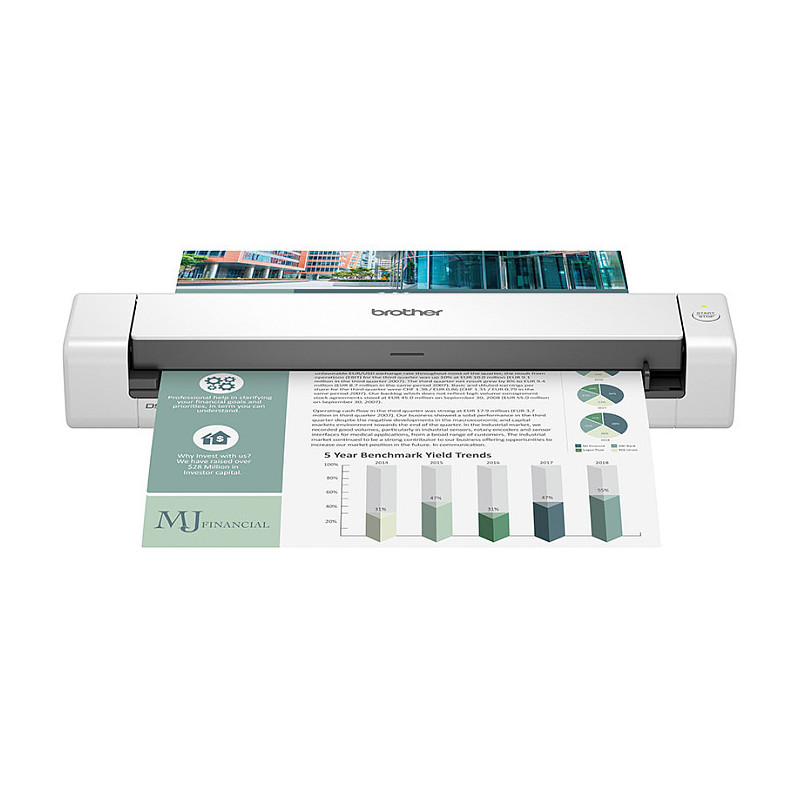

Bring your documents to life with the DSmobile DS-740D portable document scanner. Enjoy scanning, saving and sharing your files whether you are in the office or out on the road. Whether it's receipts, 2-sided documents or ID cards, your files are easily transformed into digital files. Making your information safer, easier to find and more convenient to edit or share. The unique roller system means you are not required to have extra space behind the scanner for the document to feed-through. As the document goes in, it glides over the top of the scanner and is returned to you.

Scanning

Maximum scan size: 215.9 x 1828.8 mm
Optical scanning resolution: 600 x 600 DPI
Enhanced scan resolution: 1200 x 1200 DPI
Colour scanning: Yes
Duplex scanning: Yes
Input colour depth: 48 bit
Output colour depth: 24 bit
Greyscale levels: 256
Black/white scanning colour modes: Grayscale, Monochrome

Design

Scanner type: Sheet-fed scanner
Product colour: Black, White
Built-in display: No

Performance

Scan to: E-mail, File, Image, OCR
Scan drivers: ICA, SANE, TWAIN, WIA
Scanning noise level: 53 dB
Sound pressure level (max): 42 dB
Internal memory: 256 MB

Input capacity

Standard input capacity: 1 sheets

Paper handling

Scanning media types supported: Business Card, Plain paper, Plastic Card
Maximum ISO A-series paper size: A4
Card thickness (max): 1.24 mm
Maximum scan width: 21.6 cm
Maximum scan length: 182.9 cm

Ports interfaces

USB port: Yes
USB version: 3.2 Gen 1 (3.1 Gen 1)
USB connector type: Micro-USB B
Standard interfaces: USB 3.2 Gen 1 (3.1 Gen 1)

Power

Power supply type: USB
Power consumption (typical): 2.9 W
Power consumption (standby): 1.4 W
Power consumption (off): 0.01 W

Weight dimensions

Width: 162 mm
Depth: 76 mm
Height: 377 mm
Weight: 537 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 377 mm
Package depth: 162 mm
Package height: 76 mm
Package weight: 1.17 kg

Packaging content

Warranty card: Yes
Cables included: Micro-USB
Quick start guide: Yes

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Technical details

Pallet type: 800 x 1200 mm

Logistics data

Products per pallet: 240 pc(s)
Country of origin: China
Master (outer) cases per pallet: 80 pc(s)
Layers per pallet: 8 pc(s)
Pallet gross weight: 286 kg
Pallet gross height: 16.7 cm
Master (outer) cases per pallet layer: 10 pc(s)
Harmonized System (HS) code: 84716070
