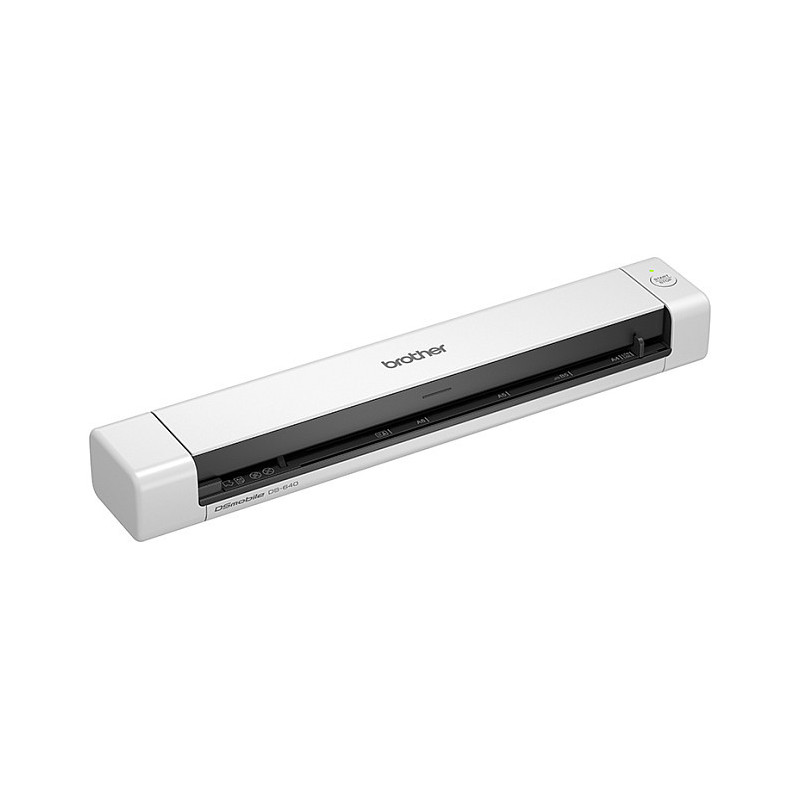

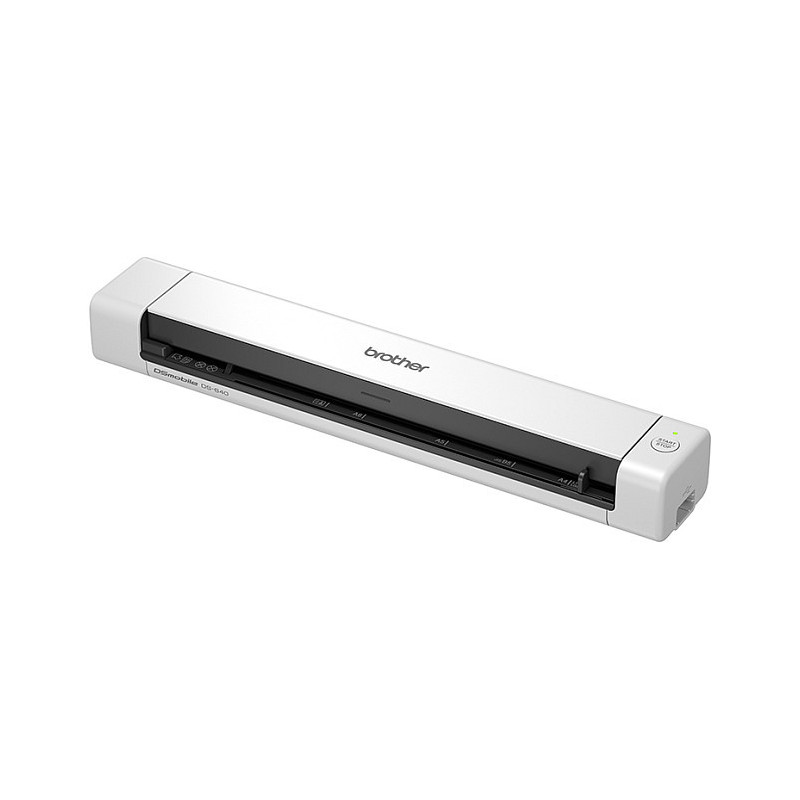

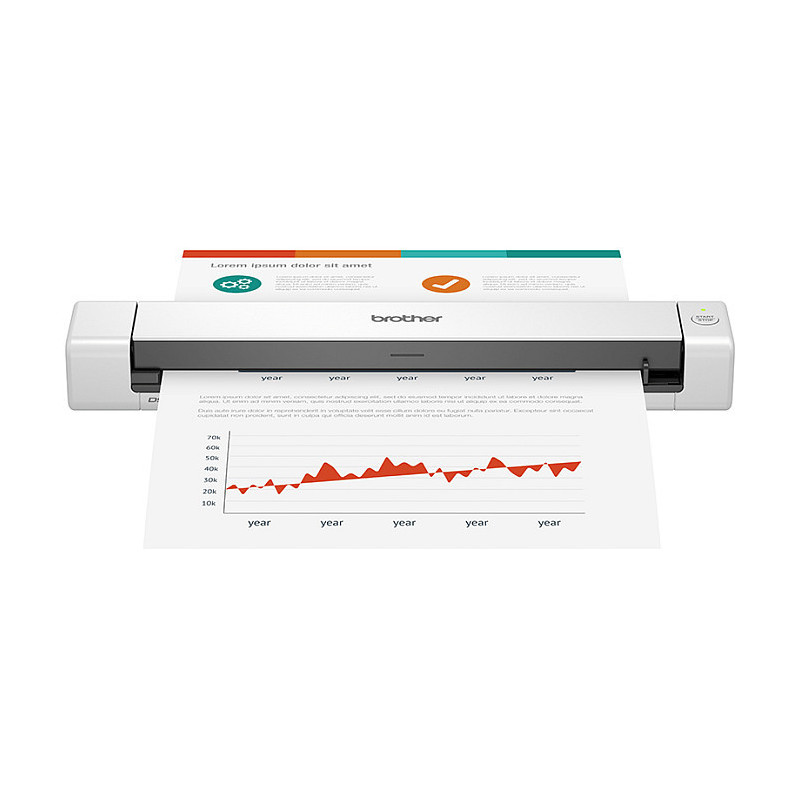

Brother DS-640 scanner

Brother DS-640. Maximum scan size: 215.9 x 1828.8 mm, Optical scanning resolution: 1200 x 1200 DPI, Enhanced scan resolution: 1200 x 1200 DPI. Scanner type: Handheld scanner, Product colour: Black, White. Sensor type: CIS, Scan to: E-mail, File, Image, OCR, Scan drivers: SANE, TWAIN, WIA. Maximum ISO A-series paper size: A4, Scanning media types supported: Plain paper, Plastic Card, Card thickness (max): 1.24 mm. USB version: 3.2 Gen 1 (3.1 Gen 1), USB connector type: Micro-USB B, Standard interfaces: USB 3.2 Gen 1 (3.1 Gen 1)
Make scanning, saving and sharing your documents effortless. The small, compact design, makes the DSmobile DS-640 ideal where space is limited. Whether on a reception desk or when you are out of the office, reducing the amount of paperwork and ensuring document security is always key. A great choice for reception areas, small offices and working on the go.

Scanning

Maximum scan size: 215.9 x 1828.8 mm
Optical scanning resolution: 1200 x 1200 DPI
Enhanced scan resolution: 1200 x 1200 DPI
Colour scanning: Yes
Duplex scanning: No
Output colour depth: 24 bit
Output greyscale depth: 8 bit
Output monochrome depth: 1 bit
Greyscale levels: 256
ADF scan speed (b/w, A4): 15 ppm
ADF scan speed (colour, A4): 15 ppm
Black/white scanning colour modes: Grayscale

Design

Scanner type: Handheld scanner
Product colour: Black, White
Built-in display: No

Performance

Sensor type: CIS
Scan to: E-mail, File, Image, OCR
Scan drivers: SANE, TWAIN, WIA
Scanning noise level: 53 dB
Sound pressure level (max): 42 dB

Paper handling

Scanning media types supported: Plain paper, Plastic Card
Long-paper mode: Yes
Maximum ISO A-series paper size: A4
Card thickness (max): 1.24 mm
Auto Document Feeder (ADF) media weight: 35 - 270 g/m²

Ports interfaces

USB port: Yes
USB version: 3.2 Gen 1 (3.1 Gen 1)
USB connector type: Micro-USB B
Standard interfaces: USB 3.2 Gen 1 (3.1 Gen 1)

Power

Power supply type: USB
Power consumption (typical): 2.3 W
Power consumption (standby): 1.3 W
Power consumption (off): 0.01 W

Weight dimensions

Width: 162 mm
Depth: 76 mm
Height: 377 mm
Weight: 390 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 377 mm
Package depth: 162 mm
Package height: 76 mm
Package weight: 1.02 kg

Packaging content

Warranty card: Yes
Cables included: Micro-USB
Quick start guide: Yes

System requirements

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 20 - 80%

Other features

Maximum media width: 215.9
Scan media weight: 35 - 270 g/m²
Maximum media length: 182.9 cm

Technical details

Pallet type: 800 x 1200 mm

Logistics data

Products per pallet: 240 pc(s)
Country of origin: China
Master (outer) cases per pallet: 80 pc(s)
Layers per pallet: 8 pc(s)
Pallet gross weight: 242 kg
Pallet gross height: 16.3 cm
Master (outer) cases per pallet layer: 10 pc(s)
Harmonized System (HS) code: 84716070
