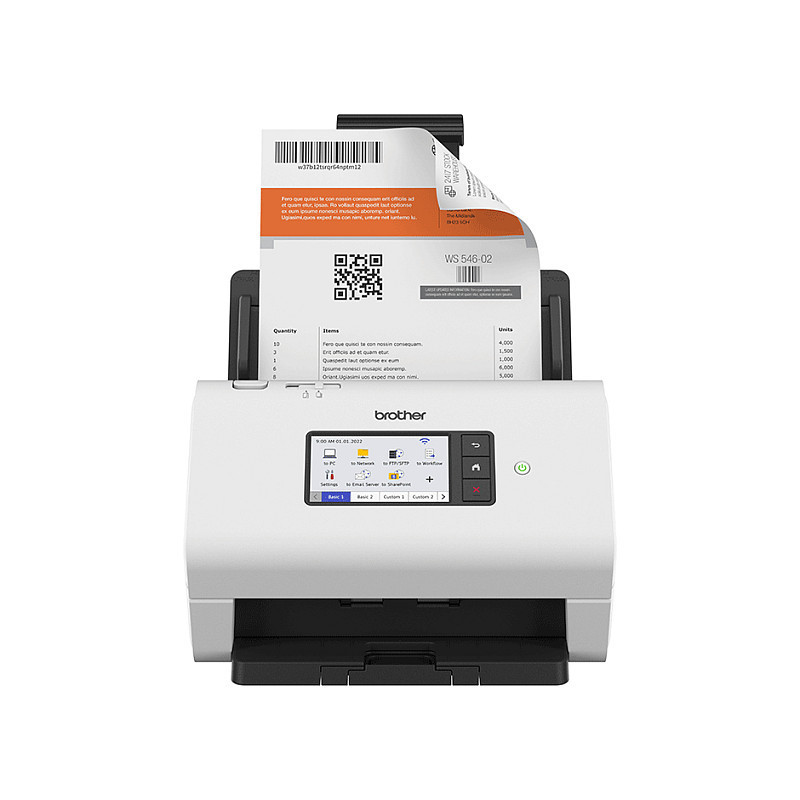

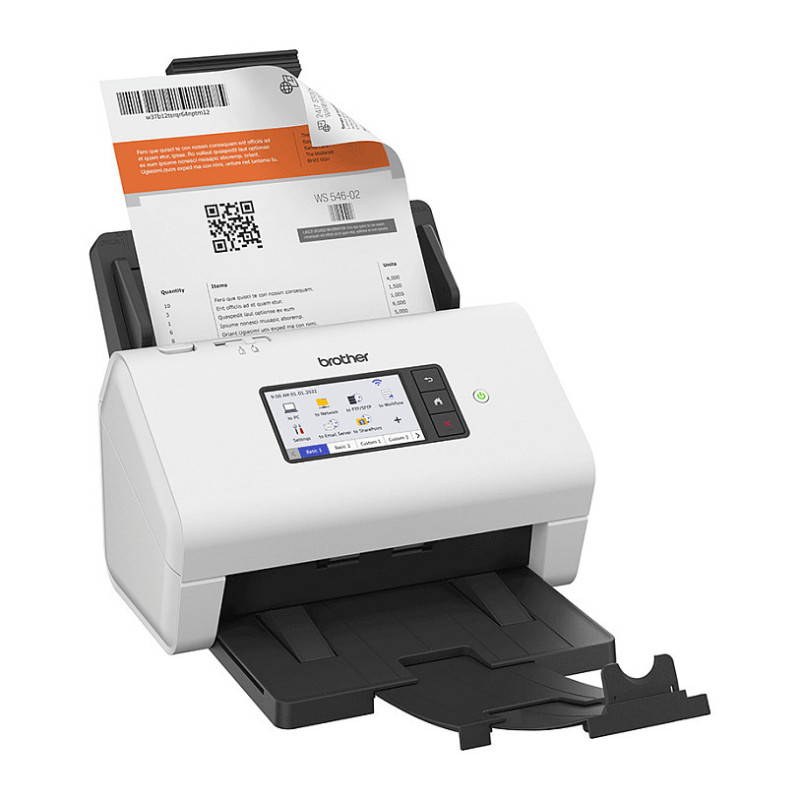

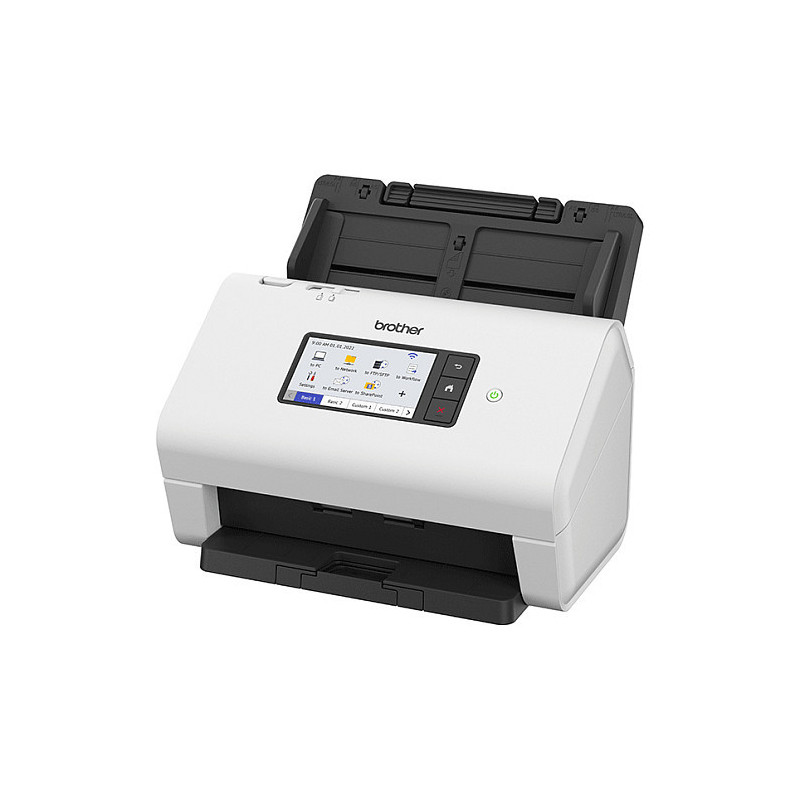

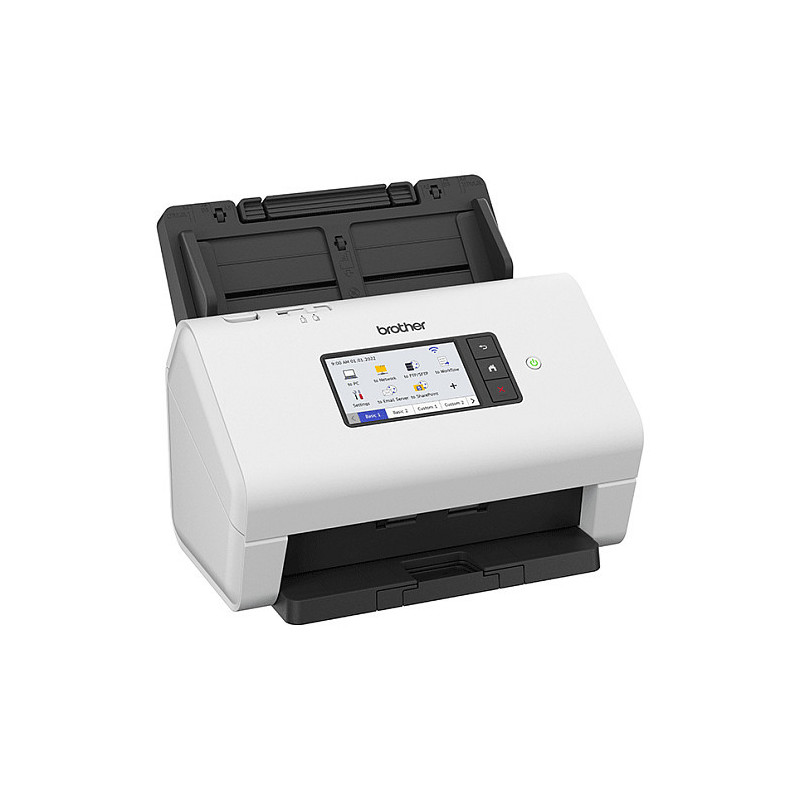

Brother ADS-4900W scanner

Brother ADS-4900W. Maximum scan size: 215.9 x 355.6 mm, Optical scanning resolution: 600 x 600 DPI, Enhanced scan resolution: 1200 x 1200 DPI. Scanner type: ADF + Sheet-fed scanner, Product colour: Black, White, Display: LCD. Sensor type: Dual CIS, Daily duty cycle (max): 9000 pages, Light source: LED. Auto document feeder (ADF) input capacity: 100 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper, Media thickness (min): 0.08 mm
For uninterrupted high-volume, batch scanning. With the simplicity of one-touch scanning, securely capture, send and receive business documents with ease, whether they're at home or in the office. Large intuitive 10.9cm touchscreen with 56 configurable shortcuts Personalised multi-user experience Secure workgroup sharing Advanced image processing and batch scanning Features Auto Start Scan, Ultrasonic Multifeed Sensor, Separation Switch, Scan Preview, CIS Cleaning Alarm Includes Brother ScanEssentials software Driver compatibility with TWAIN (WIN and macOS), WIA, ISIS, Linux SANE

Scanning

Maximum scan size: 215.9 x 355.6 mm
Optical scanning resolution: 600 x 600 DPI
Enhanced scan resolution: 1200 x 1200 DPI
Colour scanning: Yes
Duplex scanning: Yes
Input colour depth: 48 bit
Output colour depth: 24 bit
Output greyscale depth: 8 bit
Greyscale levels: 256
ADF scan speed (b/w, A4): 60 ppm
ADF scan speed (colour, A4): 60 ppm
Duplex ADF scan speed (b/w, A4): 120 ipm
Duplex ADF scan speed (colour, A4): 120 ipm

Design

Scanner type: ADF + Sheet-fed scanner
Product colour: Black, White
Display: LCD
Display diagonal: 10.9 cm (4.3")
Touchscreen: Yes
Colour display: Yes
Control type: Touch
Built-in display: Yes

Performance

Sensor type: Dual CIS
Light source: LED
Scan file formats: JPEG, PDF, TIFF
Daily duty cycle (max): 9000 pages
Maximum duty cycle: 180000 pages per month
Scan to: E-mail Server, FTP, HTTP, PC, SMB
Scan drivers: ISIS, SANE, TWAIN, WIA
Ultrasonic sensor: Yes
Scanning noise level: 62 dB

Input capacity

Auto document feeder (ADF) input capacity: 100 sheets

Paper handling

Scanning media types supported: Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Long-paper mode: Yes
Maximum ISO A-series paper size: A4
Media thickness (min): 0.08 mm
Card thickness (max): 1.32 mm
Paper tray media weight: 25 - 413 g/m²
Auto Document Feeder (ADF) media weight: 25 - 413 g/m²
Maximum scan width: 21.6 cm
Maximum scan length: 5 m

Ports interfaces

USB port: Yes
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)

Network

Wi-Fi: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN: Yes
Security algorithms: AES, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS, TKIP, TLS, WEP, WPA-PSK, WPA2-AES, WPA2-PSK, WPA3
Supported network protocols (IPv6): RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6
Supported network protocols (IPv4): DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP
IPv6 support: Yes

Power

Power supply type: AC
Power consumption (typical): 34 W
Power consumption (standby): 7.7 W
Power consumption (off): 0.1 W
Sleep mode: Yes
Power consumption (sleep): 1.7 W
Output voltage: 24 V
Output current: 1.9 A
Auto power off: Yes

Weight dimensions

Width: 288 mm
Depth: 334 mm
Height: 393 mm
Weight: 3.81 kg

Packaging data

Quantity per pack: 1 pc(s)
Package width: 393 mm
Package depth: 288 mm
Package height: 334 mm
Package weight: 4.6 kg

Packaging content

Cables included: AC, USB

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Other features

Cable lock slot: Yes
Spare part retention: 5 year(s)
Certification: GS Mark, WHQL, WHQL, ISIS, Wi-Fi CERTIFIED - WPA3 Enterprise, WPA3 Personal, Wi-Fi Protected Setup, Wi-Fi Direct, KofaxTM 5,10 - VRS Elite 5.2.0, Kofax Express 3.3.0

Technical details

Pallet type: 800 x 1200 mm

Logistics data

Products per pallet: 40 pc(s)
Country of origin: China
Master (outer) cases per pallet: 40 pc(s)
Layers per pallet: 5 pc(s)
Pallet gross weight: 186 kg
Pallet gross height: 18.1 cm
Master (outer) cases per pallet layer: 8 pc(s)
Harmonized System (HS) code: 84716070
