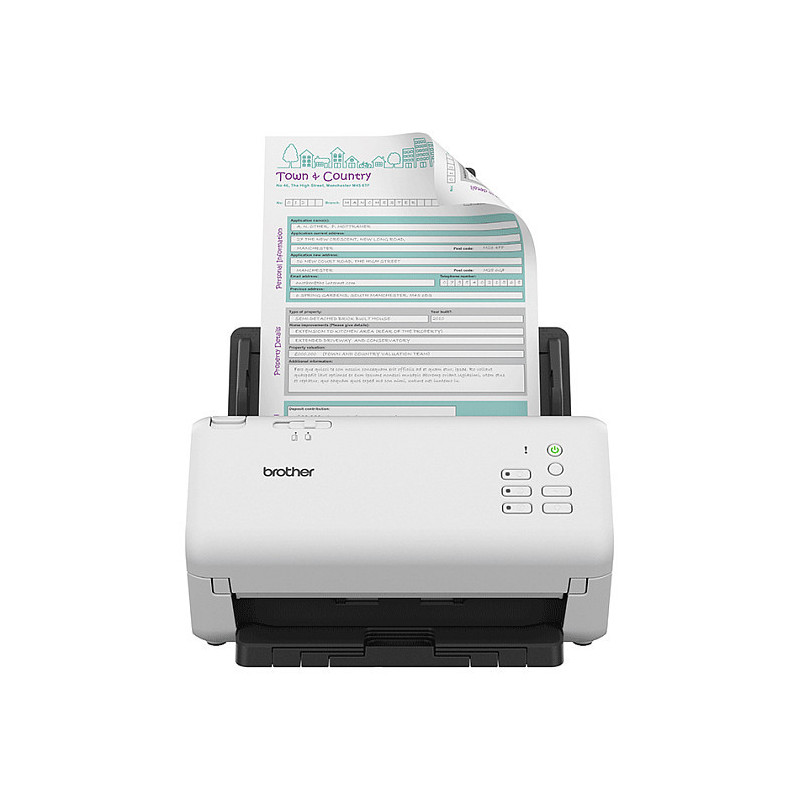

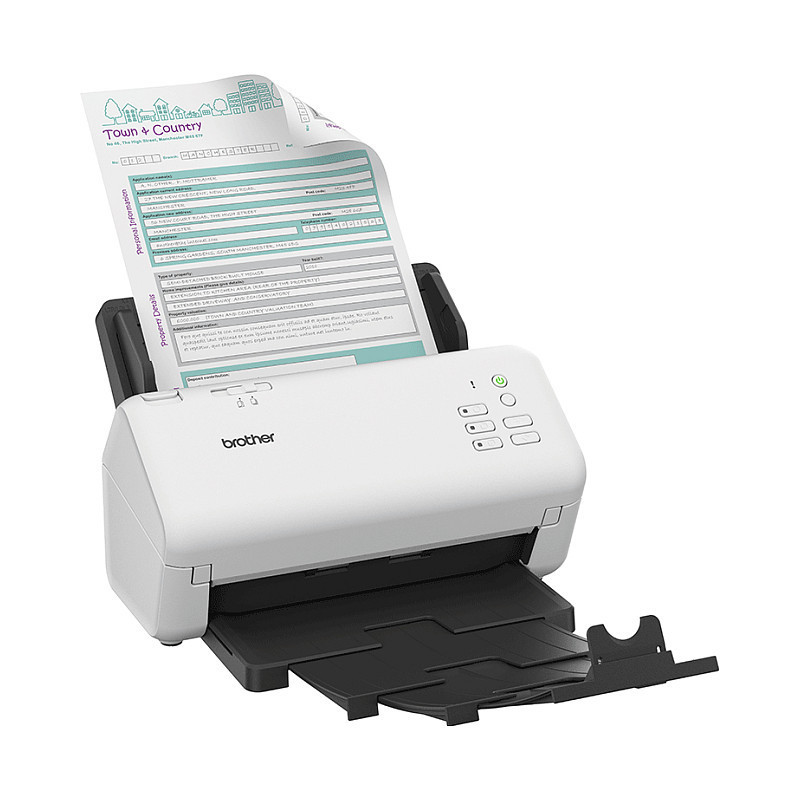

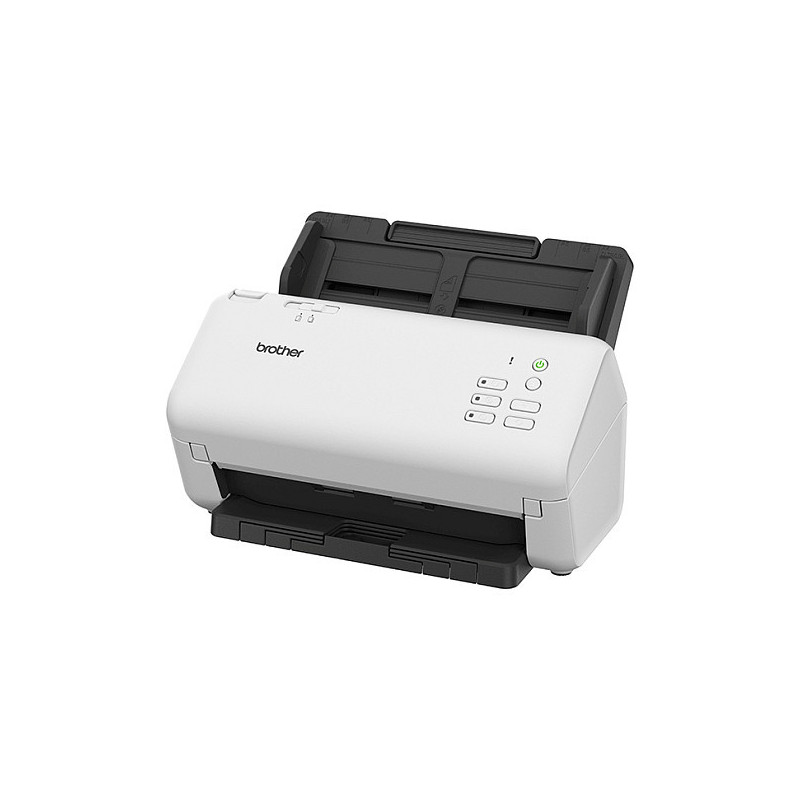

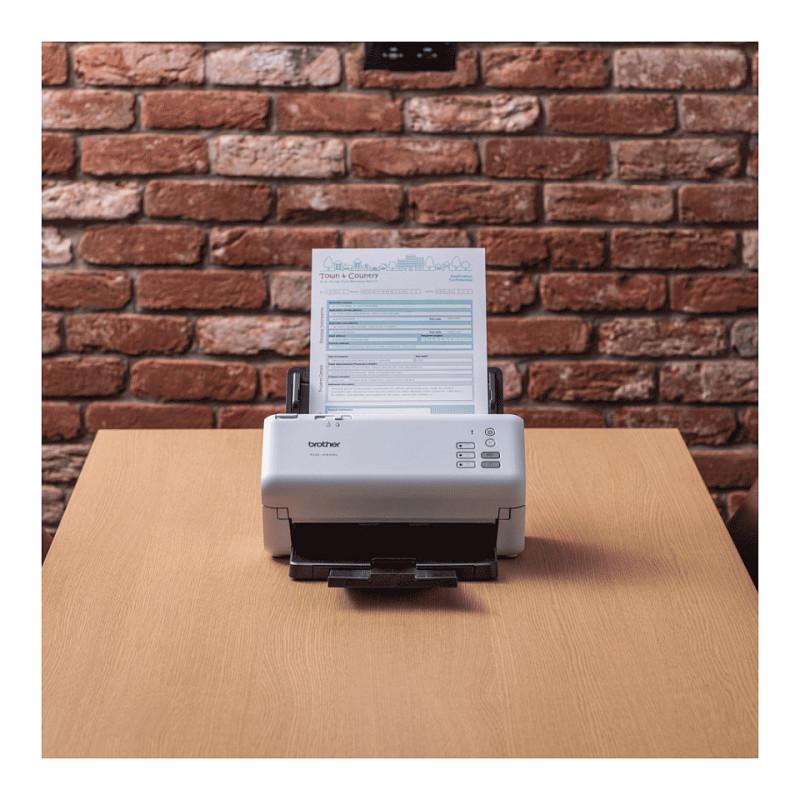

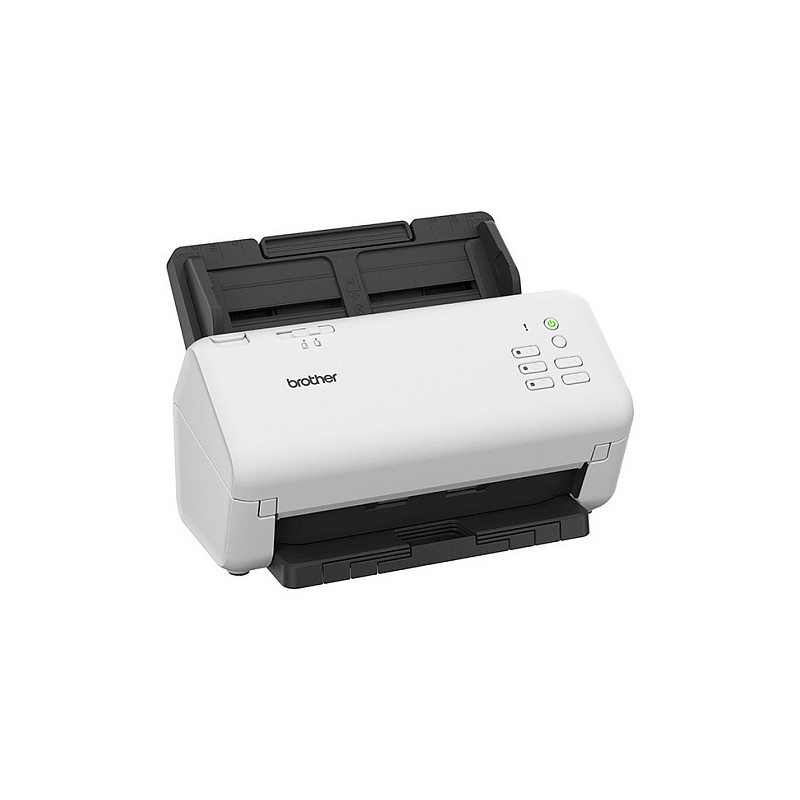

Brother ADS-4300N scanner

Brother ADS-4300N. Optical scanning resolution: 600 x 600 DPI, Enhanced scan resolution: 1200 x 1200 DPI, Input colour depth: 48 bit. Scanner type: ADF scanner, Product colour: Black, White, Control type: Buttons. Sensor type: Dual CIS, Daily duty cycle (max): 6000 pages, Light source: LED. Auto document feeder (ADF) input capacity: 80 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper, Card thickness (max): 1.1 mm
Designed for businesses needing a high-speed, efficient network scanner. Connect your ADS-4300N to your network and effortlessly capture your documents to share and collaborate with colleagues.3 configurable hot keysAdvanced image processing and batch scanningFeatures Ultrasonic Multifeed Sensor, Separation SwitchBrother Mobile Connect appSupports AirPrint ScanIncludes Brother ScanEssentials softwareDriver compatibility with TWAIN (Win and macOS), WIA, Linux SANE

Scanning

Optical scanning resolution: 600 x 600 DPI
Enhanced scan resolution: 1200 x 1200 DPI
Colour scanning: Yes
Duplex scanning: Yes
Input colour depth: 48 bit
Output colour depth: 24 bit
Output greyscale depth: 8 bit
Greyscale levels: 256
ADF scan speed (b/w, A4): 40 ppm
ADF scan speed (colour, A4): 40 ppm
Duplex ADF scan speed (b/w, A4): 80 ipm
Duplex ADF scan speed (colour, A4): 80 ipm

Design

Scanner type: ADF scanner
Product colour: Black, White
Control type: Buttons
Built-in display: No

Performance

Sensor type: Dual CIS
Light source: LED
Scan file formats: JPEG, PDF, TIFF
Daily duty cycle (max): 6000 pages
Maximum duty cycle: 120000 pages per month
Scan to: FTP, Image, PC, SMB, USB
Scan drivers: ICA, SANE, TWAIN, WIA
Scanning noise level: 59 dB

Input capacity

Auto document feeder (ADF) input capacity: 80 sheets

Paper handling

Scanning media types supported: Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Maximum ISO A-series paper size: A4
Card thickness (max): 1.1 mm
Paper tray media weight: 40 - 200 g/m²
Auto Document Feeder (ADF) media weight: 40 - 200 g/m²
Maximum scan width: 21.6 cm
Maximum scan length: 5 m

Ports interfaces

USB port: Yes
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)

Network

Ethernet LAN: Yes
Security algorithms: EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS
Supported network protocols (IPv6): RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6
Supported network protocols (IPv4): DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP
IPv6 support: Yes
Supported network protocols: DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP, RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6

Power

Power supply type: AC
Power consumption (typical): 24 W
Power consumption (standby): 6.8 W
Power consumption (off): 0.1 W
AC input frequency: 50 - 60 Hz
Power consumption (sleep): 1.7 W
Output voltage: 24 V
Output current: 1.9 A

Weight dimensions

Width: 243 mm
Depth: 320 mm
Height: 391 mm
Weight: 3.09 kg

Packaging data

Quantity per pack: 1 pc(s)
Package width: 391 mm
Package depth: 320 mm
Package height: 243 mm
Package weight: 3.74 kg

Packaging content

Cables included: AC, USB

Sustainability

Sustainability compliance: Yes

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Other features

Compliance certificates: RoHS
Spare part retention: 5 year(s)
Certification: GS MarkISISWHQL KofaxTM 5,10VRS Elite 5.2.0Kofax Express 3.3.0

Technical details

Pallet type: 800 x 1200 mm

Logistics data

Products per pallet: 40 pc(s)
Country of origin: China
Master (outer) cases per pallet: 40 pc(s)
Layers per pallet: 5 pc(s)
Pallet gross weight: 166.4 kg
Pallet gross height: 17.8 cm
Master (outer) cases per pallet layer: 8 pc(s)
Harmonized System (HS) code: 84716070
