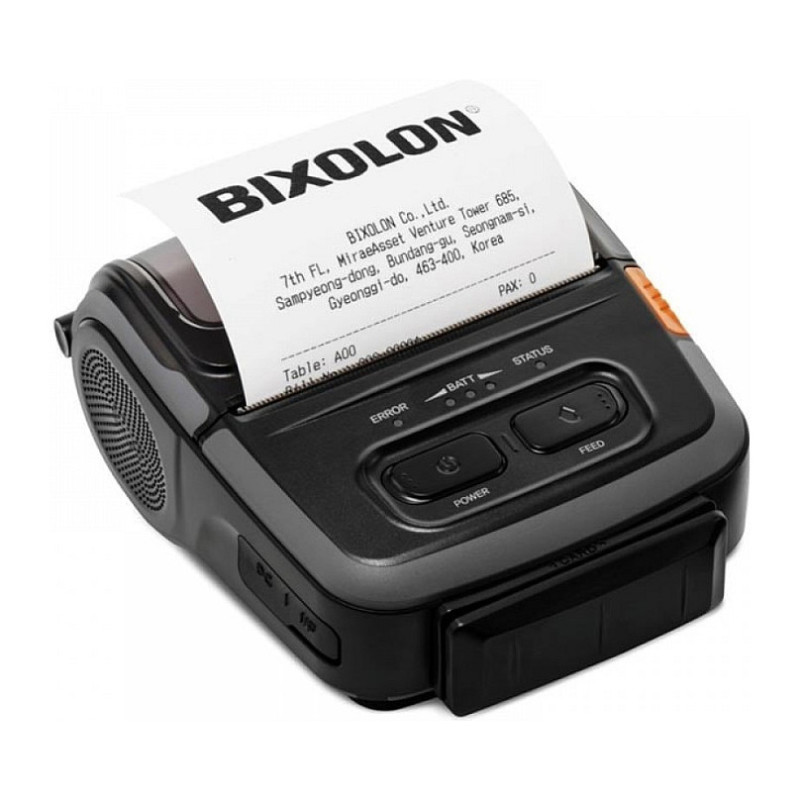

Bixolon SPP-R310PLUSWK POS printer

Bixolon SPP-R310PLUSWK. Print technology: Direct thermal, Type: Mobile printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 70 µm, Maximum roll diameter: 5 cm, Supported paper width: 80 mm. Connectivity technology: Wired & Wireless, Optional connectivity: Bluetooth, Serial (RS-232), USB 2.0, Wireless LAN. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n). Built-in barcodes: AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1..., Internal memory: 8 MB, Storage media: Flash

The SPP-R310 3" receipt, label and ticket mobile printer is super compact, rugged and ergonomic printer accompanied with Bluetooth, WiFi, USB and Serial connectivity options.

Supporting Easy Bluetooth Pairing via an embedded NFC tag enabling easy auto pairing with Apple iOS™, Android™ Symbian™ & Windows® smart devices, alongside Apple MFi iAP2 certification. The SPP-R310 also features a Auto-Switch function which provides simple automatic switching between iOS mode and standard Bluetooth modes.

Printing at speeds of 100mm/sec (receipt) at 203dpi printing resolution. The SPP-R310 provides a 24 hour battery life supporting continuous printing of 253 metres. Alongside a 1.8 metres drop certification and IP54 dust and water resistance rating within its protective case. Operating in an extreme temperature range of +50°C to -15°C due to its integrated temperature sensor, the 3" mobile printer with a 2 year warranty (including the print head) is fully functional in the harshest of environments.

Printing

Maximum resolution: 203 x 203 DPI
Print speed: 80 mm/sec
Print technology: Direct thermal
Type: Mobile printer

Paper handling

Printing media thickness: 70 µm
Maximum roll diameter: 5 cm
Supported paper width: 80 mm
Maximum printing width: 7.2 cm

Ports & interfaces

Feature: USB port
USB 2.0 ports quantity: 1
Feature: Serial interface
Connectivity technology: Wired & Wireless
Optional connectivity: Bluetooth, Serial (RS-232), USB 2.0, Wireless LAN

Network

Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Features

Built-in barcodes: AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 DataBar, ITF, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
Internal memory: 8 MB
Storage media: Flash
Flash memory: 4 MB

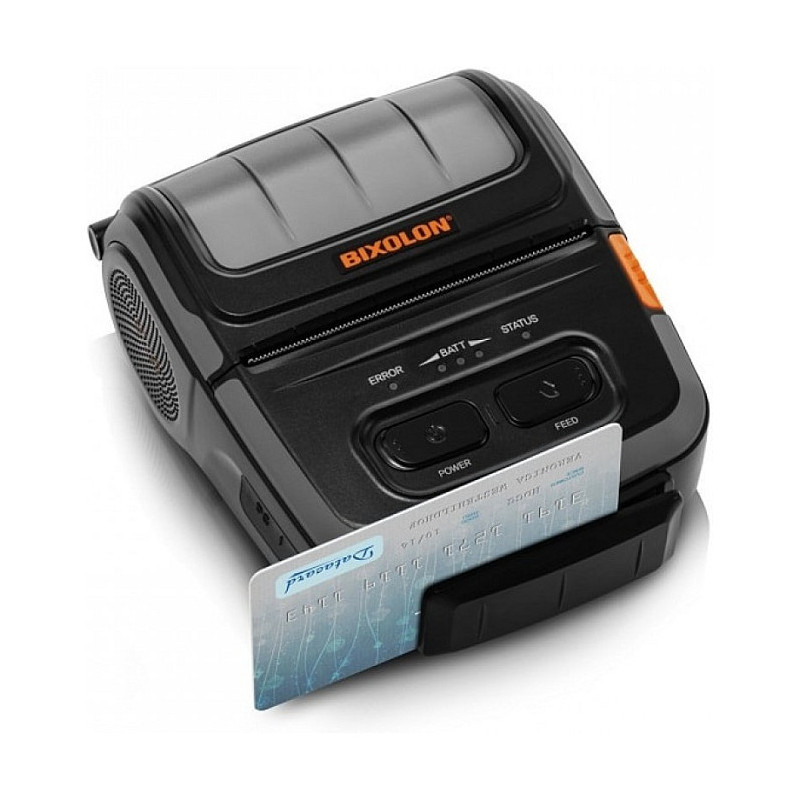

Feature: Magnetic stripe reader
Built-in sensors details: Paper End: Reflective sensorPaper Cover Open: Mechanical switch

Design

Product colour: Black, Grey

Power

Power source type: Battery
Battery technology: Lithium-Ion (Li-Ion)
Battery recharge time: 4 h
Battery voltage: 7.4 V

Operational conditions

Operating temperature (T-T): -15 - 50 °C
Storage temperature (T-T): -30 - 70 °C
Operating relative humidity (H-H): 10 - 80%

System requirements

Windows operating systems supported: Yes
Mobile operating systems supported: Android, iOS
Linux operating systems supported: Yes

Weight & dimensions

Width: 105 mm
Depth: 126 mm
Height: 58 mm
Weight: 405 g

Logistics data

Harmonized System (HS) code: 84433210

Technical details

Sustainability certificates: ENERGY STAR

Other features

International Protection (IP) code: IP54
