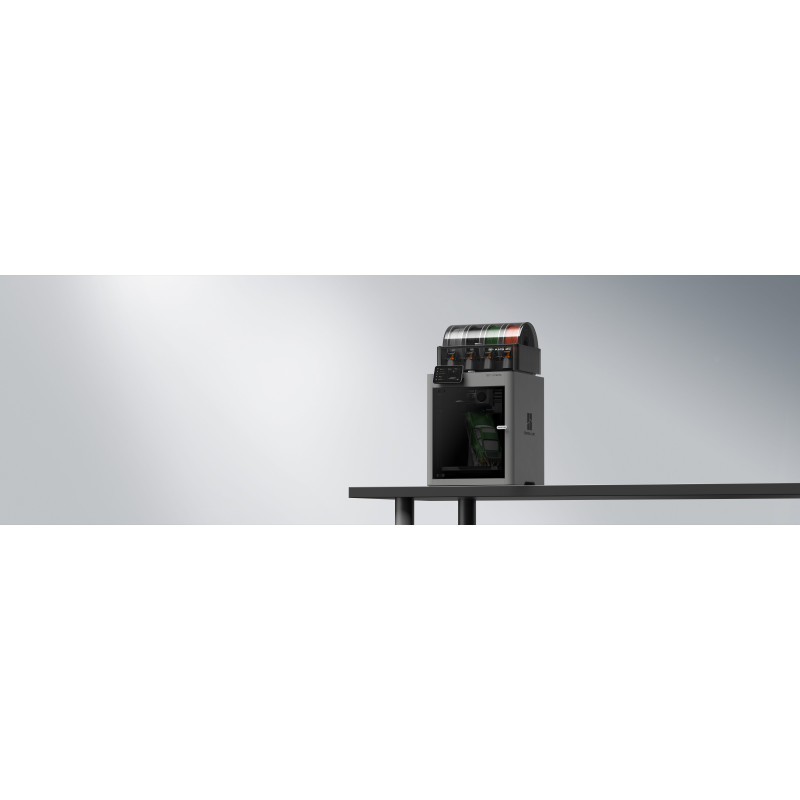

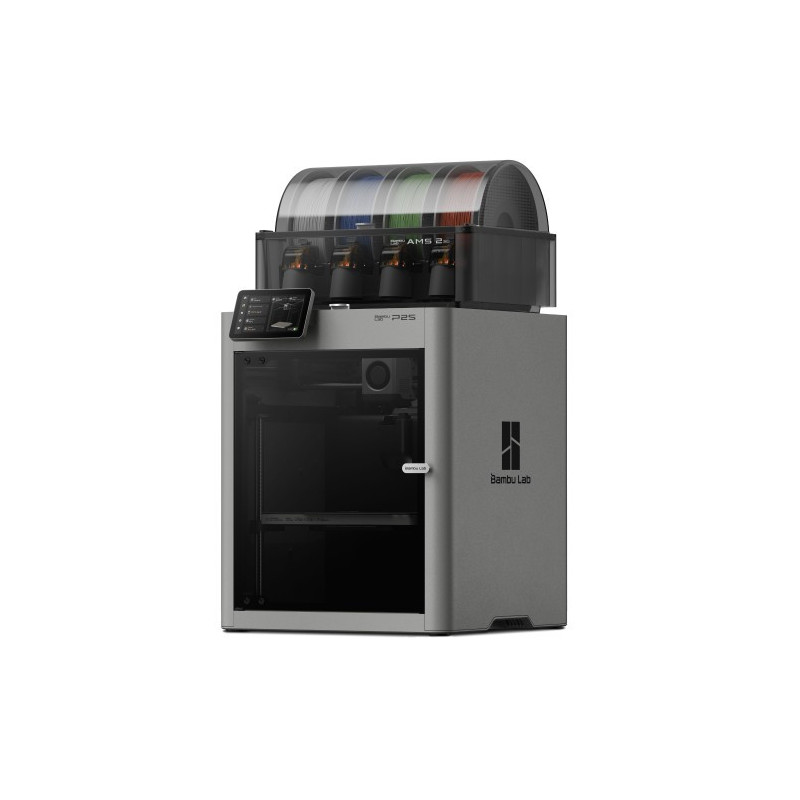

Bambu Lab P2S Combo 3D printer

The iconic Bambu Lab P1S revolutionized the world of 3D printing. Its speed, reliability, and value quickly made it the standard choice for print farms and enthusiasts, creating the biggest wave of popularity in the history of the industry.

Building on this solid foundation, the improved P2S now features Bambu Lab's second generation of technology. It offers a user experience refined down to the finest details and reliably delivers the highest quality prints that only Bambu Lab can offer.

Icon, redesigned.

Product features

• 5-inch touch screen

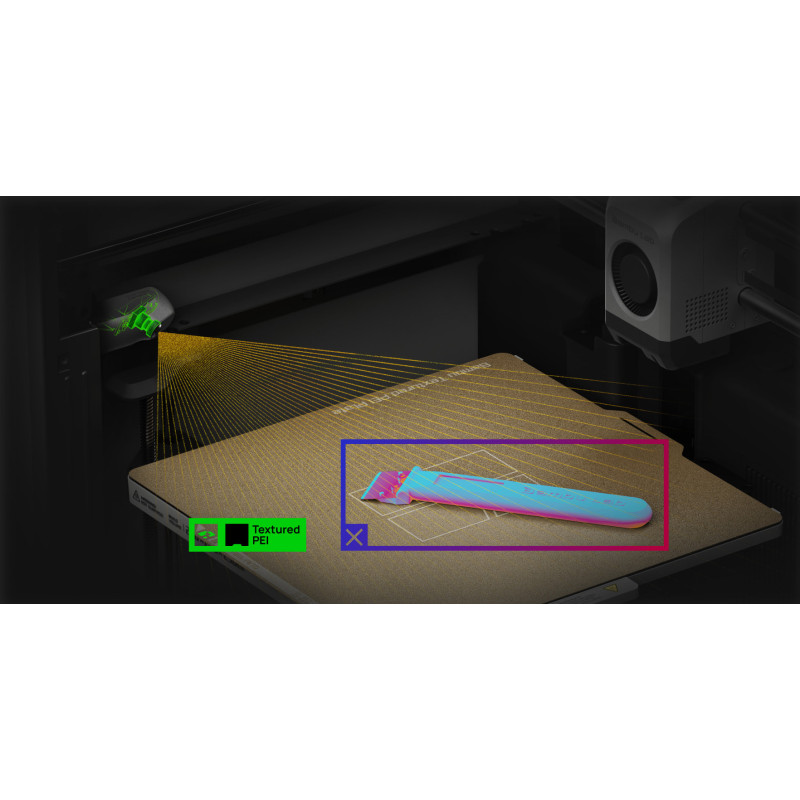

• Artificial intelligence fault detection


• Automatic flow dynamics calibration


• Polygonal printing


• Cold air cooling

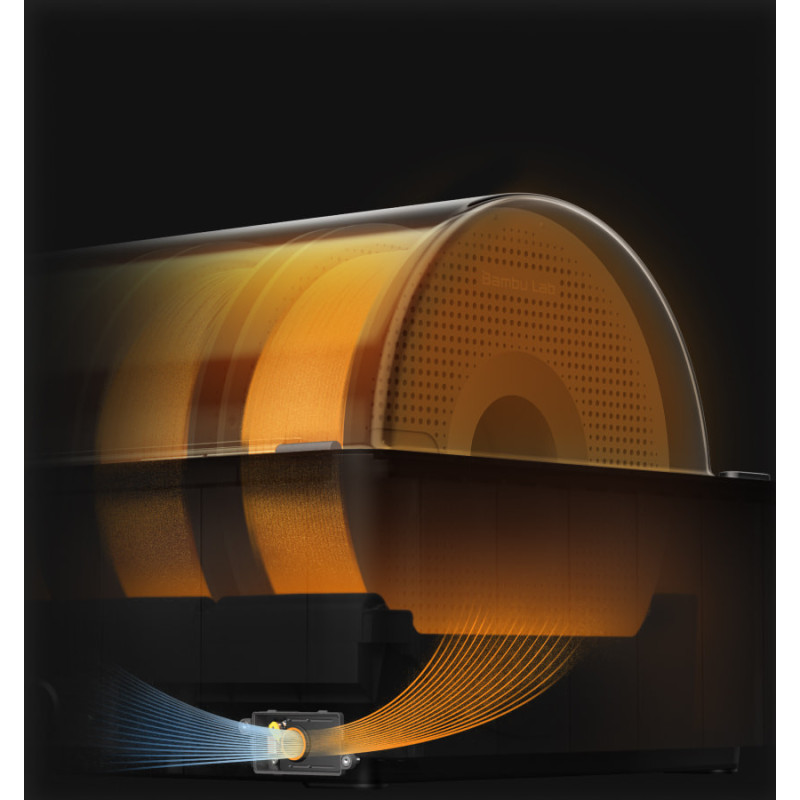

• Active filament drying


• 256*256*256 mm³ printing volume

Bambu Lab P2S - Technical specifications

Coloring technology

Fusion deposition modeling

Housing

Construction volume (W*H*D): 256*256*256 mm³

Frame: Plastic and steel

Outer frame: Plastic and glass

Physical dimensions

Physical dimensions: 392*406*478 mm³

Net weight: 14.9 kg

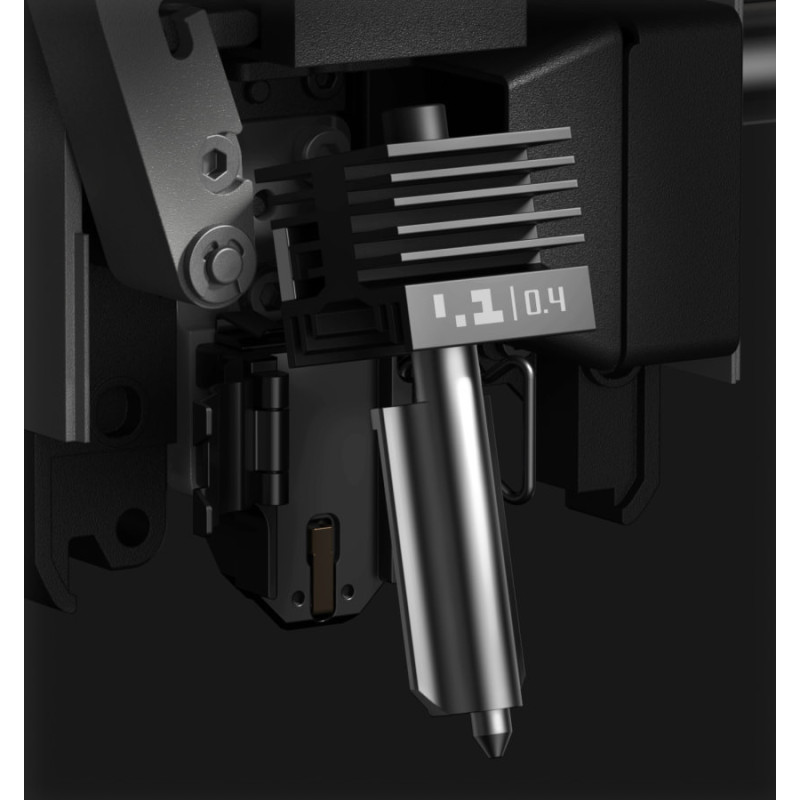

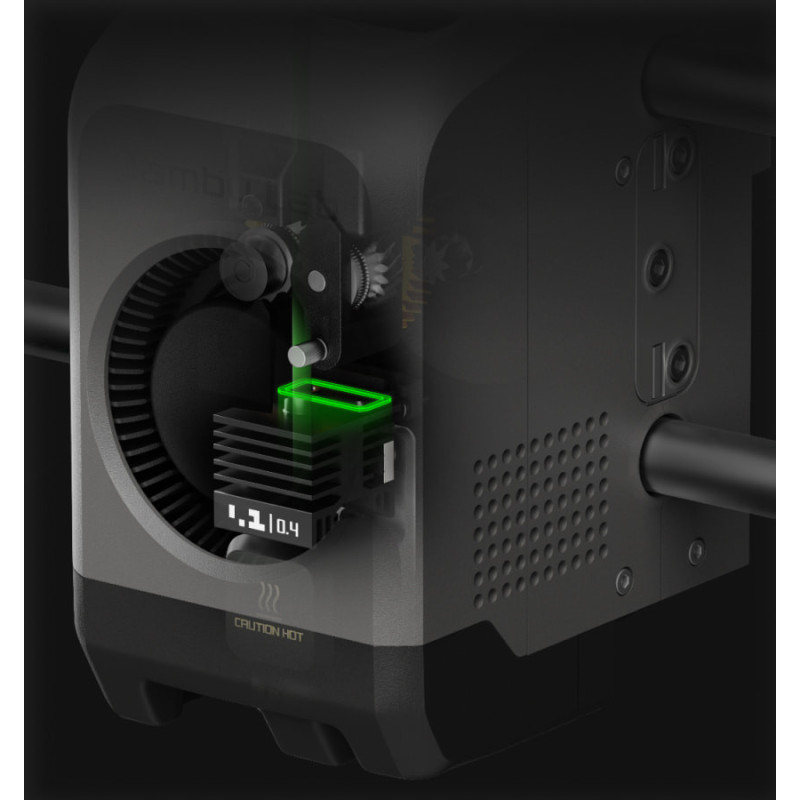

Tool head

Extruder gear material: Hard steel

Spray tip: Hard steel

Maximum spray nozzle temperature: 300

Included spray nozzle diameter: 0.4 mm

Supported spray tip diameters: 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm

Filament cutter: Integrated

Filament diameter: 1.75 mm

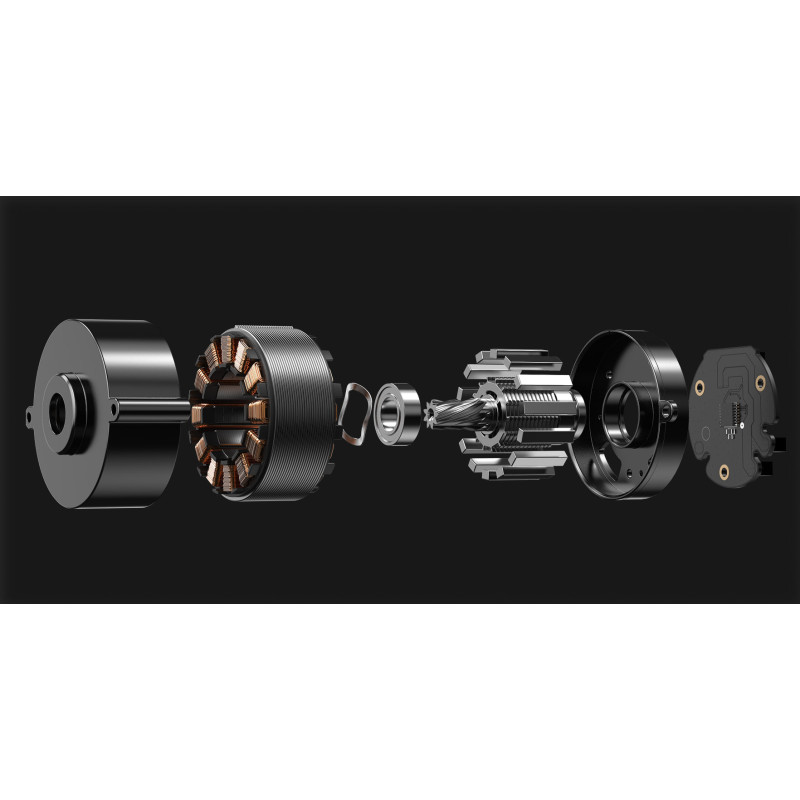

Extruder motor: Bambu Lab high-precision permanent magnet synchronous motor

Heating bed

Construction plate material: Flexible steel plate

Type of build plate included: Textured PEI plate

Supported build plate types: Textured PEI plate, Smooth PEI plate, SuperTack cold plate

Maximum heating bed temperature: 110

Speed

Maximum tool head speed: 600 mm/s

Maximum tool head acceleration: 20,000 mm/s²

Maximum flow rate for hot end: 40 mm³/s (Test parameters: 250 mm round model with one outer wall; Bambu Lab ABS; 280 printing temperature)

Filtering

Filter: Activated carbon

VOC filtering: Supported

Particle filtration: Supported

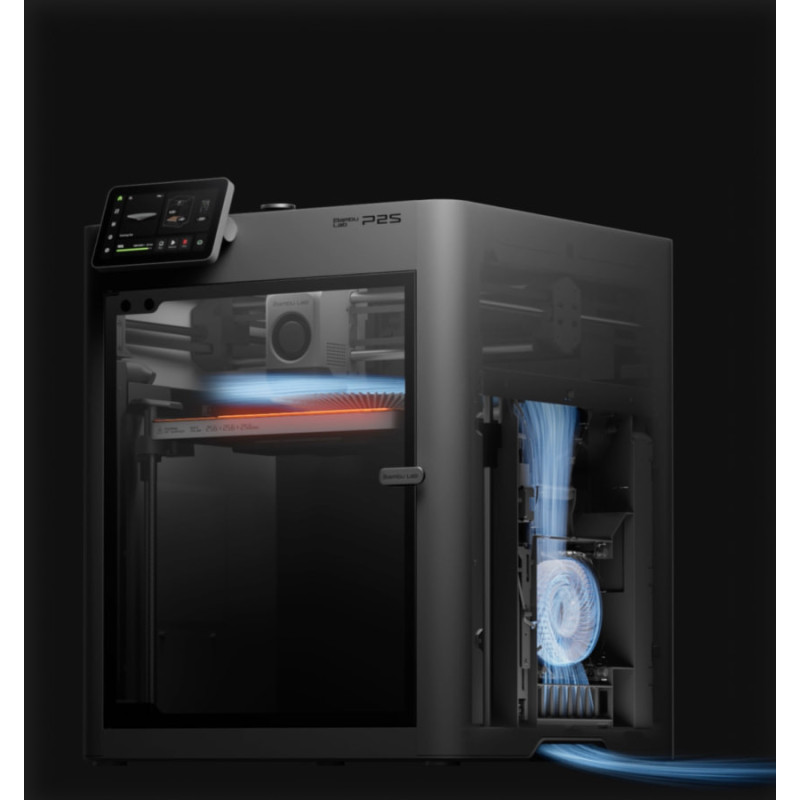

Cooling

Particle cooling fan: Closed control

Hot end cooling fan: Closed control

Additional particle cooling fan: Closed control

Supported filament type

PLA, PETG, ABS, ASA, TPU, PLA support, PLA/PETG support, ABS support, PET, PA, PC, PVA, PLA-CF, PETG-CF, ABS-GF, ASA-CF, PA6-CF, PA6-GF, PAHT-CF, PPA-CF, PET-CF

Sensors

Camera: Integrated; 1920*1080; 30 fps HD

Door sensor: Supported

Filament end sensor: Supported

Filament tangle sensor: Supported

Filament odometry: Supported with AMS

Power loss recovery: Supported

Electrical requirements

Voltage: 100-120 VAC / 200-240 VAC, 50/60 Hz

Maximum power*: 1200 W@220 V / 1000 W@110 V

PLA steady state power: 200 W@220 V / 200 W@110 V (PLA printing)

Working temperature

10°C-30°C

Electronics

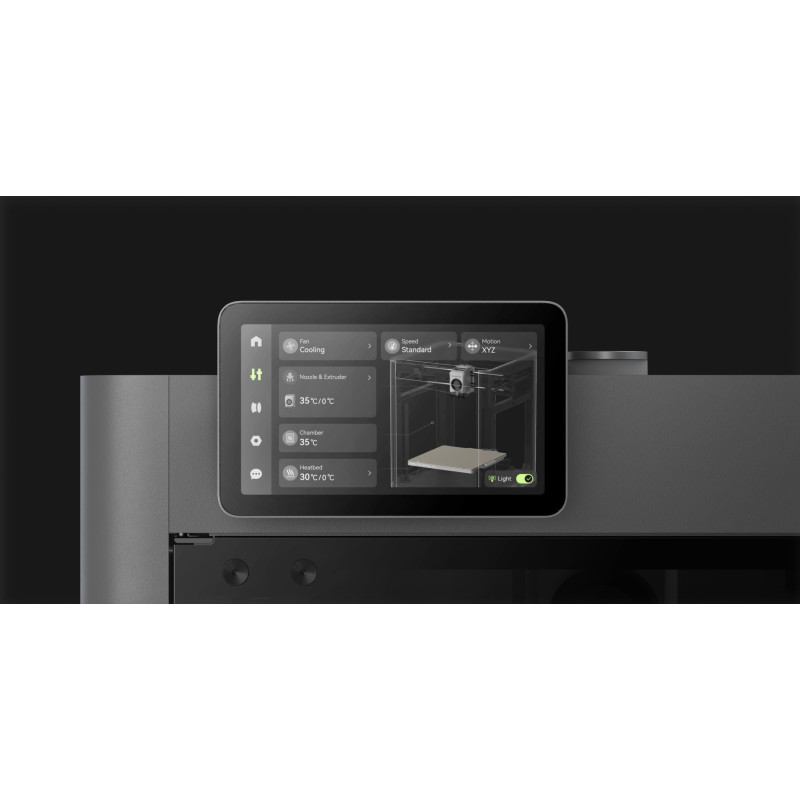

Touch screen: 5 inch 854*480 touch screen

Memory: Built-in 8 GB EMMC and USB port

Control interface: Touch screen, mobile app, PC app

Motion Controller: Dual-core Cortex-M4 and single-core Cortex-M7

Software processor: Quad-core 1.5 GHz ARM A7

Neural Processor: 2 TOPS

Software

Slicer: Bambu Studio. Supports third-party slicers that export standard G-code, such as Super Slicer, PrusaSlicer, and Cura, but some advanced features may not be supported.

Supported operating system: MacOS, Windows, Linux

Network management

Ethernet: None

Wireless network: Dual-band Wi-Fi

Mains disconnect switch: None

Removable network module: None

802.1X Network Access Control: None

Wi-Fi

Operating frequency: 2412 - 2472 MHz, 5150 - 5850 MHz (FCC/CE), 2400 - 2483.5 MHz, 5150 - 5850 MHz (SRRC)

Wi-Fi transmitter power (EIRP): 2.4 GHz: <23 dBm (FCC); <20dBm (CE/SRRC/MIC); 5 GHz band 1/2: <23 dBm (FCC/CE/SRRC/MIC); 5 GHz Band 3: <30 dBm (CE); <24dBm (FCC); 5 GHz Band 4: <23 dBm (FCC/SRRC); <14dBm (CE)

Wi-Fi protocol: IEEE 802.11 a/b/g/n

* To ensure that the heating bed quickly reaches the required temperature (35-110 ), the printer will maintain maximum power for about 3-5 minutes.

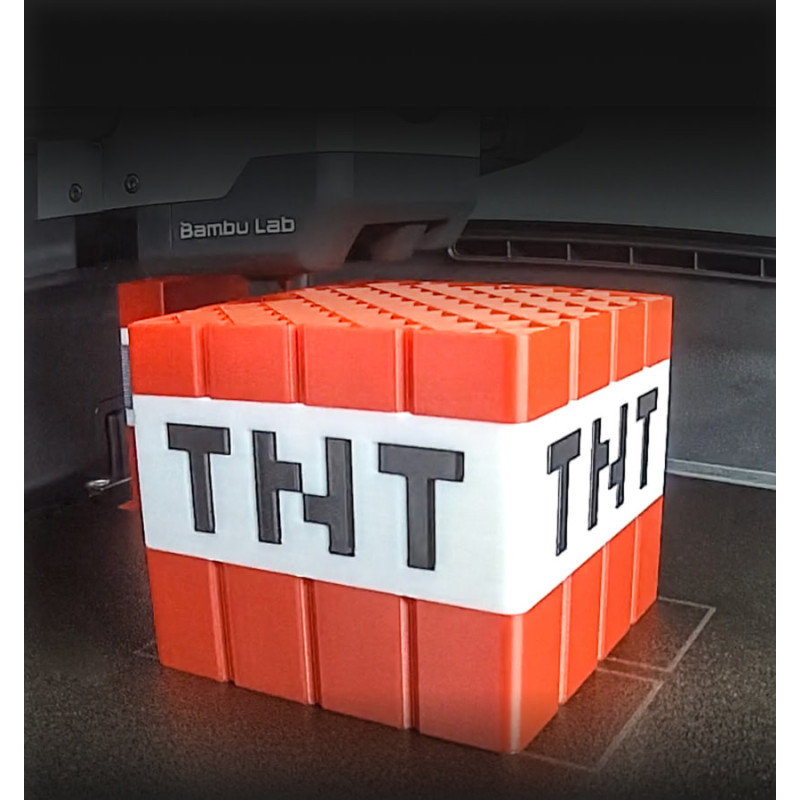

Icon in action

P2S is a gateway to new ways of living, giving you the easy creative power to discover new possibilities. You want it, you get it!
