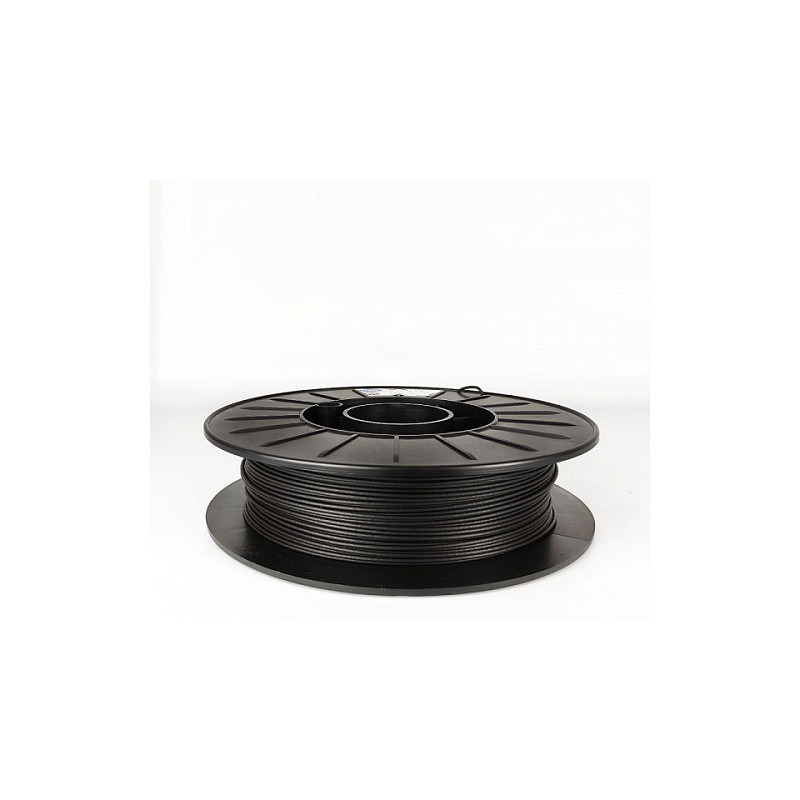

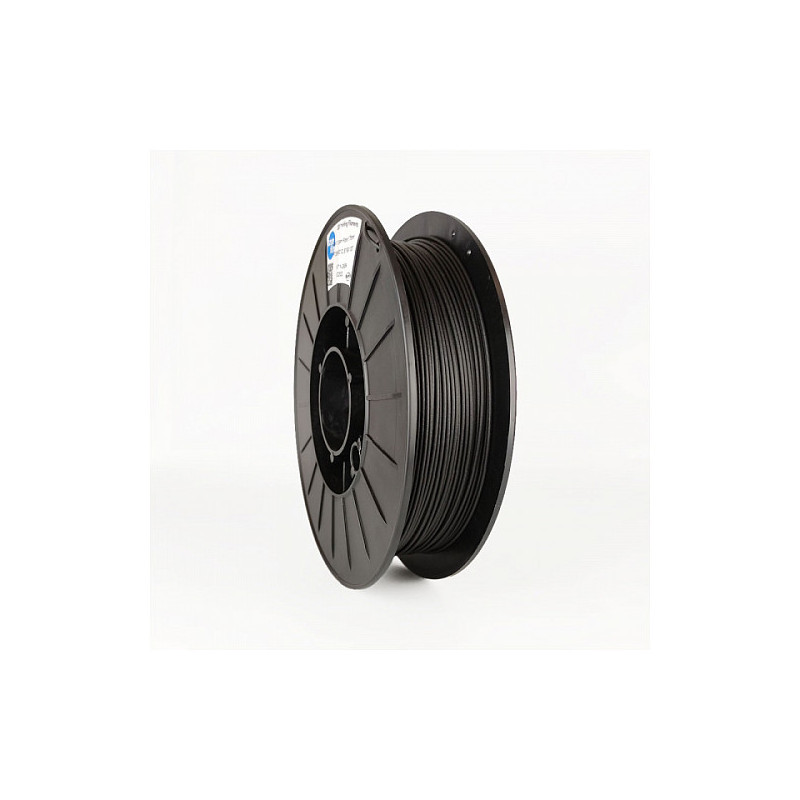

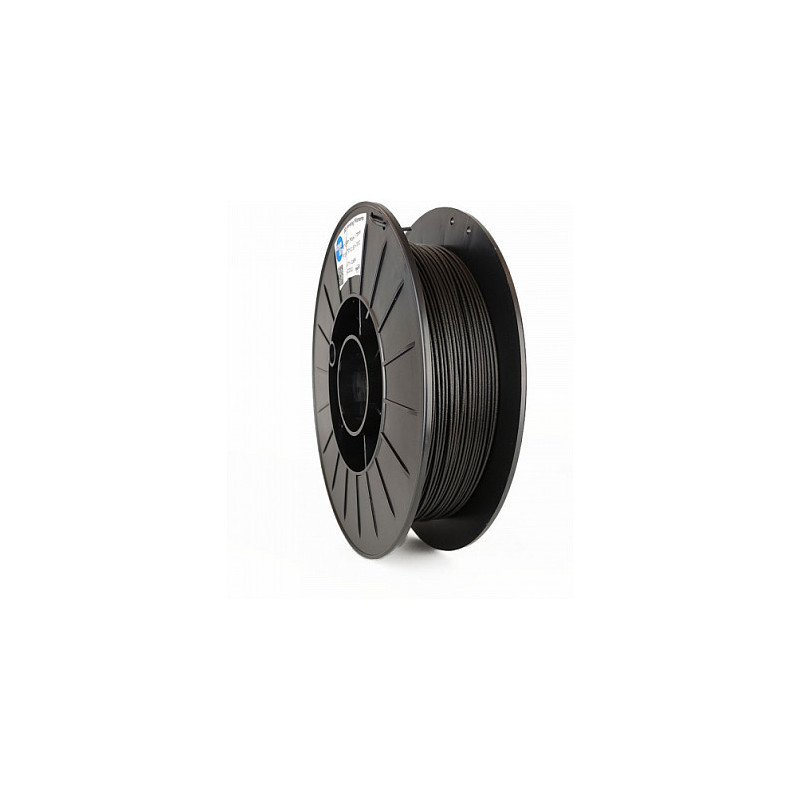

AzureFilm FG171-CABK 3D printing material

AzureFilm FG171-CABK. Printing material: Carbon fibre, Polyethylene terephthalate (PET), Printing colours: Black, Print speed: 60 mm/sec. Weight: 500 g, Diameter: 1.75 mm. Quantity per pack: 1 pc(s), Package weight: 800 g, Package type: Box
Made in EU, high quality Carbon, beautiful clear prints, no stringing, no warping, no clogging. Compatible with majority of professional and industrial FDM 3D printers.
AzureFilm PET CF is the easiest to print carbon fiber filled PET material that you will be able to find on the market. Majority of the companies have grinded carbon fibers inside of the structure. Our PET CF has chopped carbon fiber reinforced structure thus making its impact toughness much stronger. This chopped carbon fiber composite is pushing existing efforts and limitations for research of an engineering-grade 3D printing filament to new frontiers. Filament has excellent mechanical properties with no warping including extremely high z-layer strength and low water uptake. Our PET CF is filled with 15% of carbon fiber and has short term (max. 3hrs) maximum temperature up to 125°C. It can easily sustain at 100°C for 10hrs or more. Thickness of fibers inside it's ranging from 0.4mm-0.6mm thats why the nozzle diameter has to be 0.6mm.
Fiber reinforced composites offer exceptional mechanical properties. In addition to typical composite driving factors such as fiber orientation, fiber volume and way of stacking, scientist have found out that printing parameters such as infill density, nozzle speed, layer thickness, nozzle type, infill pattern, built orientation, bed temperatures have shown to influence mechanical properties.

Features

Printing material: Carbon fibre, Polyethylene terephthalate (PET)
Printing colours: Black
Print speed: 60 mm/sec
Build plate temperature: 90 °C
Nozzle temperature: 270 °C
Country of origin: European Union

Weight dimensions

Weight: 500 g
Diameter: 1.75 mm

Packaging data

Quantity per pack: 1 pc(s)
Package weight: 800 g
Package type: Box
