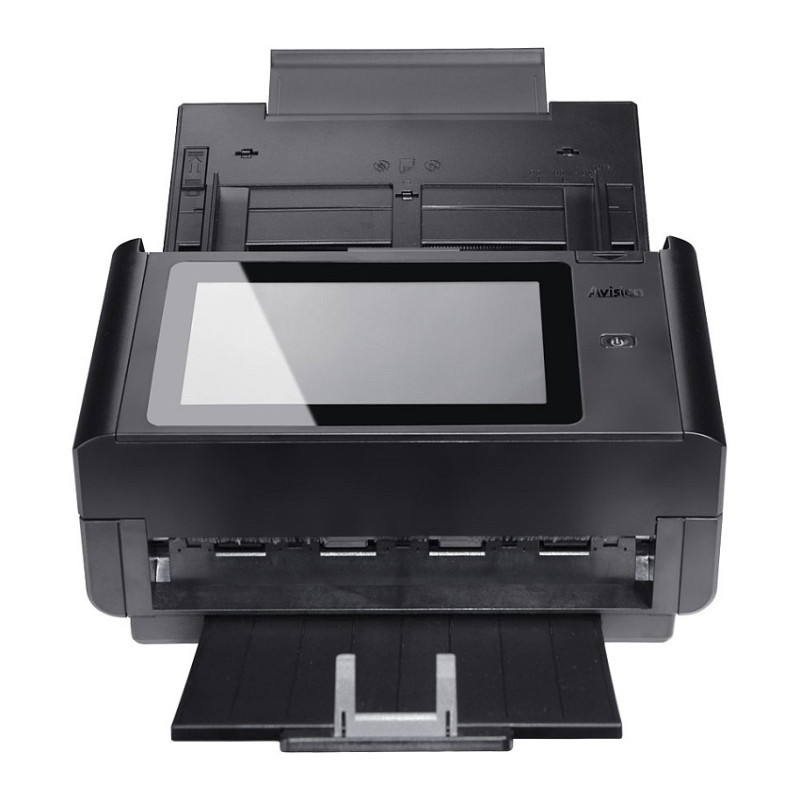

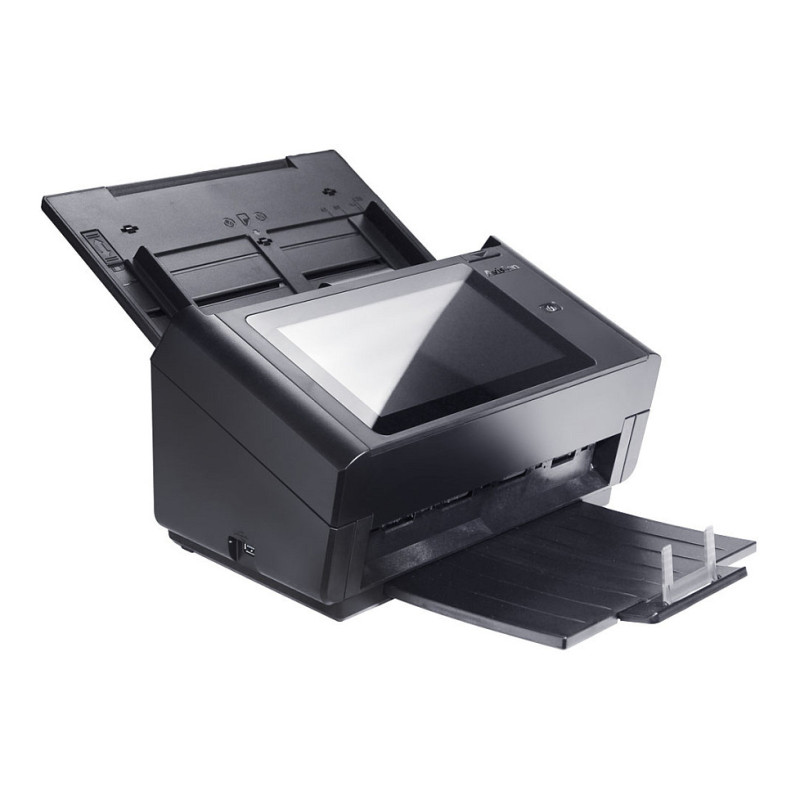

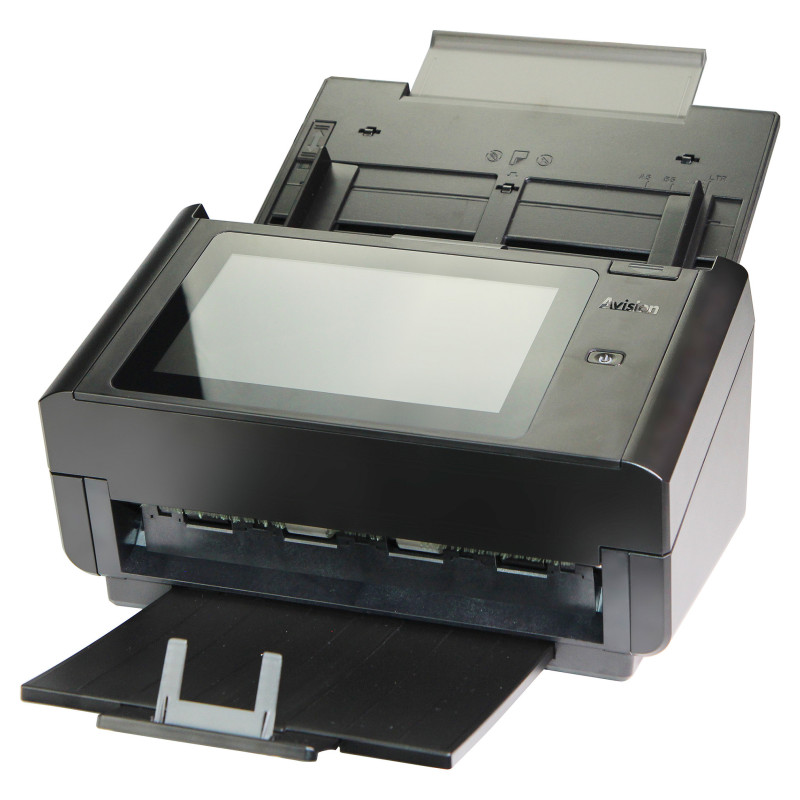

Avision AN360W scanner

Avision AN360W. Maximum scan size: 216 x 356 mm, Optical scanning resolution: 600 x 600 DPI, Input colour depth: 48 bit. Scanner type: ADF scanner, Product colour: Black, Display: LCD. Sensor type: CIS, Daily duty cycle (max): 6000 pages, Light source: LED. Auto document feeder (ADF) input capacity: 100 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Card stock, Plastic Card, Media thickness (min): 1.25 mm
AN360W series A Fast, Affordable, Network Scanner
The AN360W is a 60 page-per-minute, duplex, and network scanner that is fast, reliable, and affordable for business where scanning plastic ID cards, business cards, documents or other heavy card stock is necessary. With simply one button, the AN360W series improves your business efficiency by scanning and sending the document to various destinations including e-mail, cloud servers, a shared folder (CIFS), a FTP server, and a USB flash drive. Plus, with the wireless networking capability, the AN360W series offers mobile scanning through Avision's App.
Easy-to-operate 8" LCD Touch Screen
The large 8" LCD touch screen makes it easy for everyone to scan and share. By assigning your frequently used settings and scan to destinations as Shortcuts, the AN360W series allows you to streamline your workflow and complete your scanning task in one step. Configuration and management of the scanner can also be performed via the LCD touch screen.
Convenient mobile scanning
Built-in with a Wi-Fi dongle, the AN360W series can work as a wireless device to scan and receive images directly from your mobile devices through Avision's App.
Support form document up to 242 x 356 mm (9.5 x 14 in.)
The AN360W series boasts a unique and innovative design in comparison with its predecessors - the ability to accommodate form document up to 242 x 356 mm(9.5 x 14 in.). The extended document width from standard 216 mm (8.5 in.) to242 mm (9.5 in.) makes the AN360W series more competitive to fit for a wider range of documents.
Convenient walk-up scanning
A USB direct interface is available for scanning files to your USB flash memory drive.
A Duplex Scanner Suited for Document and Cards
Thanks to the advanced straight paper path and image processing technology, mixed batches of documents with varies sizes and weights can be scanned, appropriately cropped, deskewed, and ready to use. Scan size accepts paper from receipts (50 x 50 mm/2" x 2") to business document (242 x 356 mm/9.5 x14 in.). The auto document feeder is also robust enough to feed paper up to 413 g/m2 (110 lbs) and embossed hard cards such as ID cards, credit cards, driver's license, and health insurance card up to 1.25mm in thickness.
Reverse Roller Enhances Feeding Reliability
Designed with the innovative reverse roller for advanced paper separation capability, the AN360W series delivers outstanding feeding reliability and operating productivity by effectively reducing the risk of a multi-feed or paper jam.
Ultrasonic Multi-Feed Detection
With the ultrasonic multi-feed detection capability, the scanner allows you to set overlapped paper by detecting paper thickness between documents. The ultrasonic function can be turned off when scanning document with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thickness.
A Compact Design to Save Your Space
With a stylish design and a compact footprint of 12.4 x 8.1 x 7 in. (316 x 207 x178 mm) (W x D x H), the AN360W series can be fit perfectly on a desk in any working environment.
Powerful Bundled Software Applications
The AN360W series come with TWAIN driver, and are bundled with a suite of powerful software applications that include Avision Button Manager, AVScan and PaperPort. With Button Manager, you can create searchable PDFs, scan and send images to e-mail, printer, or clouds servers such as Google DriveTM, FaceBook, or Evernote® with just a simple press of a button. The AVScan and PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.

Scanning

Maximum scan size: 216 x 356 mm
Optical scanning resolution: 600 x 600 DPI
Colour scanning: Yes
Duplex scanning: Yes
Input colour depth: 48 bit
Output colour depth: 24 bit
Input greyscale depth: 16 bit
Output greyscale depth: 8 bit
ADF scan speed (b/w, A4): 60 ppm
ADF scan speed (colour, A4): 60 ppm
Duplex ADF scan speed (b/w, A4): 120 ipm
Duplex ADF scan speed (colour, A4): 120 ipm

Design

Scanner type: ADF scanner
Product colour: Black
Display: LCD
Display diagonal: 20.3 cm (8")
Touchscreen: Yes
Control type: Buttons, Touch
Built-in display: Yes

Performance

Sensor type: CIS
Light source: LED
Scan file formats: BMP, DOC, DOCS, GIF, HTML, JPEG, OCR, PDF, PNG, PPT, PPTX, RTF, TIFF, TXT, XLS, XLSX
Daily duty cycle (max): 6000 pages
Scan to: CIFS, Cloud, E-mail, FTP, Print, USB
Button functions: Off, On
Scan drivers: TWAIN
Scanner error detection: Yes
Ultrasonic double sheet detection: Yes
Ultrasonic sensor: Yes
Scanning noise level: 55 dB
Internal memory: 512 MB
RAM capacity: 2 GB

Input capacity

Auto document feeder (ADF) input capacity: 100 sheets

Paper handling

Scanning media types supported: Business Card, Card stock, Plastic Card
Multi feed detection: Yes
Long-paper mode: Yes
Maximum ISO A-series paper size: A4
Legal: Yes
Media thickness (min): 1.25 mm
Auto Document Feeder (ADF) media weight: 27 - 413 g/m²
Maximum scan width: 24.2 cm
Maximum scan length: 6 m
Maximum scan area (ADF): 216 x 356 mm
Minimum scan area (ADF): 50 x 50 mm

Ports interfaces

USB port: Yes
USB version: 3.2 Gen 1 (3.1 Gen 1)

Network

Wi-Fi: Yes
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN: Yes

Power

Power supply type: AC
Power consumption (typical): 36 W
Power consumption (off): 0.12 W
AC input frequency: 50 - 60 Hz
Sleep mode: Yes
Input voltage: 100 - 240 V
Power consumption (sleep): 2.1 W
Output voltage: 24 V
Output current: 2 A
Auto power off: Yes

Weight dimensions

Width: 316 mm
Depth: 675 mm
Height: 254 mm
Weight: 4.2 kg
Folded width: 31.6 cm
Folded depth: 20.7 cm
Folded height: 17.8 cm

Packaging content

Cables included: AC, USB
Bundled software: Button Manager, PaperPort, AVScan

Sustainability

Sustainability certificates: ENERGY STAR

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 10 - 85%
