3Doodler Start Plus 3D pen

3Doodler Start Plus. Printing material: Compostable plastic, Nozzle width: 0.77 mm, Print technology: Fused Filament Fabrication (FFF). LED indicators: Activity, Product colour: Turquoise, Yellow, Housing material: Plastic. Power supply type: USB, Battery technology: Alkaline. Width: 41 mm, Depth: 35 mm, Height: 138 mm

What characterizes 3Doodler Start +:

- The plastic that comes out of 3Doodler Start + is warm, but not hot. Therefore, after the insert slides out, the child can safely shape it with his hands.
- 3Doodler Start + and the attached ECO-inserts have been specially designed to be completely safe for children.
- Eco-cartridges for 3Doodler Start + are made of safe, non-toxic, BPA-free and completely biodegradable materials.
- When fully charged, 3Doodler Start + will work wirelessly for 45-60 minutes. Of course, you can still use it while it's connected to power.

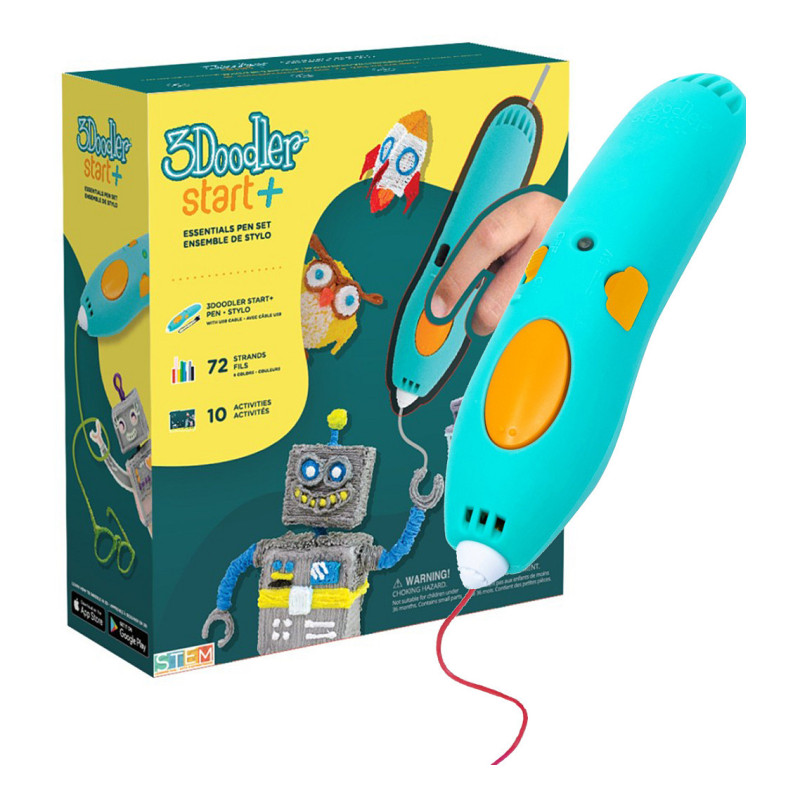

The composition of the kit

- 3Doodler Start + pen
- 2 packages (48 pieces) of ECO cartridges
- USB cable
- Instruction in Polish with a book of projects

Technical data

- Printing material: ECO-cartridges
- Heating temperature: 65 ° C
- Length of a single ECO-contribution after remelting: 150 cm
- Print speed: 10mm / s
- Working time when fully charged (wireless): 45-60min.
- Maximum power: 5W
- Power supply: 5V (USB)
- Nozzle diameter: 0.77mm
- The length of the ECO-contribution: 15cm
- ECO-cartridge diameter: 2.5mm
- Product Dimensions: 138 x 35 x 41mm
- Product weight: 91g
- Package dimensions: 220 x 190 x 70mm
- Package weight: 463g

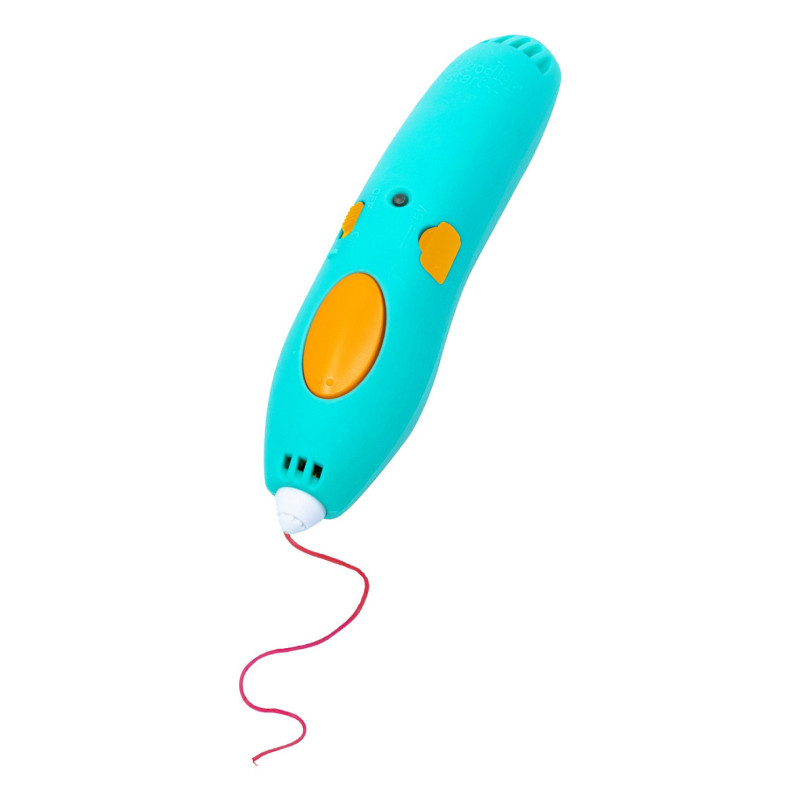

How does 3Doodler Start work?

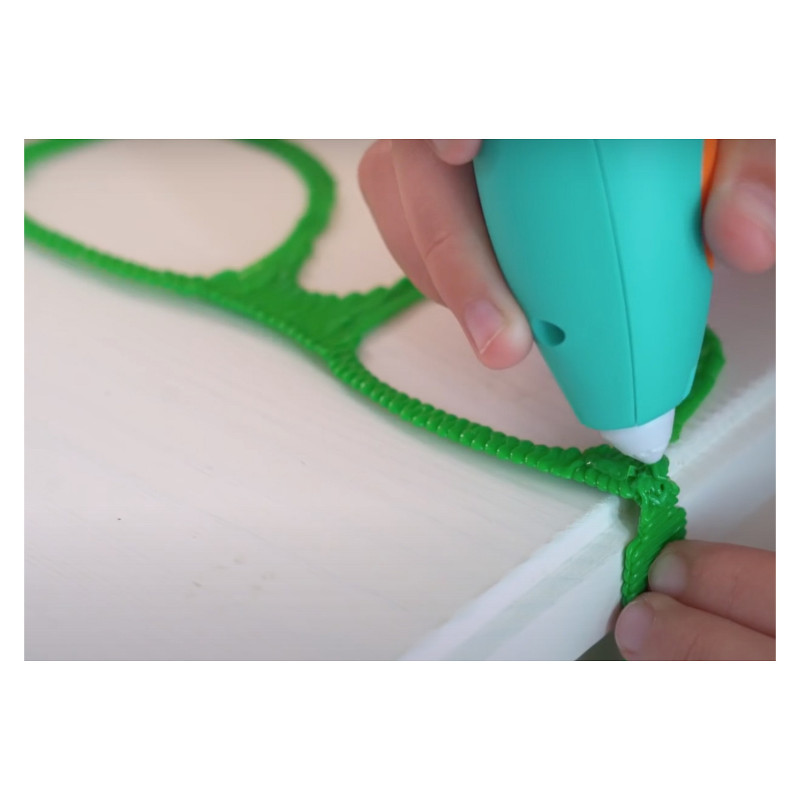

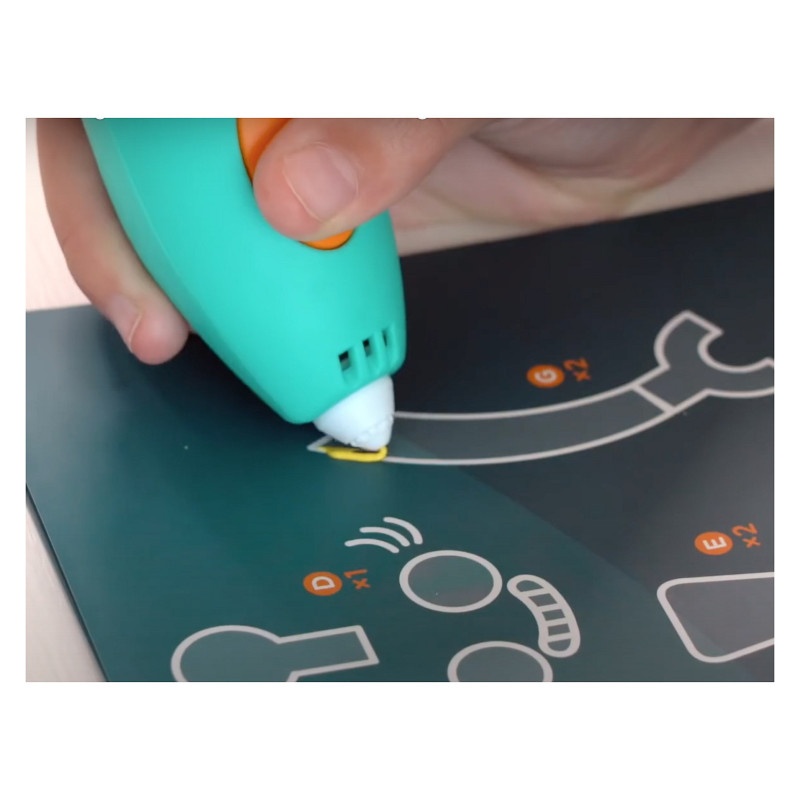

- Pen nozzle - The plastic that comes out of the pen hardens after a few seconds, giving you time to shape it to perfection
- LEDs - Red: Cartridge heating, Green: Pen ready for use, Yellow: Pen connected to charging
- Micro USB port - A place to connect power
- Cartridge Eject Button - Click once to start, click a second time to stop eject the cartridge. A quick double click will make the cartridge retract. It takes 10-15 seconds for the new cartridge to heat up, after which you can start drawing in 3D
- Pen launch button - Slide the button to turn the pen on or off. Wait 1 minute for the pen to warm up

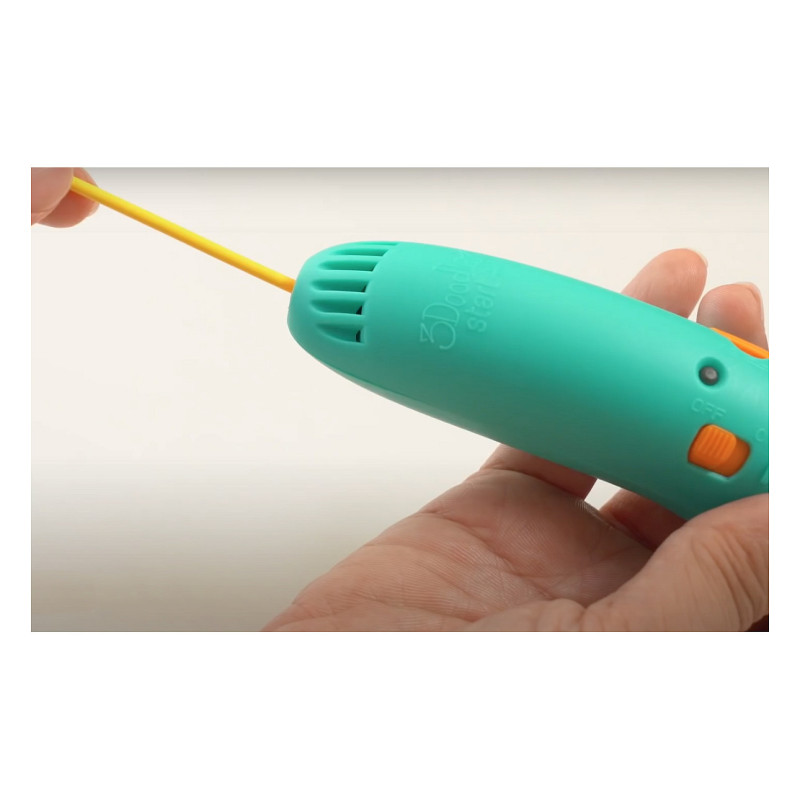

- Place to insert the refill - Select a color and place the refill in the pen, press down until you feel resistance

3Doodler is one of those fantastic ideas that seem so obvious in retrospect that it is hard to believe that they are only now being implemented.

The premise is simple: the 3Doodler Start pen draws with a heated ECO-cartridge, which makes it possible to build 3D objects in the same way as a 3D printer, but without creating computer models.

The 3Doodler Start pen is extremely easy to use. To start creative play, just put the selected color of the ECO-insert in the guide and after a while your child can start creating. The only limitation is your own ingenuity.

Performance

Printing material: Compostable plastic
Nozzle width: 0.77 mm
Filament thickness supported: 2.5 mm
Print technology: Fused Filament Fabrication (FFF)
Maximum extruder tip temperature: 65 °C
Preheating time: 0.5 min
Recommended age (min): 6 yr(s)

Design

LED indicators: Activity
Product colour: Turquoise, Yellow
Housing material: Plastic
Certification: 3DBP: US, EU, CA, AU/NZ Toy Safety Standards; ECO-filament: RoHS (EU), LHAMA, Toxicological Risk Assessment (US)

Power

Power supply type: USB
Battery technology: Alkaline

Technical details

Doesn't contain: Bisphenol A (BPA)
Compliance certificates: RoHS

Weight & dimensions

Width: 41 mm
Depth: 35 mm
Height: 138 mm
Weight: 91 g
Package width: 190 mm
Package depth: 70 mm
Package height: 220 mm
Package weight: 463 g

Packaging content

Feature: Manual
