3D Scanner System - Revopoint Trackit 0.02 mm Accuracy, 1,500,000 Points/Sec, Black
Product reference:
14-6975577881212
Revopoint Trackit is a high-resolution optical 3D scanner with 0.02 mm accuracy and scanning speeds of up to 1,500,000 points per second. It features automatic calibration, multiple scanning modes, and supports a variety of output formats suitable for engineering and design applications.
3D Scanner System - Revopoint Trackit 0.02 mm Accuracy, 1,500,000 Points/Sec, Black
Product reference:
14-6975577881212
Revopoint Trackit is a high-resolution optical 3D scanner with 0.02 mm accuracy and scanning speeds of up to 1,500,000 points per second. It features automatic calibration, multiple scanning modes, and supports a variety of output formats suitable for engineering and design applications.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

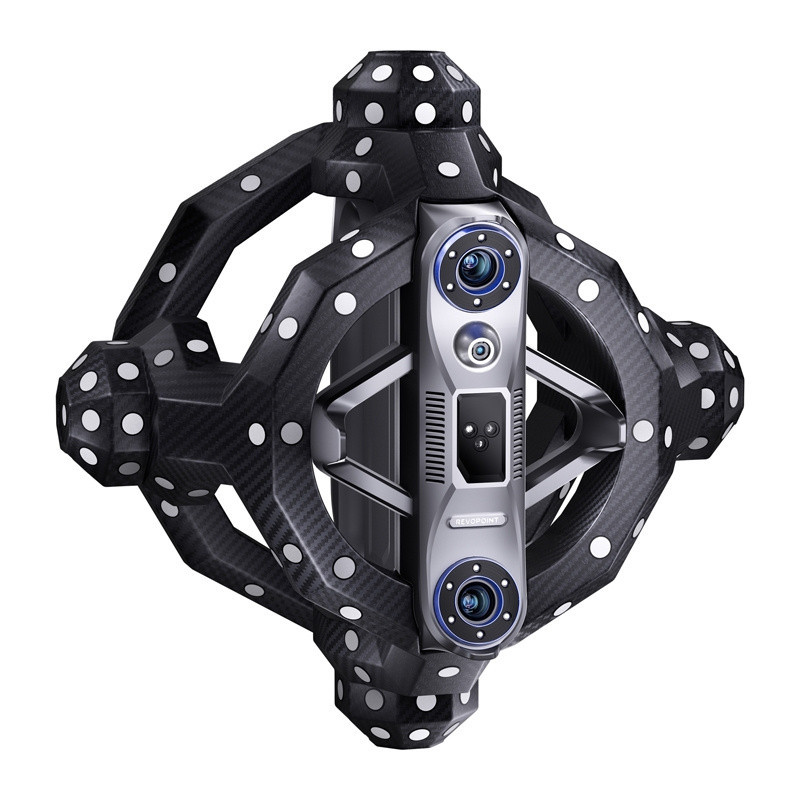

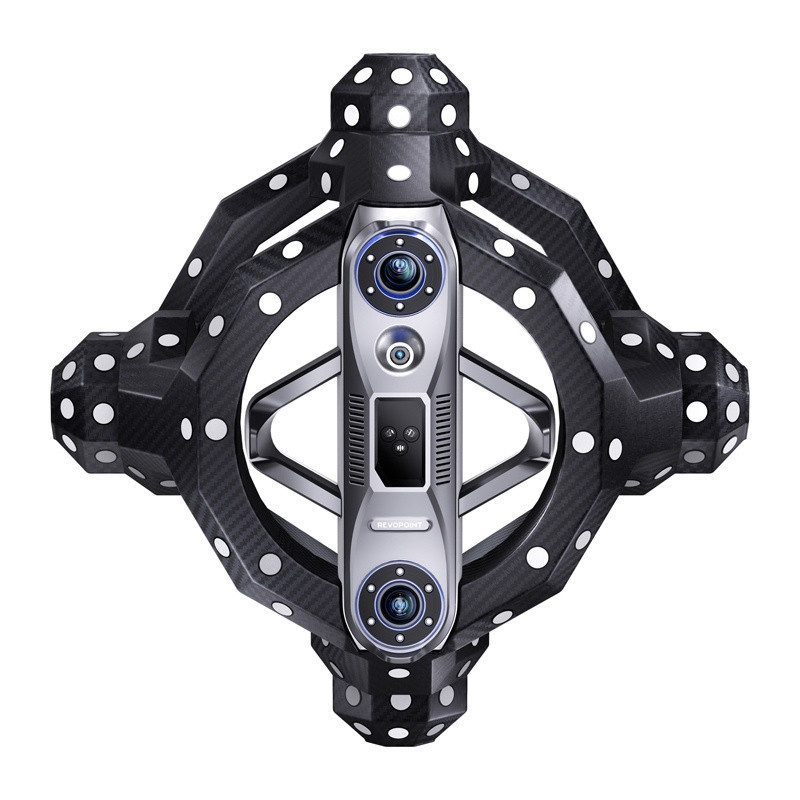

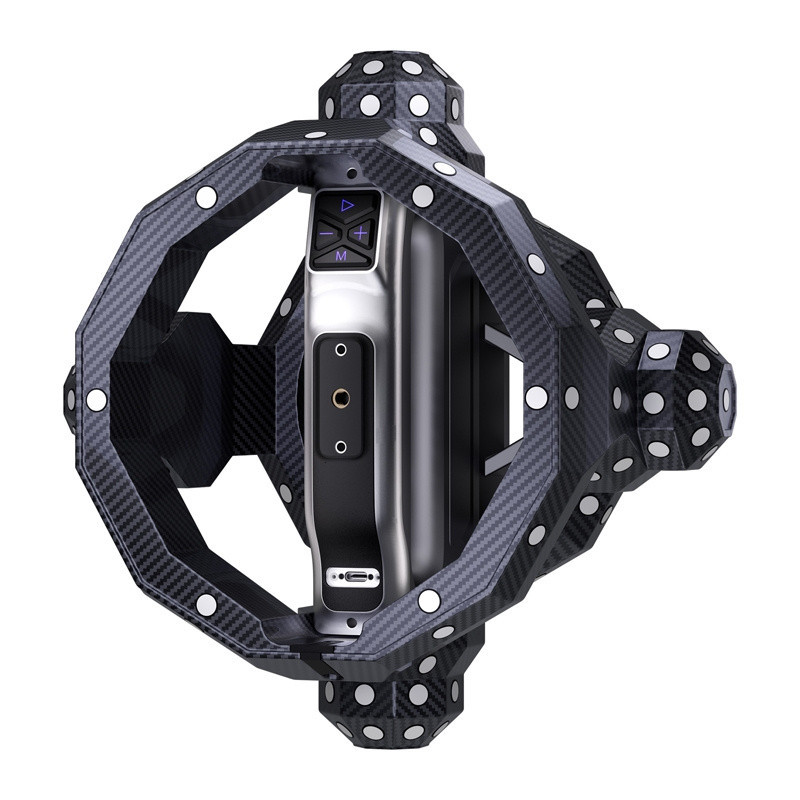

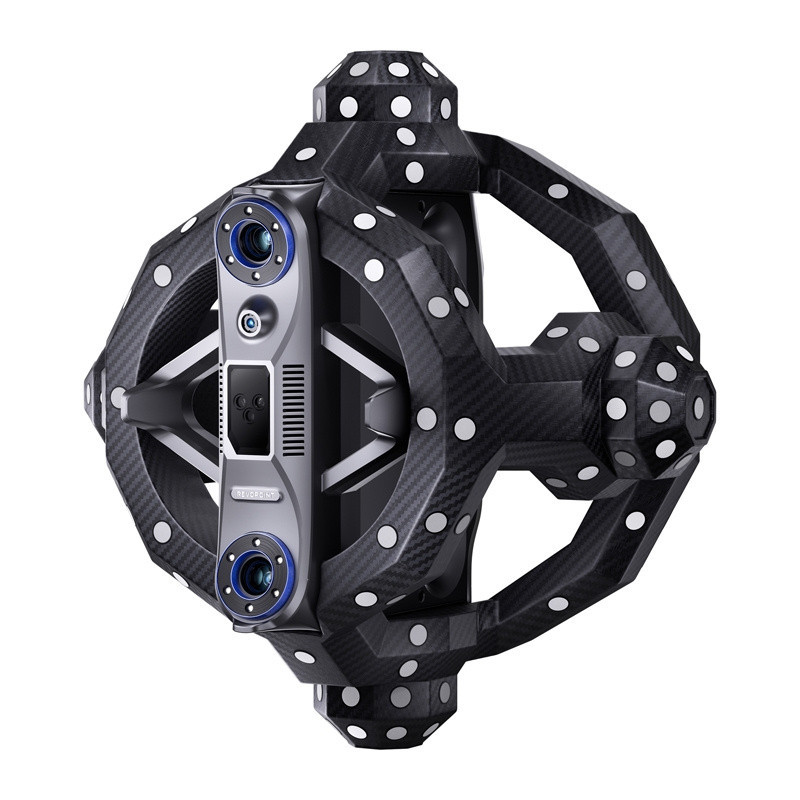

Revopoint Trackit Optical 3D Scanner
Revopoint Trackit is a high-precision optical 3D scanner with an accuracy of 0.02 mm and a scanning speed of up to 1,500,000 points per second. It features automatic calibration, various scanning modes, and supports a variety of output formats for engineering and design applications.
- High-precision 3D scanning with 0.02 mm accuracy, ideal for engineers and designers.
- Real-time object tracking and scanning speed up to 1,500,000 points per second, ensuring efficient digitization.
- Various scanning modes for different object sizes and surface types, including marker-free scanning.
- Lightweight and portable design with automatic calibration features for easy setup in any environment.
Features | |
|---|---|
| Product type | Optical 3D scanner system |
| Brand | Revopoint |
| Model | Trackit |
Specifications | |
| Single shot accuracy | 0.02mm |
| Distance between points (after connection) | up to 0.05 mm |
| Scanning speed | up to 1,500,000 points/second |
| Light source | 30 blue laser lines + 1 single blue laser line |
| Working range | 200 - 400 mm |
| Single scan area (min distance) | 160 × 70 mm at 200 mm |
| Single scan area (max distance) | 320 × 215 mm at 400 mm |
| Weight (scanner) | 1.2 kg |
| Dimensions (scanner) | 295 × 295 × 205 mm |
| Operating temperature range | 0 to 40°C |
| Supported output formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Material | Frame: carbon fiber; Shell: polycarbonate |

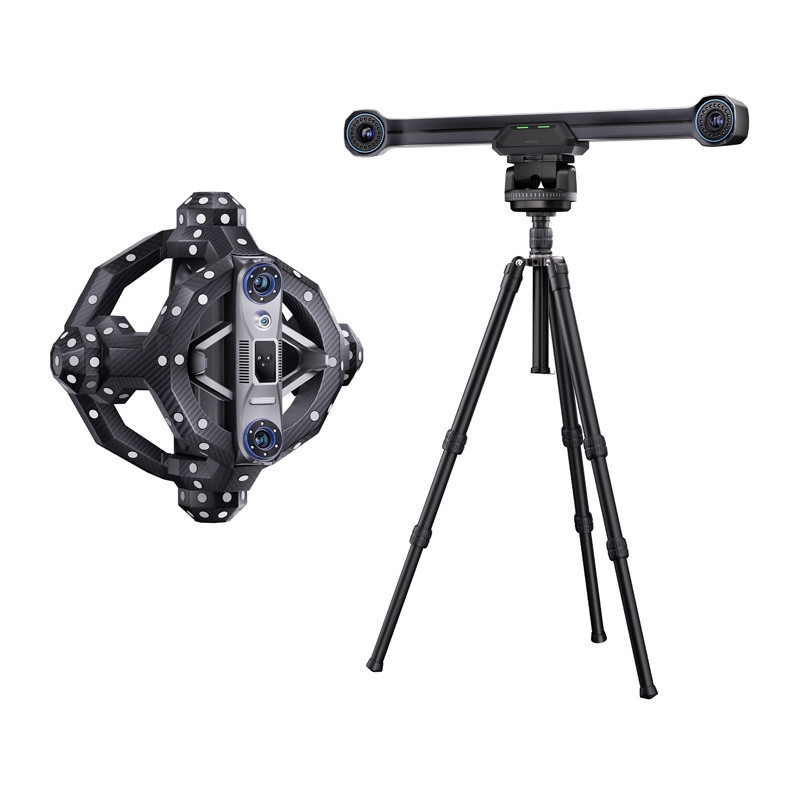

Tracker specifications | |
| Recommended object size range | 0.01 - 6 m |
| Scope accuracy | 0.025mm + 0.04mm × L (m) |
| Working range | 1500 - 4000mm |
| Minimum tracking area | 1304 × 1067 mm at 1500 mm |
| Maximum tracking area | 3260 × 2845 mm at 4000 mm |
| Tracking volume | 11 m³ |
| Weight (tracker) | 1.8 kg |
| Dimensions (tracker) | 686 × 115 × 111mm |
| Tracking bandwidth | Infrared |
| User calibration | Automatic calibration |
| Height | 300mm |
| Length | 800mm |
| Weight | 4500 grams |
| Width | 350mm |
