3D Scanner - Revopoint POP 4 Premium, 0.03 mm Accuracy, 10 × 10 × 10 mm to 2 × 2 × 2 m
Product reference:
14-6975577882035
The Revopoint POP 4 Premium 3D scanner captures highly accurate 3D models using blue multi-filament laser, infrared structured illumination and VCSEL projection technologies. It provides accuracy down to 0.03 mm, supports object scanning from 10 × 10 × 10 mm to 2 × 2 × 2 m, and is compatible with various operating systems, making it easy to integrate with CAD and 3D printing applications.
3D Scanner - Revopoint POP 4 Premium, 0.03 mm Accuracy, 10 × 10 × 10 mm to 2 × 2 × 2 m
Product reference:
14-6975577882035
The Revopoint POP 4 Premium 3D scanner captures highly accurate 3D models using blue multi-filament laser, infrared structured illumination and VCSEL projection technologies. It provides accuracy down to 0.03 mm, supports object scanning from 10 × 10 × 10 mm to 2 × 2 × 2 m, and is compatible with various operating systems, making it easy to integrate with CAD and 3D printing applications.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

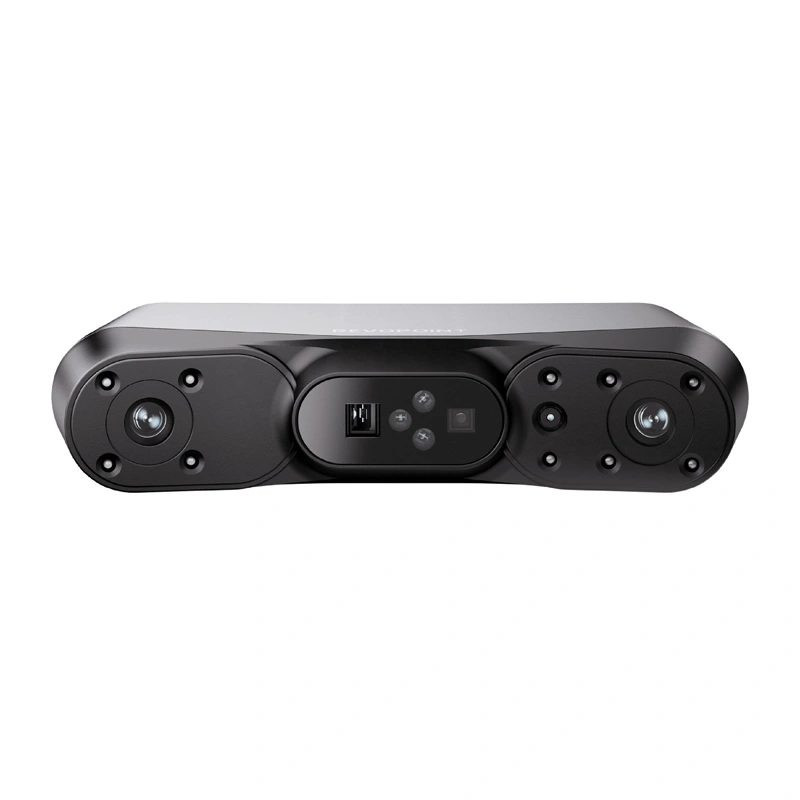

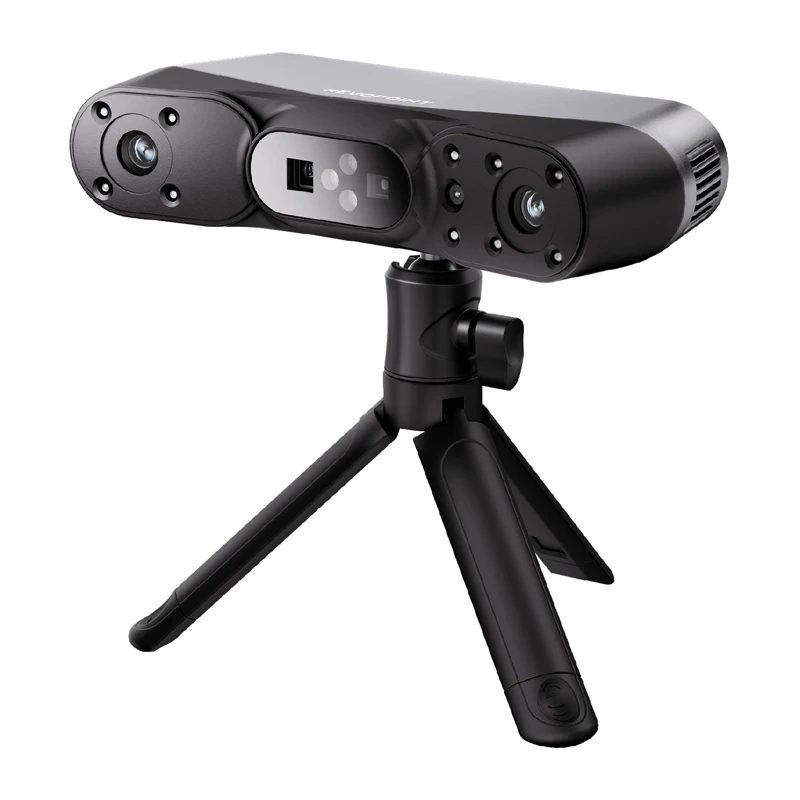

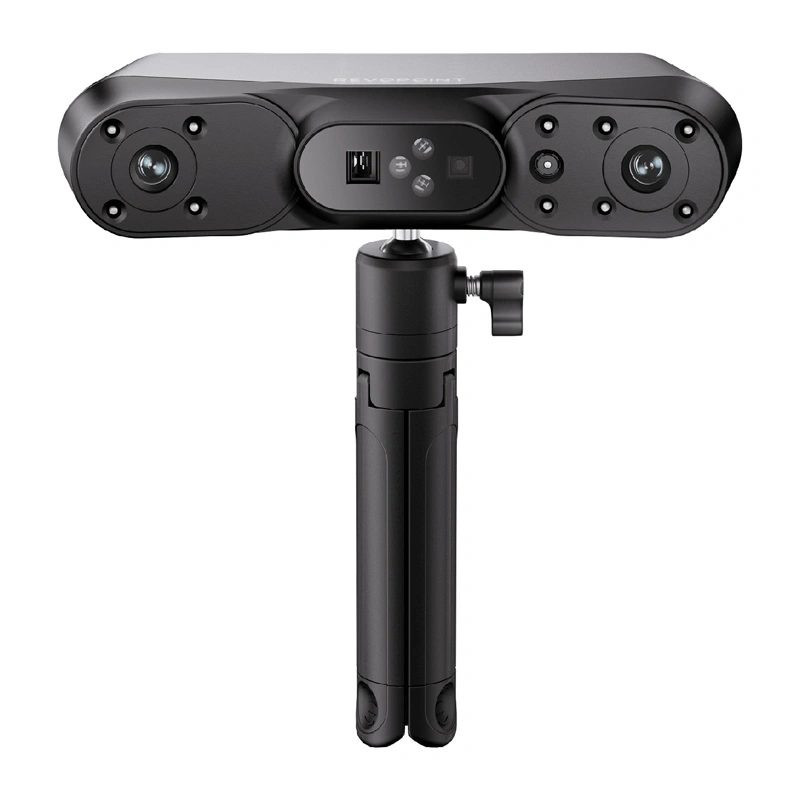

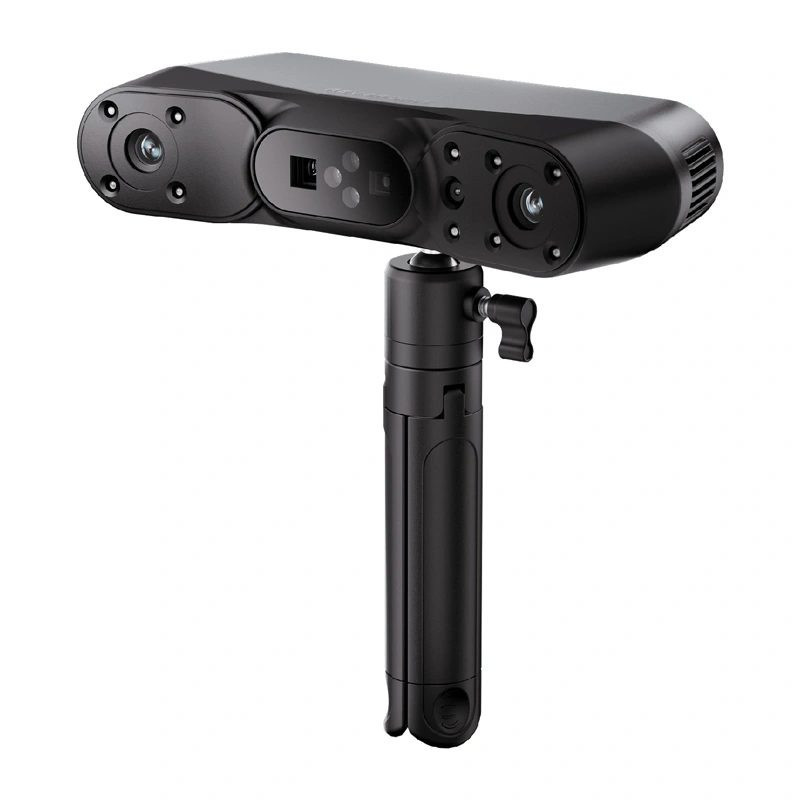

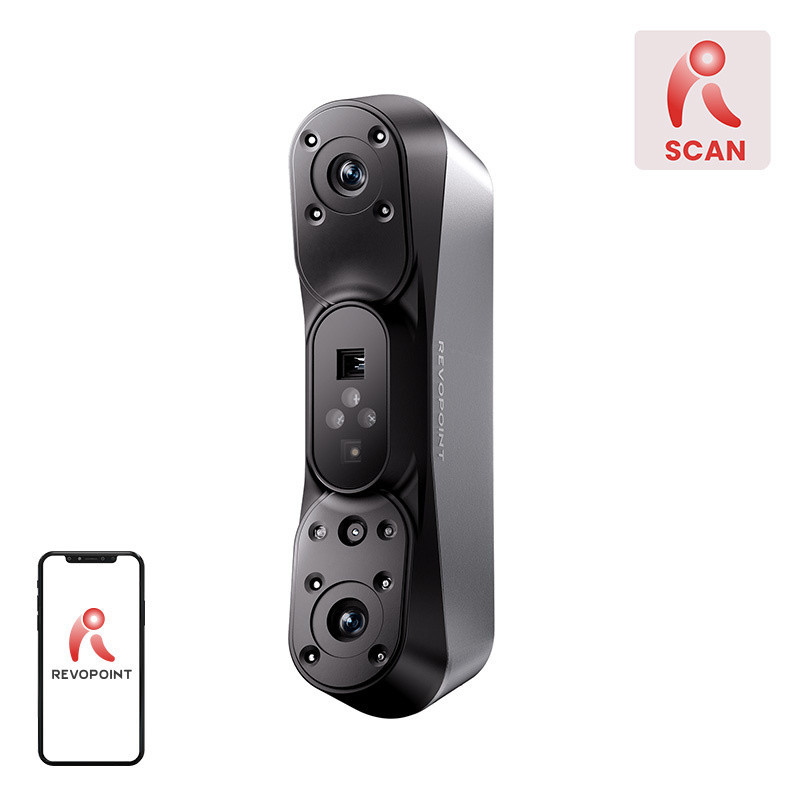

Revopoint POP 4 Premium 3D scanner
The Revopoint POP 4 Premium 3D scanner captures high-resolution 3D models using blue multi-line laser, infrared structured light, and VCSEL projection technologies. It offers accuracy down to 0.03 mm, supports object scanning from 10 × 10 × 10 mm to 2 × 2 × 2 m, and is compatible with a variety of operating systems for easy integration with CAD and 3D printing applications.
- High-resolution 3D scanning with an accuracy of up to 0.03 mm, perfect for detailed modeling and reverse engineering.
- Three scanning technologies (laser, infrared structured light, VCSEL) for a variety of applications, from small objects to large structures.
- Real-time AI segmentation, allowing you to get cleaner models by automatically removing backgrounds and unnecessary elements during scanning.
- Supports outdoor use in bright conditions with advanced light resistance, making it suitable for outdoor work and a variety of environments.
Features | |
|---|---|
| Product type | 3D scanner |
| Brand | Revopoint |
| Model | POP 4 |
Specifications | |
| Scanning technologies | Blue multi-mode laser, full-field structured light (infrared), VCSEL structured light |
| Laser measurement accuracy | up to 0.03 mm |
| Full-field measurement accuracy | up to 0.08 mm |
| VCSEL measurement accuracy | up to 0.10 mm (300-500 mm), up to 0.20 mm (500-800 mm) |
| Scope accuracy | 0.03 mm + 0.05 mm × L(m) |
| Working distance in laser mode | 200-400mm |
| Working distance in full-field HD/hybrid HD | 250-500mm |
| Working distance VCSEL | 300-800mm |
| Minimum scannable object size | 10 × 10 × 10 mm |
| Maximum scannable object size | 2 × 2 × 2 m |
| Laser scanning speed | up to 105 fps |
| Full-field scanning speed | 15-20 fps |
| VCSEL scan speed | 20-30fps |
| Maximum number of laser points | up to 2,000,000 points/s |
| Maximum number of full field points | up to 5,000,000 points/s |
| RGB camera | 1.3 MP |
| Color scanning | Yes |
| Outdoor Work Light - VCSEL | up to 100,000 lux |
| Outdoor work light - laser | up to 50,000 lux (up to 100,000 lux with outdoor blue filter) |
| Connection | Wi-Fi 6, Bluetooth 4.1, USB-C 3.0 |
| Supported systems | Windows 10/11, macOS 11 or later, Android 9.0 or later, iOS 14 or later |
| Export formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, SPLAT |
| Weight | 286 g |
| Dimensions | 160 × 30 × 72 mm |
| Power source | DC 5 V / 2 A |
| Height | 100mm |
| Length | 200mm |
| Weight | 400g |
| Width | 200mm |
