3D Scanner - Revopoint Miraco 0.05 mm 15 FPS 2K AMOLED 48 MP 256 GB 5,000 mAh
Product reference:
14-6975577880277
Revopoint Miraco - a wireless handheld 3D scanner with four infrared cameras, ensuring 0.05 mm accuracy per frame and scanning speed of up to 15 frames per second. It is equipped with a 6-inch 2K AMOLED display, a 48 MP RGB camera, 256 GB of memory and a 5,000 mAh battery.
3D Scanner - Revopoint Miraco 0.05 mm 15 FPS 2K AMOLED 48 MP 256 GB 5,000 mAh
Product reference:
14-6975577880277
Revopoint Miraco - a wireless handheld 3D scanner with four infrared cameras, ensuring 0.05 mm accuracy per frame and scanning speed of up to 15 frames per second. It is equipped with a 6-inch 2K AMOLED display, a 48 MP RGB camera, 256 GB of memory and a 5,000 mAh battery.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

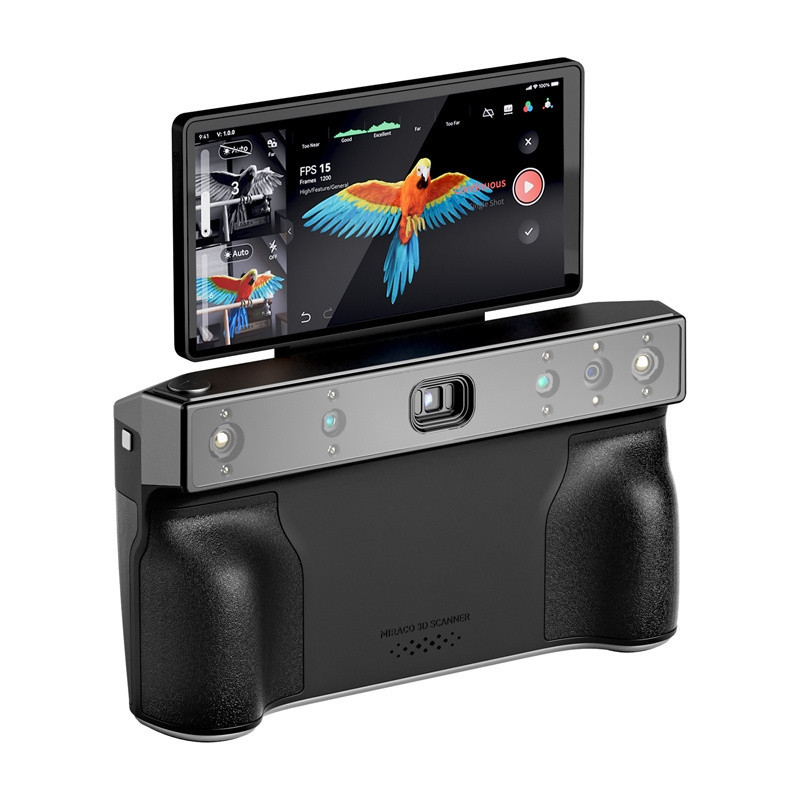

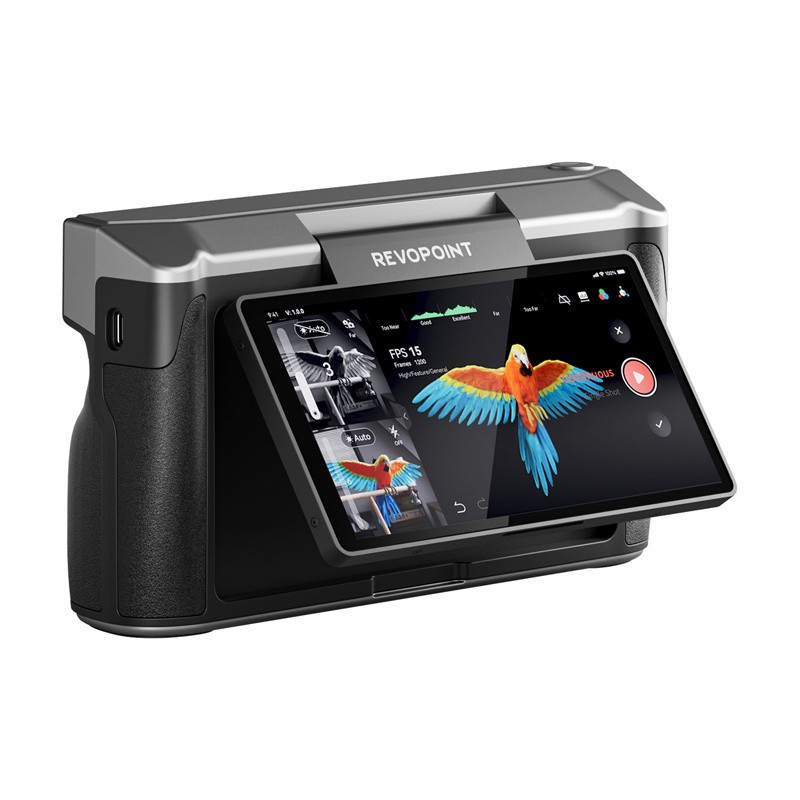

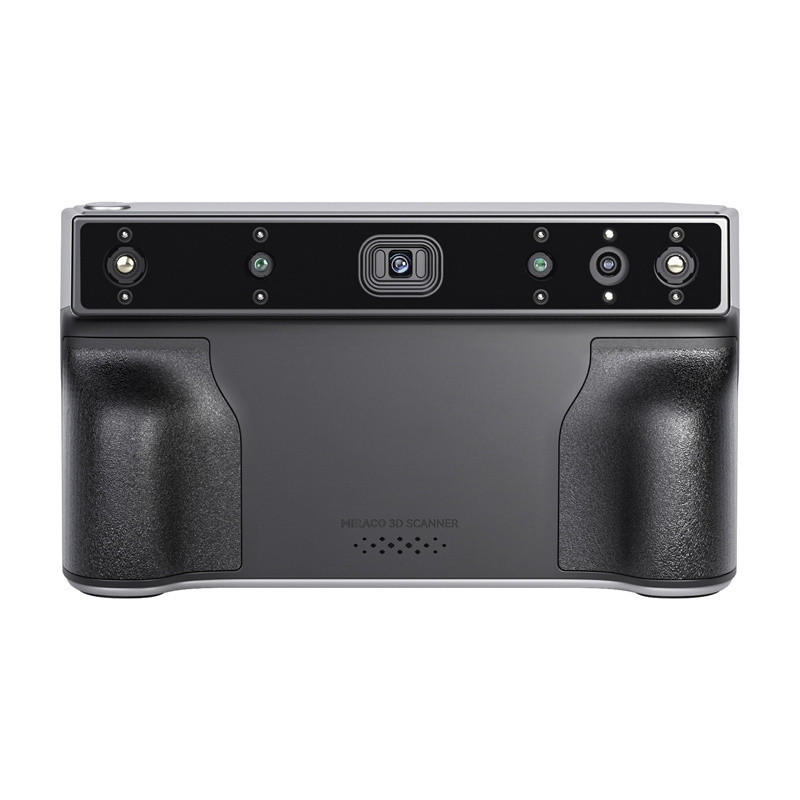

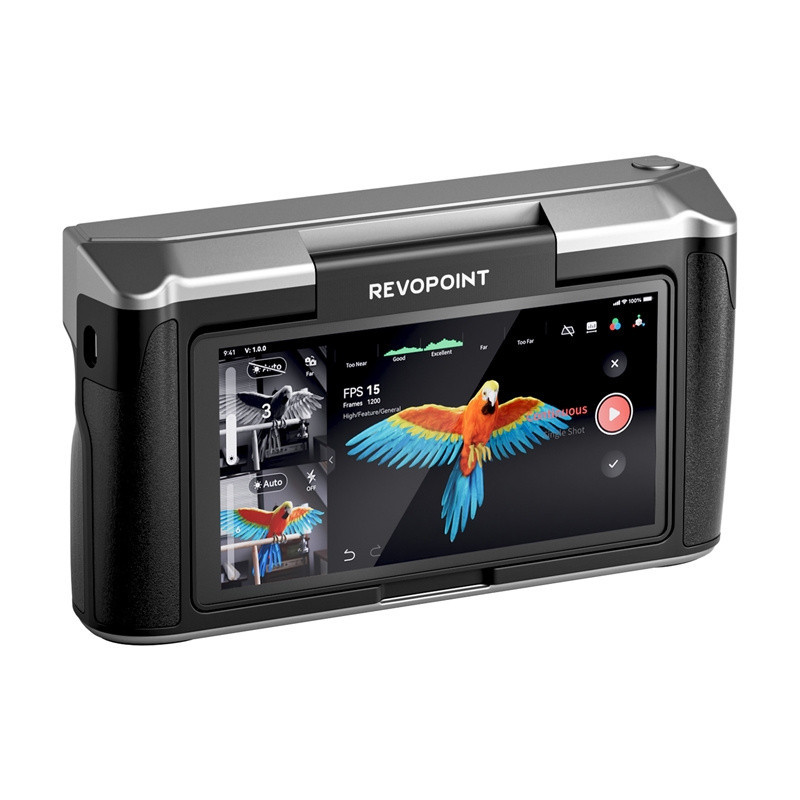

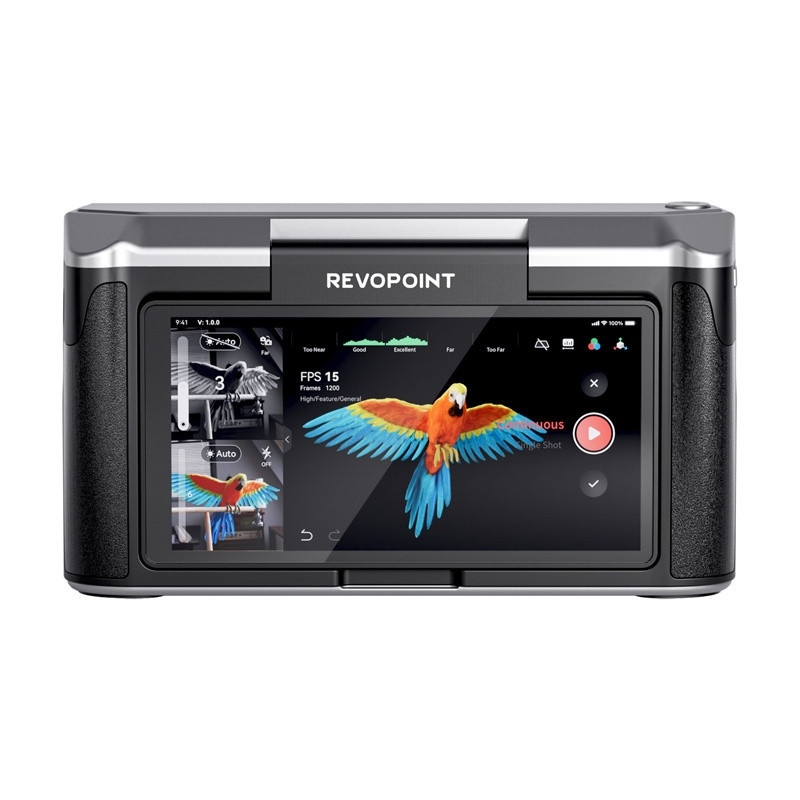

Revopoint Miraco 3D scanner
" Revopoint Miraco" - a wireless handheld 3D scanner with four infrared cameras, 0.05 mm single-frame accuracy and up to 15 frames per second scanning speed. It is equipped with a 6-inch 2K AMOLED display, a 48 MP RGB camera, 256 GB of memory and a 5,000 mAh battery.
- The completely wireless handheld 3D scanner weighs 750 g and works for up to 2 hours continuously.
- Four depth cameras ensure detailed scanning in a single shot and fast continuous scanning at up to 15 frames per second.
- The integrated 6-inch 2K AMOLED touchscreen, 16 GB of RAM, and 256 GB of storage allow you to scan, process, and edit models on the device itself, without using a computer.
- A 48 MP color camera, 9-axis IMU, Wi-Fi 6, and IP45 protection ensure accurate and sharp scans indoors and outdoors.
Product information | |
|---|---|
| Product type | Wireless handheld 3D scanner |
| Brand | Revopoint |
| Model | Miraco |
| Weight | 750g |
Scanning technology | |
| Depth camera system | Four infrared cameras with structured light |
| Point-to-point distance | 0.05mm |
| Single shot accuracy | Up to 0.05 mm |
| Scanning speed | Up to 15 frames per second |
| Scanning modes | Single shot and continuous scanning |
| Working distance | 100-1,000mm |
| Minimum scan volume | 10 × 10 × 10 mm |
| Area covered | 28 × 53 mm at 100 mm distance; 975 × 775 mm at 1,000 mm distance |
| Tracking methods | Tracking markers and object properties |
| Motion sensor | 9-axis IMU |
| Light source | Class 1 infrared light with additional infrared bulbs |
Screen and hardware | |
| Screen | 6-inch 2K AMOLED touchscreen, adjustable at 180° |
| Processor | 2.8 GHz octa-core ARM processor with Mali-G52 graphics processor |
| RAM | 16GB DDR4 |
| Memory | 256GB eMMC |
| RGB camera | 48 MP |
| Operating system | Android-based system |
| Processing on the device | Point cloud processing and model editing |
Power and connectivity | |
| Battery | 5,000 mAh rechargeable battery |
| Charging power | 50W |
| Charging time | Approximately 35 minutes to 80% |
| Connection | Wi-Fi 6 and USB Type-C 3.1 |
| Wireless operation | Up to 2 hours of continuous scanning |
Compatibility and protection | |
| Compatible systems | Windows 10/11 and macOS |
| Output formats | PLY, OBJ and STL |
| Compatibility with 3D printing | Yes |
| Protection class | IP45 |
| Operating temperature | from −10 °C to 40 °C |
| Scanning environment | For indoor and outdoor use |
Included accessories | |
| In the set |
|
Safety warning | |
| Safe use | Use the scanner only for its intended purpose - 3D scanning. Do not look directly into the infrared light source. Protect the device from moisture exceeding the IP45 protection limits, and use the recommended scanning spray for transparent, very dark or highly reflective objects. |
| Height | 150mm |
| Length | 400mm |
| Weight | 950g |
| Width | 300mm |
