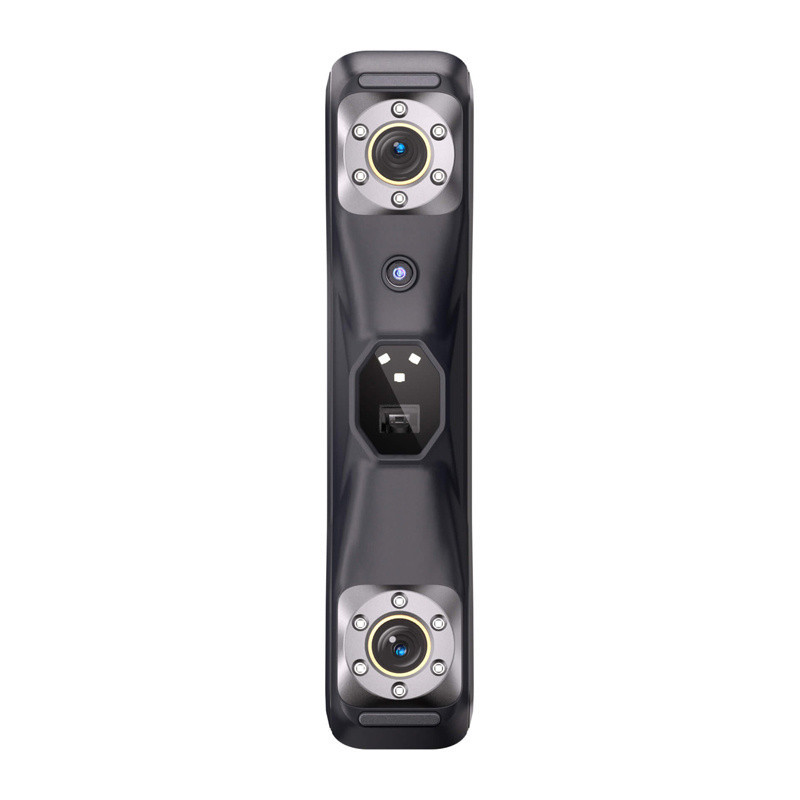

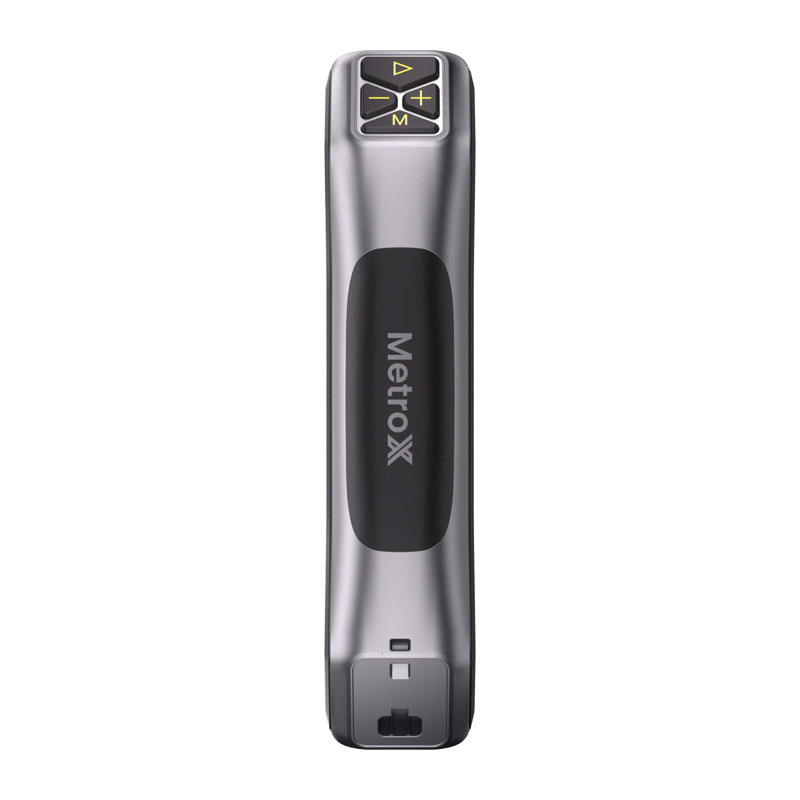

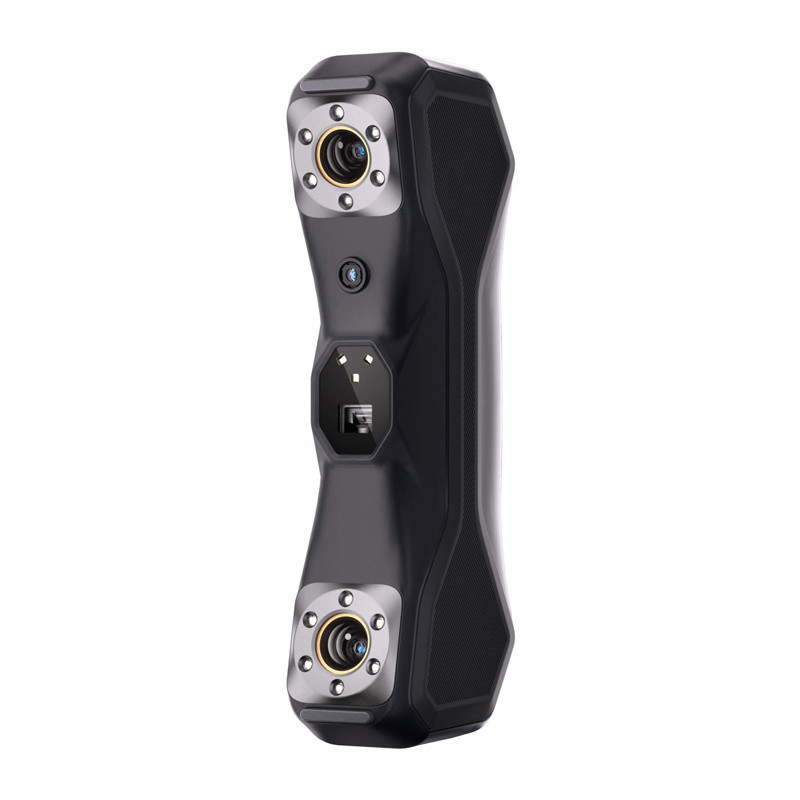

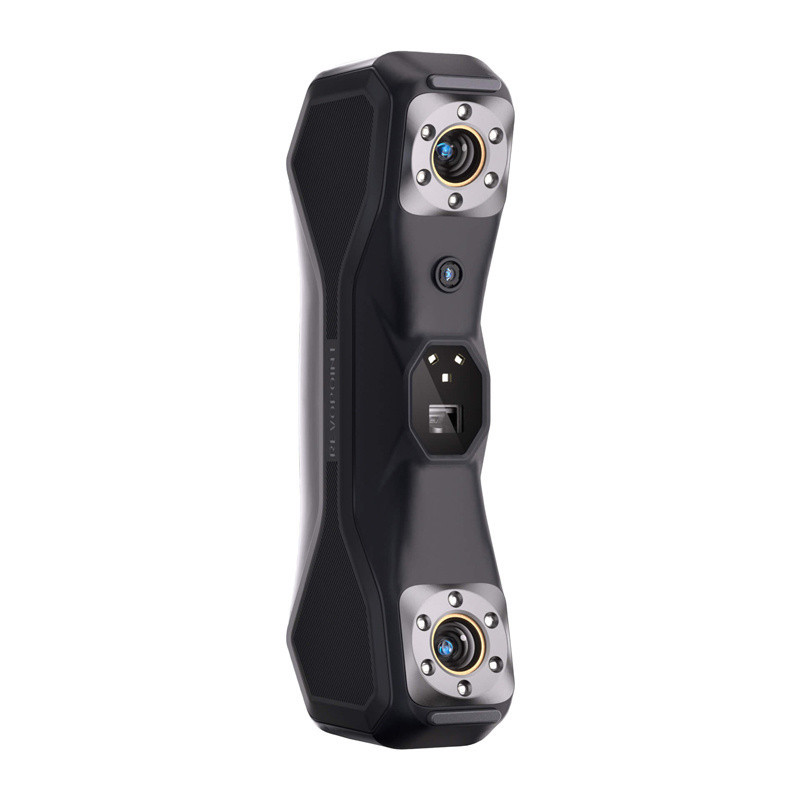

3D Scanner - Revopoint MetroX Pro Advanced, 0.01 mm Accuracy, 7,000,000 Points/Sec, Black
Product reference:
14-6975577881762
The Revopoint MetroX Pro Advanced is a 3D scanner that uses multi-directional lasers and structured lighting technology to provide accuracy down to 0.01 mm and precision down to 0.02 mm. It supports multiple scanning modes and can capture objects from 10 × 10 × 10 mm to 1 × 1 × 1 m at speeds up to 7,000,000 points per second.
3D Scanner - Revopoint MetroX Pro Advanced, 0.01 mm Accuracy, 7,000,000 Points/Sec, Black
Product reference:
14-6975577881762
The Revopoint MetroX Pro Advanced is a 3D scanner that uses multi-directional lasers and structured lighting technology to provide accuracy down to 0.01 mm and precision down to 0.02 mm. It supports multiple scanning modes and can capture objects from 10 × 10 × 10 mm to 1 × 1 × 1 m at speeds up to 7,000,000 points per second.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Revopoint MetroX Pro 3D scanner
Revopoint MetroX Pro Advanced is a 3D scanner that uses multi-laser and structured light technology, achieving accuracy down to 0.01 mm and range accuracy down to 0.02 mm. It supports multiple scanning modes and can capture objects from 10 × 10 × 10 mm to 1 × 1 × 1 m at speeds up to 7,000,000 points per second.
- High accuracy in 3D scanning with single-frame accuracy up to 0.01 mm, ideal for engineering and design applications.
- Versatile scanning modes and fast data acquisition, capturing up to 7 million points per second.
- Compact and lightweight design, suitable for both handheld and stationary use in a variety of environments.
- Compatible with multiple file formats for easy integration into 3D modeling and printing processes.
Features | |
|---|---|
| Product type | 3D scanner |
| Brand | Revopoint |
| Model | MetroX Pro Advanced |
Specifications | |
| Scan type | Handheld or on a tripod |
| Technology | Multi-laser scanning and full-field structured light scanning |
| Single shot accuracy (max.) | 0.01mm |
| Scope accuracy | 0.02 mm + 0.04 mm × L (m), where L is the length of the object |
| Minimum point distance | 0.05mm |
| Working distance | 200~400mm |
| Field of view (vertical × horizontal) | 43 × 33° |
| Scanning speed (max.) | 2,000,000 points/s (multi-laser) / 7,000,000 points/s (full field) |
| RGB camera resolution | 2 MP |
| Monitoring methods | Feature, Marker, Global Marker |
| 3D light source | 30 blue cross lasers, 15 blue parallel laser lines, 62 blue structured light lines |
| Processor | 4-core ARM, 2.0 GHz |
| Compatible operating systems | Windows 10/11 (64-bit), macOS 11.0 or later |
| Output file formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Connector type | USB Type-C to Type-C |
| Power source | DC 12V, 3A |
| Scanner weight | 508 grams |
| Dimensions (Length × Width × Height) | 209 × 88 × 44mm |
Safety Warning | |
| Use the product for its intended purpose to ensure safety and optimal performance. | |
| Height | 100mm |
| Length | 300mm |
| Weight | 700g |
| Width | 200mm |
