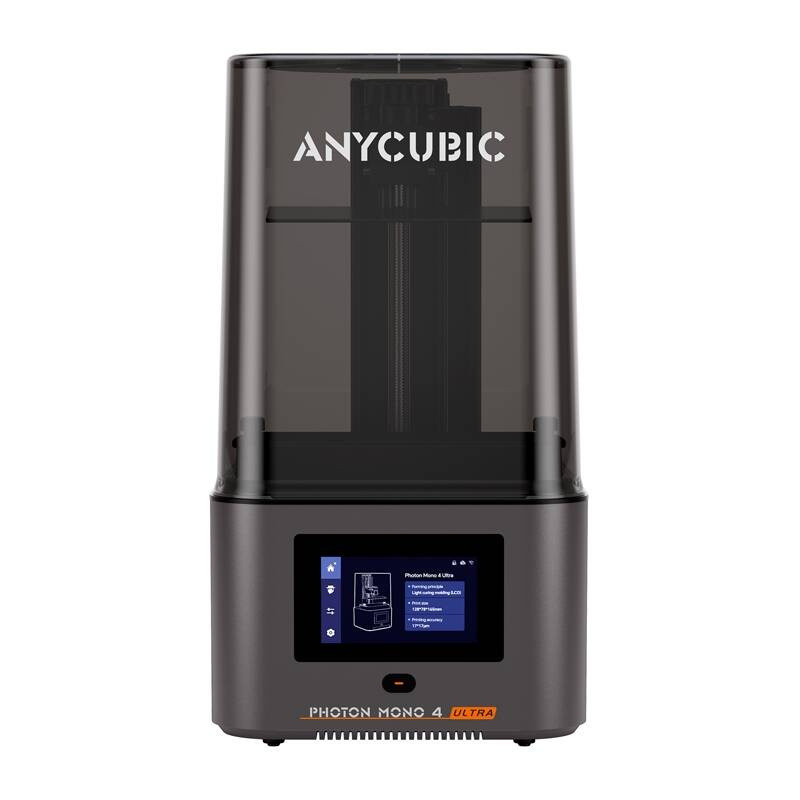

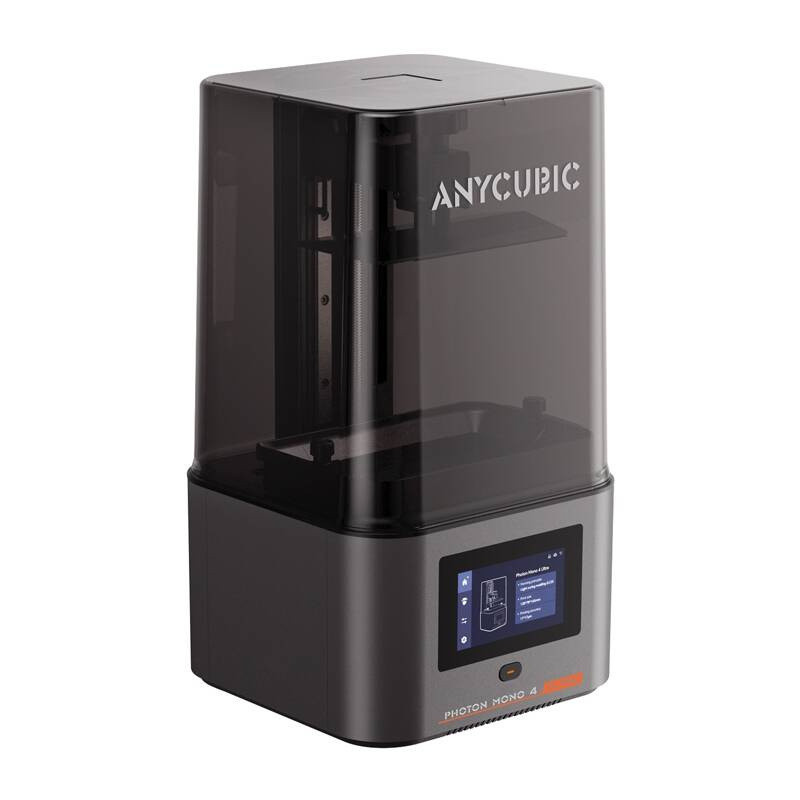

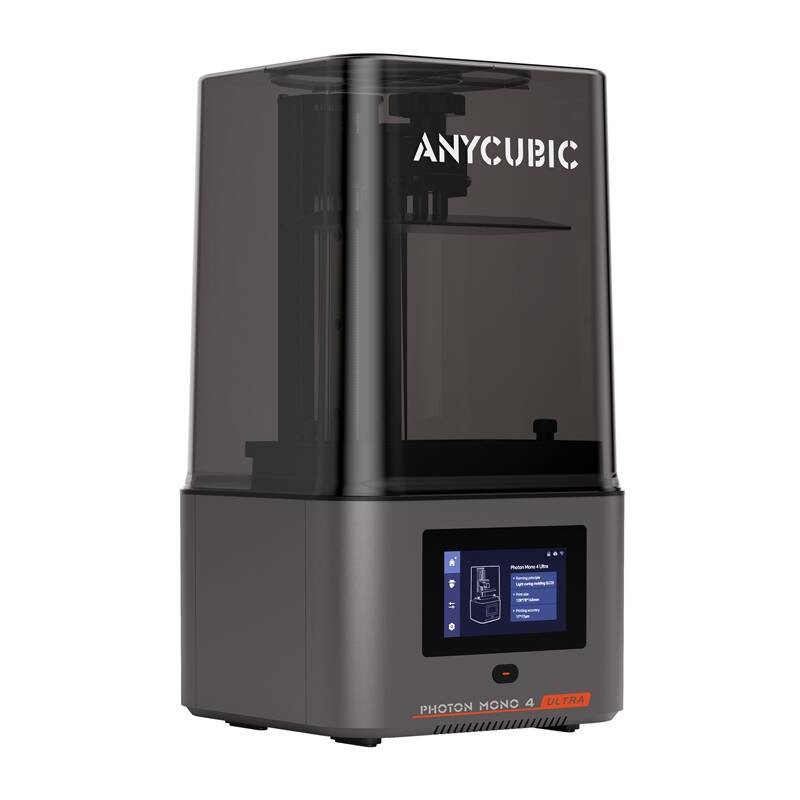

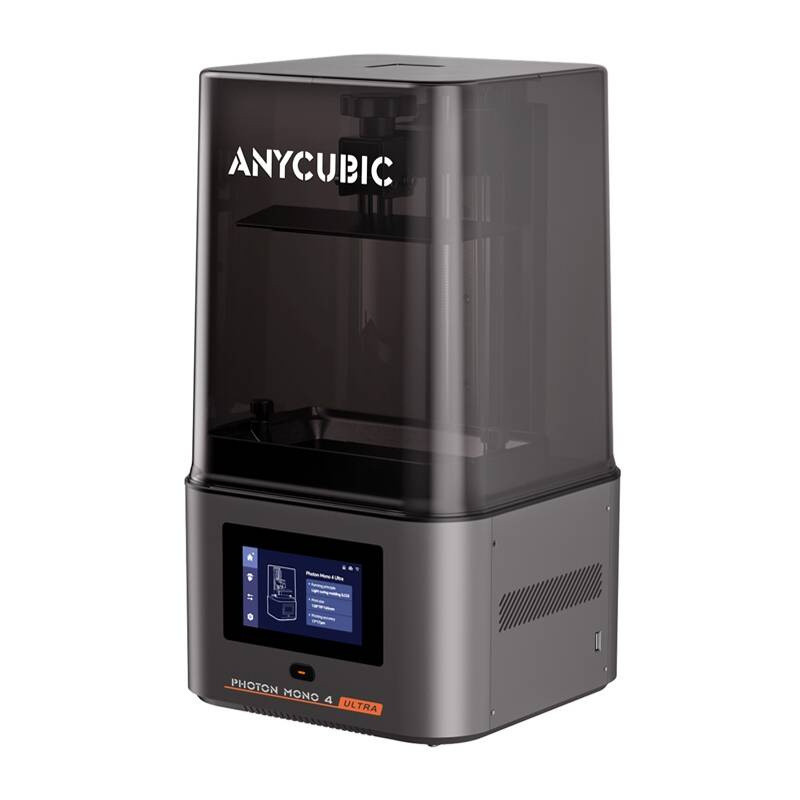

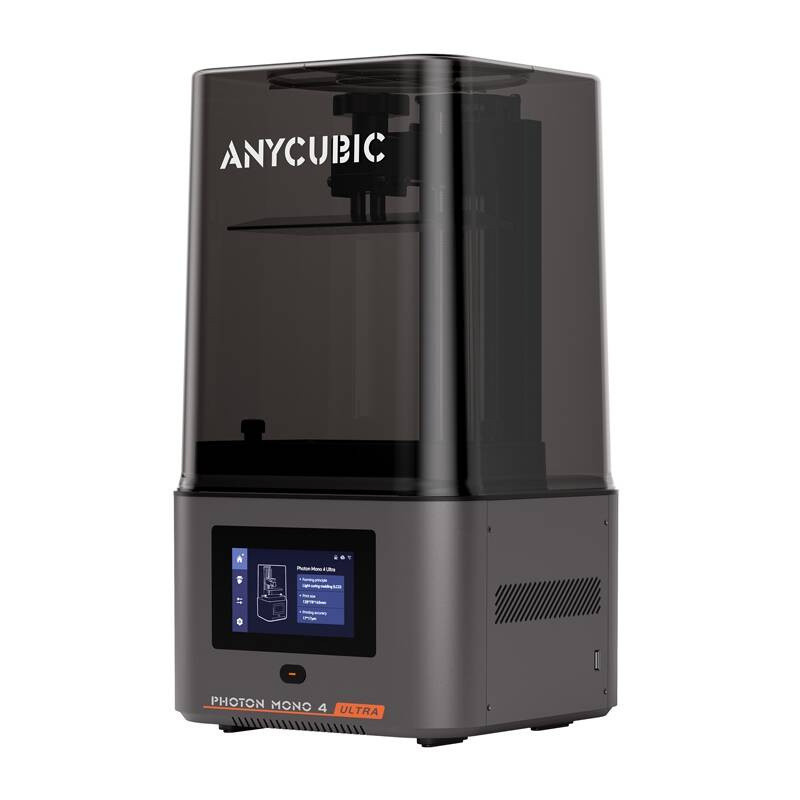

3D Printer - Anycubic Photon Mono 4 Ultra PM4U-IP-O 7 inch 10K 17 × 17 μm 153.4 × 87 × 165 mm Wi-Fi USB
Product reference: 14-6974662351043

Anycubic Photon Mono 4 Ultra - resin 3D printer with a 7-inch 10K monochrome LCD display, 17 × 17 μm XY resolution and a 153.4 × 87 × 165 mm build volume. Supports file transfer via USB and Wi-Fi, has 4-point manual alignment and allows you to select a layer height of 0.02-0.15 mm.

3D Printer - Anycubic Photon Mono 4 Ultra PM4U-IP-O 7 inch 10K 17 × 17 μm 153.4 × 87 × 165 mm Wi-Fi USB

Product reference: 14-6974662351043

Anycubic Photon Mono 4 Ultra - resin 3D printer with a 7-inch 10K monochrome LCD display, 17 × 17 μm XY resolution and a 153.4 × 87 × 165 mm build volume. Supports file transfer via USB and Wi-Fi, has 4-point manual alignment and allows you to select a layer height of 0.02-0.15 mm.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
301,06 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

Anycubic Photon Mono 4 Ultra PM4U-IP-O


Anycubic Photon Mono 4 Ultra - resin 3D printer with 7-inch 10K monochrome LCD display, 17 × 17 μm XY resolution and 153.4 × 87 × 165 mm build volume. Supports file transfer via USB and Wi-Fi, 4-point manual alignment and 0.02-0.15 mm layer height.


  • The high-resolution 10K monochrome LCD screen delivers bright and detailed resin prints and 17×17 μm XY resolution.
  • The COB light source with a Fresnel lens ensures uniform illumination, at least 90% light uniformity and a lifespan of up to 20,000 hours.
  • The compact 153.4 × 87 × 165 mm print volume is suitable for miniatures, prototypes, jewelry, and artistic models.
  • Supports standard, high-speed, water-washable, bio-based, plant-based and other commercially available resins. Files can be transferred via USB and Wi-Fi.

Product information

Product type Resin 3D printer
Brand Anycubic
Model Photon Mono 4 Ultra PM4U-IP-O
Printing technology Resin printing using LCD screen
Printing volume 153.4 × 87 × 165mm
Printer dimensions 231 × 236 × 430mm
Device weight 5 kg

Printing specifications

Printing speed Up to 80 mm/h with standard resin or up to 120 mm/h with high-speed resin with a layer height of 0.1 mm
Layer height 0.02-0.15mm
Leveling system 4-point manual alignment
Separation film ACF
Compatible materials Standard, high-speed, water-washable, bio-based, plant-based and other commercially available resins

Hardware and connectivity

Control screen 4.3 inch TFT touch screen
Light source COB light source with Fresnel lens and light uniformity algorithm
Light uniformity ≥90%
Light intensity ≥3,500 μW/cm²
Light source life Up to 20,000 hours
File transfer USB and Wi-Fi
Software Photon Workshop
" Anycubic " app Supported
Smart printing system Supported

Included accessories

The set includes:
  • Photon Mono 4 Ultra printer
  • Printing platform
  • Resin tank
  • Screen protection kit
  • Smoothing paper
  • Gloves
  • Funnels
  • Scrapers
  • Hexagon key set
  • USB flash drive
  • Power cord
  • User manual

Safety information

Safety warning Use only as a resin 3D printer and follow the manufacturer's instructions. Uncured resin can irritate the skin and eyes and should not be swallowed. Wear suitable protective gloves and eye protection when handling resin or uncured prints. Use the device in a well-ventilated area, keep resin out of the reach of children, and do not look directly into the UV light source. Unplug the printer from the power source before performing maintenance or cleaning.

Height512mm
Length305mm
Weight6500 grams
Width300mm
