Power Supply - Thermaltake Smart BX1 650W 80 PLUS Bronze ATX Black
Product reference:
14-4711246875258
The Thermaltake Smart BX1 power supply delivers 650W of power and is 80 PLUS Bronze certified. It features a 12cm active cooling fan and multiple headers for CPU, PCIe and SATA devices.
Power Supply - Thermaltake Smart BX1 650W 80 PLUS Bronze ATX Black
Product reference:
14-4711246875258
The Thermaltake Smart BX1 power supply delivers 650W of power and is 80 PLUS Bronze certified. It features a 12cm active cooling fan and multiple headers for CPU, PCIe and SATA devices.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Thermaltake Smart BX1 Power Supply 650 W 24-Pin ATX Black
The Thermaltake Smart BX1 power supply delivers 650W of power with 80 PLUS Bronze certification. It features a 12cm active cooling fan and multiple headers for CPU, PCIe and SATA devices.
- Powerful 650W output with 80 PLUS Bronze certification for efficient operation.
- Active cooling system with 12 cm fan for optimal temperature control.
- Multiple connectors are included: 6 SATA, 4 Molex, and 2 PCIe for versatility.
- Compact ATX format design, easily installed in standard PC cases.
Design | |
|---|---|
| On/off switch | Yes |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 pc. |
| Product color | Black |

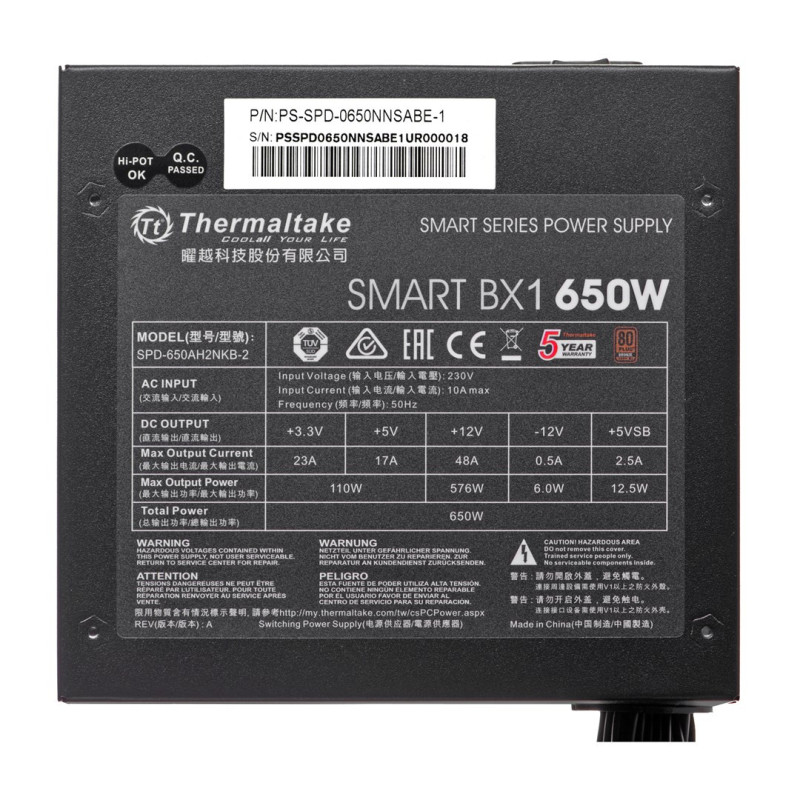

Power parameters | |
| AC input voltage | 100 - 240V |
| Power Factor Correction (PFC) type | Active |
| Maximum output current (+12V) | 48 A |
| AC input frequency | 50 - 60 Hz |
| Total power (+5Vsb) | 12.5W |
| Total power | 650W |
| Input current | 12 A |
| Maximum output current (+5V) | 17 A |
| Total power (+5V) | 110W |
| Total power (-12V) | 6W |
| Maximum output current (+5Vsb) | 2.5 A |
| Total power (+3.3V) | 110W |
| Maximum output current (+3.3V) | 23 A |
| Maximum output current (-12V) | 0.5A |
| Maximum power | 80W |
| Total power (+12V) | 576 W |
Operating conditions | |
| Operating temperature (OT) | 5 - 40 °C |
| Storage relative humidity (HH) | 10 - 95% |
| Operating relative humidity (HH) | 20 - 85% |
| Storage temperature (TT) | -40 - 55 °C |
Weight and dimensions | |
| Depth | 140mm |
| Width | 150mm |
| Height | 86 mm |
Operation | |
| Purpose | PC |
| Power supply unit (PSU) shape | ATX |
| ATX version | 2.3 |
| 80 PLUS certificate | 80 PLUS Bronze |
| Mean Time Between Failures (MTBF) | 100000 hours |
| EPS version | 2.92 |
Ports and interfaces | |
| SATA power cable length | 150, 500mm |
| Number of SATA power switches | 6 |
| PCI Express power cable length | 50cm |
| Motherboard power switch | 24-pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Cable type | Incompatible |
| PCI Express switch | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power cable length | 60cm |
| Peripheral (Molex) power cable length | 500mm, 150mm |
| CPU power switch (4+4 pin) | Yes |
| CPU power cable length | 1mm |
