Power Supply - Gigabyte UD750GM PG5 V2 750W 80 PLUS Gold Fully Modular
Product reference:
14-4719331556310
750W power supply with 80 PLUS Gold certification and fully modular design. Compatible with ATX 3.1, has a 120 mm active cooling fan.
Power Supply - Gigabyte UD750GM PG5 V2 750W 80 PLUS Gold Fully Modular
Product reference:
14-4719331556310
750W power supply with 80 PLUS Gold certification and fully modular design. Compatible with ATX 3.1, has a 120 mm active cooling fan.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
GIGABYTE UD750GM PG5 V2 ICE Power Supply
750W power supply with 80 PLUS Gold certification and fully modular design. Compatible with ATX 3.1, has a 120 mm active cooling fan.
- High efficiency class with 80 PLUS Gold certification and 90% efficiency rating.
- Powerful 750W output with multiple protection features for safe operation.
- Fully modular cable design for easy installation and improved airflow.

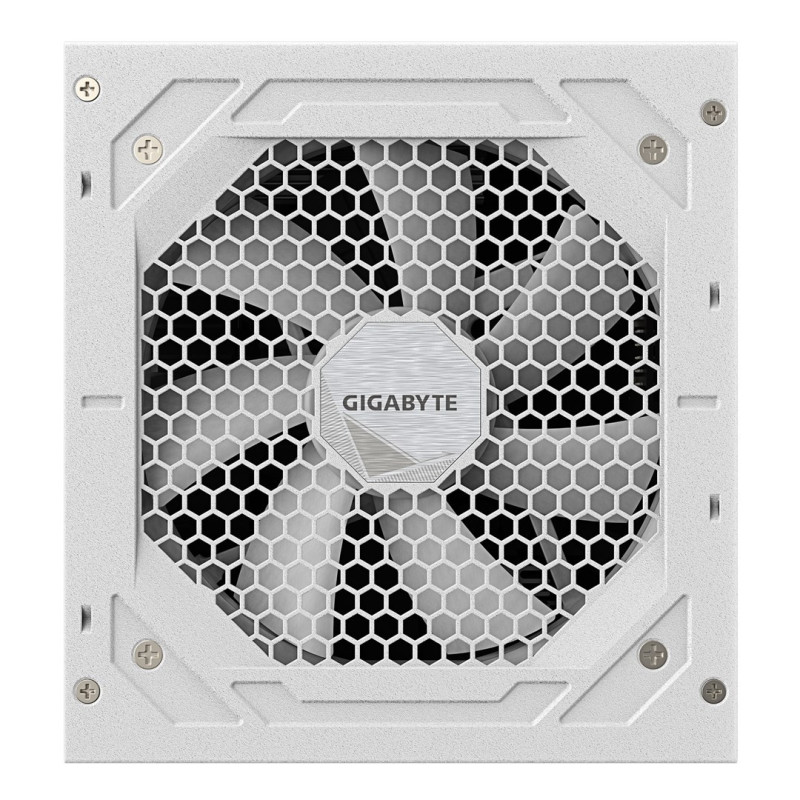

- Active cooling system with 12 cm fan for optimal temperature control.
Design | |
|---|---|
| Cooling Type | Active |
| Fan Diameter | 12 cm |
| Number of Fans | 1 pc. |
| On/Off Switch | Yes |
| Product Color | White |
Power | |
| Power Factor | 0.9 |
| Power Protection Features | UVP, OCP, OTP, OVP, OPP, SCP |
| Connected Power (+3.3V) | 105W |
| AC Input Frequency | 50/60Hz |
| Connected Power (-12V) | 3.6W |
| Total Power | 750W |
| Maximum Output Current (+12V) | 70.8 A |
| Connected Power (+12V) | 750W |
| Input Current | 15 - 6.5A |
| Maximum Output Current (+3.3V) | 20 A |
| Connected Power (+5Vsb) | 15W |
| Maximum Output Current (+5V) | 20 A |
| AC Input Voltage | 100 - 240V |
| Shelf Life | 16ms |
| Power Factor Correction (PFC) Type | Active |
| Maximum Output Current (+5Vsb) | 3 A |
| Connected Power (+5V) | 105W |
| Efficiency | 90% |
| Maximum Output Current (-12V) | 0.3A |
Weight and Dimensions | |
| Height | 86 mm |
| Depth | 140mm |
| Width | 150mm |
Operation | |
| Power Supply Unit (PSU) Form Factor | ATX |
| Usage | PC |
| ATX Version | 3.1 |
| Mean Time Between Failures (MTBF) | 100000 hours |
| 80 PLUS Certificate | 80 PLUS Gold |

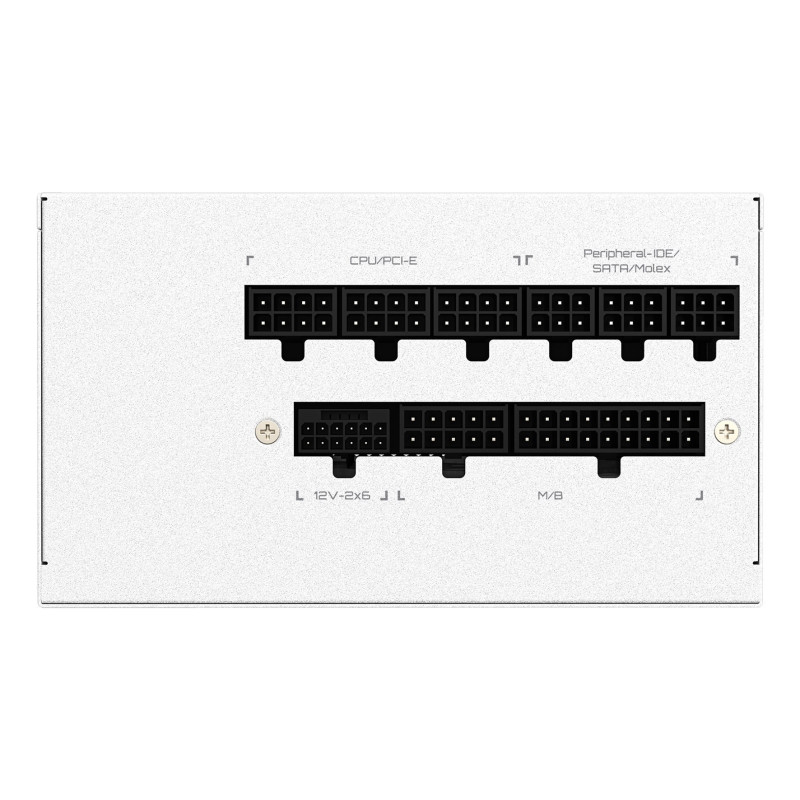

Ports and Interfaces | |
| Motherboard Power Connector | 20+4 pin ATX |
| Motherboard Power Cable Length | 61 cm |
| CPU Power Connector (4+4 pin) | Yes |
| PCI Express Power Connectors (6+2 pin) | 4 |
| Cable Type | Fully Modular |
| Number of SATA Power Connectors | 8 |
| PCI Express Connector | Yes |
| PCI Express Power Connector (12+4 pin) Cable Length | 700mm |
| Number of EPS Connections | 2 |
| PCI Express Power Connectors (12+4 pin) | 1 |
