Power Supply - Gigabyte UD1000GM 1000W 80 PLUS Gold Fully-Modular
Product reference:
14-4719331556594

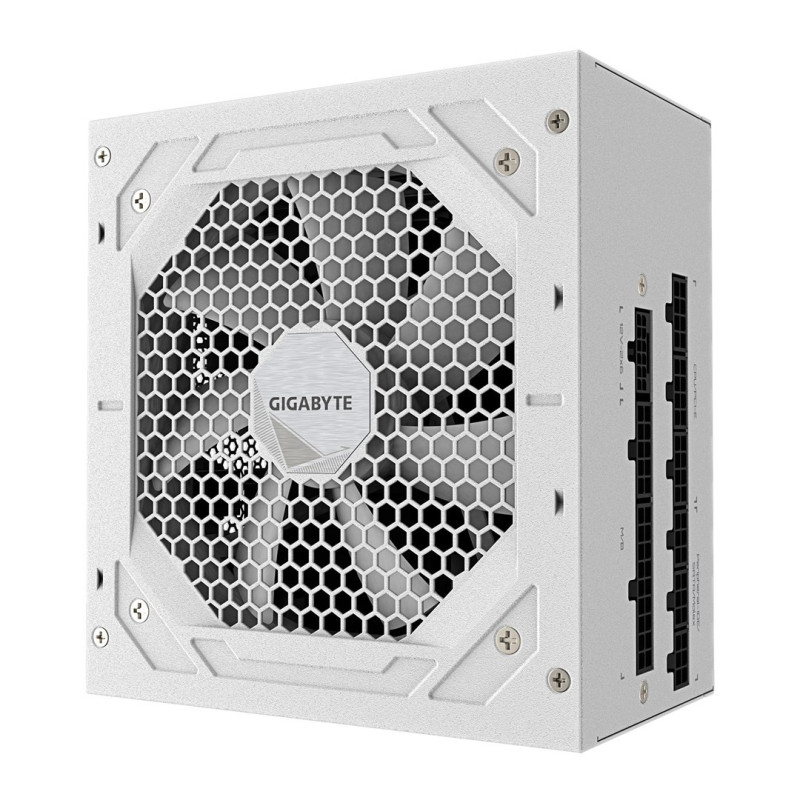

The Gigabyte UD1000GM is a 1000W ATX power supply with 80 PLUS Gold certification and a fully modular cabling system. It features a single 12cm fan for active cooling, a host of protection features, and supports a variety of connectors, including 8 SATA and 4 PCI Express.
Power Supply - Gigabyte UD1000GM 1000W 80 PLUS Gold Fully-Modular
Product reference:
14-4719331556594
The Gigabyte UD1000GM is a 1000W ATX power supply with 80 PLUS Gold certification and a fully modular cabling system. It features a single 12cm fan for active cooling, a host of protection features, and supports a variety of connectors, including 8 SATA and 4 PCI Express.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Gigabyte UD1000GM 1000W PG5 ICE Power Supply
The Gigabyte UD1000GM is a 1000W ATX power supply with 80 PLUS Gold certification and a fully modular cabling system. It features a single 12cm fan for active cooling, a host of protection features, and supports a variety of connectors, including 8 SATA and 4 PCI Express.
- High efficiency class with 80 PLUS Gold certification ensuring optimal energy use.
- Fully modular cables for easy installation and improved airflow.
- Powerful 1000W output with multiple protection features for greater safety.
- Compact design with one 12cm active cooling fan for efficient heat dissipation.
Design | |
|---|---|
| Number of fans | 1 fan |
| On/off switch | Yes |
| Product color | White |
| Cooling type | Active |
| Fan diameter | 12 cm |

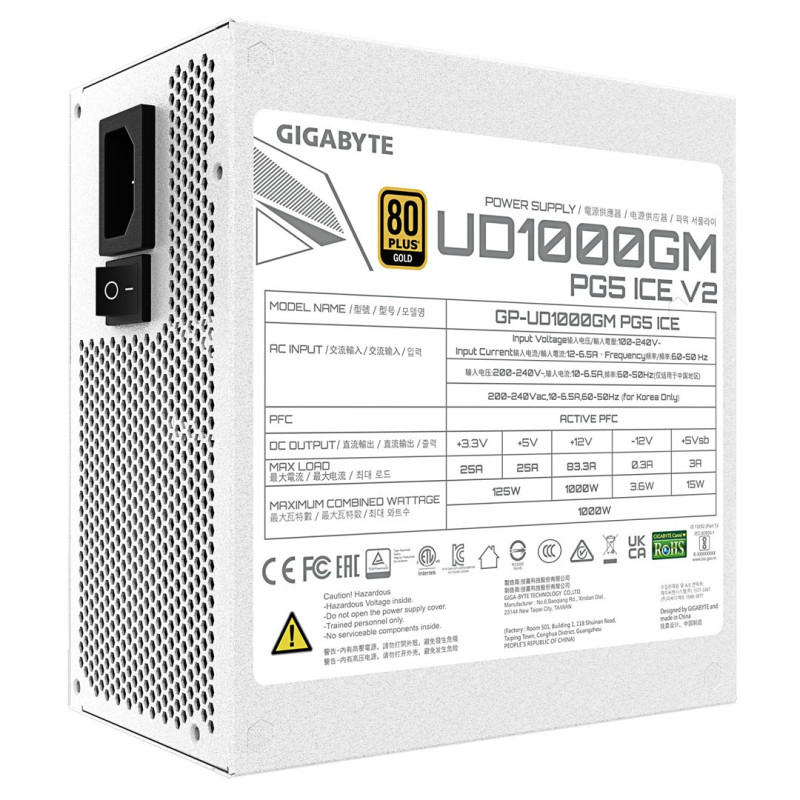

Power | |
| Power protection functions | UVP, OCP, OVP, OTP, OPP, SCP |
| Maximum output current (+5V) | 25 A |
| Maximum output current (-12V) | 0.3A |
| Maximum output current (+5Vsb) | 3 A |
| AC input frequency | 50/60Hz |
| Input current | 15 - 6.5A |
| AC input voltage | 100 - 240V |
| Connected power (+5Vsb) | 15W |
| Power Factor Correction (PFC) Type | Active |
| Connected power (+3.3V) | 125W |
| Power factor | 0.9 |
| Maximum output current (+12V) | 83.3 A |
| Connected power (+12V) | 1000W |
| Connected power (+5V) | 125W |
| Maximum output current (+3.3V) | 25 A |
| Shelf life | 16ms |
| Connected power (-12V) | 3.6W |
| Total power | 1000W |
| Efficiency | 90% |
Weight and dimensions | |
| Height | 86 mm |
| Depth | 140mm |
| Width | 150mm |
Operation | |
| 80 PLUS certificate | 80 PLUS Gold |
| ATX version | 3.1 |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Mean Time Between Failures (MTBF) | 100000 hours |

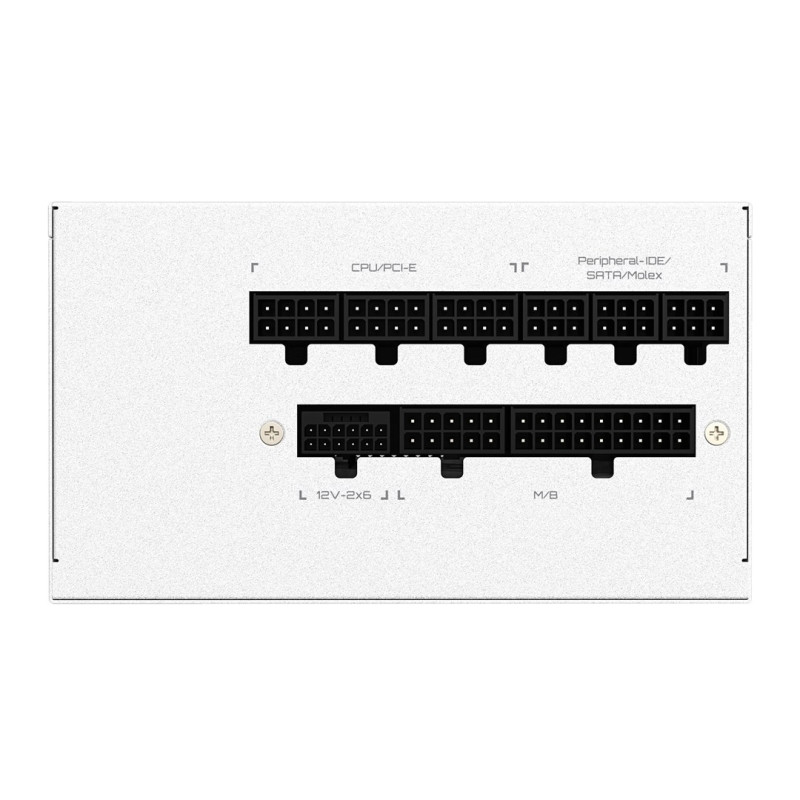

Ports and interfaces | |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Number of EPS connections | 2 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express connector | Yes |
| PCI Express power connector (12+4 pin) cable length | 700mm |
| Cable type | Fully modular |
| Motherboard power cable length | 61 cm |
| PCI Express power connectors (6+2 pin) | 4 |
