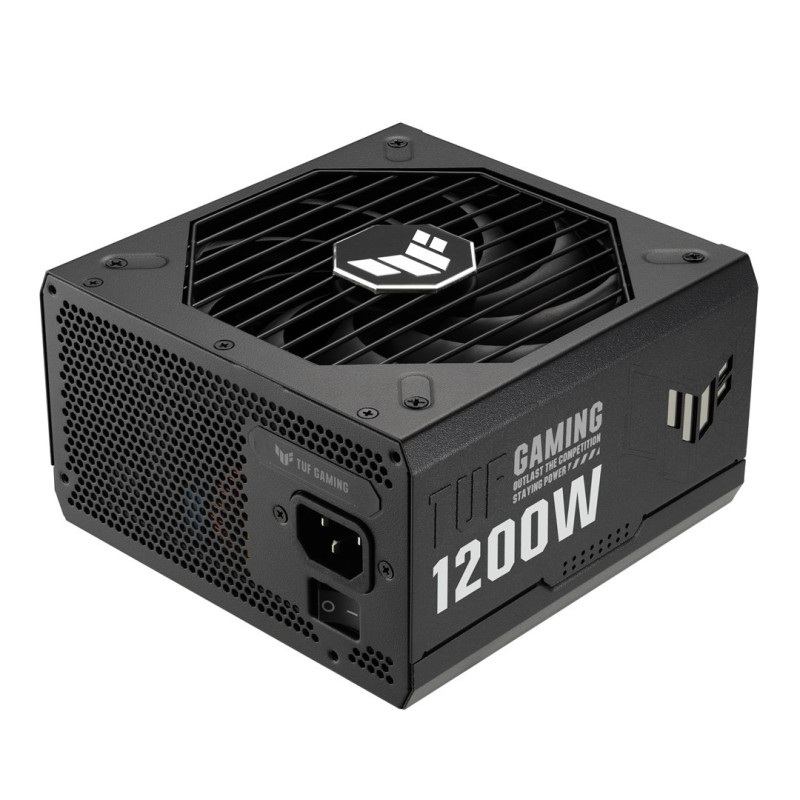

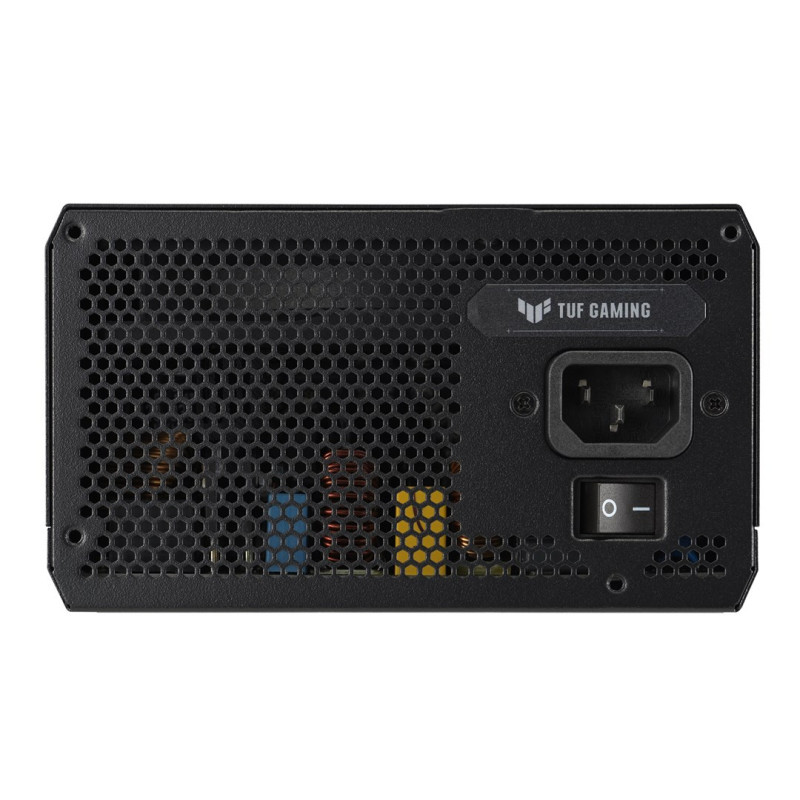

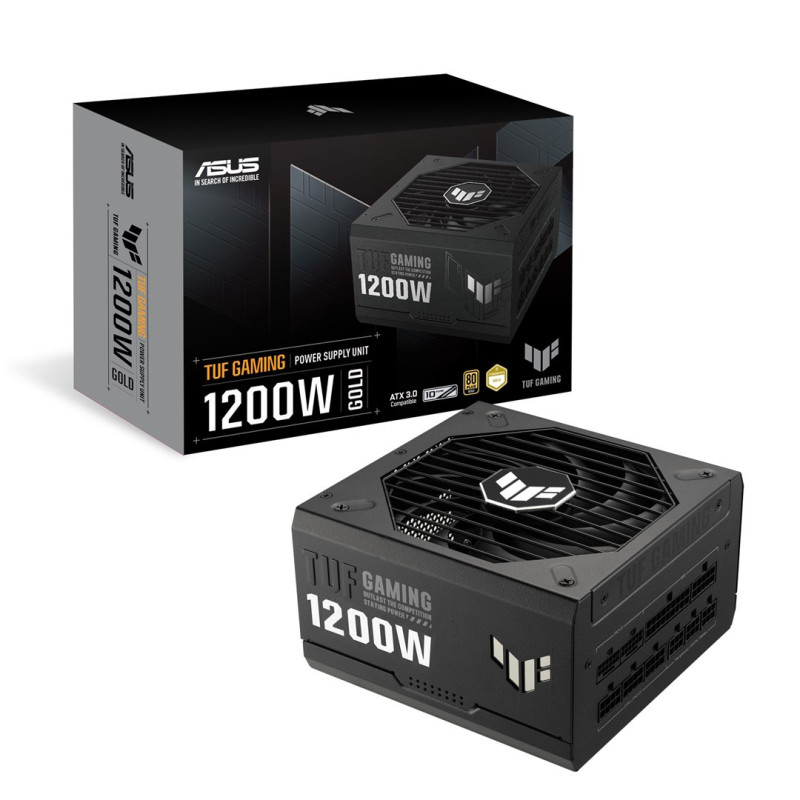

Power Supply - ASUS TUF GAMING 1200W 80 PLUS Gold Fully Modular Black
Product reference:
14-4711081786252
The ASUS TUF GAMING 1200W power supply features 80 PLUS Gold efficiency, fully modular cabling, and active cooling with a 135mm fan. It comes with a wide range of protection features and a 10-year warranty.
Power Supply - ASUS TUF GAMING 1200W 80 PLUS Gold Fully Modular Black
Product reference:
14-4711081786252
The ASUS TUF GAMING 1200W power supply features 80 PLUS Gold efficiency, fully modular cabling, and active cooling with a 135mm fan. It comes with a wide range of protection features and a 10-year warranty.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
ASUS TUF Gaming 1200W Gold Power Supply 20+4 pin ATX Black
The ASUS TUF GAMING 1200W Gold power supply is 80 PLUS Gold certified and features a fully modular cabling system with a variety of connectors, including 20+4 pin ATX and PCIe. It features active cooling with a 135mm fan, comprehensive protection against power failures, and a 10-year warranty.
- Efficient 1200 W power supply with 80 PLUS Gold certification for reliable and energy-efficient performance.
- Fully modular cable system for easy installation and improved air circulation.

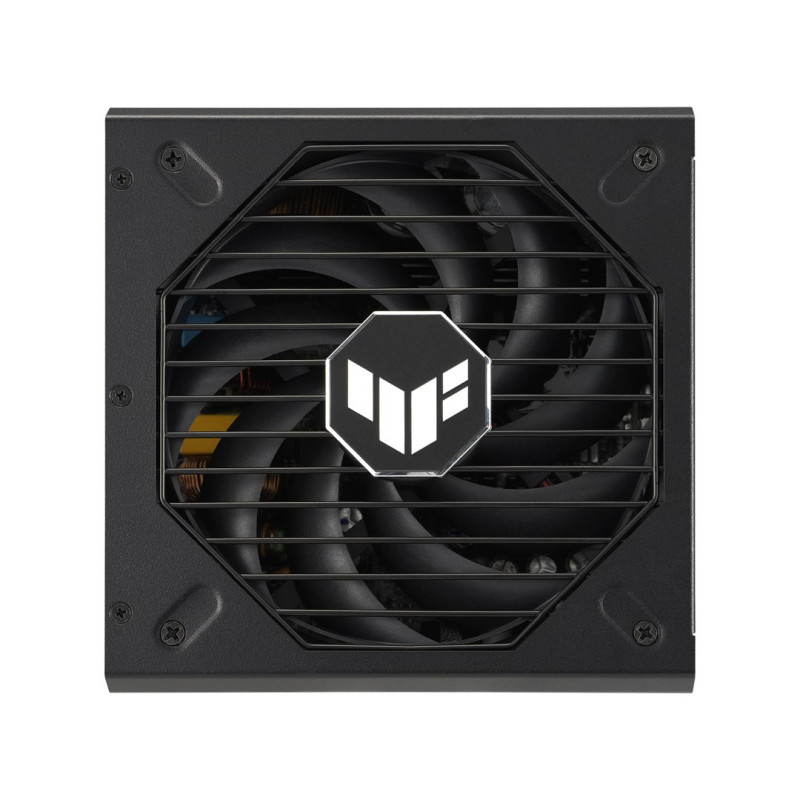

- Robust design with active cooling and a quiet 13.5 cm fan for optimal temperature maintenance.
- Comprehensive security features and a 10-year warranty for long-term peace of mind.
Technical characteristics | |
|---|---|
| Sustainability certificates | RoHS |
| Sustainability compliance | Yes |
| Certificates of conformity | RoHS |
Design | |
| On/off switch | Yes |
| Color | Black |
| Fan diameter | 13.5 cm |
| Cooling type | Active |
| Number of fans | 1 |
Power | |
| Security features | Undervoltage, short circuit, overvoltage, overheating, overcharging, overpower, undervoltage |
| Total power (-12V) | 9.6W |
| Efficiency | 92% |
| Max. output current (+5Vsb) | 3 A |
| Total power (+3.3V) | 130W |
| Max output current (+12V) | 99 A |
| Total power (+5Vsb) | 15W |
| Max output current (+5V) | 25 A |
| Total power | 1200W |
| Total power (+12V) | 1188 W |
| Input voltage | 100 - 240V |
| Total power (+5V) | 130W |
| Max output current (+3.3V) | 25 A |
| Max. output current (-12V) | 0.8A |
Weight and dimensions | |
| Depth | 150mm |
| Weight | 2.66 kg |
| Height | 86 mm |
| Width | 150mm |
Operation | |
| PSU form factor | ATX |
| ATX version | 3.0 |
| Purpose | For computer |
Packaging details | |
| Package depth | 200mm |
| Package weight | 3.35 kg |
| Package width | 310mm |
| Packaging type | Box |
| Package height | 108 mm |
Package contents | |
| Cables included | AC, CPU, PCIe, peripherals (Molex), SATA |
| Cable tie straps included | Yes |

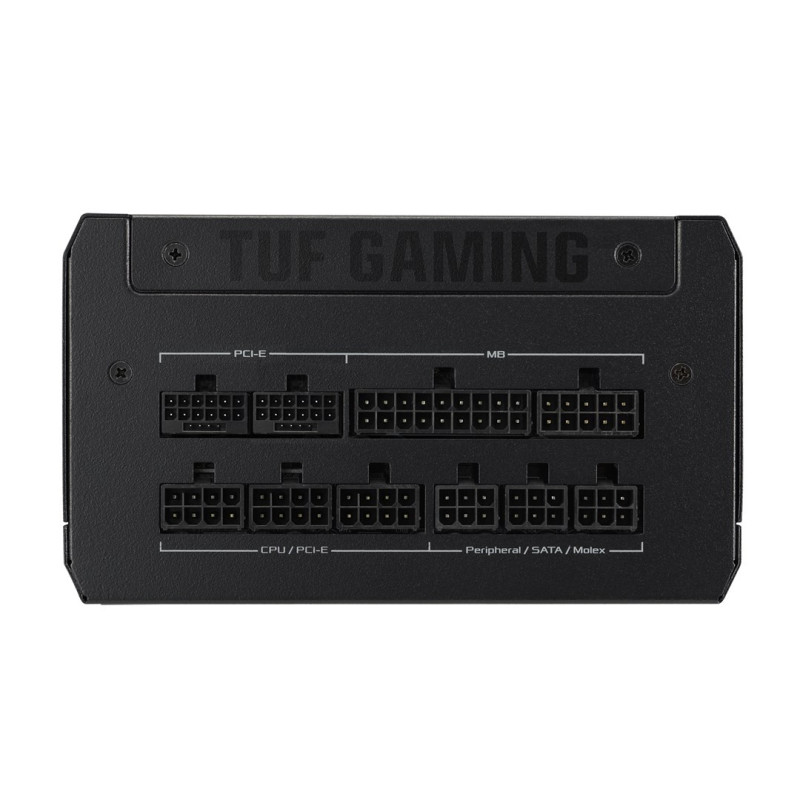

Connectors and interfaces | |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| SATA power cable length | 400mm, 120mm |
| Cable type | Fully modular |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| CPU power cable length | 65 cm |
| ATX power connector (20+4 pin) | Yes |
| PCI Express power cable length | 67.5 cm |
| CPU power connector (4+4 pin) | Yes |
| Number of SATA power connectors | 5 |
| PCI Express power connectors (16-pin) | 2 |
| PCI Express power connectors (8-pin) | 3 |
| Length of peripheral (Molex) power cables | 150mm, 400mm |
