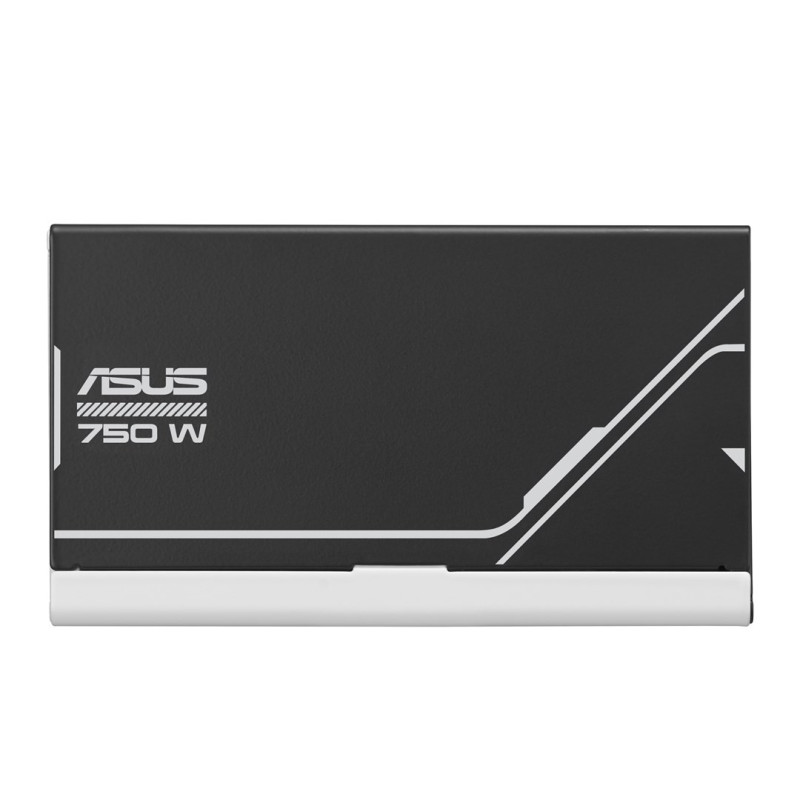

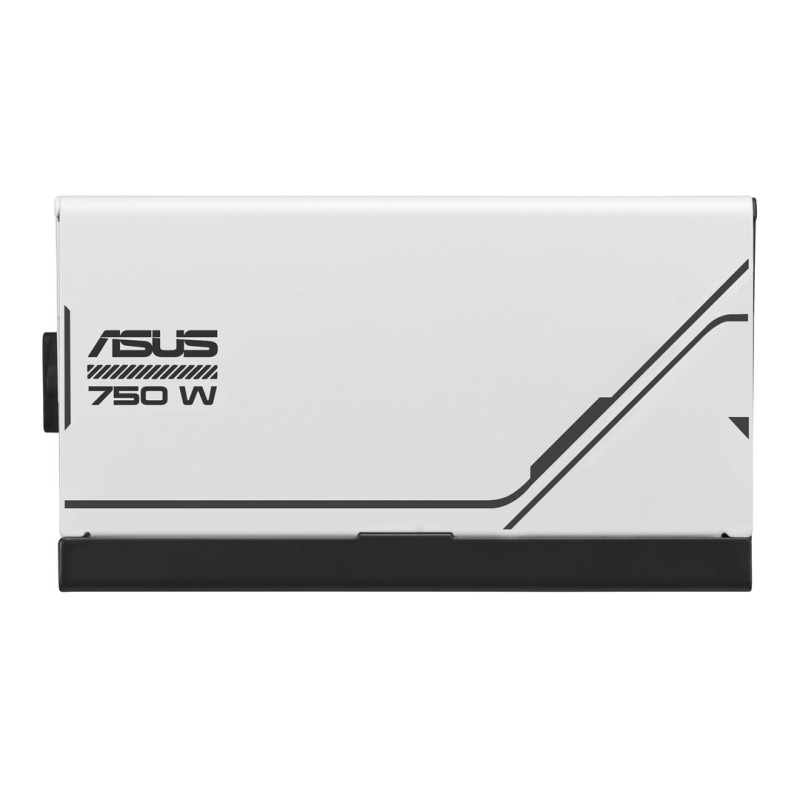

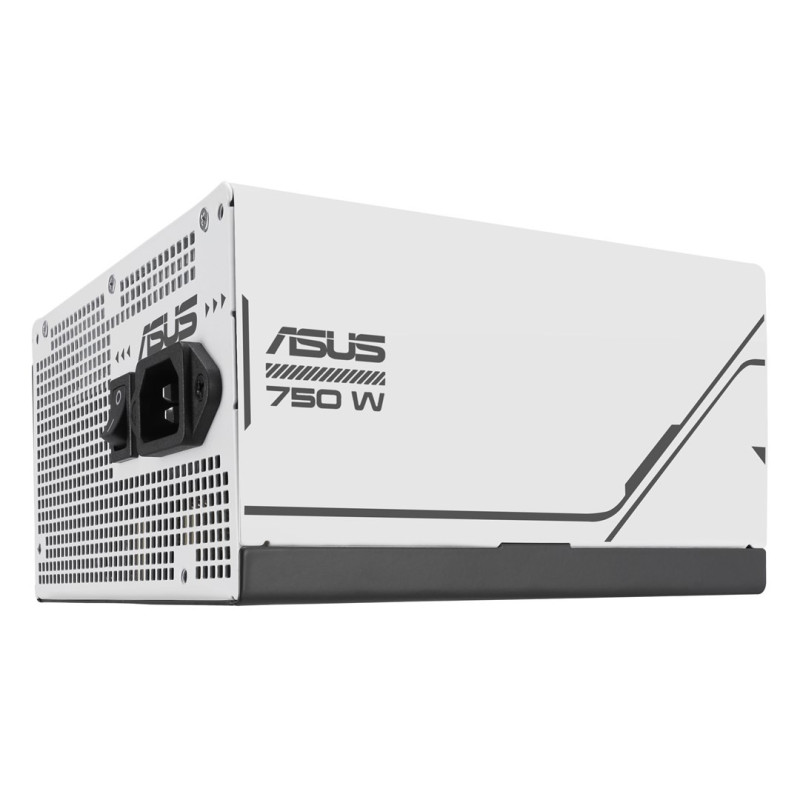

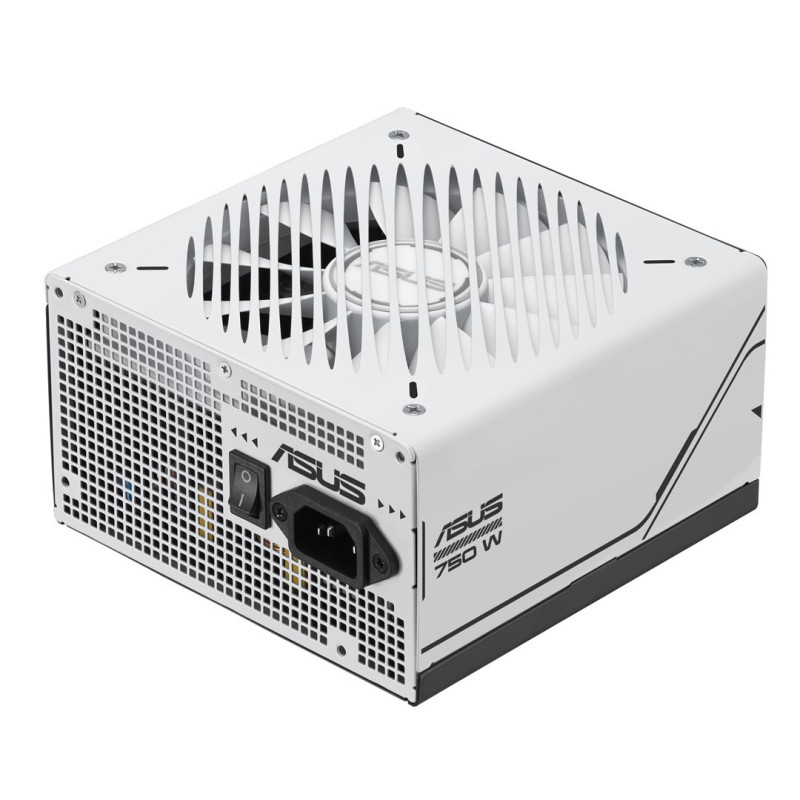

Power Supply - ASUS Prime AP-750G 750 W 80 PLUS Gold Fully-Modular ATX Black, White
Product reference:
14-4711387192962
The ASUS Prime AP-750G power supply delivers 750W of power with 80 PLUS Gold certification and active PFC. It features a fully modular design, a variety of connectors including 20+4 pin ATX, and a comprehensive power protection system.
Power Supply - ASUS Prime AP-750G 750 W 80 PLUS Gold Fully-Modular ATX Black, White
Product reference:
14-4711387192962
The ASUS Prime AP-750G power supply delivers 750W of power with 80 PLUS Gold certification and active PFC. It features a fully modular design, a variety of connectors including 20+4 pin ATX, and a comprehensive power protection system.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
ASUS Prime AP-750G Power Supply 750 W 20+4 Pin ATX Black, White
The ASUS Prime AP-750G power supply offers a total power output of 750W with 80 PLUS Gold certification and active PFC. It features a fully modular design, multiple connectors including 20+4 pin ATX, and comprehensive power flow protection features.
- High efficiency class with 80 PLUS Gold certification and 92% efficiency rating.
- Strong 750W power with a comprehensive protection system including overcharge and short circuit protection.
- Fully modular cabling system for easy installation and improved airflow.
- Stylish design, available in black and white, suitable for any computer build.
Design | |
|---|---|
| On/off button | Yes |
| Product color | Black, White |
| Cooling type | Active |
Power | |
| AC input voltage | 100 - 240V |
| Power protection functions | Overcharge, Undervoltage, Overpower, Short circuit, Overvoltage, Overheating |
| Maximum output current (+5V) | 20 A |
| Connected power (+3.3V) | 110W |
| Power Factor Correction (PFC) Type | Active |
| Total power | 750W |
| Efficiency | 92% |
| Connected power (+5Vsb) | 12.5W |
| Maximum output current (+12V) | 62 A |
| Maximum output current (+5Vsb) | 2.5 A |
| Connected power (+5V) | 110W |
| Maximum output current (+3.3V) | 20 A |
| Connected power (-12V) | 3.6W |
| Connected power (+12V) | 744 W |
| Maximum output current (-12V) | 0.3A |
Weight and Dimensions | |
| Depth | 150mm |
| Weight | 1.47 kg |
| Width | 150mm |
| Height | 86 mm |
Operation | |
| Mean Time Between Failures (MTBF) | 120000 hours |
| 80 PLUS certificate | 80 PLUS Gold |
| Purpose | PC |
| ATX version | 3.0 |
| Bearing technology | Ball bearings |
| Power supply unit (PSU) form factor | ATX |
Ports and Interfaces | |
| SATA power cable length | 120, 400mm |
| Cable type | Fully modular |
| Peripheral (Molex) power cable length | 150, 400mm |
| Motherboard power cable length | 61 cm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| CPU P4 connector (4-pin) | 2 |
| Number of SATA power connectors | 5 |
| CPU power cable length | 65 cm |
| ATX power connector (20+4 pin) | Yes |
| PCI Express power connectors (8-pin) | 3 |
| Motherboard power connector | 20+4 pin ATX |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (16-pin) | 1 |
