Power Supply - Akyga AK-B1-550 550 W 20+4 Pin ATX Gray
Product reference:
14-5901720130341
The Akyga AK-B1-550 power supply with 550 W power and 70% efficiency ensures reliable operation, modular design, and effective cooling with a 12 cm fan.
Power Supply - Akyga AK-B1-550 550 W 20+4 Pin ATX Gray
Product reference:
14-5901720130341
The Akyga AK-B1-550 power supply with 550 W power and 70% efficiency ensures reliable operation, modular design, and effective cooling with a 12 cm fan.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Akyga AK-B1-550 550W 20+4-pin ATX Gray

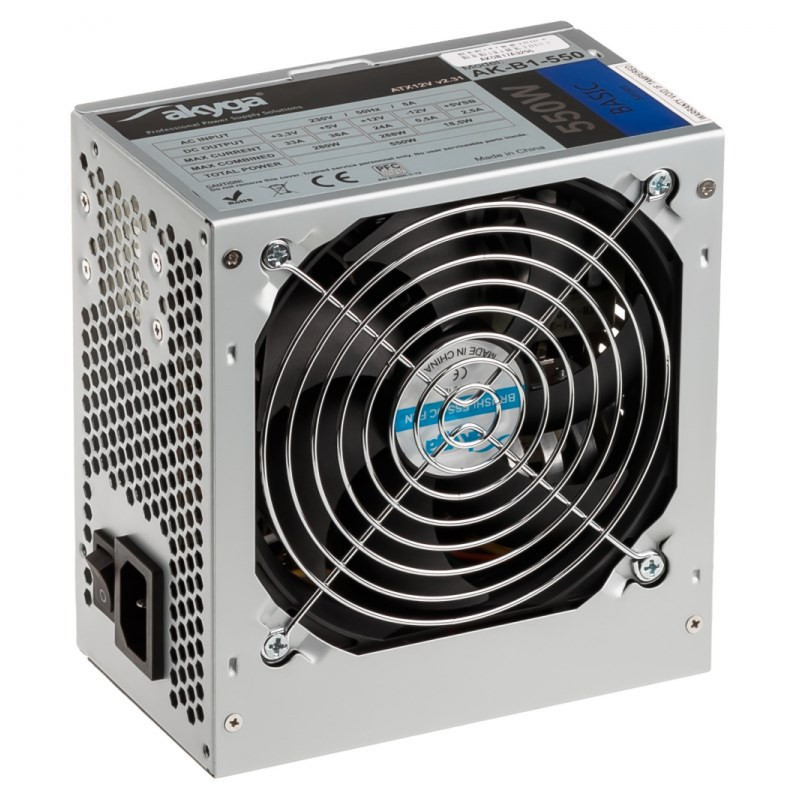

The Akyga AK-B1-550 power supply unit is a high-quality PSU for PC systems, with a total power of 550 W and an ATX format. The gray unit has active cooling with one 12 cm fan on top.
Main features
- High efficiency: 70%
- Active cooling
- Multiple protection functions: short circuit, overvoltage, overheating, overpower, overcurrent
- Modular design for easy cable management

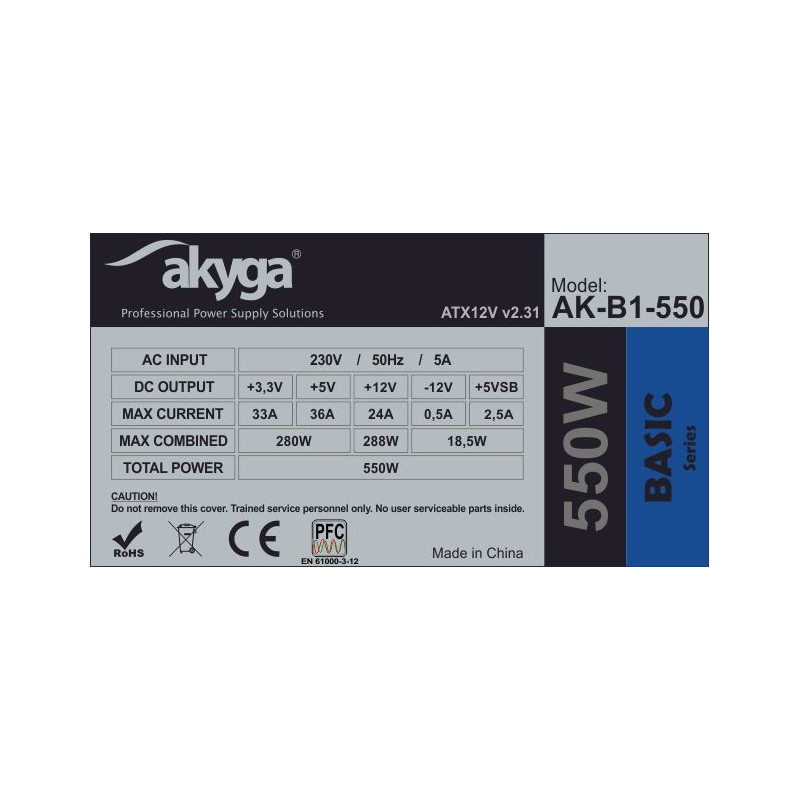

Total power: 550 W, AC input voltage: 230 V, input current: 5 A. Connected power (+3.3V): 280 W, maximum output current (+3.3V): 33 A. Peak power: 550 W, operating temperature: 5 - 50 °C, weight: 1.04 kg. Dimensions: 150 mm x 140 mm x 85 mm.
Technical data | |
|---|---|
| Sustainable development certificates | RoHS |
Design | |
| Product color | Gray |
| Cooling type | Active |
| Number of fans | 1 fan |
| Fan diameter | 12 cm |
| Fan location | Above |
| On/off switch | Yes |
Power | |
| AC input voltage | 230V |
| Input current | 5 A |
| Power protection functions | Short circuit, overvoltage, overheating, overpower, overcurrent |
| Efficiency | 70% |
| Total power | 550W |
| Maximum output current (+3.3V) | 33 A |
| Peak power | 550W |
Operating conditions | |
| Working temperature | 5 - 50 °C |
Weight and dimensions | |
| Weight | 1.04 kg |
| Depth | 140mm |
| Width | 150mm |
| Height | 85 mm |
Operation | |
| ATX version | 2.31 |
| Purpose | PC |
| Mean Time Between Failures (MTBF) | 100000 hours |
Packaging details | |
| Package weight | 1.12 kg |
| Packaging type | Box |
| Package depth | 220mm |
| Package width | 160mm |
| Manager | Yes |
| Package height | 95 mm |

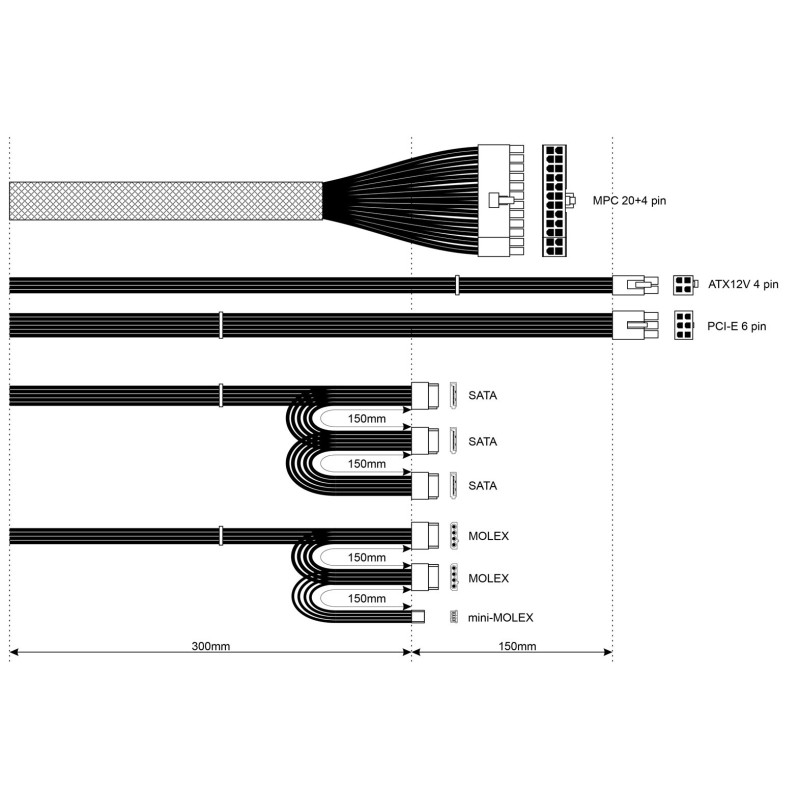

Ports and interfaces | |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Number of SATA power switches | 3 |
| Motherboard power switch | 20+4 pin ATX |
| Processor power cable length | 45 cm |
| SATA power cable length | 300mm |
Other features | |
| Warranty card | Yes |
