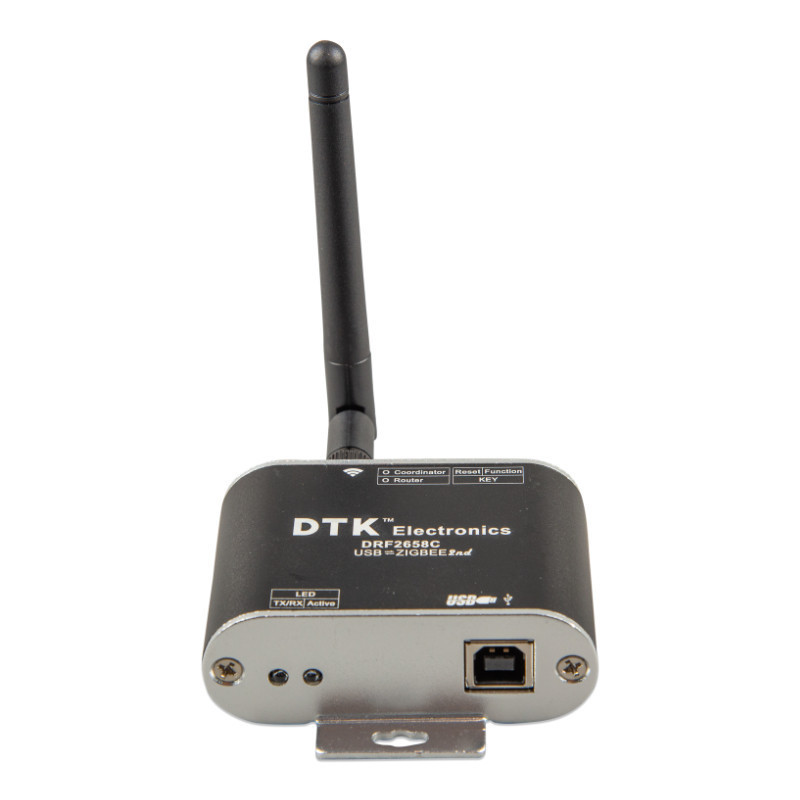

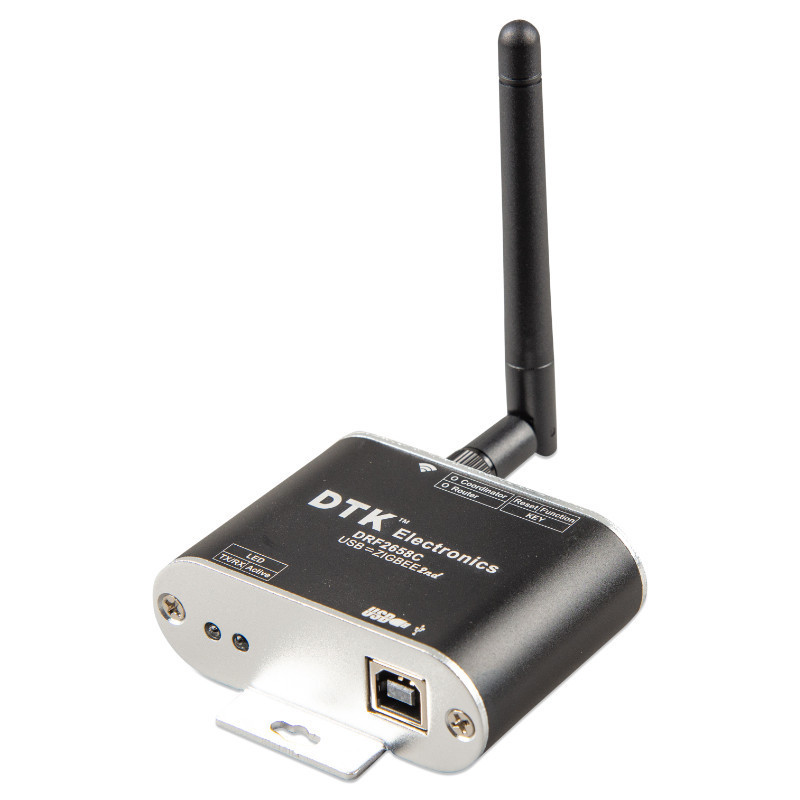

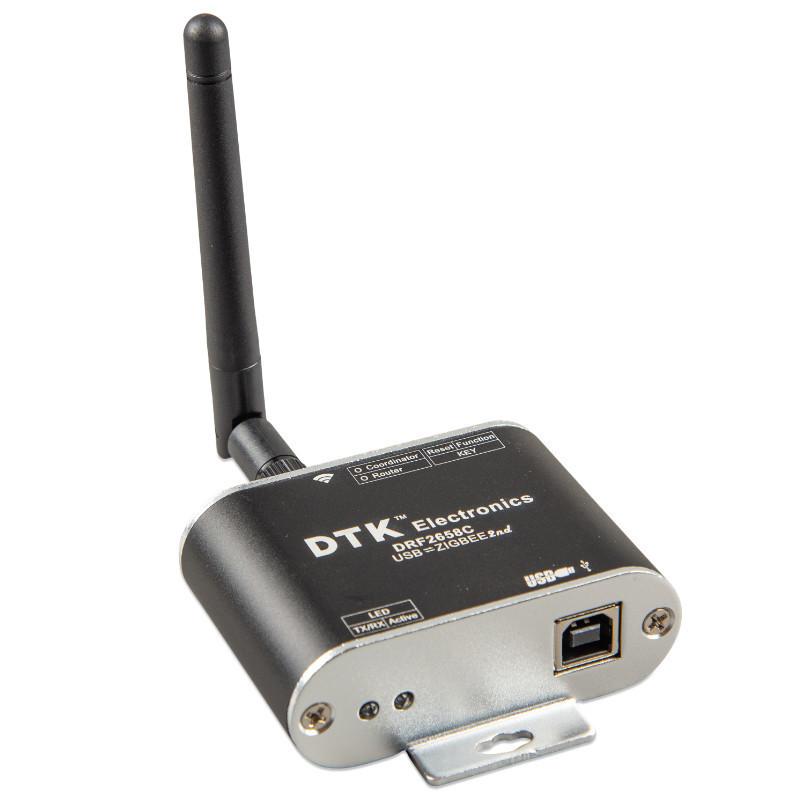

Zigbee to USB converter

brands Victron Energy This innovative and versatile device facilitates wireless communication between various energy system components. Thanks to its simple installation, even those without advanced technical knowledge can successfully configure the device in a short time. The converter works with many Zigbee-based devices, enabling integration with kWh meters and devices such as MultiPlus and Quattro. Compatibility with single- and three-phase meters, incl ET340 and ET112 Carlo Gavazzi, making the device a flexible solution for both residential and industrial power grid configurations.
For larger-scale applications, this converter provides high performance and reliability. With support for kWh meters and energy devices, Zigbee to USB converter allows for energy monitoring and control in a wide variety of environments. Additionally, its versatility in communication protocols and ability to operate on various radio frequencies make this device an ideal solution for advanced energy management systems.
Application The Zigbee to USB converter in energy systems enables not only remote reading and energy management, but also optimizes the operation of many electricity-powered devices. The device supports data transmission at distances up to 1600 meters in open spaces, making them an ideal choice for extensive power grids. Additionally, its resistance to temperatures ranging from -40°C to +80°C ensures reliable operation in various climatic conditions, and CC2530F 256KFLASH chip guarantees the stability and security of data transmission.

Technical specifications

• Model: DRF2618A


• Power: USB Port 5V


• Temperature range: -40°C to +80°C


• UART baud rate: 38400bps (default), 9600bps, 19200bps, 57600bps, 115200bps


• Radio frequency: 2460Mhz (default), 2405MHz - 2480MHz, step: 5MHz


• Protocol: Zigbee2007


• Transmission distance: 1600 meters in open space


• Operating current:



  • Sending: 120mA (max)


  • Receiving: 45mA (max)


  • Standby: 40mA (max)






• Receiver sensitivity: -110 dBm


• Chip: CC2530F 256, 256KFLASH


• Node configuration: Coordinator, Router (default), PAN ID=0x199B, Channel=22 (2460Mhz)


• Dimensions: 70mm x 50mm x 24mm

brands Victron Energy It's an invaluable tool in energy system management. Its simple installation, versatility, and wide compatibility make it ideal for both small and large systems. It ensures reliability in a variety of environmental conditions, making it an ideal choice for professional installations.
