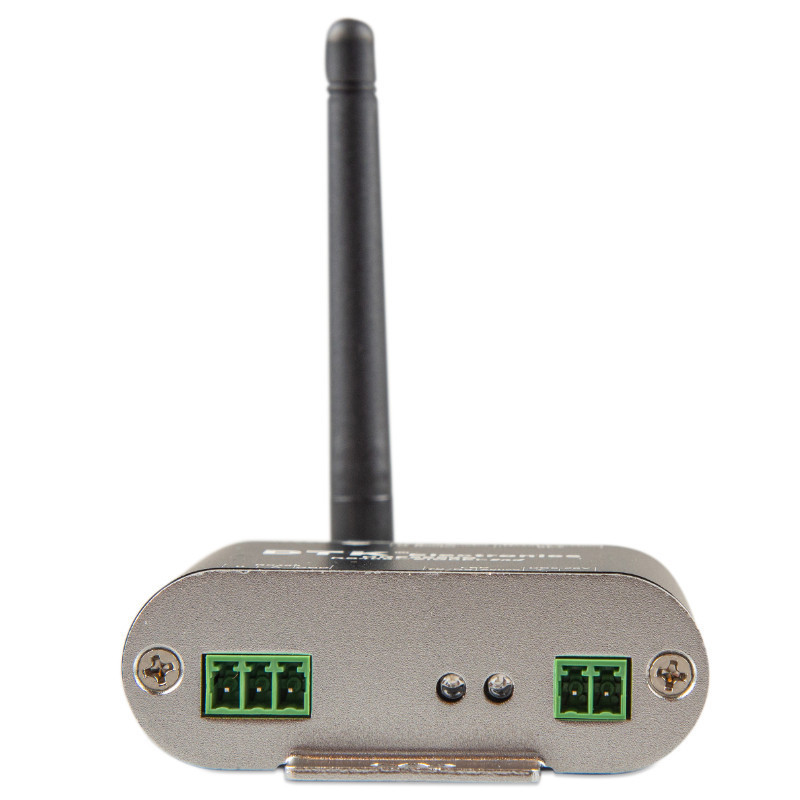

Zigbee to RS485 converter

Converter Zigbee to RS485 brands Victron Energy is an advanced tool that enables easy and wireless integration of energy meters with systems such as MultiPlus and Quattro .Model DRF2619A It boasts intuitive installation, making it ideal for those without advanced technical knowledge. Its compatibility with numerous Zigbee devices makes it an excellent choice for monitoring energy consumption. Zigbee to RS485 converter supports various network configurations, ensuring smooth communication with single- and three-phase meters ET340 and ET112 brands Carlo Gavazzi, which makes it a versatile solution for any type of energy installation.
In addition to versatility, Zigbee to RS485 converter offers exceptional reliability even in harsh conditions. Its operating temperature range is -40°C to +80°C, making it suitable for use in the most demanding environments. Additionally, its high performance with low power consumption ensures trouble-free operation for many years. Furthermore, the device supports a wide range of transmission speeds, from 9600bps to 115200bps, which allows them to be adapted to the specific needs of the user. Zigbee2007 protocol, it provides stable wireless communication over distances up to 1600 meters in open space, which is crucial in large installations.

Technical specifications

• Model: DRF2619A


• Power: Power supply via USB 5V port


• Operating temperature range: -40°C to +80°C


• UART baud rate:



  • Default: 38400bps


  • Supported: 9600bps, 19200bps, 38400bps, 57600bps, 115200bps






• Radio frequency:



  • Default: 2460MHz


  • Range: 2405MHz - 2480MHz, step: 5MHz






• Protocol: Zigbee2007


• Transmission distance: 1600 meters (in open terrain)


• Operating current:



  • Output: 120mA (max)


  • Received: 45mA (max)


  • Standby: 40mA (max)






• Receiver sensitivity: -110 dBm


• Chip: CC2530F 256, 256KFLASH


• Node configuration: Coordinator, Router (default Router), PAN ID=0x199B, Channel=22 (2460Mhz)


• Dimensions: 70mm x 50mm x 24mm

Converter Zigbee to RS485 From Victron Energy It's a reliable and versatile solution for integrating energy systems with Zigbee devices. Its ease of installation, broad compatibility, and resistance to harsh conditions make it an ideal choice for professionals and individuals. It works well in both small and large energy installations, ensuring stability and efficiency.
