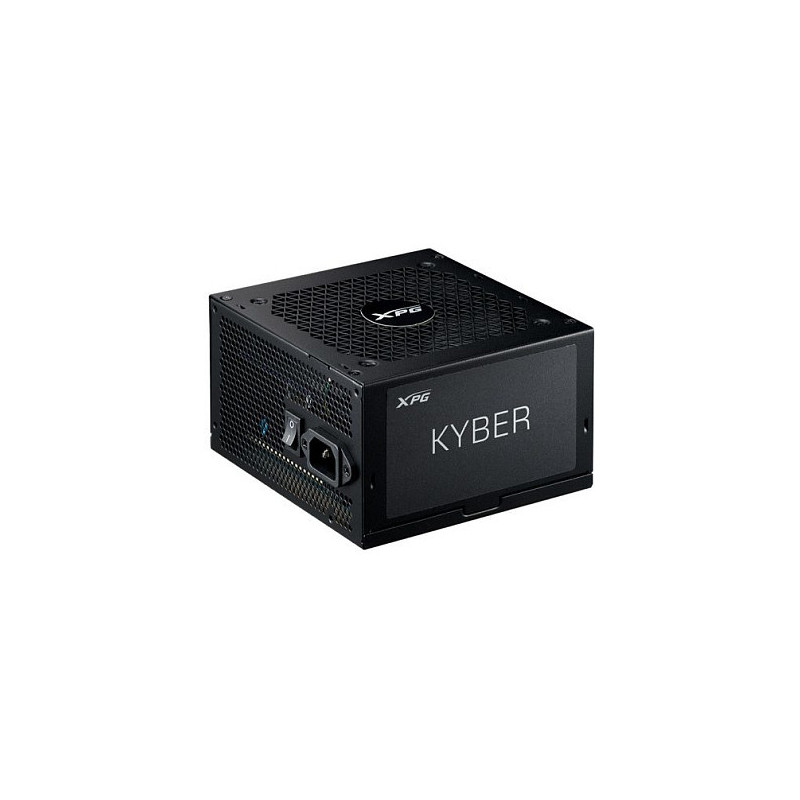

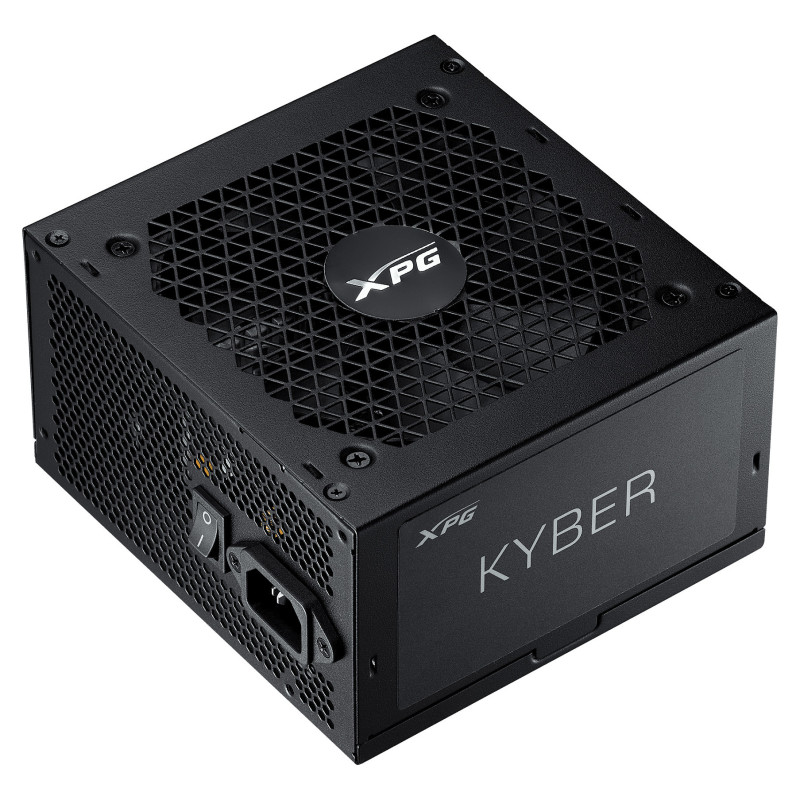

XPG KYBER 750W power supply unit

XPG KYBER 750W Power Supply. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: PCIe, SATA
KYBER
Go for gold
XPG KYBER offers GOLD efficiency and adheres to Intel ATX 3.1 design guide specifications. With a 12V-2x6 connector available in the 750 and 850 watt models, it is an ideal PSU for most users.
Next-Gen Ready - ATX 3.1 COMPATIBLE
KYBER power supply units adhere to the Intel ATX 3.1 design guide specifications and offering a 12V-2x6 connector at 750 and 850 wattage category, KYBER can support the latest graphics cards, made specifically for those who require high graphic capability and performance.
Cybenetics LAMBDA / ETA Certified
XPG KYBER SERIES is certified by Cybenetics for its efficiency and noise level, scoring at the top of its category in both ETA and LAMBDA standards.
GOLD Certified Efficiency
KYBER series power supply units 80 PLUS GOLD certified, achieving up to 91.40% (115V) efficiency at 50% load.

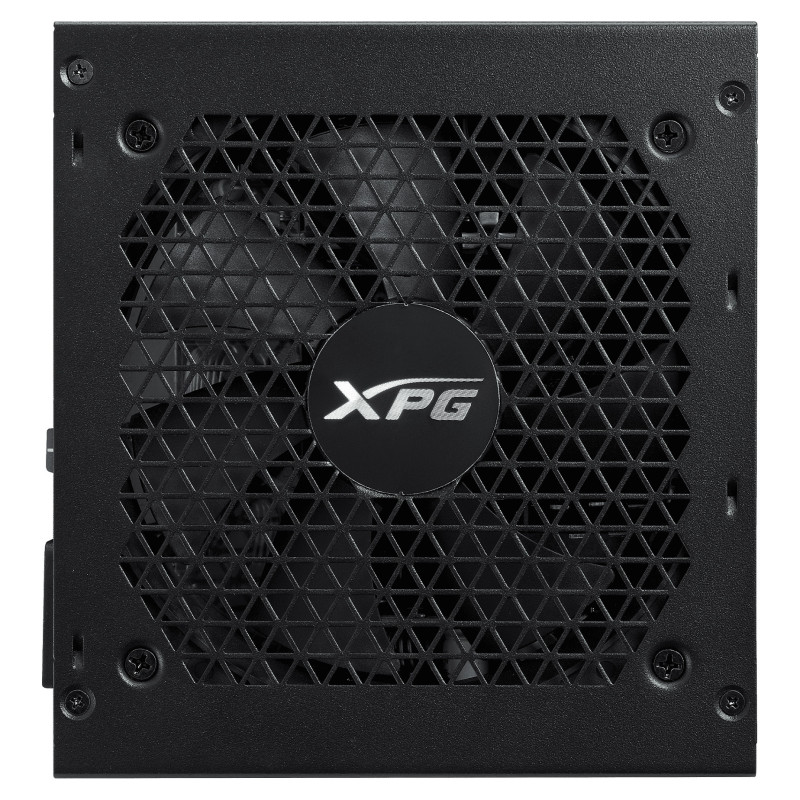

Intelligent Fan-Curve Design
The intelligent fan-curve ensures quiet operation in a majority of user scenarios. By starting the fan control at a low RPM, achieving less noise and a much longer lifespan for both the fan and the overall PSU.
PEAK PERFORMANCE AND RELIABILITY
All XPG ATX 3.0 and ATX 3.1 power supplies are designed to support up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability, and preventing crashes during intense workloads like gaming, rendering, and data processing.

Power

Total power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Input current: 10 A
Power factor: 0.99
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge inrush protection (SIP), Under voltage

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 2
EPS power connector (8-pin): Yes
PCI Express power connectors (6+2 pin): 2
PCI Express power connectors (12+4 pin): 1
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
On/off switch: Yes

Packaging content

Cables included: PCIe, SATA

Certificates

Compliance certificates: RoHS
Certification: CB/TUV/cTUVus/CE+UKCA/FCC+IC/LVD+UKCA/BSMI/RCM/BIS/EAC+ROHS/S-MARK/NOM

Weight dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 2.02 kg

Technical details

Sustainability compliance: Yes

Logistics data

Warranty period: 5 year(s)
