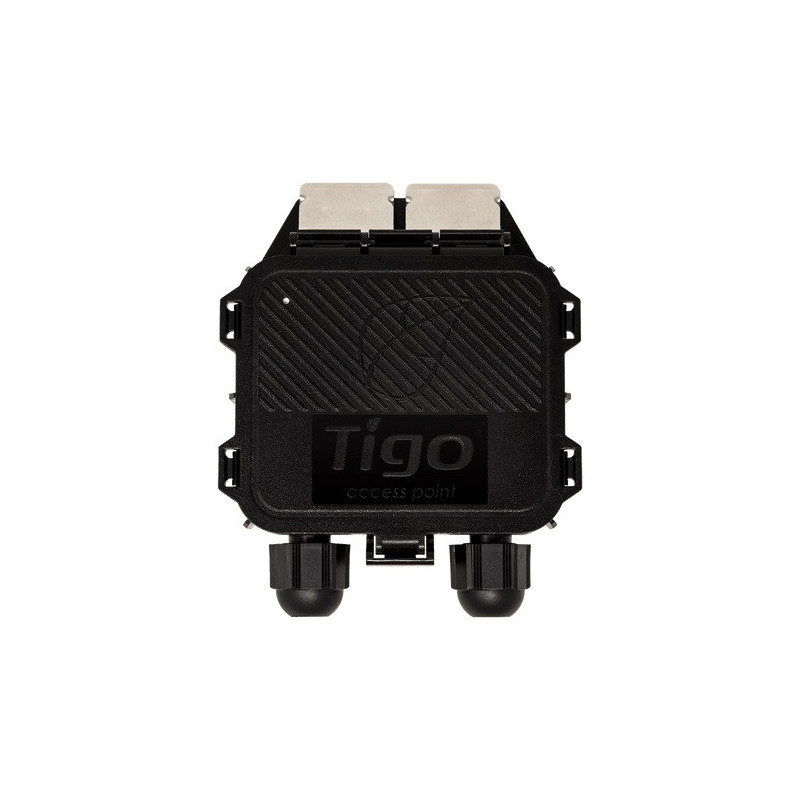

Wireless access point TIGO TAP

The Tigo TAP Access Point (Tigo Access Point) improves solar system data management by ensuring seamless communication with smart Tigo modules and additional devices. It significantly improves the level of security during module-level deactivation. Together with Tigo CCA (Cloud Connect Advanced), TAP provides unparalleled insight into your photovoltaic system.
Note: Required components: Tigo CCA (Cloud Connect Advanced) and Tigo TS4 devices (as optimizer Tigo TS4-A-O or TS4-A-S, TS4-A-M).
Features:

• Wireless direct connection to TS4 devices TS4-A-O, TS4-A-S or TS4-A-M (optimization, security and monitoring devices).


• Easy installation on the module frame without tools.


• Use the Tigo SMART app on your mobile device for quick launch.


• When connected to Tigo CCA (Cloud Connect Advanced), the module level can be monitored wirelessly.


• Can collect data from 300 TS4 devices.

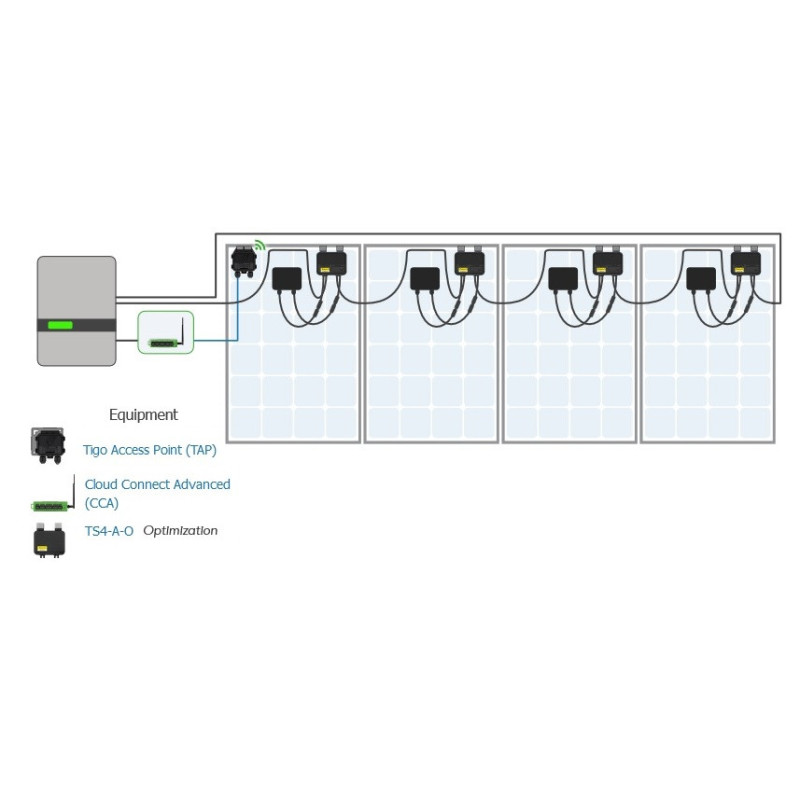

• It is recommended to install in the central part of the solar system so that the 35m radius covers the farthest module.

Technical data:

• Input voltage range: 5V-25V DC.


• Cost: 0.5W, max. 1W.


• Connection: wireless with TS4 devices, RS485 cable with CCA.


• Recommended cable type: RS485, 18-22AWG.

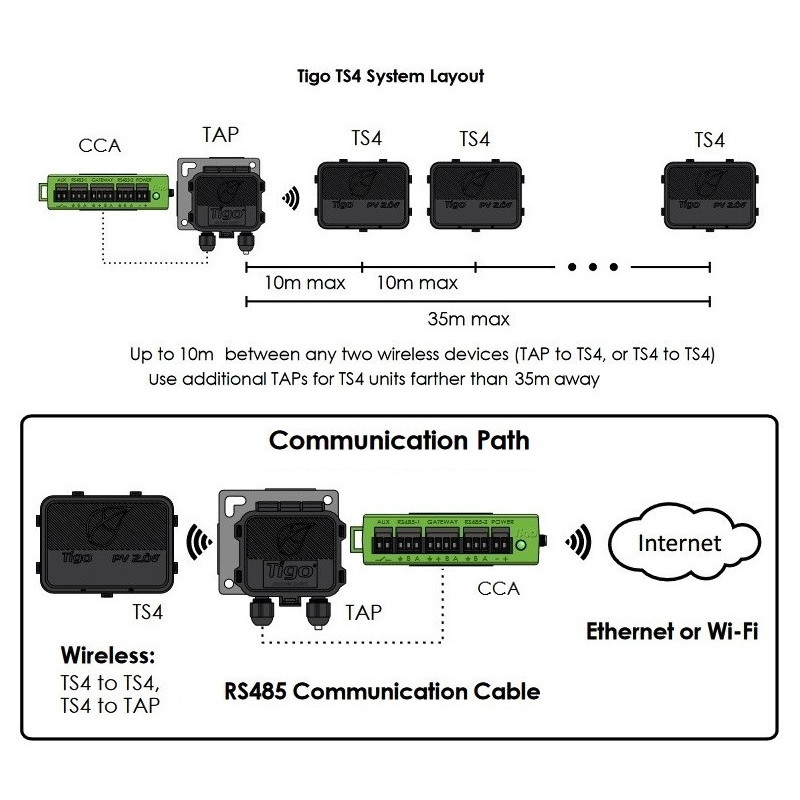

• Maximum distance between TAP and TS4 devices: 10m to the nearest, 35m to the farthest.


• Number of supported TS4 devices: 300.


• App: Tigo SMART app, Android, iOS.


• Operating temperature: -30°C~+70°C.


• Safety class: IP68, NEMA 4R.


• Weight: 227 g.

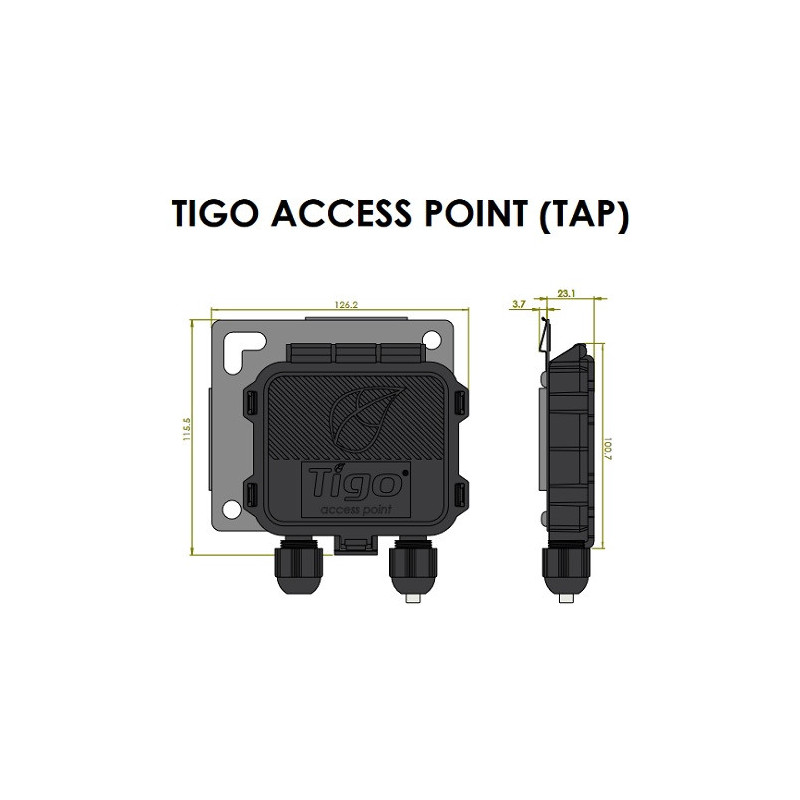

• Dimensions: 126.2x130x26.8mm.
