Wago 750-626 fieldbus module

Wago 750-626. Product colour: Grey, Mounting type: DIN 35 × 15, Fire load: 1.247 MJ. DC input voltage: 24 V, Output current: 10 A. Width: 12 mm, Depth: 100 mm, Height: 69.8 mm

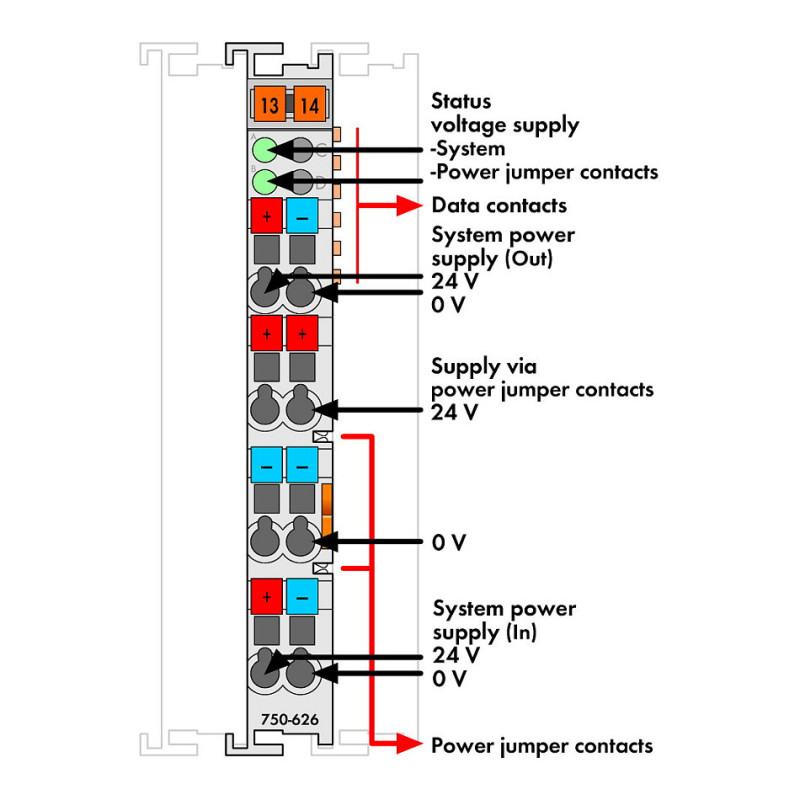

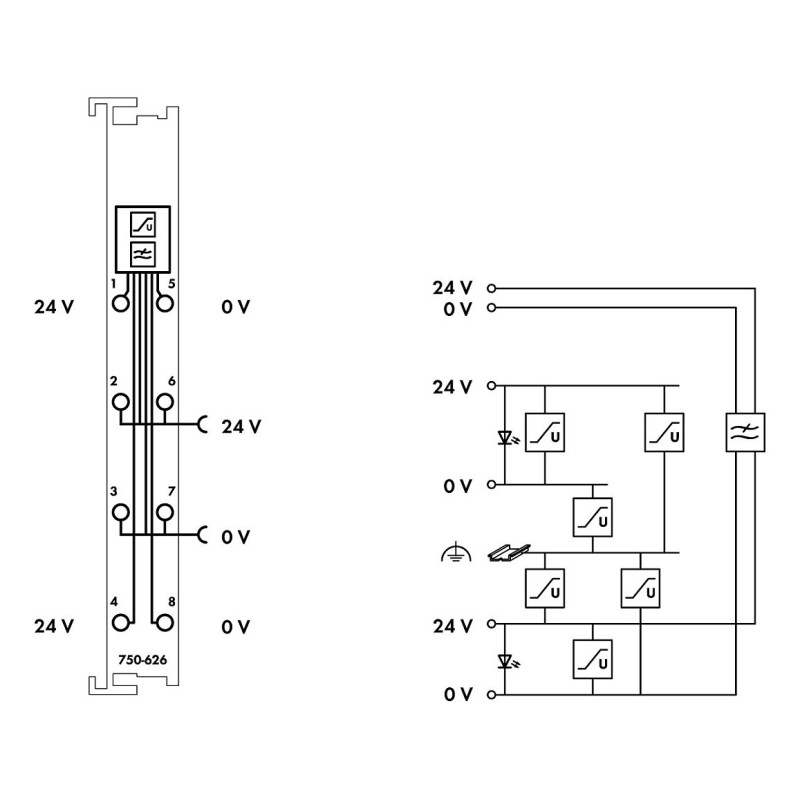

The WAGO‐I/O-SYSTEM 750 can also be used in shipbuilding applications and onshore/offshore installations (e.g., platforms, loading facilities). This is possible via certification under the standards of leading agencies such as Germanischer Lloyd and Lloyds Register. Proper system operation is ensured (certified) by using this overvoltage protection module. The module filters the 24V system power supply and is equipped with surge suppression. High-insulation versions are optimized for use in systems with insulation monitoring.

Features

Product colour: Grey
Mounting type: DIN 35 × 15
Fire load: 1.247 MJ
AWG wire size (max): 14
AWG wire size (min): 28
Conductor area (min): 0.08 mm²
Conductor area (max): 2.5 mm²
Wire clamp type: Cage clamp
International Protection (IP) code: IP20
Feature: Shock-resistant
Feature: Vibration resistant

Power

DC input voltage: 24 V
Output current: 10 A

Operational conditions

Operating temperature (T-T): -25 - 85 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 12 mm
Depth: 100 mm
Height: 69.8 mm
Weight: 50.61 g
