Wago 750-613 fieldbus module

Wago 750-613. Product colour: Grey, Mounting type: DIN 35 × 15, Fire load: 1.448 MJ. DC input voltage: 24 V, Current consumption (internal): 500 mA, Output current: 10 A. Width: 12 mm, Depth: 100 mm, Height: 69.8 mm

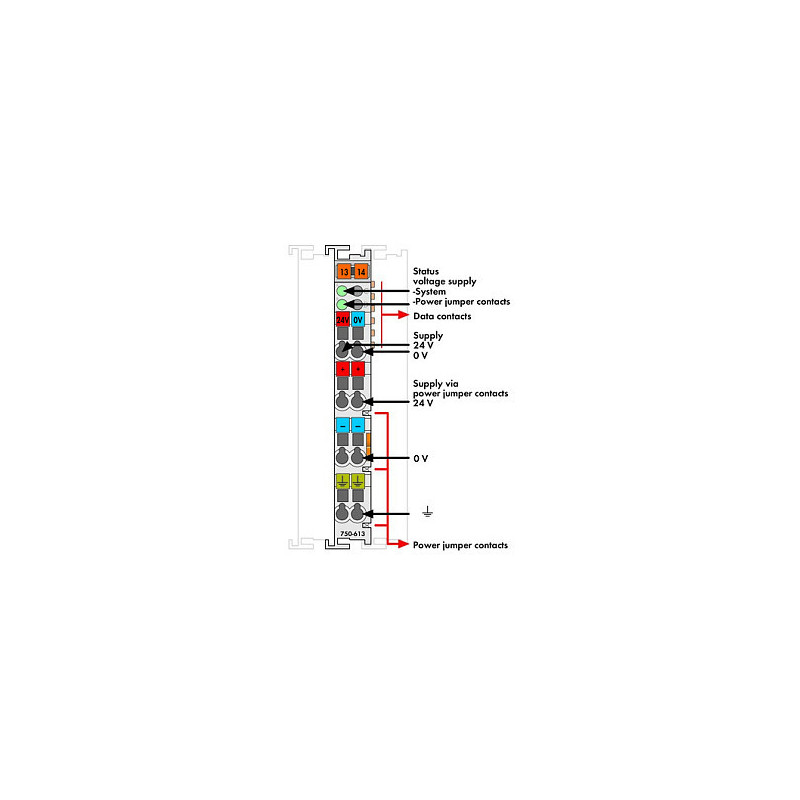

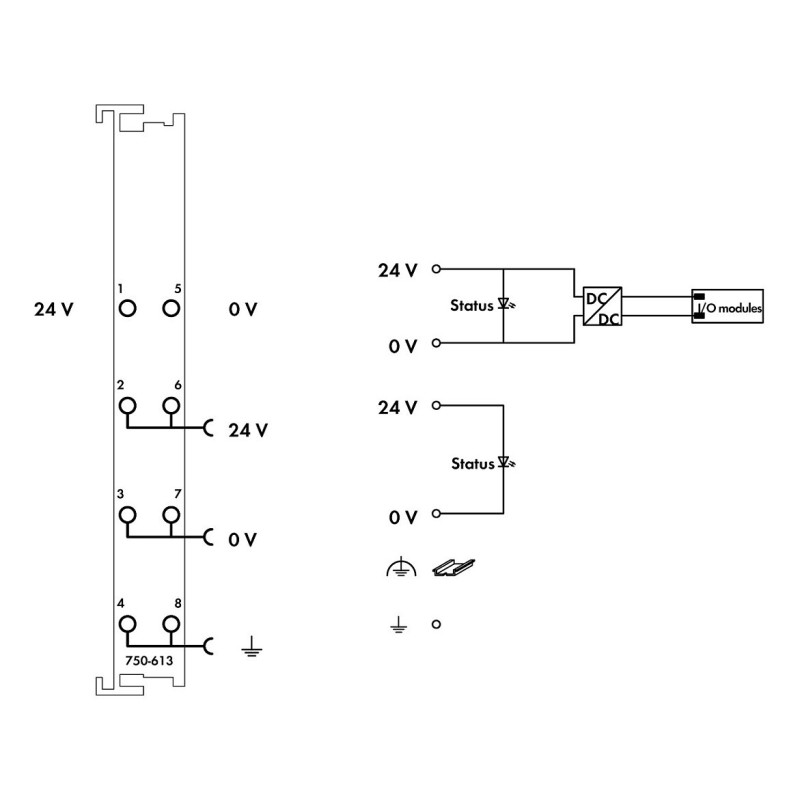

The internal system supply module increases the current supply for the internal system by 2A.

If the internal current consumption of all modules is higher than 2A, an additional supply module must be added.

The module also supplies field side power to the adjoining modules via the power jumper contacts.

Features

Product colour: Grey
Mounting type: DIN 35 × 15
Fire load: 1.448 MJ
AWG wire size (max): 14
AWG wire size (min): 28
Conductor area (min): 0.08 mm²
Conductor area (max): 2.5 mm²
Wire clamp type: Cage clamp
International Protection (IP) code: IP20
Feature: Shock-resistant
Feature: Vibration resistant

Power

DC input voltage: 24 V
Current consumption (internal): 500 mA
Output current: 10 A

Operational conditions

Operating temperature (T-T): -25 - 85 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 12 mm
Depth: 100 mm
Height: 69.8 mm
Weight: 55 g

Technical details

Compliance certificates: RoHS
