Wago 750-461 / 003-000 fieldbus module

Wago 750-461/003-000. Product type: Analog input module, Channels quantity: 2 channels, Number of inputs: 2 inputs. Power source type: DC, Current consumption: 0.5 mA, Current consumption (internal): 0.8 mA. Width: 12 mm, Depth: 100 mm, Height: 69.8 mm

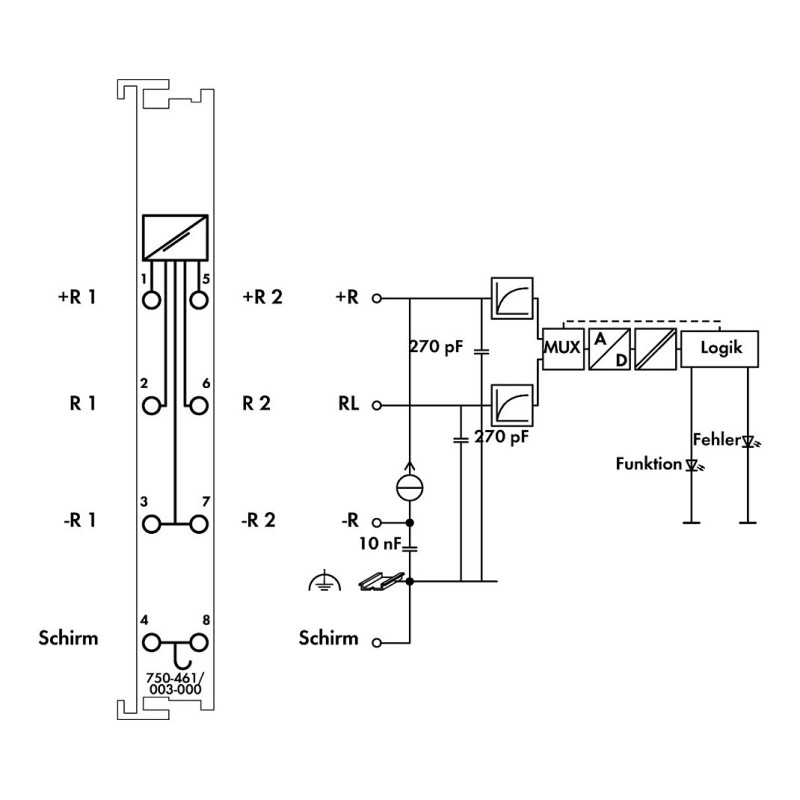

The input module directly connects to Pt and Ni resistance sensors.

The connection of 2- or 3-conductor sensors is possible.

The module automatically linearizes the entire temperature range. A sensor error is indicated by a red LED.

A green LED indicates readiness for operation and error-free communication with the buscoupler.

The shield (screen) is directly connected to the DIN rail.

Features

Channels quantity: 2 channels
Number of inputs: 2 inputs
Product colour: Grey
Mounting type: DIN 35 × 15
Strip length (max): 9 mm
Fire load: 1.253 MJ
Isolation: 0.5 kV
AWG wire size (max): 14
AWG wire size (min): 28
Conductor area (min): 0.08 mm²
Conductor area (max): 2.5 mm²
Wire clamp type: Cage clamp
International Protection (IP) code: IP20
Feature: Shock-resistant
Feature: Vibration resistant
Product type: Analog input module
Certification: CE

Power

Power source type: DC
Current consumption: 0.5 mA
Current consumption (internal): 0.8 mA

Operational conditions

Operating temperature (T-T): -60 - 250 °C
Storage temperature (T-T): -25 - 85 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 12 mm
Depth: 100 mm
Height: 69.8 mm
Weight: 65.2 g

Technical details

Compliance certificates: RoHS
