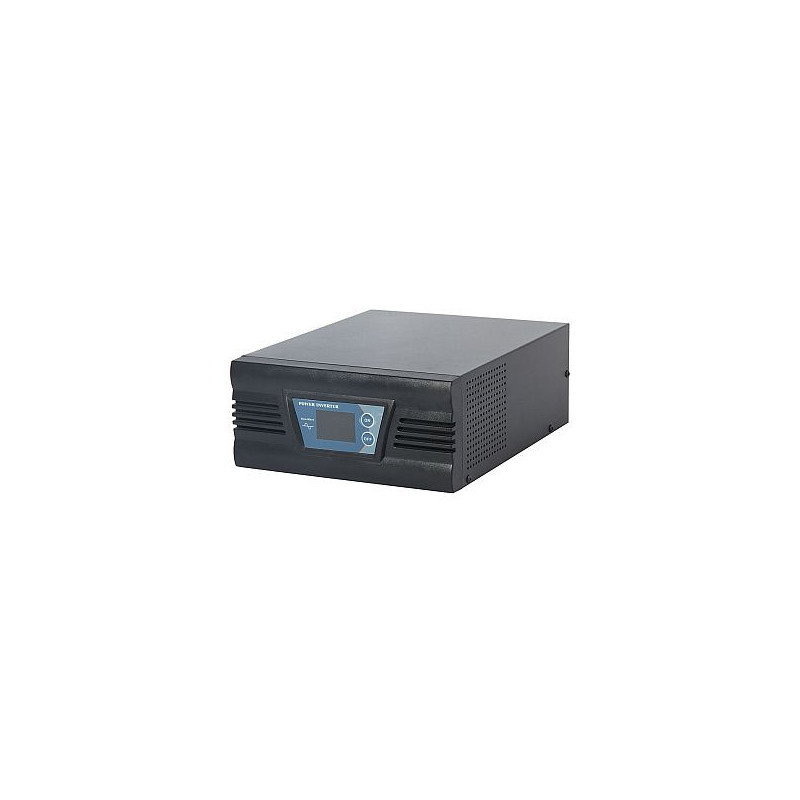

Voltage converter Household 300W, 12V

Voltage converter Household 300W, 12V

• Output power continuous - 300W


• Entrance


• Input rated voltage - 230VAC


• Input voltage range - 120V ~ 275V AC


• Low line transfer - 120 VAC ± 2%


• Line low return - 130 VAC ± 2 %


• Line high transfer - 285 VAC ± 2 %


• Line high return - 260 VAC ± 2 %


• Input frequency 50 Hz (45 Hz ~ 70 Hz)


• Exit


• Output voltage 220 VAC / 230 VAC / 240 VAC


• Waveform - pure sine wave


• Voltage regulation (batt. mode) < 3% RMS over the entire battery voltage range


• Output frequency - 50 Hz ± 0.1 Hz


• Efficiency > 85%


• Maximum load - up to short circuit


• Asymmetrical load Max. - Up to rated output power


• Overload and short circuit protection - Automatic disconnection


• Overheating protection - Acoustic warning before switching off.


• Power factor - 0.8


• Battery


• Voltage range 12 VDC (10.5-14.3 VDC)


• Max. Charging current 25 A


• Screen


• LCD display - INVERTER status, I/PO/P voltage frequency, load, battery voltage and %, temperature, mode


• LED display - normal (green), warning (yellow), fault (red)


• beep


• battery mode - beeps every 4 seconds


• low battery - beeps every second


• overload - beeps twice per second


• Total date


• AC transition time (UPS mode) 5 ms


• Operating temperature -20 °C to +55 °C


• Acoustic noise Less than 55 dBA (at 1M)


• Relative humidity 0-95% non-condensing


• Physical data


• Unit dimensions (W x D x H mm) - 320*130*190


• Unit weight 9kg


• Inner box size (mm) 420* 230*300
