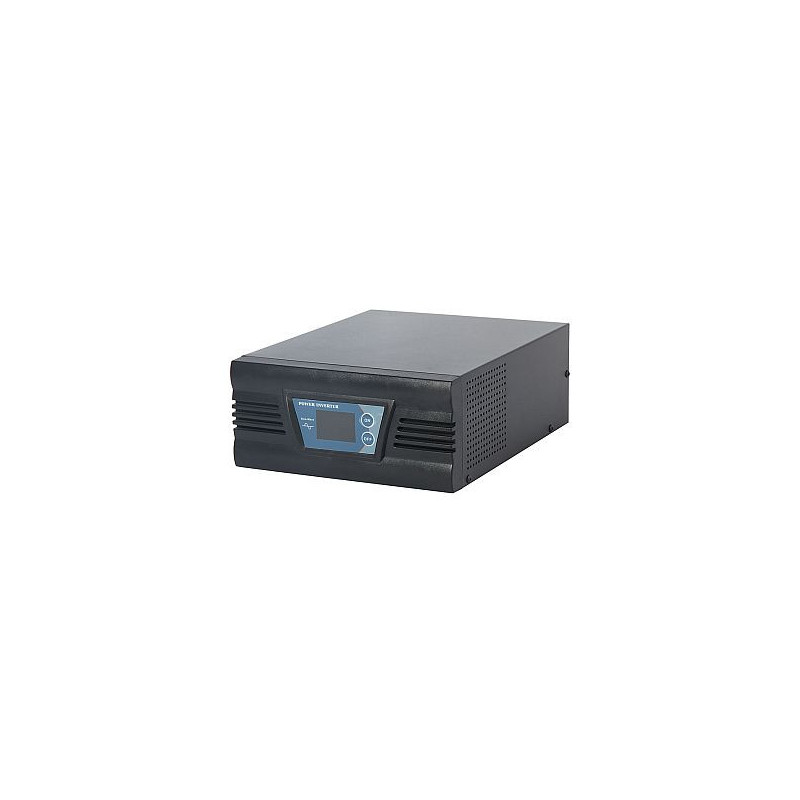

Voltage converter Household 1000W, 12V

Voltage converter Household 1000W, 12V

• Output Power Continuous - 1'000W


• Input


• Input Nominal Voltage - 230Vac


• Input Voltage Range - 120V~275Vac


• Line Low Transfer - 120Vac ± 2%


• Line Low Return - 130Vac ± 2%


• Line High Transfer - 285Vac ± 2%


• Line High Return - 260Vac ± 2%


• Input Frequency 50Hz (45Hz~70Hz)


• Output


• Output Voltage 220Vac / 230Vac / 240Vac


• Waveform - Pure Sine Wave


• Voltage Regulation (Batt. Mode) < 3% RMS for entire battery voltage range


• Output Frequency - 50Hz ± 0.1Hz


• Efficiency > 85%


• Maximum Load - Up to short circuit


• Asymmetric Load Max. - Up to nominal output power


• Overload and Short Circuit Protection - Automatic disconnection


• Overheating Temperature Protection - Acoustic warning before shut-off.


• Power Factor - 0.8


• Battery


• Voltage Range 12VDC (10.5~14.3VDC)


• Max. Charging Current 25A


• Display


• LCD Display - INVERTER status, I/PO/P Voltage Frequency, Load%, Battery Voltage %, Temperature, Mode


• LED Display - Normal (Green), Warning (Yellow), Fault (Red)


• Audible Alarm


• Battery Mode - Beeping every 4 seconds


• Low Battery - Beeping every second


• Overload - Beeping twice per second


• General date


• AC By Pass Time (UPS Mode) 5ms


• Operation Temperature -20 °C to +55 °C


• Audible Noise Less than 55dBA (at 1M)


• Relative Humidity 0-95% non-condensing


• Physical data


• Unit Dimensions (L x W x H mm) - 320*130*190


• Unit Weight 13kg


• Inner box size(mm) 420*230*300
