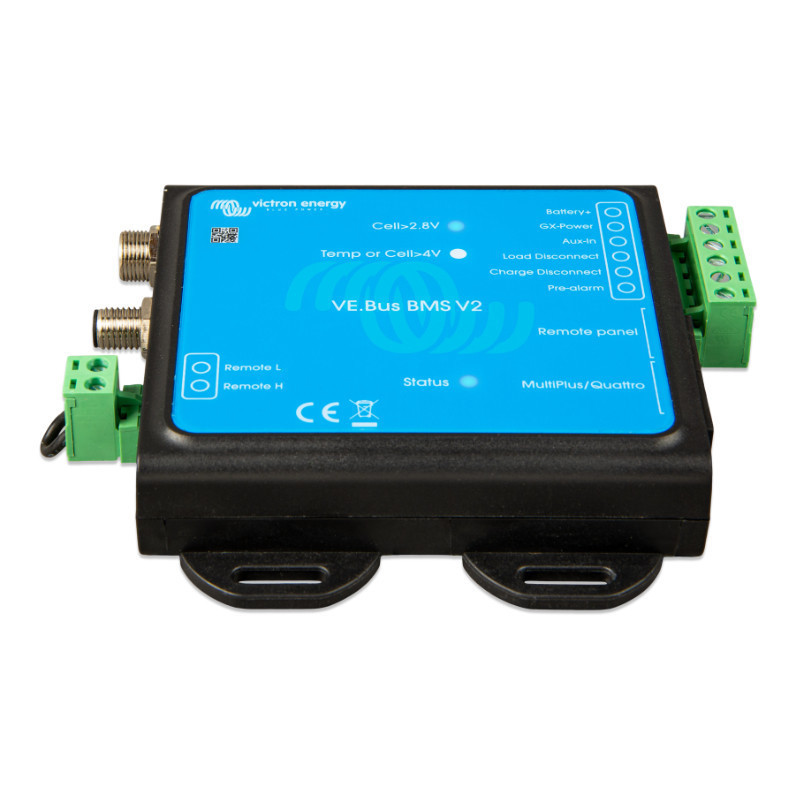

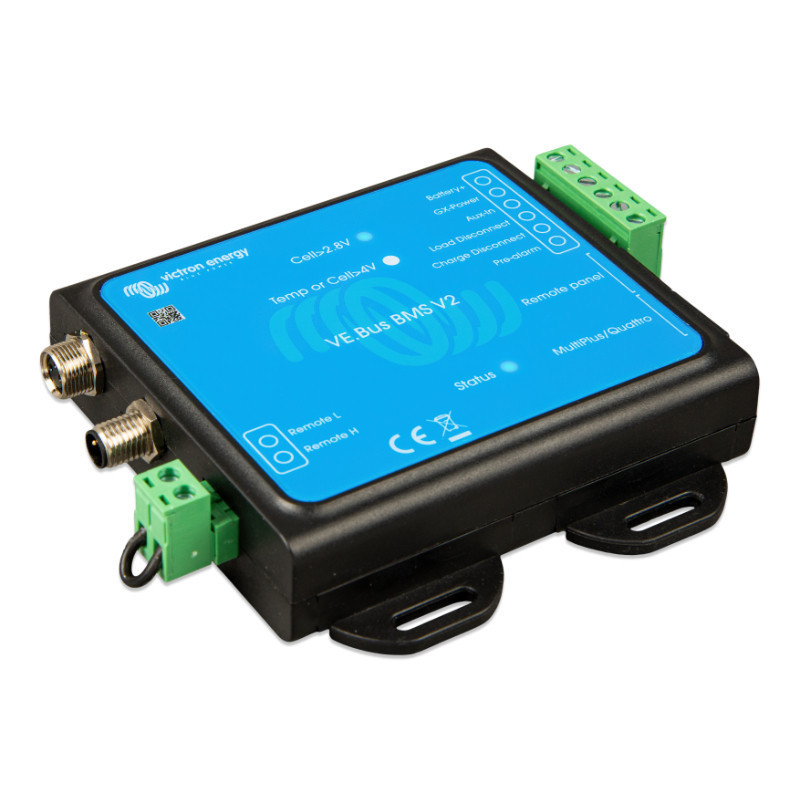

VE.Bus BMS V2

is an advanced battery management system designed specifically for Victron Energy Smart lithium battery systems. Designed to work with inverters and chargers. Victron, VE.Bus BMS V2 provides comprehensive protection for LiFePO4 lithium batteries (12.8V or 25.6V) by monitoring key parameters such as voltage and temperature. Thanks to this technology, batteries are protected against dangerous overvoltages, too low voltage and extreme temperature conditions..
The system's primary function is to continuously monitor the condition of the battery cells. When a low voltage is detected in any of the cells, the VE.Bus BMS V2 generates a pre-alarm signal, allowing the user to react before more serious damage occurs. Furthermore, in case of critical voltage values, the system automatically stops the operation of inverters and disconnects other energy consumers, minimizing the risk of further damage. Battery protection is a key element, as improper use can significantly shorten their lifespan.
Another advantage VE.Bus BMS V2 it is possible to automatically turn off chargers and inverters in the event of overvoltage in the cell or exceeding the permissible temperature values. Thanks to the advanced monitoring system, the system responds to adverse changes in battery performance at any time, protecting them from overheating, which significantly impacts their longevity. In systems without the GX device, the original VE.Bus BMS still functions, but the V2 version introduces a number of modern improvements that increase management safety and efficiency.

New Features of VE.Bus BMS V2 - Greater Control and Integration Capabilities

In the latest version, VE.Bus BMS V2 offers additional features that further enhance the capabilities of this system. One of them is remote on/off connector, which enables integration with other devices, such as VE.Direct and VE.Can, as well as their remote control via GX devices. This allows users to remotely manage their inverters and chargers, significantly simplifying the operation of the entire system. It's also worth noting the ability to control VE.Bus inverters and chargers from a variety of devices, such as the Digital Multi Control, the VE.Bus Smart dongle, or other compatible solutions.
Additional power terminals in the VE.Bus BMS V2 allow for powering GX devices even when the entire system has been shut down. This is a particularly useful feature in emergency situations. when the main power supply is unavailable and communication with a management device is necessary. Thanks to these solutions, VE.Bus BMS V2 offers maximum flexibility and security in energy system management.

Technical specifications

Parameters / Model VE.Bus BMS V2:

• Operating voltage [V]: 9-70 Vdc


• GX Output Power: 1A


• Current consumption in normal mode: 2 mA


• Output load load: normally high



  • Current limit: 1A


  • Low level at the time of alarm






• Charge output - charging: normally high



  • Current limit: 1A


  • Low level at the time of alarm






• Pre-alarm output: normally free-floating



  • High level at the time of alarm

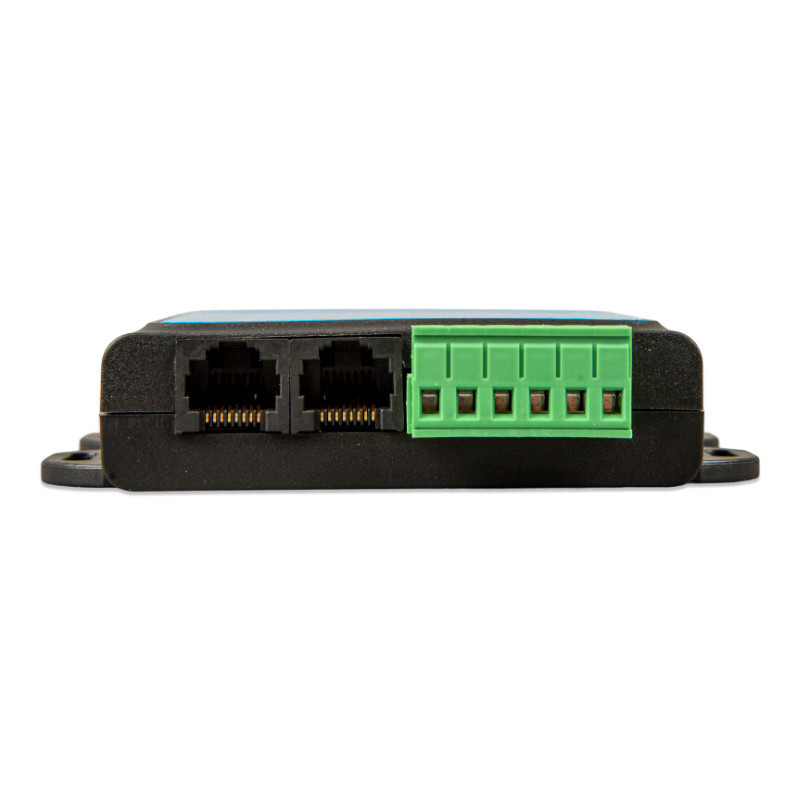

• Ve.Bus communication: 2x RJ45


• Remote output: closed - on



  • When L connected to the negative of the battery: turned on


  • When H connected to the positive battery: turned on


  • In any other case: disabled





Dimensions and Weight:

• Dimensions: 24mm x 95mm x 106mm


• Libra: 0.120 kg


• Material: ABS, matte black

Safety and Security:

• Protection class: IP20


• Humidity: max 95%


• Operating temperature: -20°C to +50°C

is an extremely advanced battery management system designed for the longevity and maximum safety of LiFePO4 lithium batteries. With remote control features and support for multiple devices, it is the ideal solution for power systems requiring the highest efficiency and reliability. Thanks to new features such as emergency power connectors, the system guarantees continuous operation, even in crisis situations If you care about complete battery protection and the reliability of the entire system, the VE.Bus BMS V2 is an excellent choice.
