UPS, TECNOWARE, 560 Watts, 800 VA, Wave form type Modified sinewave, LineInteractive, Phase 1 phase, FGCERAPL802SCH
Product reference:
2-8026475175755
UPS, TECNOWARE, 560 Watts, 800 VA, Wave form type Modified sinewave, LineInteractive, Phase 1 phase, FGCERAPL802SCH
Product reference:
2-8026475175755
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
3 - 5
business days

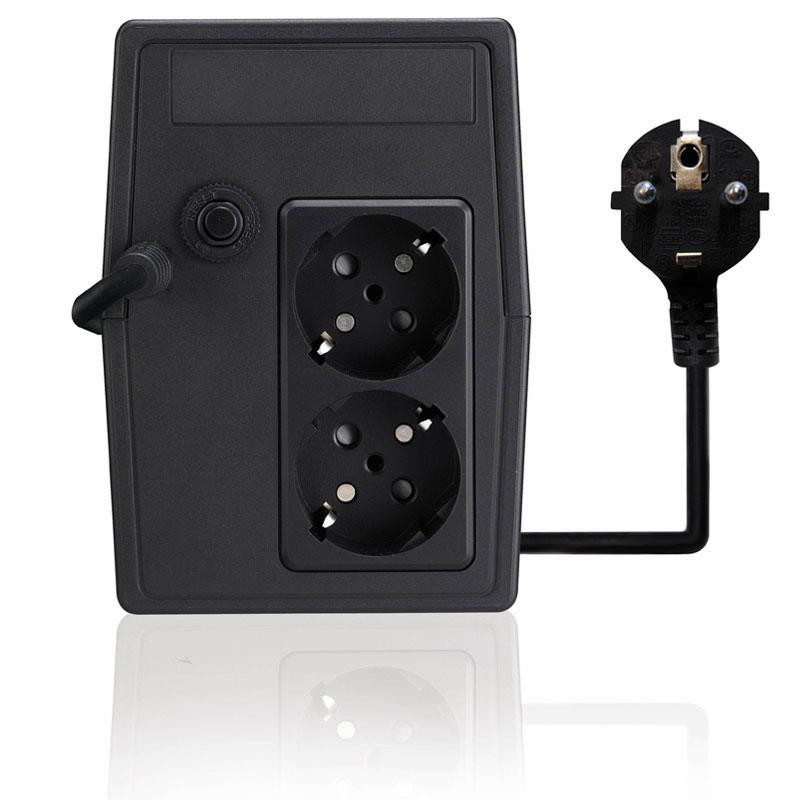

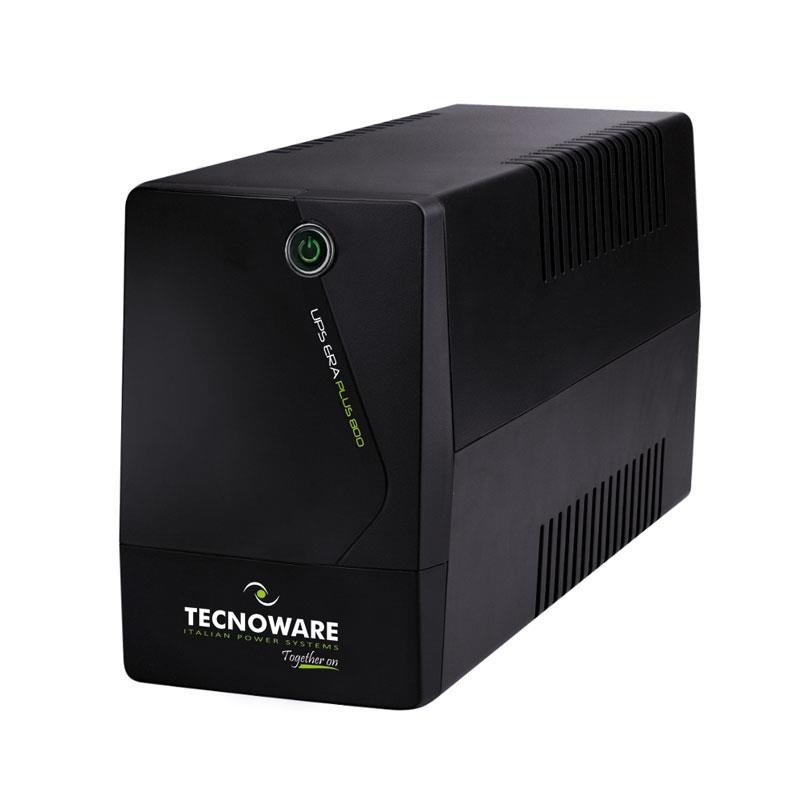

UPS ERA PLUS 800VA, 12V 7Ah battery, It has 1 SCHUKO input fixed cable and 2 SCHUKO outputs protected against blackout, overvoltages and undervoltages. Line Interactive Plus technology. Dimensions 10x14x28 cm, weight 3.0 kg. Equipped with On-Off button with integrated multifunction LED with audible alarm for signaling the operating status. Designed to protect PC Office, DVR for video surveillance, ADSL-Fiber Modem / router, Cash Register. Totally silent.
- Complete protection against blackout and power surges (overvoltages and undervoltages)
- Recommended for Personal Computers, DVR / NVR and video surveillance systems, ADSL / fiber modem, switch / router, cash registers
- Not suitable with power supplies with Active PFC circuit (Server, PC game, video game console, workstation, Mac computer), lamps and electric motors
- AVR Automatic Voltage Regulator electronic circuit
- n 2 Italy / Schuko output sockets and n 1 schuko input cable
- outputs socket protected against blackout
- outputs socket protected against overvoltages
- multifunction LED and on-off button
| AC outlet types | Type F |
| AC outlets quantity | 2 AC outlet(s) |
| Automatic Voltage Regulation (AVR) | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Certification | CE |
| Depth | 279 mm |
| Form factor | Compact |
| Height | 142 mm |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 276 V |
| Input operation voltage (min) | 172.5 V |
| International Protection (IP) code | IP20 |
| LED indicators | Yes |
| Noise level | 40 dB |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Operating altitude | 0 - 300 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | 0 - 55 °C |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 230 V |
| Output operation voltage (min) | 230 V |
| Output power | 560 W |
| Output power capacity | 0.8 kVA |
| Output voltage regulation | 5 % |
| Package depth | 340 mm |
| Package height | 220 mm |
| Package width | 180 mm |
| Power factor | 0.7 |
| Product colour | Black |
| Product Net Weight | 3.9 kg |
| Response time | 2 ms |
| Shipping Box Depth | 59 cm |
| Shipping Box Height | 24 cm |
| Shipping Box Weight | 16.1000003814697 kg |
| Shipping Box Width | 34 cm |
| Summary | Tecnoware Era Plus 800. UPS topology: Line-Interactive, Output power capacity: 0.8 kVA, Output power: 560 W. AC outlet types: Type F, AC outlets quantity: 2 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min. Form factor: Compact, Product colour: Black, International Protection (IP) code: IP20. Certification: CE |
| Typical backup time at full load | 10 min |
| Unit Box Height | 0.22 |
| Unit Box Length | 0.34 |
| Unit Box Width | 0.18 |
| Unit Calculated Volume | 0.01204 cubm |
| Unit Calculated Weight | 4.03 kg |
| Units per Shipping Box | 4 |
| UPS topology | Line-Interactive |
| Vendor Homepage | https://www.tecnoware.com/en-US/Dettaglio/Famiglia/185 |
| Waveform | Sine |
| Weight | 3900 g |
| Width | 101 mm |
