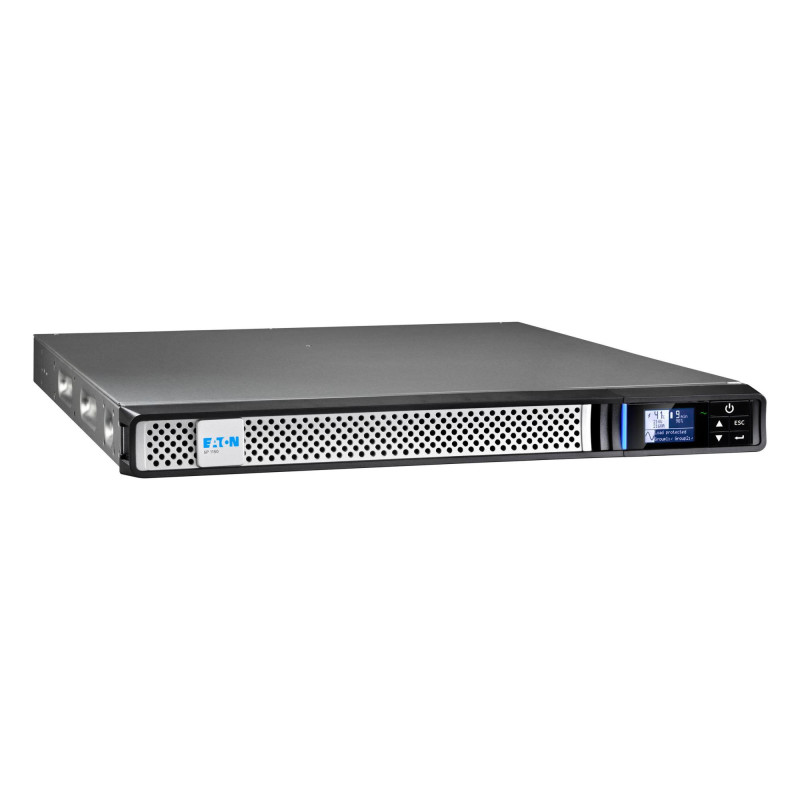

UPS, EATON, 920 Watts, 230 VA, Wave form type Sinewave, LineInteractive, Rack 1U, 5P1150IRG2
Product reference:
2-3553340710315
UPS, EATON, 920 Watts, 230 VA, Wave form type Sinewave, LineInteractive, Rack 1U, 5P1150IRG2
Product reference:
2-3553340710315
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days

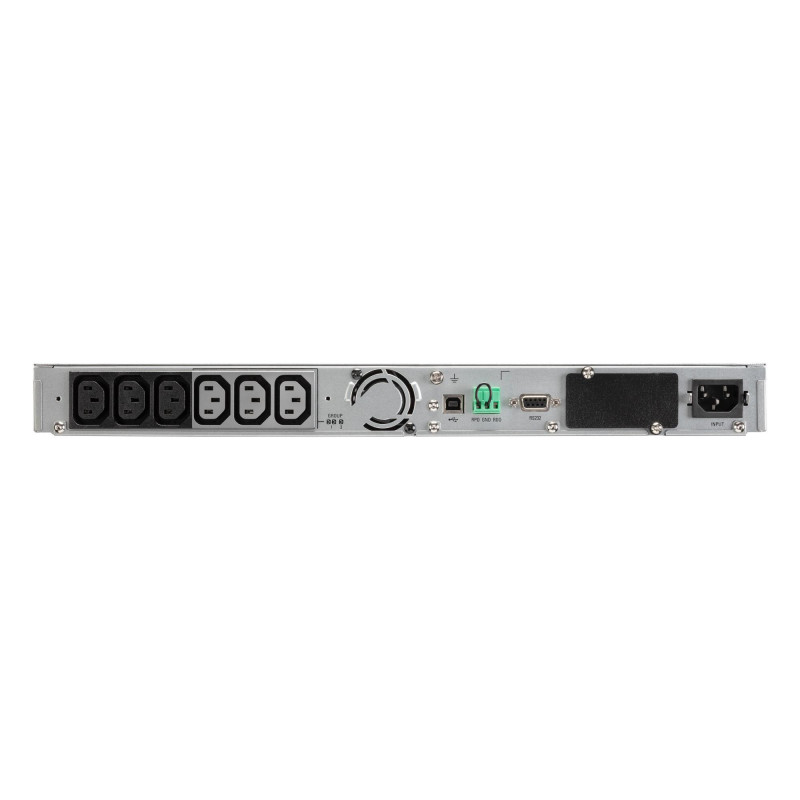

| AC outlet types | C13 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| Automatic Voltage Regulation (AVR) | Yes |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 6 V |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
| Depth | 509 mm |
| Display type | LCD |
| Efficiency | 98.2 % |
| Form factor | Tower |
| Heat dissipation | 465 BTU/h |
| Height | 43.2 mm |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 294 V |
| Input operation voltage (min) | 150 V |
| Manual | Yes |
| Model | 5P Gen2 |
| Noise level | 35 dB |
| Number of batteries supported | 4 |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output power | 920 W |
| Parameter Level | 1 |
| Power plug | C14 coupler |
| Product colour | Black,Silver |
| Product Net Weight | 14.9 kg |
| Quick installation guide | Yes |
| Rack capacity | 1U |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Shipping Box Depth | 59 cm |
| Shipping Box Height | 18.5 cm |
| Shipping Box Weight | 19.2 kg |
| Shipping Box Width | 54 cm |
| Summary | Eaton 5P1150IRG2. UPS topology: Line-Interactive, Output power: 920 W, Waveform: Sine. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 6 V. Form factor: Tower, Product colour: Black, Silver, Rack capacity: 1U. Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
| Unit Box Height | 0.185 |
| Unit Box Length | 0.59 |
| Unit Box Width | 0.54 |
| Unit Calculated Volume | 0.058941 cubm |
| Unit Calculated Weight | 19.2 kg |
| Units per Shipping Box | 1 |
| UPS topology | Line-Interactive |
| USB port | Yes |
| USB port type | USB Type-B |
| Vendor Homepage | https://www.eaton.com/ua/en-gb/skuPage.5P1150IRG2.html |
| Waveform | Sine |
| Weight | 14200 g |
| Width | 438 mm |
