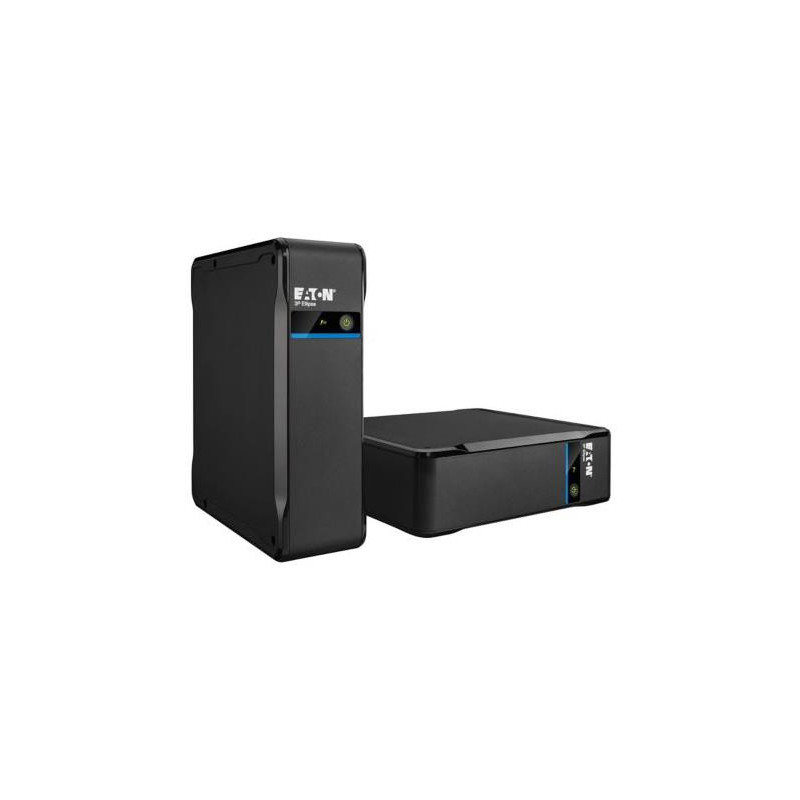

UPS, EATON, 420 Watts, 700 VA, Offline, Phase 1phase, 3P700D
Product reference: 2-3553340621284

UPS, EATON, 420 Watts, 700 VA, Offline, Phase 1phase, 3P700D

Product reference: 2-3553340621284
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
119,28
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

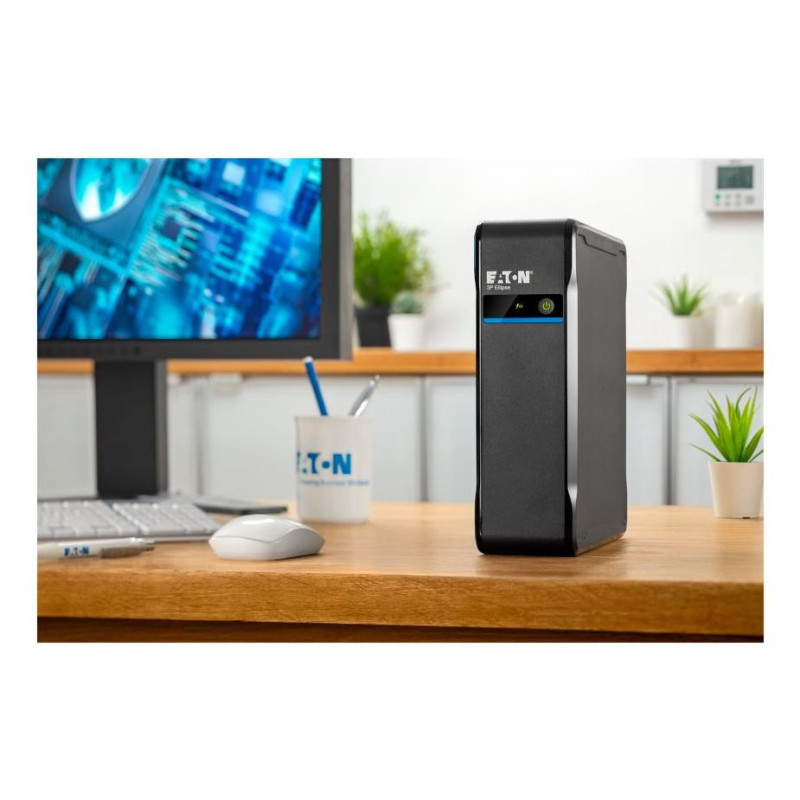

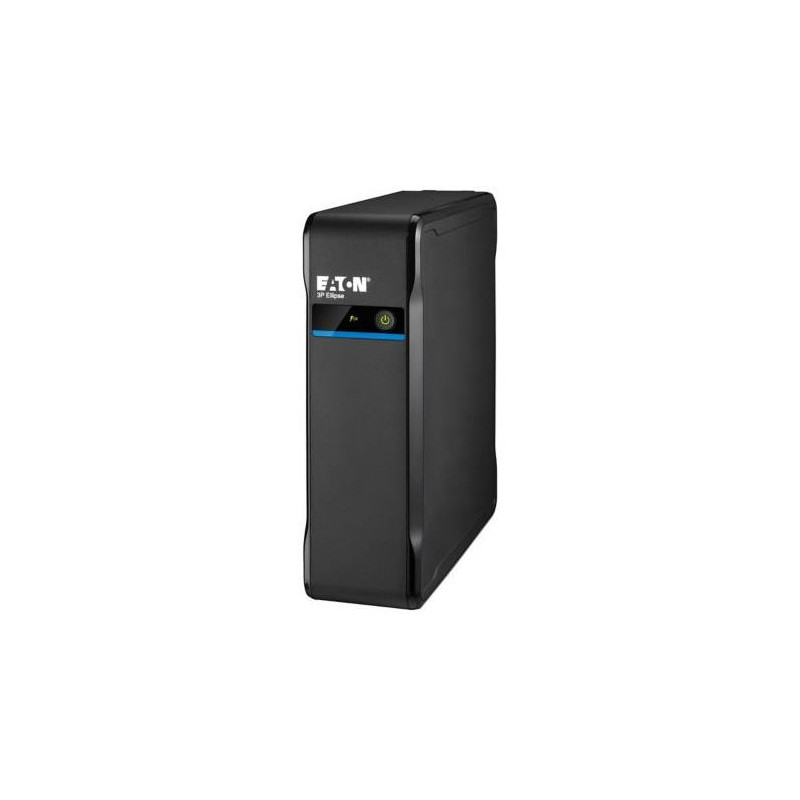

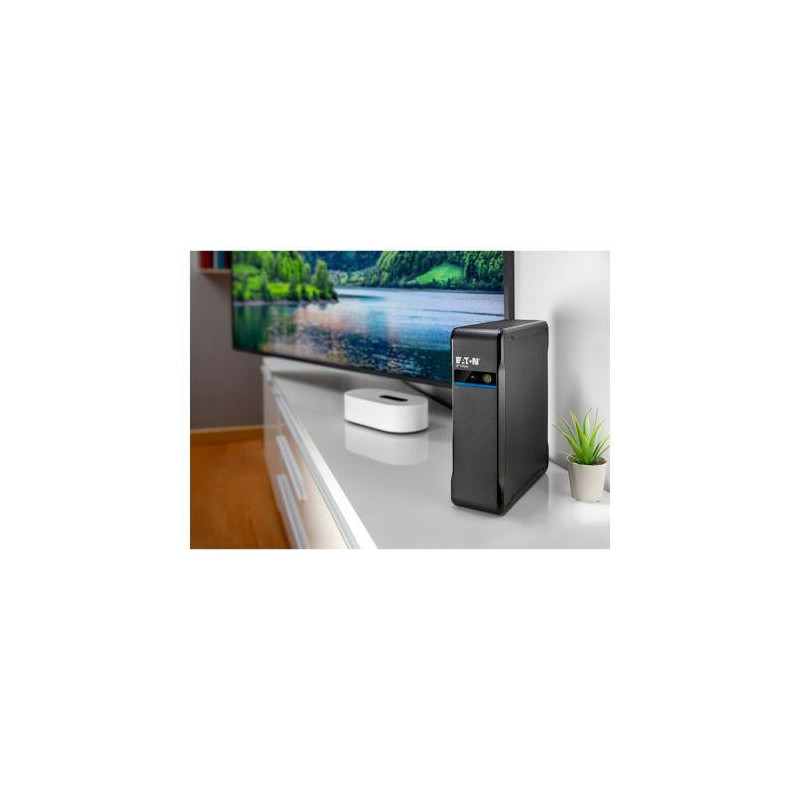

The 3P Ellipse UPS is Eaton's latest addition to its power protection solution portfolio. Sleek, attractively designed, and silent in operation, this compact UPS offers an exceptional user experience for backup power in both residential and small business settings.

Power up with confidence
Enjoy up to 12% more power than the previous Ellipse ECO models and a typical runtime of 15 to 20 minutes, ensuring you can handle disruptions smoothly.

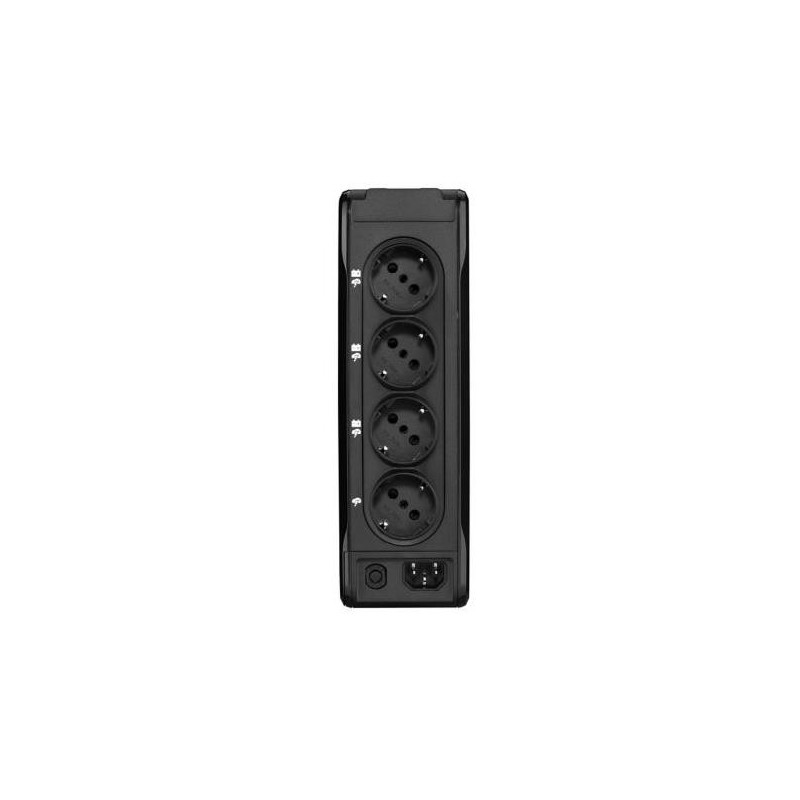

Save yourself the hassle and the need for additional adapters by plugging your equipment directly into the UPS using FR, DIN/IT, and IEC outlet options. This unique feature in a predominantly IEC-only market ensures convenience.

Operate any device with confidence, thanks to the built-in surge protection that meets the high-level IEC 61643-11 standards.

Designed for your space

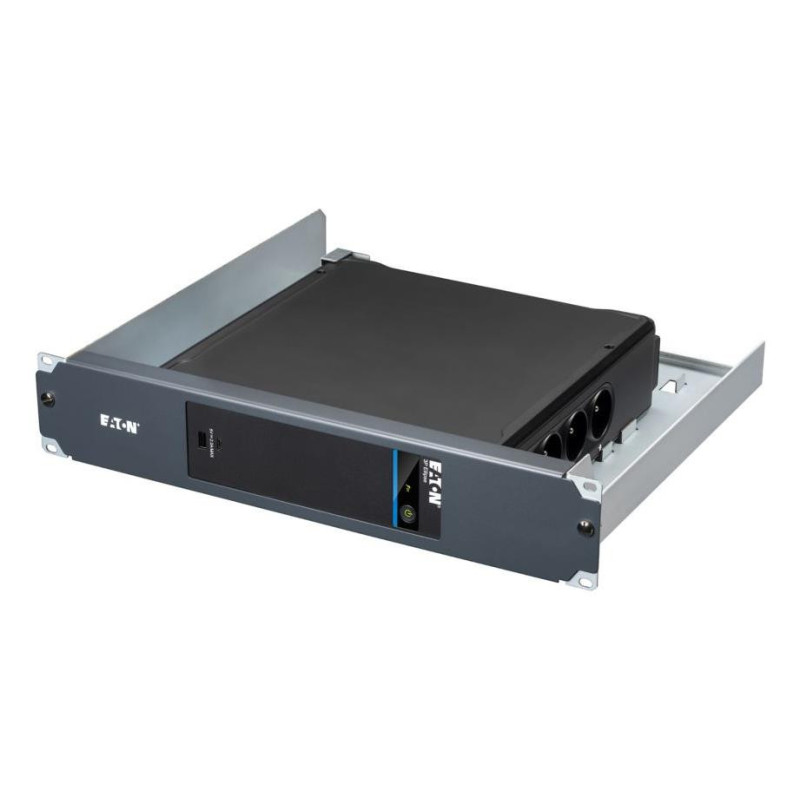

Complement any interior with 3P's contemporary good looks that also come with versatile usability. Flexible, multi-position design allows the UPS to fit seamlessly into any environment—horizontally, vertically, as well as rack or wall-mounted (with optional kits).

Charge mobile devices whenever you need to using 3P's choice of USB-A and USB-C charging ports.

Watch, listen or work without distraction.
Enjoy a silent user experience in both residential and business settings thanks to 3P's discreet, no-fan engineering.

Control at your fingertips
Access status and notifications in real time via mobile app or web browser with an optional CLOUDPS card. With remote now the 'new normal' for many small businesses, cloud connectivity brings added control and peace of mind from any location.

  • Power up with confidence
  • Designed for your space
  • Control at your fingertips

AC outlet types C14 coupler
AC outlets quantity 4 AC outlet(s)

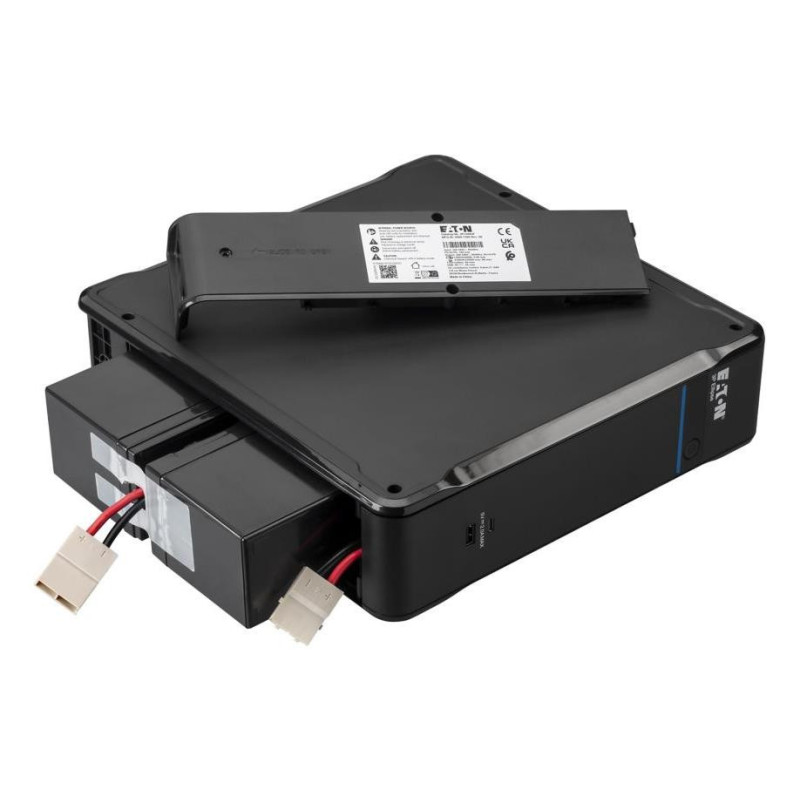

Battery capacity 7 Ah
Battery voltage 12 V
Certification IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
CE
UKCA
Cm
Compliance certificates CB/CE/RoHS/WEEE
Depth 235 mm

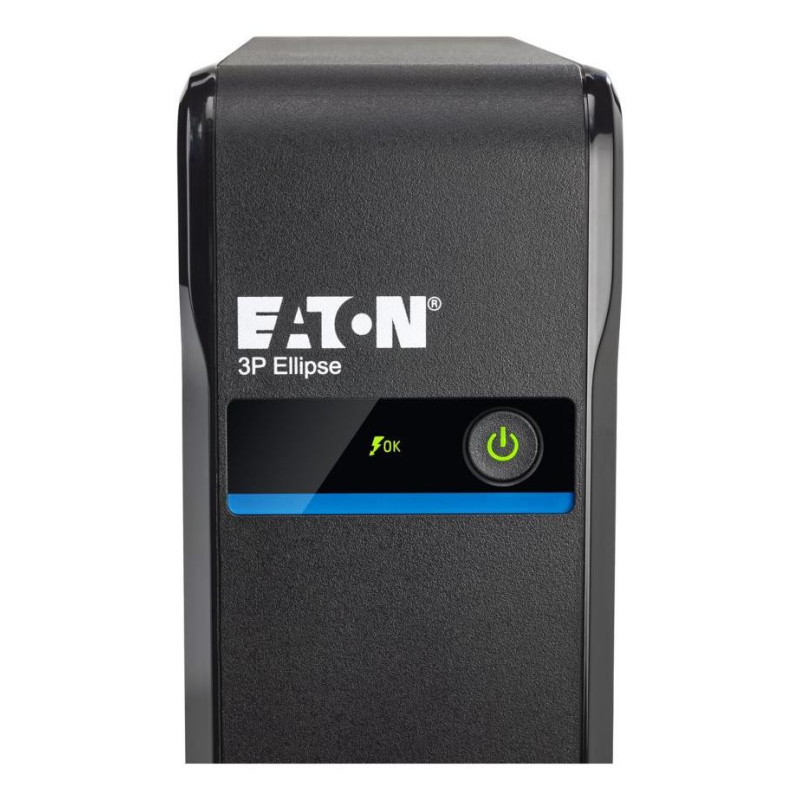

Display type LED
Efficiency 97 %
Efficiency (ECO mode) 97 %
Form factor Tower
Height 263 mm
Input frequency 46/70 Hz
Input operation voltage (max) 284 V
Input operation voltage (min) 161 V
Model 3P700D
Noise level 25 dB
Number of input phases 1
Number of output phases 1
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) 0 - 40 °C
Output frequency 50/60 Hz
Output operation voltage (max) 284 V
Output operation voltage (min) 161 V
Output power 420 W
Output power capacity 0.7 kVA
Output power factor 0.6
Product colour Black
Product Net Weight 3.7 kg
Rack mount kit No
Shipping Box Depth 28.5 cm
Shipping Box Height 32 cm
Shipping Box Weight 4.3200001717 kg
Shipping Box Width 14 cm
Summary Eaton 3P Ellipse. UPS topology: Standby (Offline), Output power capacity: 0.7 kVA, Output power: 420 W. AC outlet types: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Display type: LED. Compliance certificates: CB, CE, RoHS, WEEE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Cm
Surge protection Yes
Unit Box Height 0.32
Unit Box Length 0.285
Unit Box Width 0.14
Unit Calculated Volume 0.01277 cubm
Unit Calculated Weight 4.32 kg
Units per Shipping Box 1
UPS topology Standby (Offline)
Vendor Homepage https://www.eaton.com
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Waveform Stepwise
Weight 3700 g
Width 81 mm
