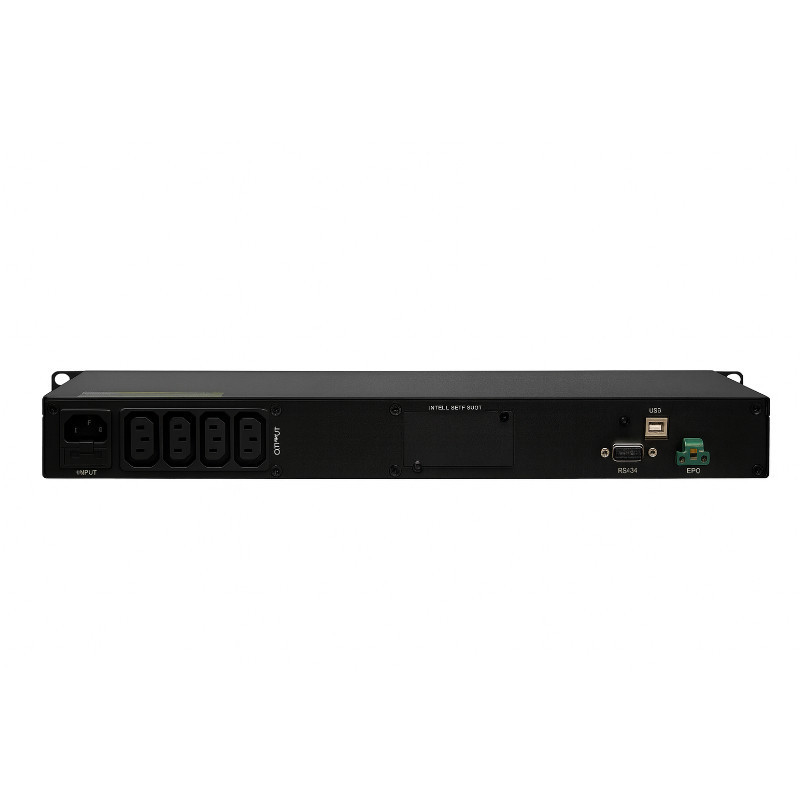

UPS Blacktec Office PRO 1U 750VA 450W Line Interactive

UPS Blacktec Office PRO 1U 750VA / 450W Line Interactive

is a compact emergency power supply in technology Line Interactive, designed specifically for installation in 19" rack cabinets (1U height). It is ideal for protecting servers, network devices, IT systems and sensitive electronics in small server rooms and distribution cabinets.
UPS Blacktec Office PRO 1U 750VA / 450W is ideal for:

The most important advantages

Automatic voltage stabilization Boost Buck AVR — The UPS continuously corrects excessively low or high mains voltage without switching to the battery, which significantly extends battery life and protects connected equipment from damage.

Built-in microprocessor control and LCD display — a clear screen shows real-time input/output voltage, battery charge level and operating mode, and an advanced microprocessor guarantees instant response to changes in the network.

Auto Restart and Cold Start Features — when mains power is restored, the UPS automatically returns to normal operation, and the cold start function allows the UPS and connected equipment to run solely on batteries, even when there is no power at the outlet.

Line Interactive technology with AVR

The UPS constantly monitors the network parameters and in the event of voltage drops or increases, it immediately corrects them using the built-in stabilizer Boost Buck AVR The switch to battery mode only occurs when the power supply is completely disconnected, which reduces battery wear and extends its life.

Compact 1U rackmount case

Low height 1U and a flat housing simplify installation in 19" rack cabinets. It is an excellent choice where space saving is important, e.g. in small server rooms, access points or telecommunications cabinets.

Key features of the system

Technology: Line Interactive with Automatic Voltage Regulation (AVR)

Power: 750VA / 450W

Outputs: 4 × IEC sockets

Voltage waveform (battery mode): simulated (approximated) sine wave

Charging in off mode: the battery charges even when the UPS is turned off

DSP technology: an advanced processor analyzes network parameters and controls the UPS operation, ensuring short switching times and high reliability

LCD display: shows input/output voltage, battery charge level, load and current operating mode

Auto Restart: when mains power is restored, the UPS automatically returns to normal operation

Cold Start Function: allows you to run the UPS and connected devices solely on batteries

Possibility to add an SNMP card: An optional card installed in the Intelligent Slot allows remote monitoring and management of the UPS over the network.

Technical specifications

Parameters / Model: UPS 750R - 750 VA / 450 W

Entry

Nominal voltage: 165V ~ 290V

Voltage range: 165V ~ 290V

Frequency range: 50 Hz ± 5 Hz

Exit

Battery output voltage: sinusoidal / 230 V AC ±10%

Battery output frequency: 50/60 Hz ±1%

Overload protection: on power supply: fuse; battery: internal current limiting

Switching time: typically 4 ms

AVR-Boost function: YES

AVR-Buck function: YES

Battery

Battery type: 6V / 7-9Ah × 2

Typical charging time: 8 hours

Automatic charger: YES

Automatic restart: YES

Backup time (50% load, internal batteries): 10 min

Backup time (100% load, internal batteries): 4 min

Dimensions and weight

Dimensions (W x D x H): 44 mm × 230 mm × 433 mm

Net weight: 8.6 kg

Total number of UPS sockets: IEC C13 × 4

Environment

Operating temperature: 0-40°C

Operating relative humidity: 0-90% (non-condensing)

Management

Ports and connectors: EPO, RS-232, smart slot, USB

SNMP / supported systems: Windows Server, Windows 7 / 8 / 10 / 11 (32 64 bit), Windows Hyper-V 2012 / 2022, Windows SBS 2011 (32 64 bit), Linux, ESXi 4.X / 5.X / 6.X / 7.X / 8.X, Mac OS 10-11

Standards

EMC: EN IEC 62040-2:2018 / EN IEC 61000-3-2:2019
