UPS Blacktec Office PRO 1U 500VA / 300W Line Interactive
UPS Blacktec Office PRO 1U 500VA / 300W is a compact emergency power supply in technology Line Interactive, adapted for mounting in 19" rack cabinets (1U height). It is ideal for protecting network devices, small servers, recorders, routers and other electronics in server rooms, IT cabinets and access points.
UPS Blacktec Office PRO 1U 500VA / 300W is especially recommended for:
- 19" rack cabinets with network devices (switches, routers, firewalls),
- small servers and monitoring recorders,
- ISP access points and telecommunications installations,
- smaller IT systems where power continuity and space saving are important.
The most important advantages
- Automatic voltage stabilization Boost Buck AVR — The UPS continuously corrects excessively low or high mains voltage without switching to the battery, which extends battery life and increases the safety of connected equipment.
- Built-in microprocessor control and LCD display - the screen shows the input/output voltage, battery charge level and operating mode in real time,
and the microprocessor ensures a quick response to changes in the network. - Auto Restart and Cold Start Features — when the mains power returns, the UPS returns to normal operation, and the cold start function allows the UPS and connected devices to be started only from the battery, even when there is no power at the socket.
Line Interactive technology with AVR
The UPS constantly monitors the network parameters and in the event of voltage drops or increases, it immediately corrects them using the stabilizer Boost Buck AVR It only switches to battery power in the event of a complete power outage, which saves the battery and extends its lifespan.
Compact 1U rackmount case
Slim housing with a height of 1U facilitates installation in 19" rack cabinets and integration with existing server and network infrastructure, even where space is very limited.
Key features of the system
- Technology: Line Interactive with Automatic Voltage Regulation (AVR)
- Power: 500VA / 300W
- Outputs: 4 × IEC sockets
- Voltage waveform (battery mode): simulated (approximated) sine wave
- Charging in off mode: the batteries are charged even when the UPS is turned off
- DSP technology: a digital processor analyzes network parameters and controls the UPS operation, ensuring short switching times and high reliability
- LCD display: shows input/output voltage, battery level, current load and operating mode
- Auto Restart: when power is restored, the UPS automatically returns to network mode
- Cold Start Function: allows you to run the UPS and connected devices solely on batteries
- Optional SNMP card: Possibility of installing a card in the Intelligent Slot for remote monitoring and management of the UPS via the network
Technical specifications
- Parameters / Model: UPS 500R - 500 VA / 300 W
Entry
- Nominal voltage: 165V ~ 290V
- Voltage range: 165V ~ 290V
- Frequency range: 50 Hz ± 5 Hz
Exit
- Battery output voltage: sinusoidal / 230 V AC ±10%
- Battery output frequency: 50/60 Hz ±1%
- Overload protection: on power supply: fuse; battery: internal current limiting
- Switching time: typically 4 ms
- AVR-Boost function: YES
- AVR-Buck function: YES
Battery
- Battery type: 6V / 7Ah × 2
- Typical charging time: 8 hours
- Automatic charger: YES
- Automatic restart: YES
- Backup time (50% load, internal batteries): 12 min
- Backup time (100% load, internal batteries): 6 min
Dimensions and weight
- Dimensions (W x D x H): 44 mm × 230 mm × 433 mm
- Net weight: 7.6 kg
- Total number of UPS sockets: IEC C13 × 4
Environment
- Operating temperature: 0-40°C
- Operating relative humidity: 0-90% (non-condensing)
Management

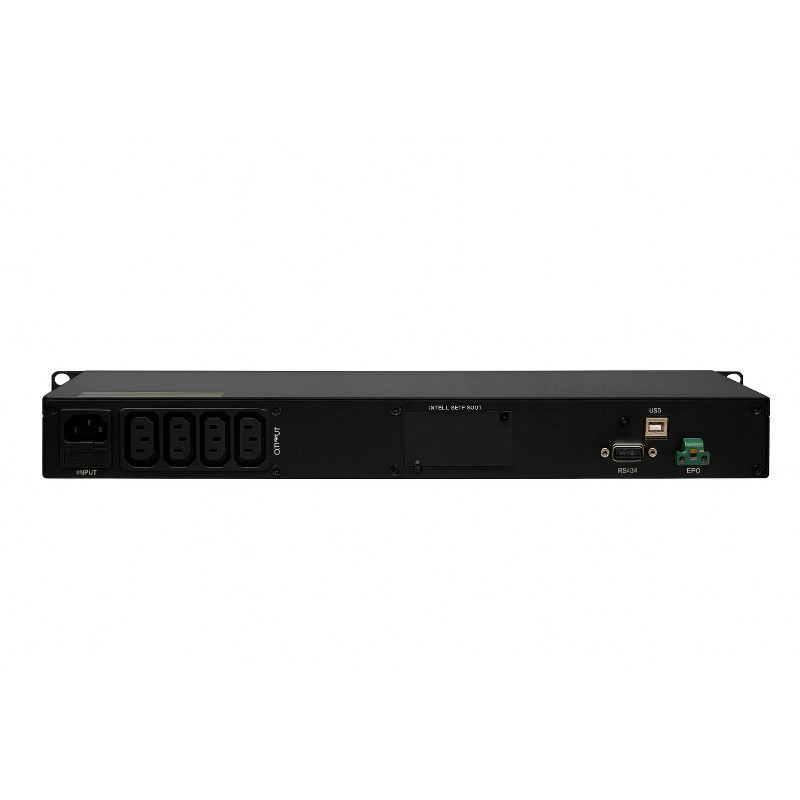

- Ports and connectors: EPO, RS-232, smart slot, USB
- SNMP / supported systems: Windows Server, Windows 7 / 8 / 10 / 11 (32 64 bit), Windows Hyper-V 2012 / 2022, Windows SBS 2011 (32 64 bit), Linux, ESXi 4.X / 5.X / 6.X / 7.X / 8.X, Mac OS 10-11
Standards
- EMC: EN IEC 62040-2:2018 / EN IEC 61000-3-2:2019
