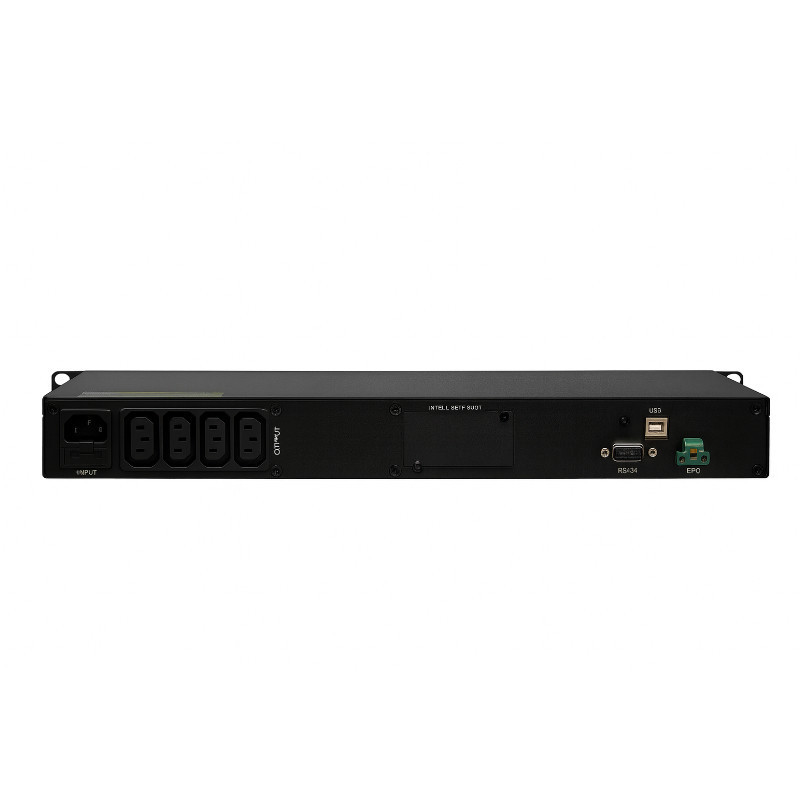

UPS Blacktec Office PRO 1U 1500VA / 900W Line Interactive

UPS Blacktec Office PRO 1U 1500VA / 900W Line Interactive

is a powerful emergency power supply in technology Line Interactive, adapted for mounting in 19" rack cabinets (1U height). It provides stable power supply and maintenance of servers, network devices, monitoring systems and IT infrastructure in small and medium-sized server rooms.
UPS Blacktec Office PRO 1U 1500VA / 900W is particularly well-suited for:

• 19" rack cabinets with servers, data arrays and network devices,


• IP monitoring systems (recorders, PoE switches, routers),


• server rooms and colocation points with limited space,


• telecommunications and VoIP infrastructure, where high power reliability is required.

The most important advantages

• Automatic voltage stabilization Boost Buck AVR — The UPS continuously corrects excessively low or high mains voltage without switching to the battery, which significantly extends battery life and effectively protects connected equipment against damage caused by voltage fluctuations.


• Built-in microprocessor control and LCD display — a clear screen displays real-time input/output voltage, battery charge level and operating mode, and an advanced microprocessor guarantees a quick and precise response to changes in the network.


• Auto Restart and Cold Start Features — when mains power is restored, the UPS automatically returns to normal operation, and the cold start function allows the UPS and connected devices to run solely on batteries, even when there is no power at the outlet.

Line Interactive technology with AVR

The UPS constantly monitors the network parameters and in the event of voltage drops or increases, it immediately corrects them using the stabilizer. Boost Buck AVR The device switches to battery mode only when there is a complete power outage, which helps reduce battery wear and extends battery life.
Compact 1U rackmount case Slim housing with a height of 1U facilitates installation in 19" rack cabinets and allows for efficient use of space in the server room or IT cabinet. The UPS can be easily integrated with the existing IT and network infrastructure.

Key features of the system

• Technology: Line Interactive with Automatic Voltage Regulation (AVR)


• Power: 1500VA / 900W


• Outputs: 4 × IEC sockets


• Voltage waveform (battery mode): simulated (approximated) sine wave


• Charging in off mode: the batteries are charged even when the UPS is turned off


• DSP technology: a digital processor analyzes network parameters and controls the UPS operation, ensuring short switching times and high reliability


• LCD display: shows input/output voltage, battery charge level, current load and operating mode


• Auto Restart: when the mains power returns, the UPS automatically returns to mains mode


• Cold Start Function: the ability to run the UPS and connected devices only from batteries


• Optional SNMP card: the ability to install the card in the Intelligent Slot enables remote monitoring and management of the UPS via the network (including automatic shutdown of servers).

Technical specifications

• Parameters / Model: UPS 1500R - 1500 VA / 900 W

Entry

• Nominal voltage: 165V ~ 290V


• Voltage range: 165V ~ 290V


• Frequency range: 50 Hz ± 5 Hz

Exit

• Battery output voltage: sinusoidal / 230 V AC ±10%


• Battery output frequency: 50/60 Hz ±1%


• Overload protection: on power supply: fuse; battery: internal current limiting


• Switching time: typically 4 ms


• AVR-Boost function: YES


• AVR-Buck function: YES

Battery

• Battery type: 6V / 9Ah × 4


• Typical charging time: 8 hours


• Automatic charger: YES


• Automatic restart: YES


• Backup time (50% load, internal batteries): 9 min


• Backup time (100% load, internal batteries): 3 min

Dimensions and weight

• Dimensions (W x D x H): 44 mm × 389 mm × 433 mm


• Net weight: 16.2 kg


• Total number of UPS sockets: IEC C13 × 4

Environment

• Operating temperature: 0-40°C


• Operating relative humidity: 0-90% (non-condensing)

Management

• Ports and connectors: EPO, RS-232, smart slot, USB


• SNMP / supported systems: Windows Server, Windows 7 / 8 / 10 / 11 (32 64 bit), Windows Hyper-V 2012 / 2022, Windows SBS 2011 (32 64 bit), Linux, ESXi 4.X / 5.X / 6.X / 7.X / 8.X, Mac OS 10-11

Standards

• EMC: EN IEC 62040-2:2018 / EN IEC 61000-3-2:2019
