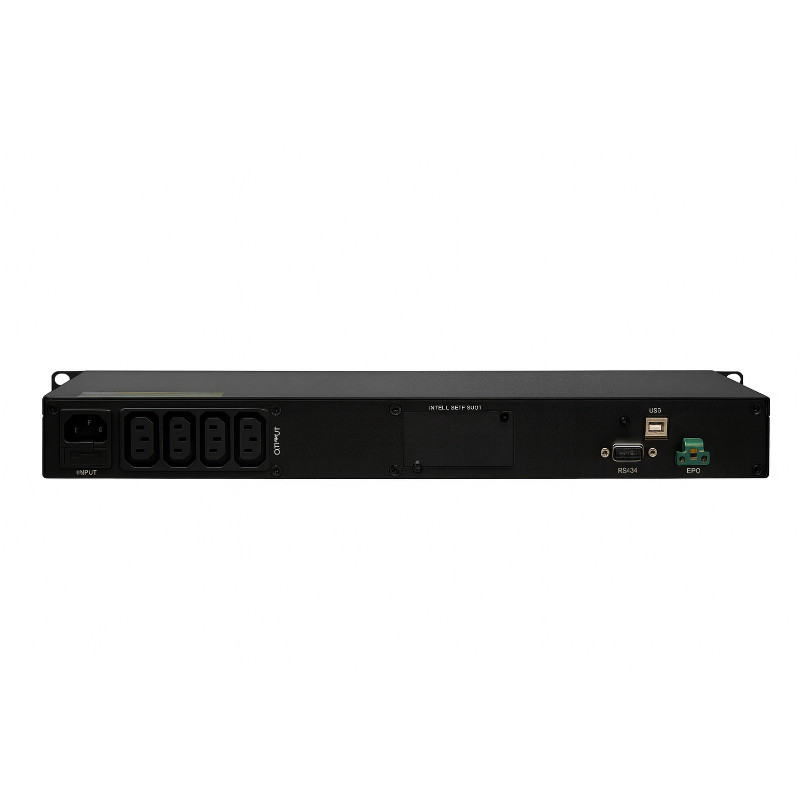

UPS Blacktec Office PRO 1U 1000VA / 600W Line Interactive

UPS Blacktec Office PRO 1U 1000VA / 600W Line Interactive

is an uninterruptible power supply technology Line Interactive, designed for mounting in 19" rack cabinets (1U height). It is ideal for protecting servers, network devices, IT systems and sensitive electronics in small server rooms, distribution cabinets and access points.
UPS Blacktec Office PRO 1U 1000VA / 600W is especially recommended for:

• small server rooms and 19" rack cabinets


• protection of network devices (routers, switches, firewalls),


• IP monitoring systems (recorders, PoE switches),


• telecommunications installations, VoIP and operator access points.

The most important advantages

• Automatic voltage stabilization Boost Buck AVR — The UPS continuously corrects excessively low or high mains voltage without switching to the battery, which significantly extends battery life and protects connected equipment from damage.


• Built-in microprocessor control and LCD display — a clear screen shows real-time input/output voltage, battery charge level and operating mode, and an advanced microprocessor guarantees instant response to changes in the network.


• Auto Restart and Cold Start Features — when mains power is restored, the UPS automatically returns to normal operation, and the cold start function allows the UPS and connected equipment to run solely on batteries, even when there is no power at the outlet.

Line Interactive technology with AVR

The UPS constantly monitors the network parameters and in the event of voltage drops or increases, it immediately corrects them using the built-in stabilizer. Boost Buck AVR It only switches to battery mode when there is a complete power outage, which reduces battery wear and extends their lifespan.

Compact 1U rackmount case

Slim housing with a height of 1U facilitates installation in 19" rack cabinets, even in limited space. This allows the UPS to be easily integrated with existing server and network infrastructure.

Key features of the system

• Technology: Line Interactive with Automatic Voltage Regulation (AVR)


• Power: 1000VA / 600W


• Outputs: 4 × IEC sockets


• Voltage waveform (battery mode): simulated (approximated) sine wave


• Charging in off mode: the batteries are charged even when the UPS is turned off


• DSP technology: a digital processor supervises the operation of the UPS, ensuring short switching times and high reliability


• LCD display: shows input/output voltage, battery charge level, current load and operating mode


• Auto Restart: when mains power is restored, the UPS automatically returns to normal mode


• Cold Start Function: allows you to run the UPS and connected devices solely on batteries


• Possibility to add an SNMP card: an optional card in the Intelligent Slot allows remote monitoring and management of the UPS over the network

Technical specifications

• Parameters / Model: UPS 1000R - 1000 VA / 600 W

Entry

• Nominal voltage: 165V ~ 290V


• Voltage range: 165V ~ 290V


• Frequency range: 50 Hz ± 5 Hz

Exit

• Battery output voltage: sinusoidal / 230 V AC ±10%


• Battery output frequency: 50/60 Hz ±1%


• Overload protection: on power supply: fuse; battery: internal current limiting


• Switching time: typically 4 ms


• AVR-Boost function: YES


• AVR-Buck function: YES

Battery

• Battery type: 6V / 7Ah × 4


• Typical charging time: 8 hours


• Automatic charger: YES


• Automatic restart: YES


• Backup time (50% load, internal batteries): 11 min


• Backup time (100% load, internal batteries): 5 min

Dimensions and weight

• Dimensions (W x D x H): 44 mm × 389 mm × 433 mm


• Net weight: 14.2 kg


• Total number of UPS sockets: IEC C13 × 4

Environment

• Operating temperature: 0-40°C


• Operating relative humidity: 0-90% (non-condensing)

Management

• Ports and connectors: EPO, RS-232, smart slot, USB


• SNMP / supported systems: Windows Server, Windows 7 / 8 / 10 / 11 (32 64 bit), Windows Hyper-V 2012 / 2022, Windows SBS 2011 (32 64 bit), Linux, ESXi 4.X / 5.X / 6.X / 7.X / 8.X, Mac OS 10-11

Standards

• EMC: EN IEC 62040-2:2018 / EN IEC 61000-3-2:2019
