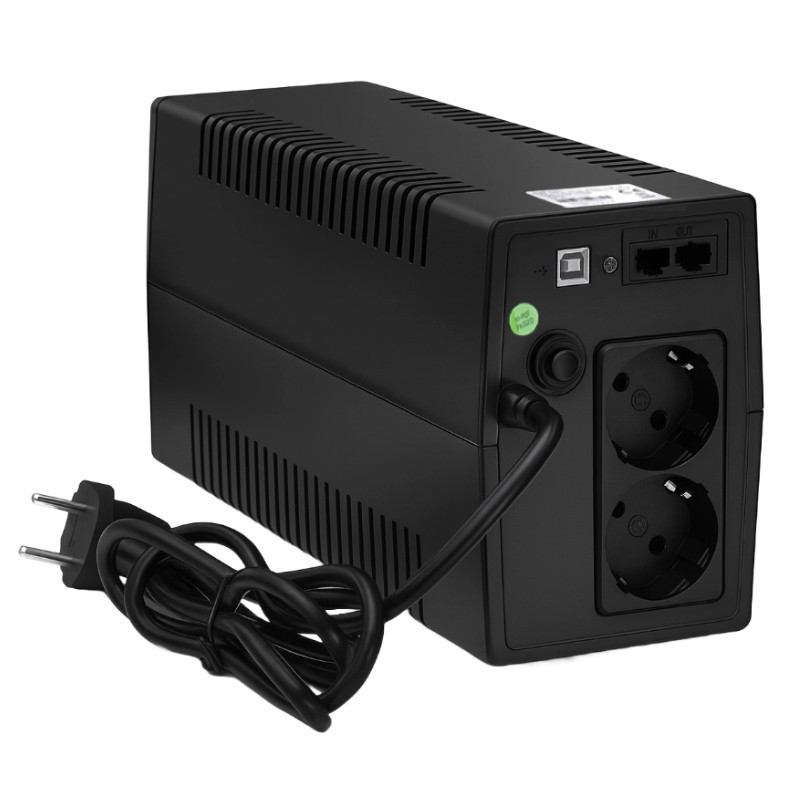

UPS Blacktec Office 650VA / 390W Line Interactive

UPS Blacktec Office 650VA / 390W Line Interactive

is a compact emergency power supply in technology Line Interactive, designed to protect computers, routers, CCTV recorders, cash registers, and other office electronics. It stabilizes voltage, maintains power during power outages, and protects connected equipment against voltage spikes and drops.
The Blacktec Office 650VA / 390W UPS is ideal for:

• offices and home workstations - protection of computers, monitors, routers,


• monitoring systems - support for recorders and switches,


• small server rooms and racks (indirectly, in small installations),


• home installations where short-term operation of devices is required during a power outage.

The most important advantages

• Automatic voltage stabilization Boost Buck AVR — The UPS continuously corrects excessively low or high mains voltage without switching to the battery, which extends battery life and protects connected equipment.


• Built-in microprocessor control and LCD display — the screen shows the input/output voltage, battery charge level and operating mode, and the advanced controller ensures quick response to network changes.


• Auto Restart and Cold Start — when the power is restored, the UPS returns to normal operation on its own, and the cold start function allows you to start the device from the battery alone, even when there is no power in the socket.

Line Interactive technology with AVR

The UPS monitors the mains voltage and in the event of drops or increases, automatically corrects it using a stabilizer. Boost Buck AVR .It only switches to battery power in the event of a complete power outage, which minimizes battery wear.

Boost Buck AVR for voltage stabilization

The device automatically increases too low voltage (Boost) and reduces too high voltage (Buck) in a wide range so that the receivers operate at close to nominal values. 230V, without unnecessarily switching to battery mode.

Key features of the system

• Line Interactive Technology with automatic voltage regulation (AVR)


• Power: 650VA / 390W


• Simulated sine wave in battery mode - compatible with computers, electronics, small central heating pumps, fans and controllers


• Charging in off mode — the battery charges even when the UPS is turned off


• DSP technology — a digital processor supervises the UPS operation and ensures short switching times


• Touchscreen LCD display — shows input/output voltage, battery level, load and operating mode


• Auto Restart after the mains power returns


• Cold Start function — running the UPS only on batteries


• Telephone line protection (e.g. modem, router, switchboard)

Technical specifications

• Parameters / Model: Blacktec Office 650 - 650 VA / 390 W

Entry

• Nominal voltage: 220 / 230 / 240 VAC


• Input voltage range: 140 - 300 VAC


• Frequency: 50/60 Hz (auto detect)

Exit

• Voltage regulation (battery mode): ±10%


• Frequency adjustment (battery mode): 50 or 60 Hz ± 1 Hz


• Switching time: 2 - 6 ms


• Voltage waveform (battery mode): simulated sine wave

Battery

• Battery type/quantity: 12V 7Ah × 1


• Backup time at 50% load: approx. 8 min


• Backup time at 100% load: approx. 50 sec


• Standard charging time: up to 4 hours to 90% capacity

Dimensions and weight

• Dimensions (W x D x H): 279 × 101 × 142 mm


• Net weight: 4.25 kg


• Total number of UPS sockets: 2 × Schuko

Environment

• Relative humidity: 0-90% RH @ 0-40°C (non-condensing)


• Noise level: <40 dB

Management

• Communication port: Smart RS-232 / USB

Standards

• EMC / safety: EN 62040-1:2008 + A1:2013
